FL04-240W-40K-HV


Placeholder Placeholder Placeholder Placeholder
Thumbnail Thumbnail Thumbnail Thumbnail

Looking for spec sheets and downloads?
Scroll down to the new product downloads table.

Concorde series Flood / Area Light

240W | 4000K | 277-480V
Clearance
4 ratings
Log in to view inventory availability and pricing Don't have an account? Sign up here.
CLEARANCE ITEM - While supplies last
Final Sale - 1-Year Manufacturer Warranty
Sleek, Streamlined Design with Unsurpassed Performance

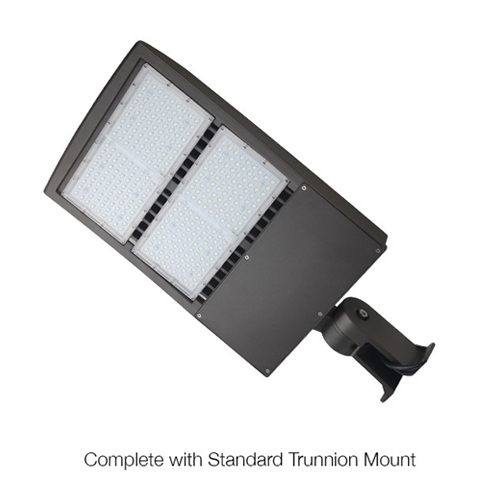

Complete with Trunnion Mount

Bronze Finish (select models available in white)

Type III Optics Standard, Type V Available

Other mounting options available, ordered separately:

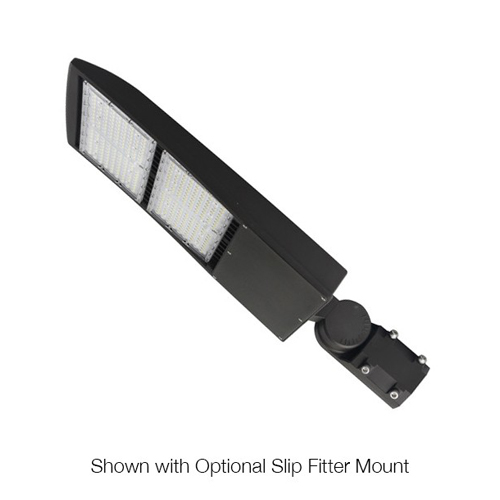

Slip Fitter (FL04-SF)

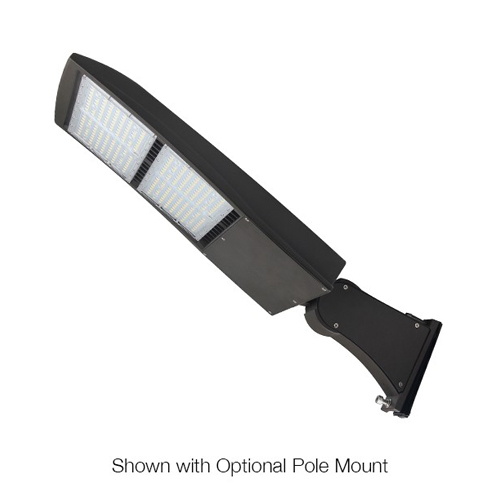

Pole Mount (FL04-PM)

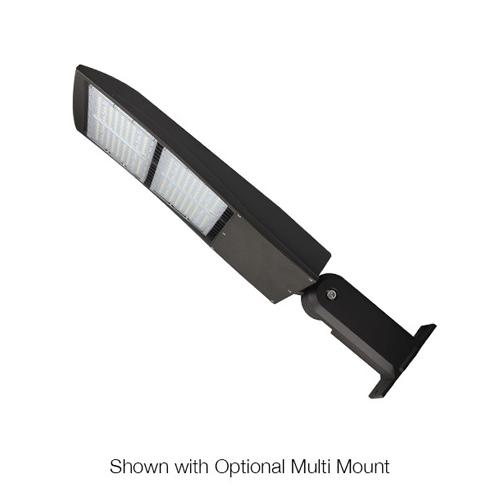

Multi Mount (FL04-MM)

Options available, ordered separately:

Twist Lock Photocell

Fixture Mounted Motion Sensor (120-277V models only)

Visor

Please contact your rep for details or email info@csc-led.com
Product Number:
FL04-240W-40K-HV
Certifications Listed:
cUL
Light Specifications
Color Temperature:
4000K
Initial Lumens:
31053lm
Efficacy:
130.36 LM/W
Dimmable:
0-10V
CRI:
72.9
Life (L70):
54000
Electrical Specifications
Watts:
240W
Voltage:
277-480V
IP Rating:
IP65
THD:
11.03%
Power Factor:
0.93
Operating Temperature:
-40°C to 40°C
Construction Specifications
Housing:
Aluminum Alloy
Finish Color:
Bronze
Mounting Type:
Trunnion
Logistics
Carton Weight:
12 lbs
Carton Length:
12.0 in
Carton Width:
7.0 in
Carton Height:
12.0 in
Unit Gross Weight:
15.87 lbs
Customer Reviews
  • Great Product
    Toan N.
    16-Jul-2021
    Reasonably priced.
  • Problem Solved!
    Anthony M.
    15-Mar-2021
    This handy little unit was requested after a concerned neighbor had complained about glare coming off newly installed FL04 light fixtures in a parking lot. Once installed, it solved all problems. Happy customer, Neighbor is thrilled to be able to distinguish between Night & Day, All in a cheap fix!
  • Due to the lack of a better word - Perfect
    Peter O.
    12-Mar-2021
    Performance 5 star Specifications as good as they can be: 120-347V; equipped with photocell receptacle; range of mounting accessories All of above at very competitive price!
  • CN Rail concord/brampton
    Marco S.
    05-Mar-2021
    end user was very happy of the with the light output and design. these fixtures were install approx 100' in the air! well done done CSC

Product Downloads


File Name Description
File Name Description
File Name Description

Suggested Substitutions

Product Description
240W | 5000K | 277-480V
300W | 4000K | 277-480V
