FL04-300W-40K-HV

Concorde series Flood / Area Light

300W | 4000K | 277-480V | 36705 lm
Clearance
4 ratings
Log in to view inventory availability and pricing Don't have an account? Sign up here.
CLEARANCE ITEM - While supplies last
Final Sale - 1-Year Manufacturer Warranty
Sleek, Streamlined Design with Unsurpassed Performance

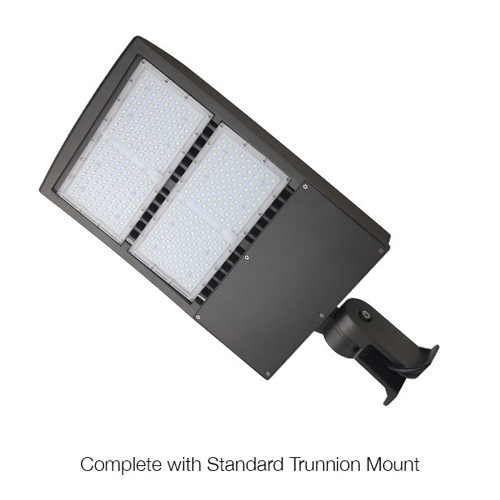

Complete with Trunnion Mount

Bronze Finish (select models available in white)

Type III Optics Standard, Type V Available

Other mounting options available, ordered separately:

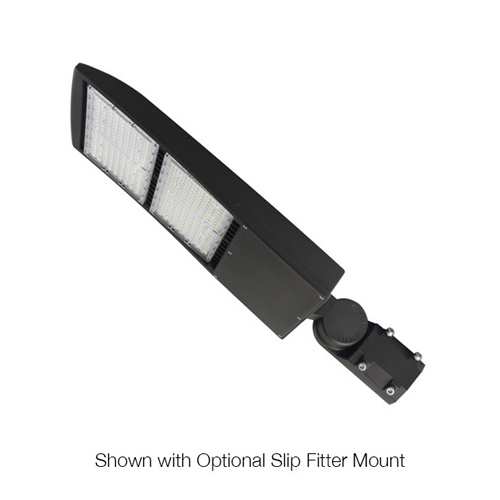

Slip Fitter (FL04-SF)

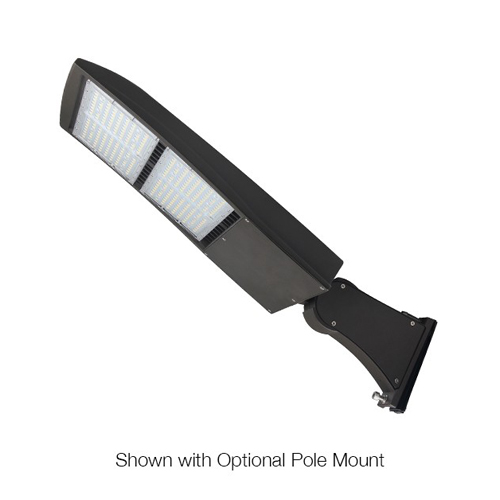

Pole Mount (FL04-PM)

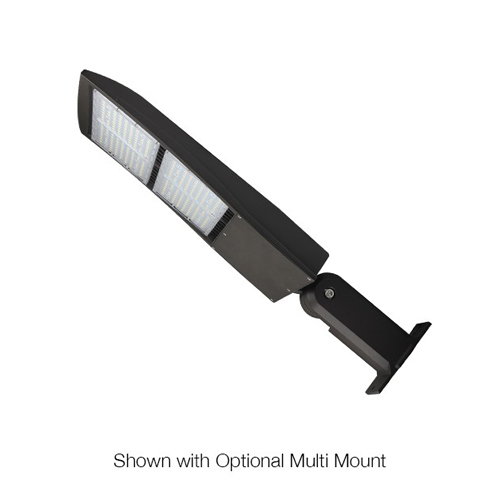

Multi Mount (FL04-MM)

Options available, ordered separately:

Twist Lock Photocell

Fixture Mounted Motion Sensor (120-277V models only)

Visor

Please contact your rep for details or email info@csc-led.com
Product Number:
FL04-300W-40K-HV
Certifications Listed:
cUL
Light Specifications
Color Temperature:
4000K
Initial Lumens:
36705lm
Efficacy:
125.86 LM/W
Dimmable:
0-10V
CRI:
72.7
Life (L70):
54000
Electrical Specifications
Watts:
300W
Voltage:
277-480V
IP Rating:
IP65
THD:
10.35%
Power Factor:
0.91
Operating Temperature:
-40°C to 40°C
Construction Specifications
Housing:
Aluminum Alloy
Finish Color:
Bronze
Mounting Type:
Trunnion
Logistics
Carton Weight:
19.84 lbs
Carton Length:
29.72 in
Carton Width:
15.16 in
Carton Height:
6.30 in
Qty Per Skid:
54
Unit Gross Weight:
17.64 lbs

Customer Reviews
  • Great Product
    Toan N.
    16-Jul-2021
    Reasonably priced.
  • Problem Solved!
    Anthony M.
    15-Mar-2021
    This handy little unit was requested after a concerned neighbor had complained about glare coming off newly installed FL04 light fixtures in a parking lot. Once installed, it solved all problems. Happy customer, Neighbor is thrilled to be able to distinguish between Night & Day, All in a cheap fix!
  • Due to the lack of a better word - Perfect
    Peter O.
    12-Mar-2021
    Performance 5 star Specifications as good as they can be: 120-347V; equipped with photocell receptacle; range of mounting accessories All of above at very competitive price!
  • CN Rail concord/brampton
    Marco S.
    05-Mar-2021
    end user was very happy of the with the light output and design. these fixtures were install approx 100' in the air! well done done CSC
