Providers of Industrial and Commercial LED Lighting for the Wholesale Industry

UDPL-40W-40K


Placeholder
Thumbnail
Downloads
UDPL-40W-40K-Product-Sheet.pdf
UDPL-40W-40K-IES.ies

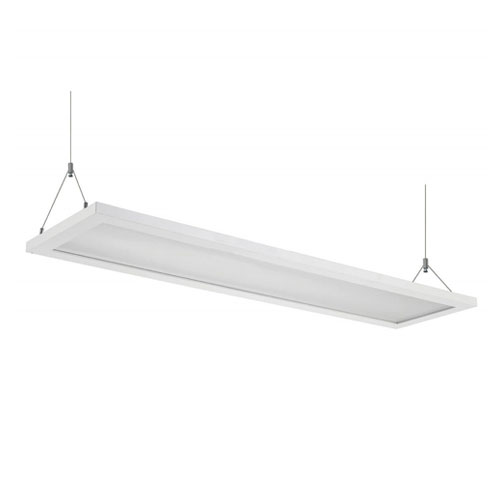

Direct / Indirect Panel Light

40W | 4000K
Log in to view inventory availability and pricing Don't have an account? Sign up here.
Low profile suspended luminaire

Unique design = Uplight and Downlight

Light distribution: 50% up and 50% down

Transparent when off

High quality LED chips

Surge protector

Class II driver

Performance engineered optical lens

0-10V Dimmable
Product Number:
UDPL-40W-40K
CSC-LED Brand Name:
UDPL
Certifications Listed:
cUL, DLC
CSC DLC Number:
PLQJZ1MGJSU6
Light Specifications
Color Temperature:
4000K
Initial Lumens:
4104
Efficacy:
109 LM/W
Dimmable:
0-10V
CRI:
81.2
Life (L70):
50000
Electrical Specifications
Watts:
40W
Voltage:
120-277V
IP Rating:
IP20
THD:
15.41%
Power Factor:
0.92
Operating Temperature:
-20 °C to 40°C
Construction Specifications
Housing:
Aluminum
Finish Colour:
White
Physical Attributes
GTIN:
10845599040320
UPC:
845599040323
