VT4-36W-M40K-UD


Placeholder Placeholder Placeholder Placeholder
Thumbnail Thumbnail Thumbnail Thumbnail
Downloads
VT4-36W-M40K-UD-Product-Sheet.pdf
VT4-36W-M40K-UD-347V-IES.ies
VT4-VT8-36W-46W-65-Instructions.pdf

NEMA 4X Vapour Tight

36W | 4000K | 120-347V
WHILE SUPPLIES LAST
1 rating
Log in to view inventory availability and pricing Don't have an account? Sign up here.

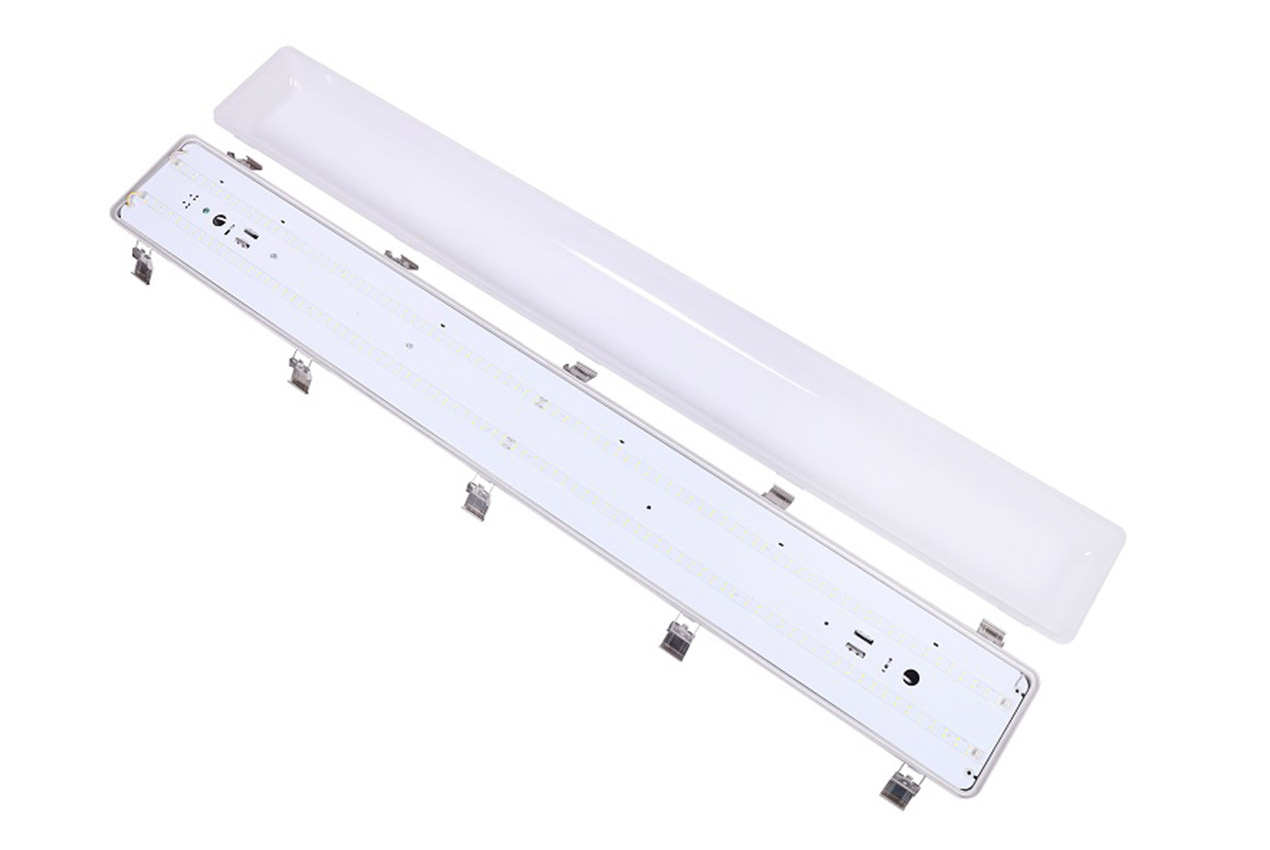

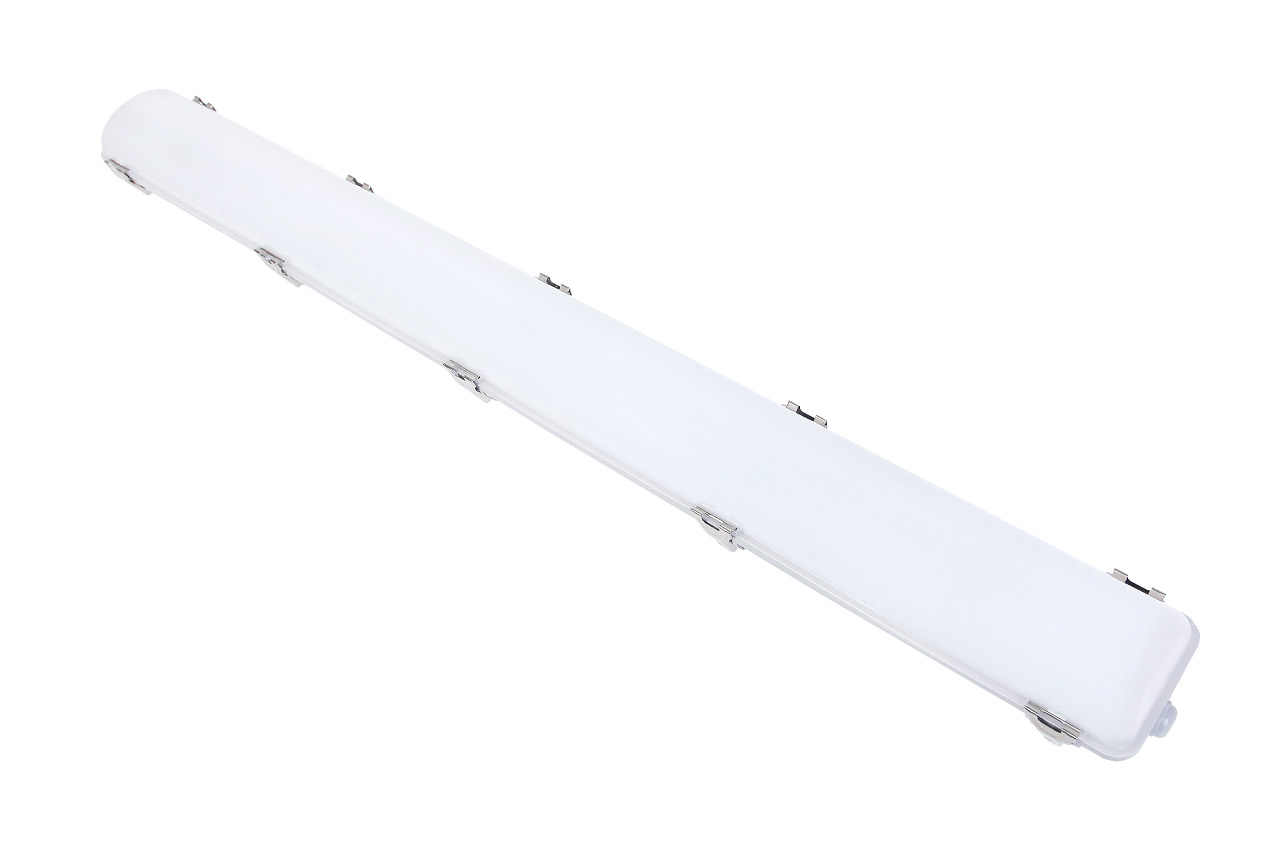

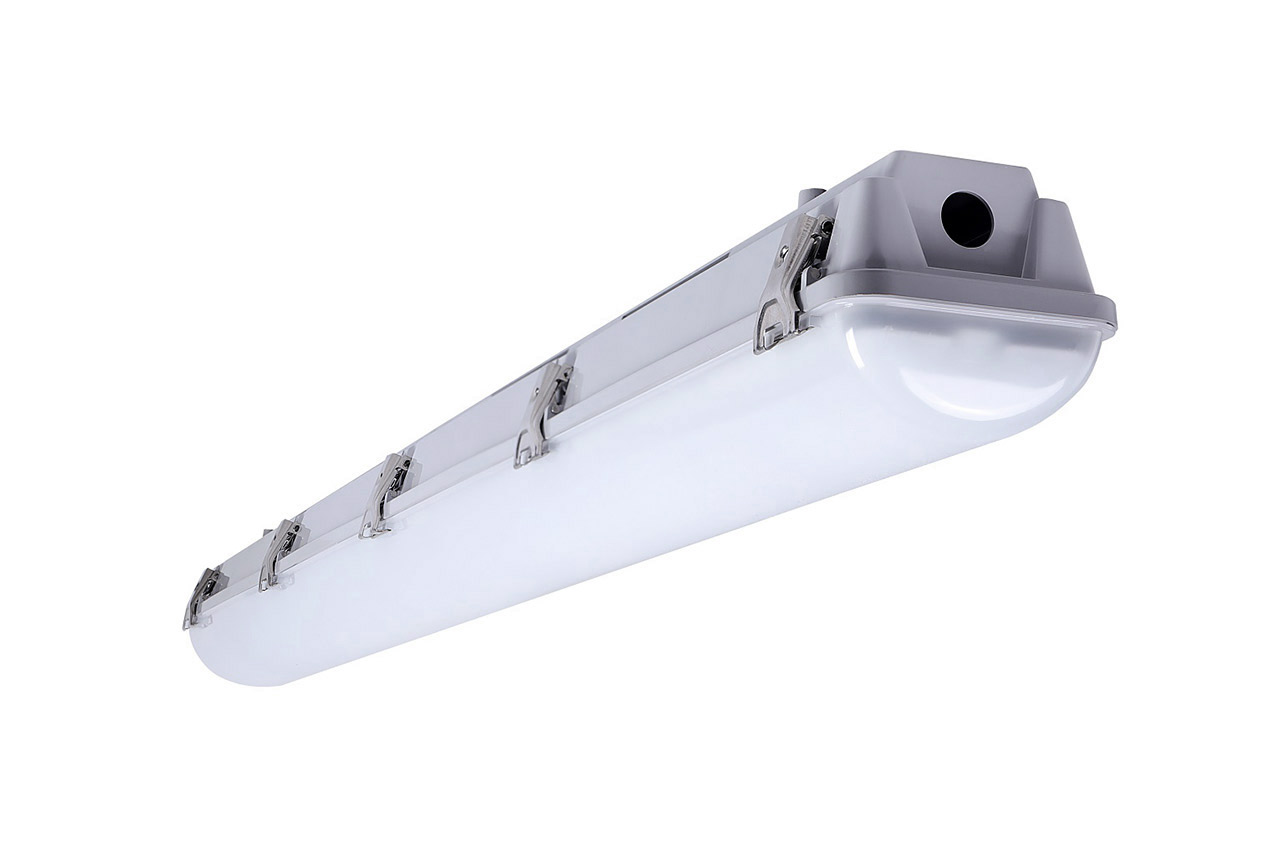

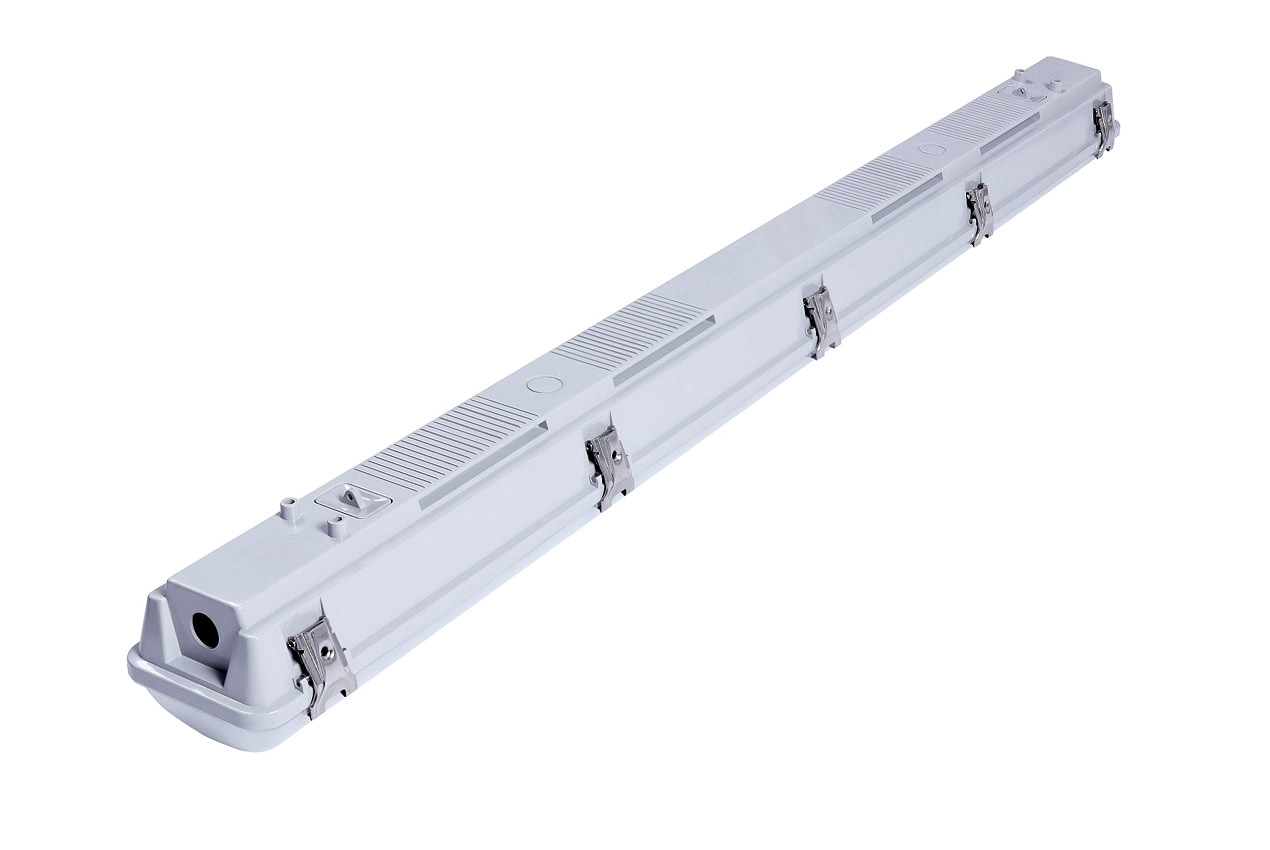

NEMA 4X Vapour Tight Linear Fixture, 4ft

Ideal Replacement for T8 fixtures

120-347V Driver, 0-10V Dimmable

NEMA 4X, NSF Rated, IP66 Rated

Frosted Polycarbonate Lens

Product Number:
VT4-36W-M40K-UD
Certifications Listed:
cETL, DLC
CSC DLC Number:
PLBLOR5UKNJO
Light Specifications
Color Temperature:
4000K
Initial Lumens:
4605lm
Efficacy:
127.62 LM/W
Dimmable:
0-10V
CRI:
84.8
Life (L70):
50000
Electrical Specifications
Watts:
36W
Voltage:
120-347V
IP Rating:
IP66
THD:
14.25%
Power Factor:
0.91
Operating Temperature:
-40 °C to 40°C
Construction Specifications
Housing:
Polycarbonate
Finish Color:
White/Grey
Unit Gross Weight:
4.4 lbs
Optional Accessories Description:
Microwave Motion Sensor, Emergency Battery Backup Kit
Carton Length:
48.00 INCH
Carton Width:
11.00 INCH
Carton Height:
10.00 INCH
Customer Reviews
  • Universal Voltage
    Mckenzie N.
    18-Jul-2022
    Very happy with these vapour proof fixtures - light output, value, style. The universal voltage driver makes these fixtures more versatile and they can be mounted in many different applications!

Related Products

Product Description
32W | 3CCT | 120-347V

Suggested Substitutions

Product Description
36W | 5000K | 120-347V
