RWP02-80W-3CCT-LV


Placeholder Placeholder
Thumbnail Thumbnail
Downloads
RWP02-80W-3CCT-LV-Product-Sheet.pdf
RWP02-80W-3CCT-LV.ies
RWP02-Installation-Instructions.pdf
RWP02-80W-3CCT-LV-FRENCH-Product-Sheet.pdf

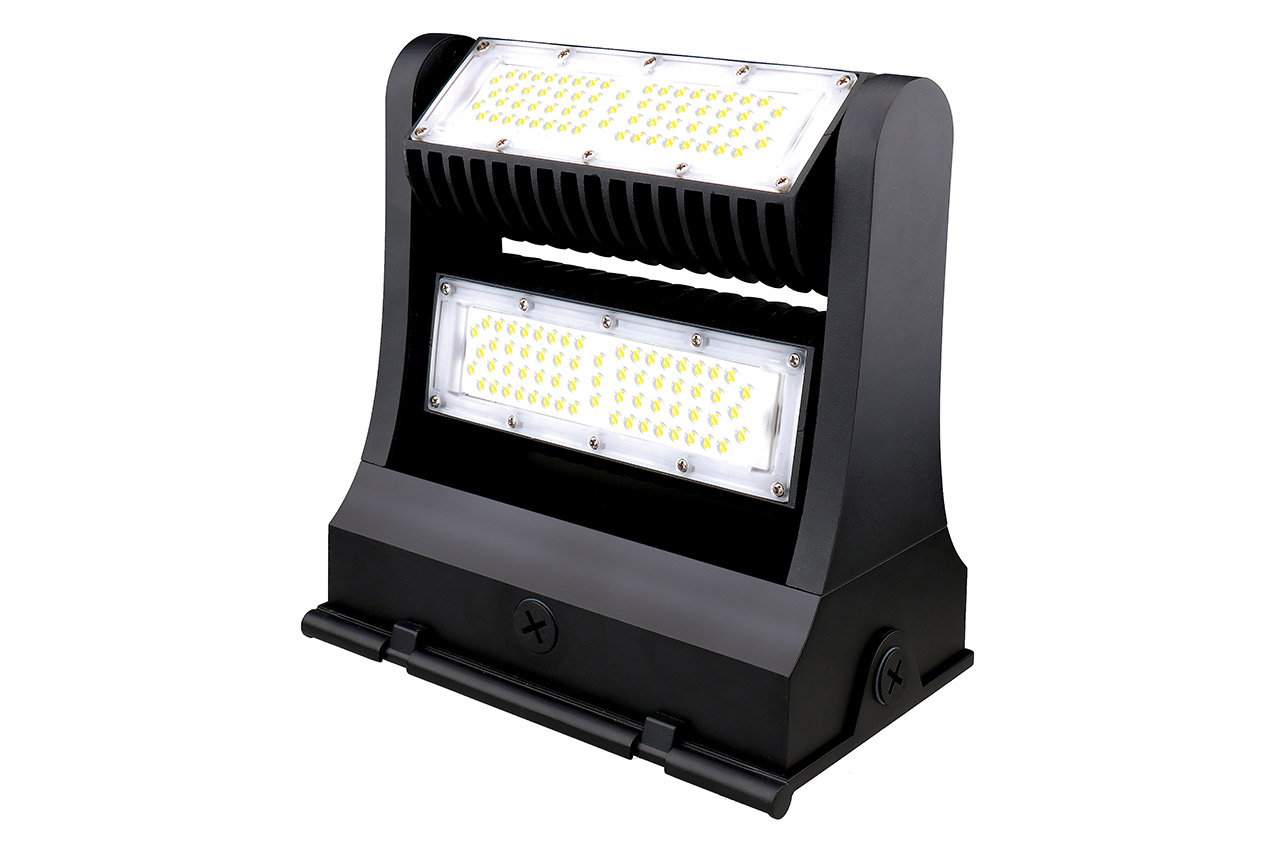

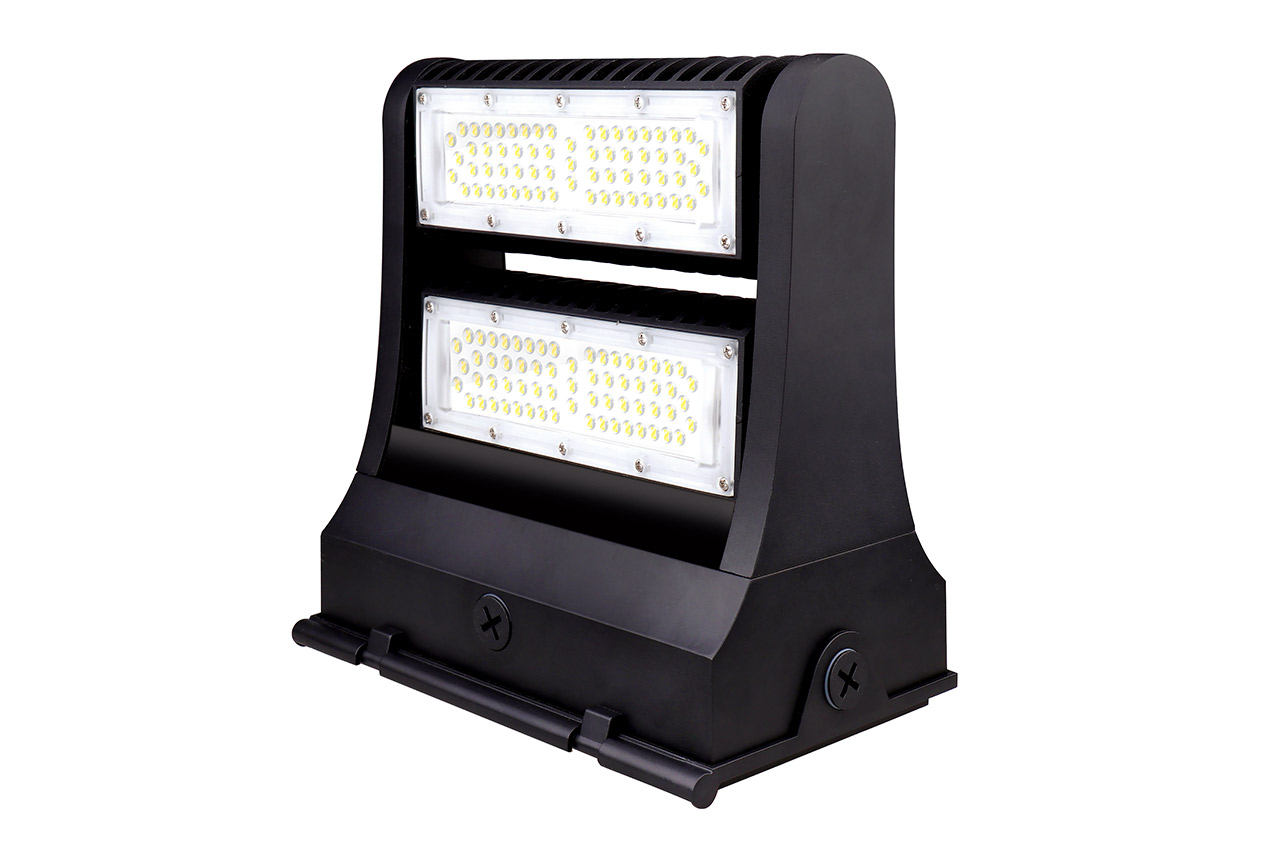

Rotatable Wall Pack

80W l CCT Tunable l 120-277V
Log in to view inventory availability and pricing Don't have an account? Sign up here.

Use as an uplight, downlight, or flood light

270° rotatable modules

Colour tunable (3000K / 4000K / 5000K)

Oversized heat sink for superior thermal management

Powder coat finish (black)

Die-cast aluminum construction

0-10V dimmable with 4kV surge protection

Generously sized driver box for making internal power connections

Product Number:
RWP02-80W-3CCT-LV
Certifications Listed:
cUL, DLCPremium
CSC DLC Number:
PL668X9YDODS
Light Specifications
Color Temperature:
3000K/4000K/5000K
Initial Lumens:
9268.3lm
Efficacy:
110.64 LM/W
Beam Angle:
60°
Dimmable:
0-10V
CRI:
>70
Life (L70):
>54,000 hrs
Electrical Specifications
Watts:
80W
Voltage:
120-277V
IP Rating:
IP65
THD:
<15%
Power Factor:
>0.9
Operating Temperature:
-40 °C to 45°C
Construction Specifications
Housing:
Die-Cast Aluminum
Finish Color:
Black
Unit Gross Weight:
8 lbs
Carton Length:
17.00 INCH
Carton Width:
13.00 INCH
Carton Height:
13.00 INCH
Customer Reviews

This product has not yet been reviewed.

Related Products

Rotatable Wall Pack
RWP02-40W-3CCT-LV
40W l CCT Tunable l 120-277V
Rotatable Wall Pack
RWP02-60W-3CCT-LV
60W l CCT Tunable l 120-277V

Suggested Substitutions

AWP03 Series Wall Pack
AWP03-80W-D-40K-UD
80W l 4000K l 120-347V
CWP04 Wall Packs
CWP04-60W-3CCT-UD
60W | 3CCT | 120-347V
CWP04 Wall Pack
CWP04-80W-3CCT-UD
80W | 3CCT | 120-347V
Rotatable Wall Pack
RWP-80W-40K
80W | 4000K | 120-277V
