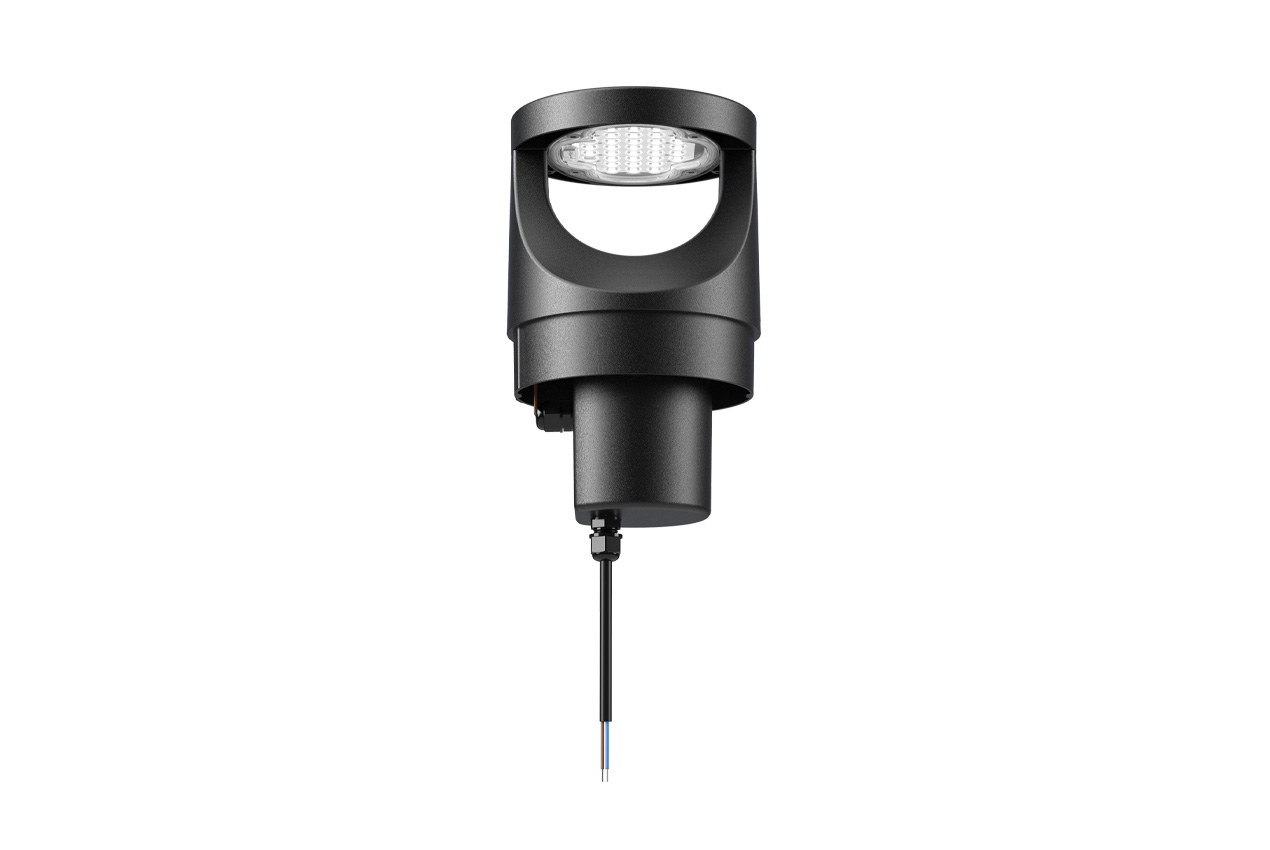

BL01-14W-4P-3CCT-UD
4 avis
BL01 Bollard
14W Max | 3CCT | 120-347V | 1680 lm
GTIN / UPC : 10845599061295
Code-barres : 845599061298
4 avis
Suitable for pathways, gardens, sidewalks, building entrances, and other landscapes that require low to the ground illumination
Power selectable (14W maximum, field adjustable 25%, 50%, 75%, or 100%)
Colour selectable (3000K/4000K/5000K)
Polyester powder coat finish
IK10 vandal-resistant

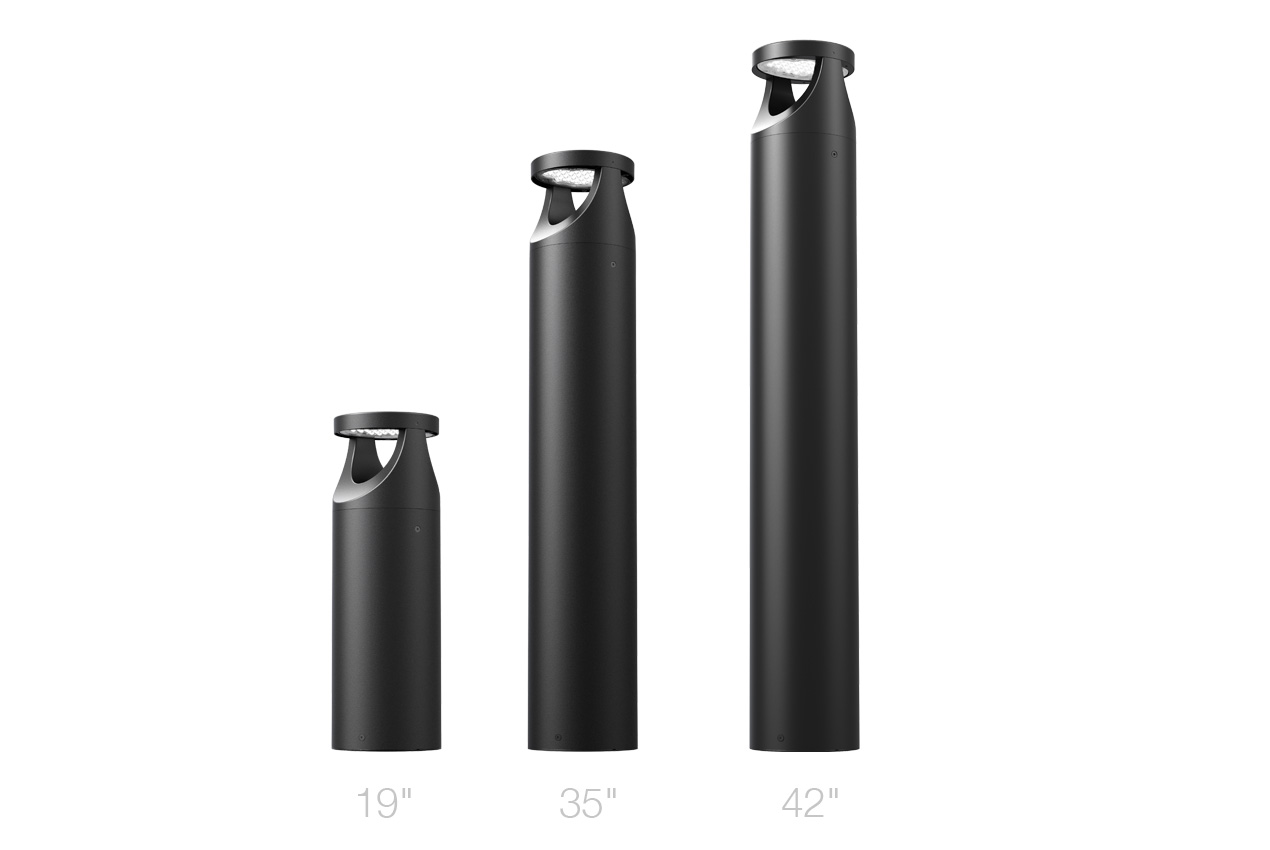

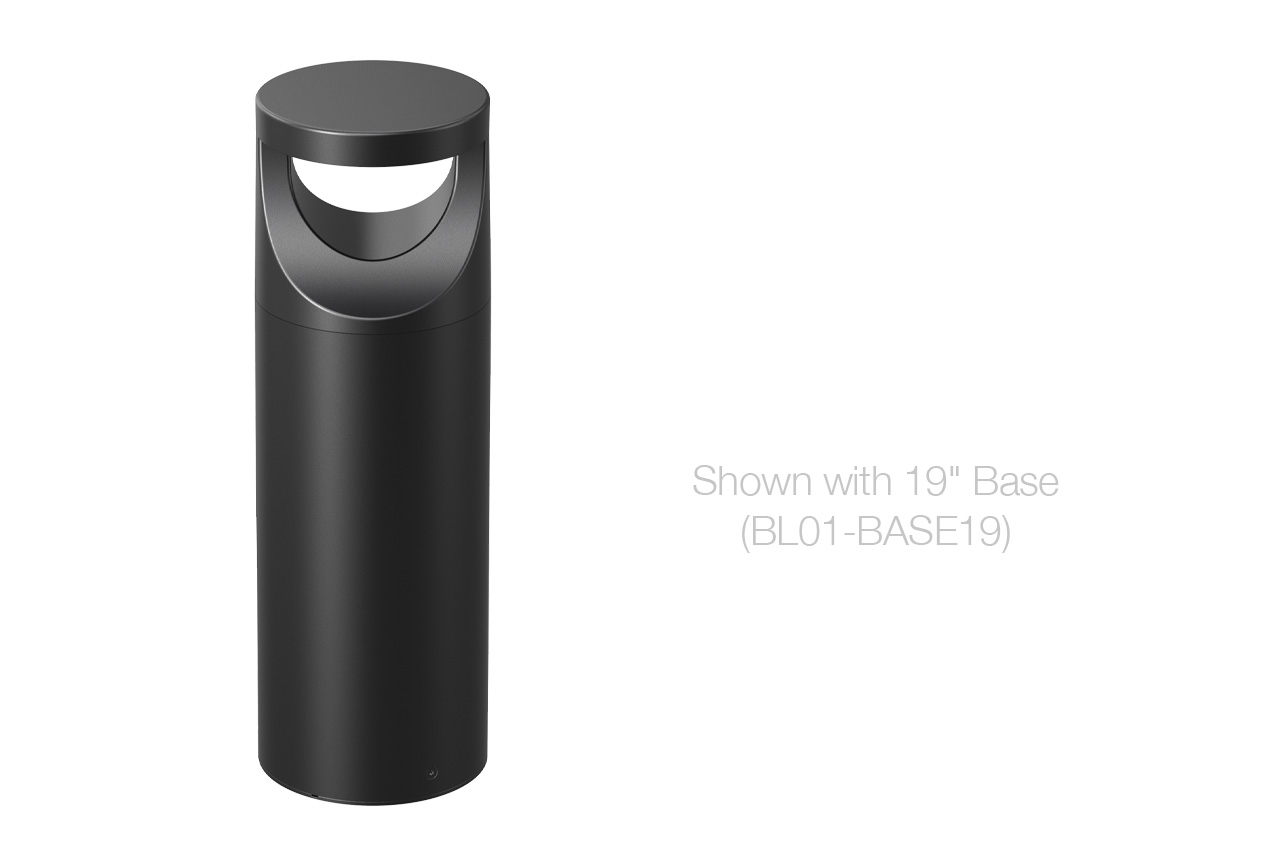

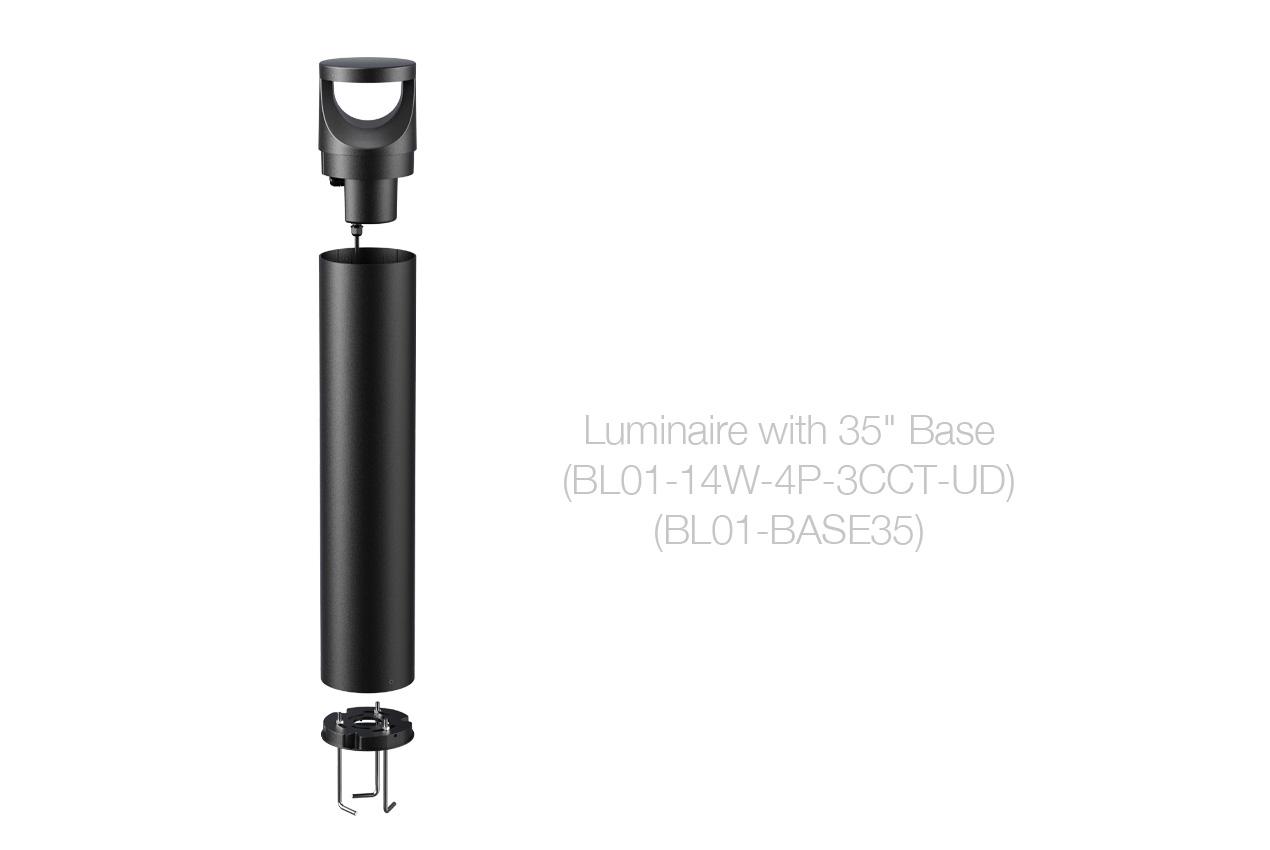

NOTE: Base Pole (BL01-BASE19, BL01-BASE35, or BL01-BASE42) is sold separately and is required for installation
NOTE: Anchor Bolts & Plate are required for wet concrete installation
Certifications Listed:
cETL, DarkSky, IK10
CSC LED Warranty:
10 Year Warranty
Product Number:
BL01-14W-4P-3CCT-UD
Light Specifications
Beam Angle:
Type V
Colour Temperature:
3000K/4000K/5000K
CRI:
80
Efficacy:
120 LM/W
Initial Lumens:
1680 lm
Life (L70):
>54,000 hrs
Electrical Specifications
Amperage:
0.3 A
IP Rating:
IP66
Operating Temperature:
-40°C to 50°C
Power Factor:
0.9
THD:
15%
Voltage:
120-347V
Watts:
14W
Construction Specifications
Base:
NA
Finish:
Powder Coat
Finish Colour:
Black (RAL 9017)
Housing:
Aluminum Alloy and Polycarbonate Lens
Mounting Type:
Mounting Kit with Anchor Bolts
Battery Specifications
Battery Voltage:
0.00 V
Battery Amp Hours:
0.00 Ah
Logistics
Unit Weight:
5.4 lbs
Unit Length:
6.5 in
Unit Width:
6.5 in
Unit Height:
5.8 in
Qty per Master Carton:
1
Master Carton Weight:
6.4 lbs
Master Carton Length:
14.2 in
Master Carton Width:
8.3 in
Master Carton Height:
8.5 in
Qty per Skid:
108
