CWP05-120W-3P-3CCT-UD
4 avis

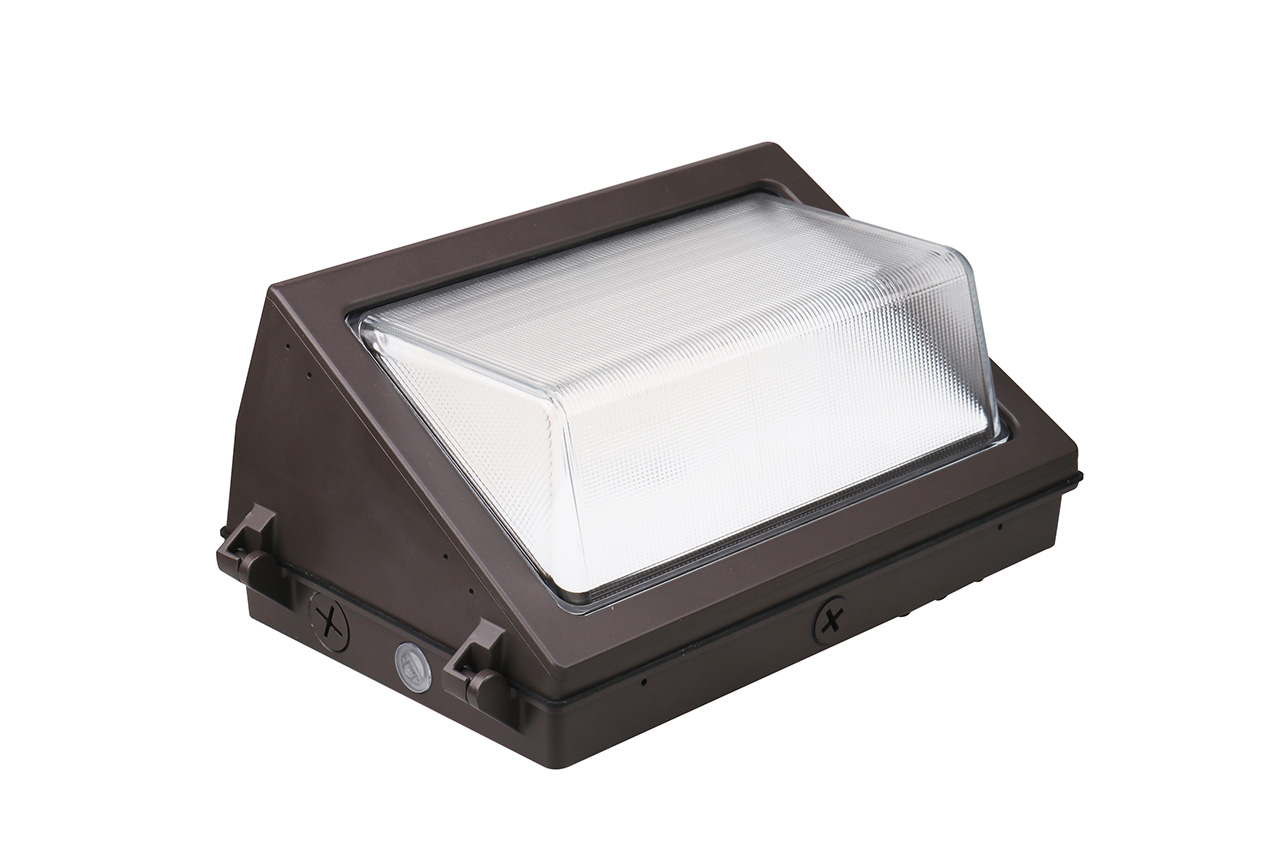

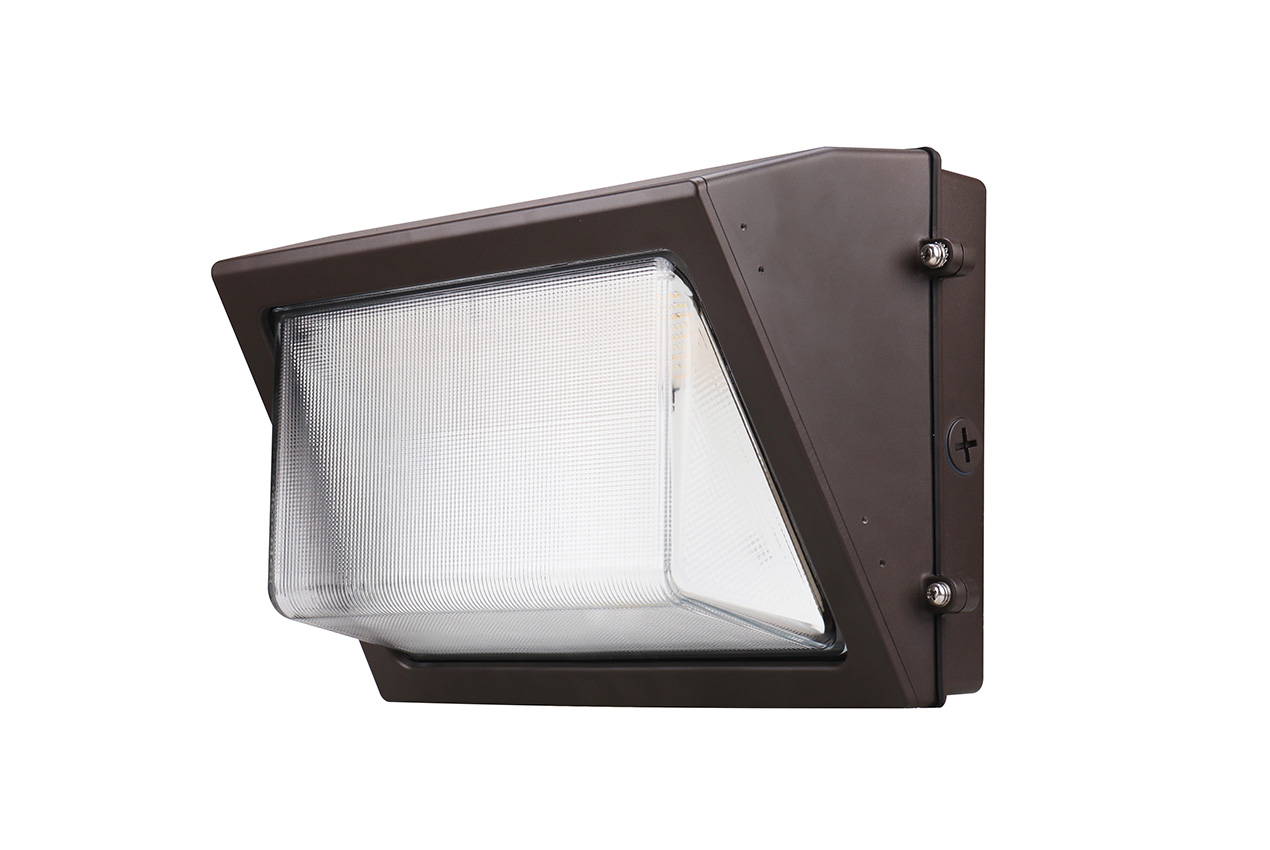

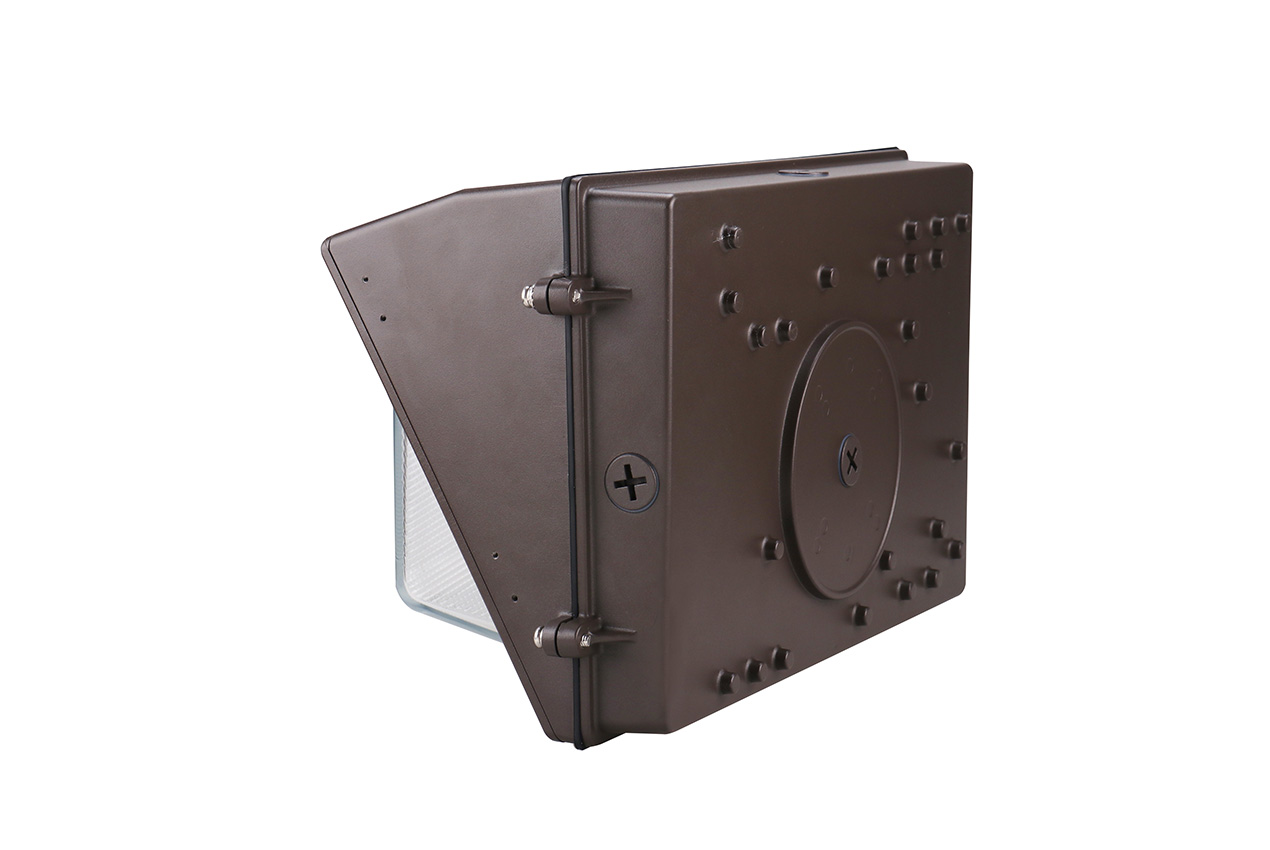

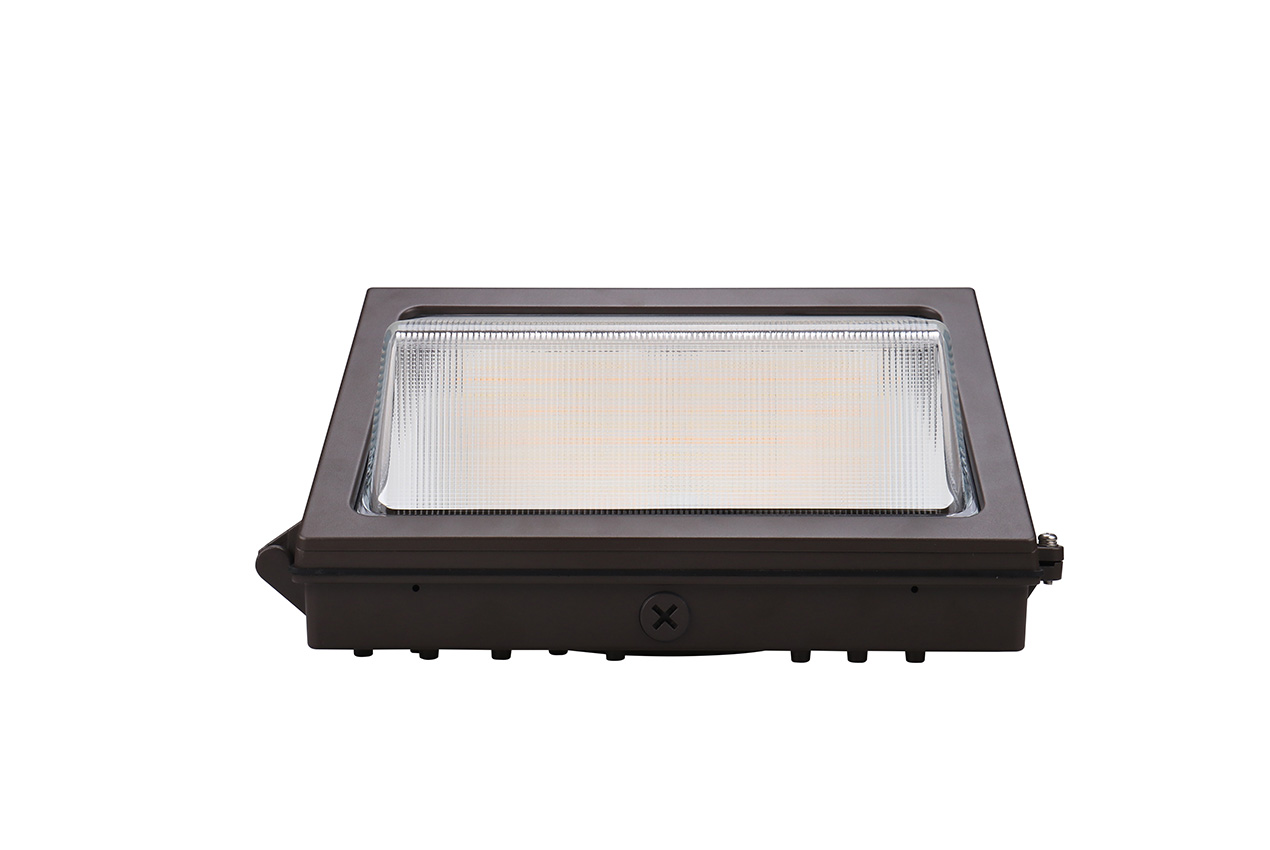

Classic Wall Pack
80W/100W/120W | 3CCT | 120-347V | 12097 lm - 17966 lm
GTIN / UPC : 10845599031311
Code-barres : 845599031314
4 avis
Power selectable (80W / 100W / 120W)
Colour selectable (3000K / 4000K / 5000K)
120-347V universal driver
Optional Wire Guard and Visor available (sold separately)
Motion Sensor compatible (sold separately)
Built-in Photocell (unplug to bypass)
Borosilicate glass lens
Certifications Listed:
cUL, DLCPremium, IK05
CSC DLC Number:
S-SXRYRC
CSC LED Warranty:
10 Year Warranty
Product Number:
CWP05-120W-3P-3CCT-UD
Light Specifications
Beam Angle:
105°
Colour Temperature:
3000K/4000K/5000K
CRI:
82
Dimmable:
0-10
Efficacy:
139.7 LM/W
Initial Lumens:
12097 lm
Life (L70):
>50,000 hrs
Electrical Specifications
Amperage:
1.2 A
IP Rating:
IP65
Operating Temperature:
-40°C to 50°C
Power Factor:
0.9
THD:
15%
Voltage:
120-347V
Watts:
80W/100W/120W
Construction Specifications
Finish:
Powder Coat
Finish Colour:
Bronze
Housing:
Die-Cast Aluminum
Logistics
Unit Weight:
7.5 lbs
Unit Length:
14.2 in
Unit Width:
6.54 in
Unit Height:
8.6 in
Qty per Master Carton:
1
Master Carton Weight:
9.9 lbs
Master Carton Length:
16.1 in
Master Carton Width:
11.4 in
Master Carton Height:
9.4 in
Qty per Skid:
81
