CWPS-40W-3P-3CCT-UD
1 avis

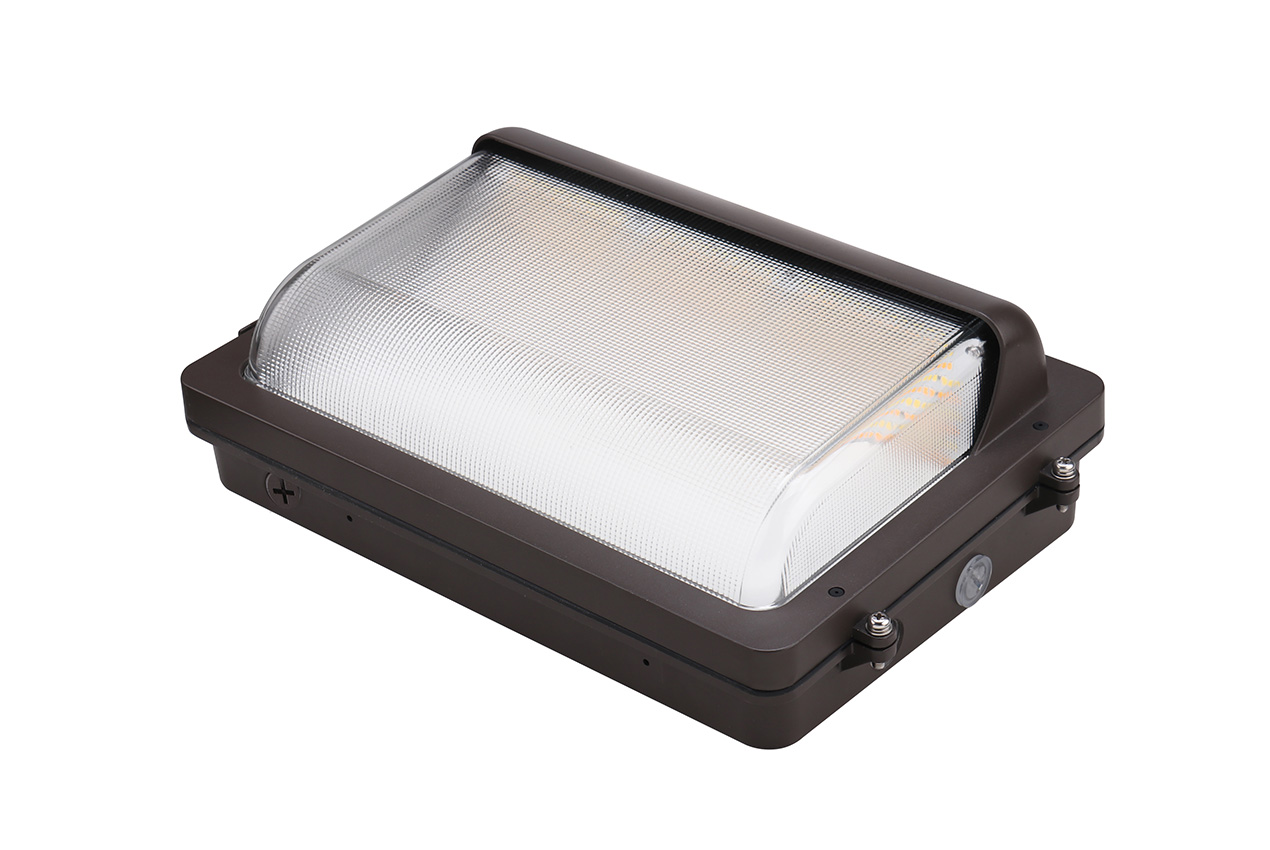

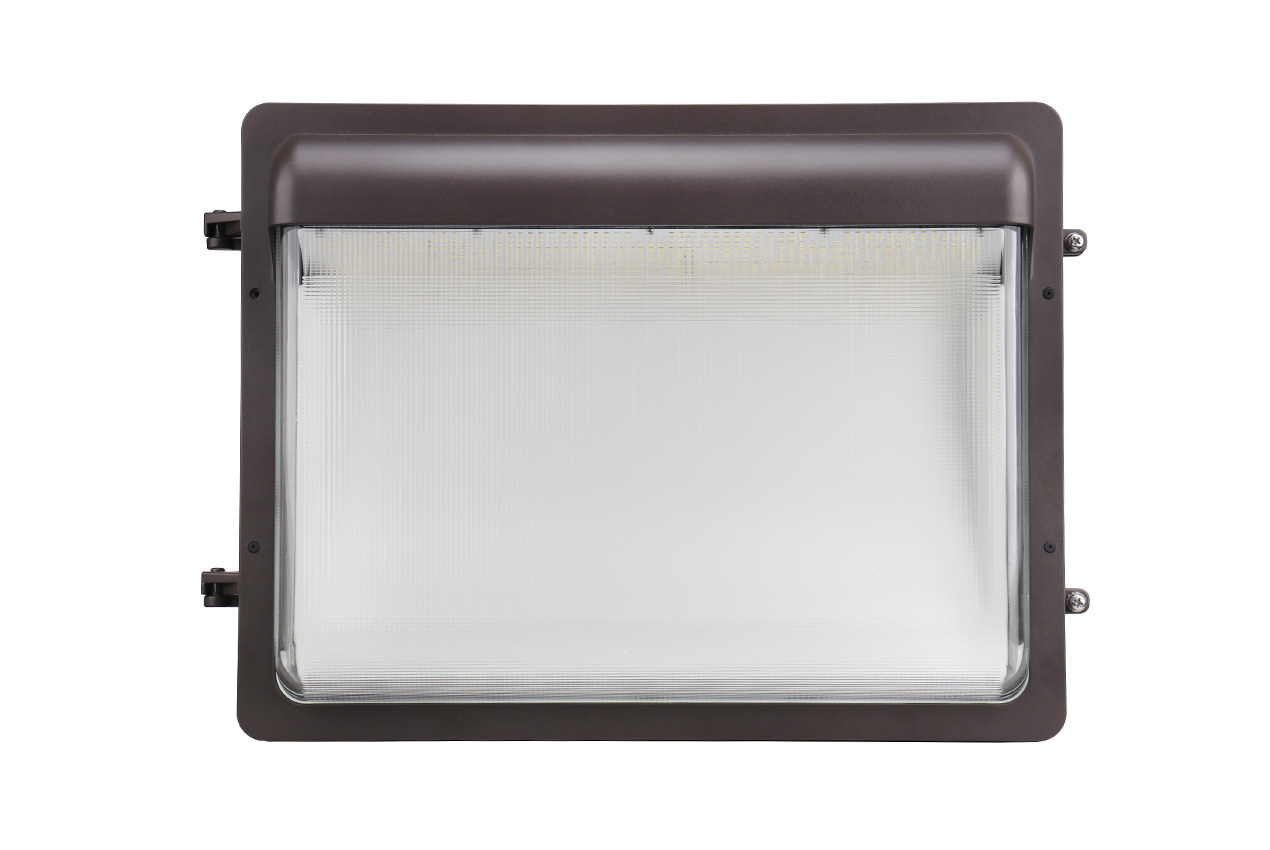

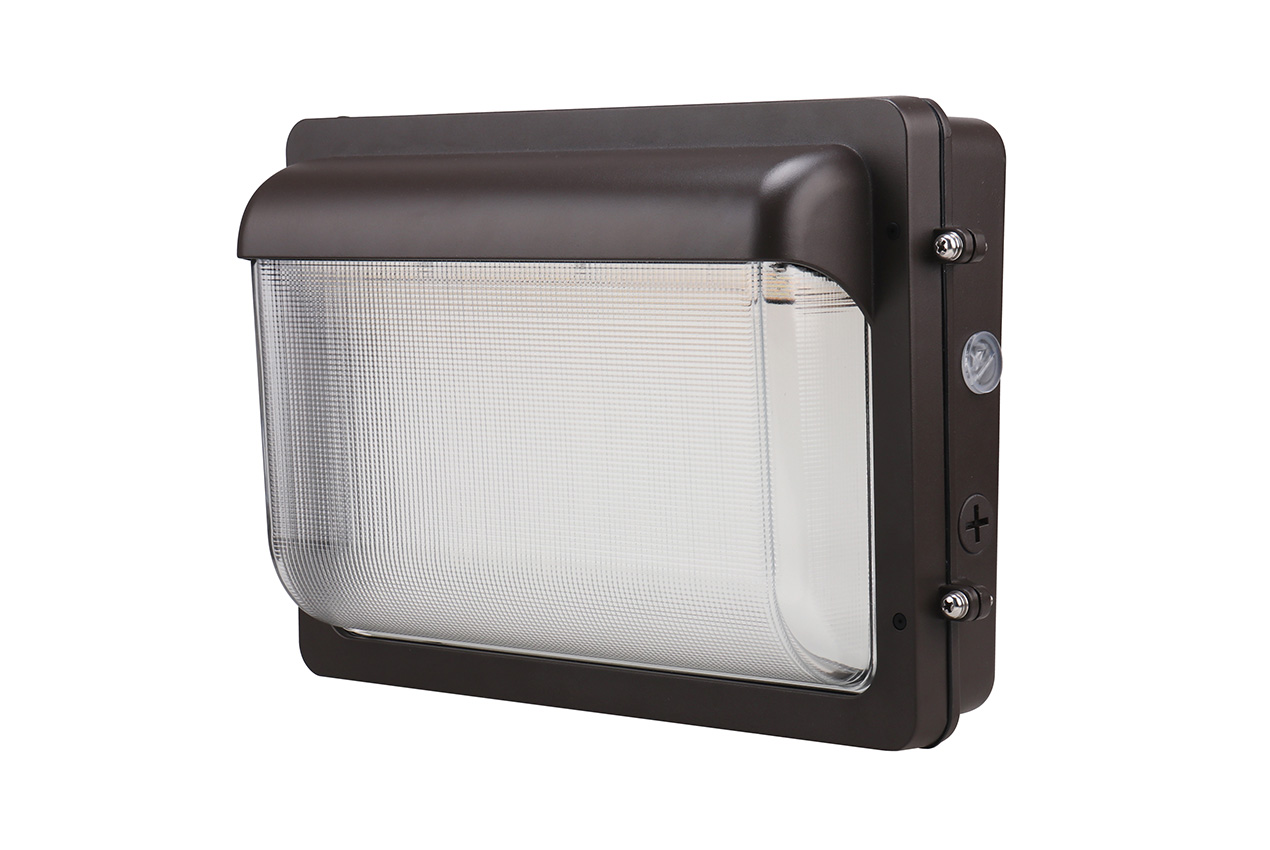

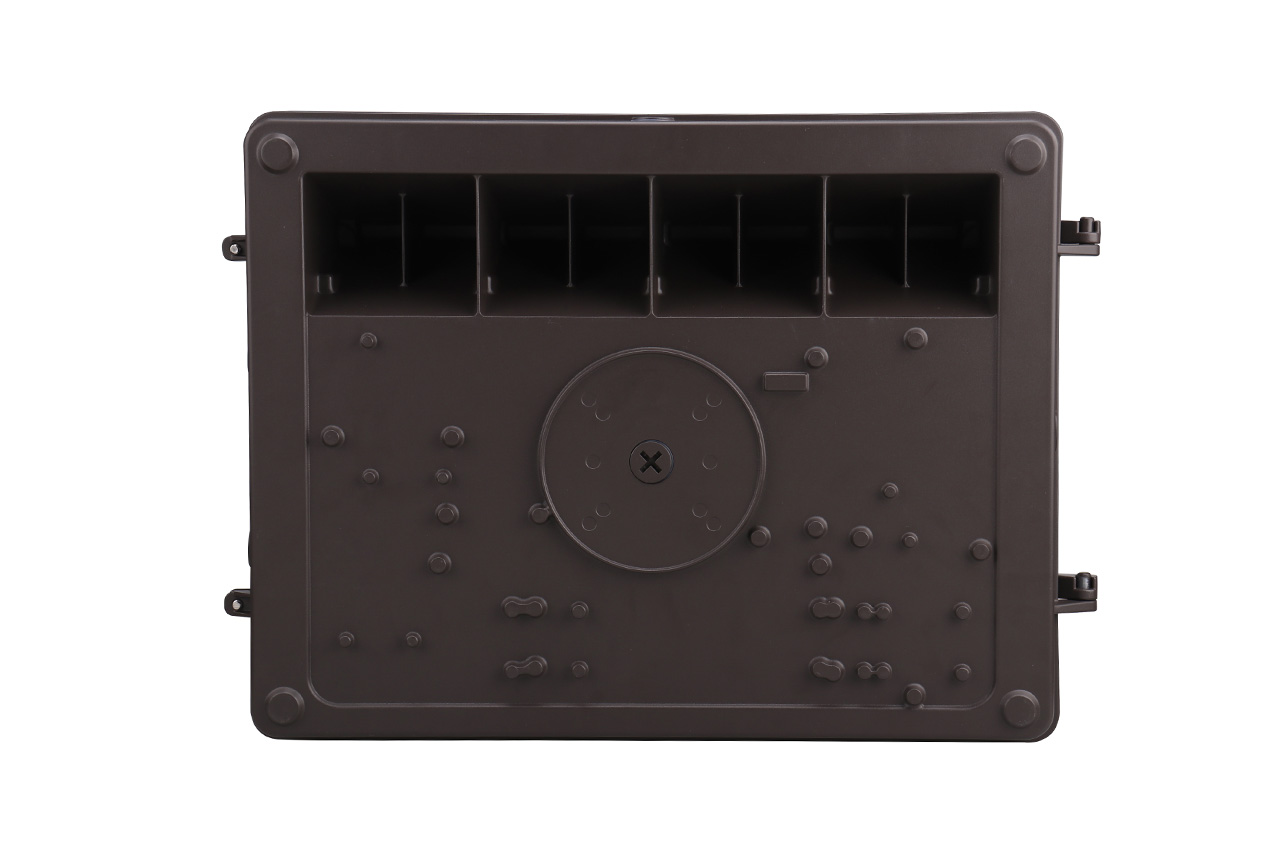

Slim Classic Wall Pack
20W/30W/40W | 3CCT | 120-347V | 2986-5501 lm
GTIN / UPC : 10845599031205
Code-barres : 845599031208
1 avis
Power selectable 20W/30W/40W
Colour selectable 3000K/4000K/5000K
Built-in photocell
120-347V universal driver
IP65 wet location rated
Classic look with a slim redesign and large footprint
Retrofit friendly
Borosilicate glass lens resists thermal expansion, stress, and is chemical resistant
Non-yellowing lens
Certifications Listed:
cUL, DLCPremium, IK05
CSC DLC Number:
S-QHZIPG
CSC LED Warranty:
10 Year Warranty
Product Number:
CWPS-40W-3P-3CCT-UD
Light Specifications
Beam Angle:
105°
Colour Temperature:
3000K/4000K/5000K
CRI:
82
Dimmable:
0-10
Efficacy:
127.78 LM/W
Initial Lumens:
5207 lm
Life (L70):
>54,000 hrs
Electrical Specifications
Amperage:
0.4 A
IP Rating:
IP65
Operating Temperature:
-40°C to 45°C
Power Factor:
0.9
THD:
15%
Voltage:
120-347V
Watts:
20W/30W/40W
Construction Specifications
Finish:
Powder Coat
Finish Colour:
Bronze
Housing:
Die-Cast Aluminum
Logistics
Unit Weight:
7.26 lbs
Unit Length:
13.81 in
Unit Width:
4.48 in
Unit Height:
8.88 in
Qty per Master Carton:
1
Master Carton Weight:
9.2 lbs
Master Carton Length:
15.1 in
Master Carton Width:
10.6 in
Master Carton Height:
6.5 in
Qty per Skid:
117
