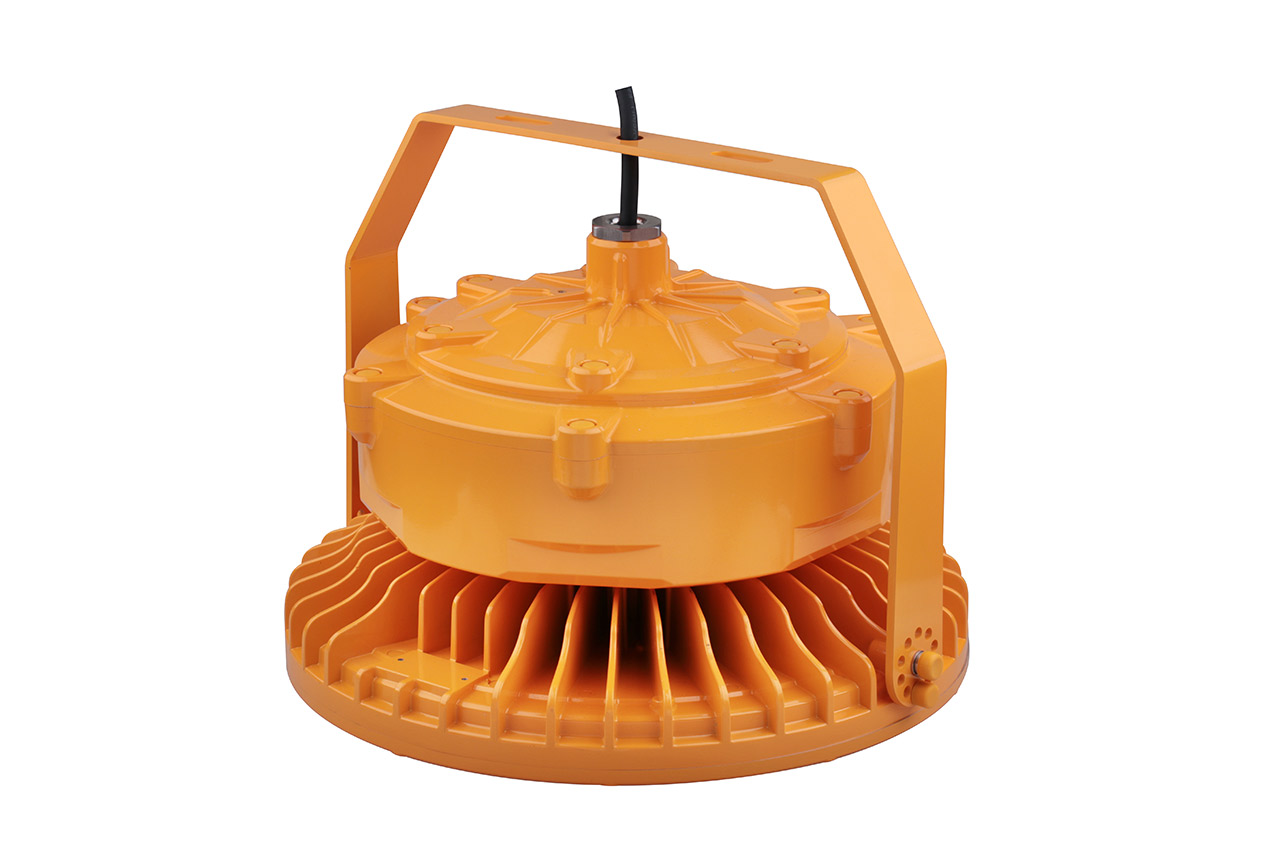

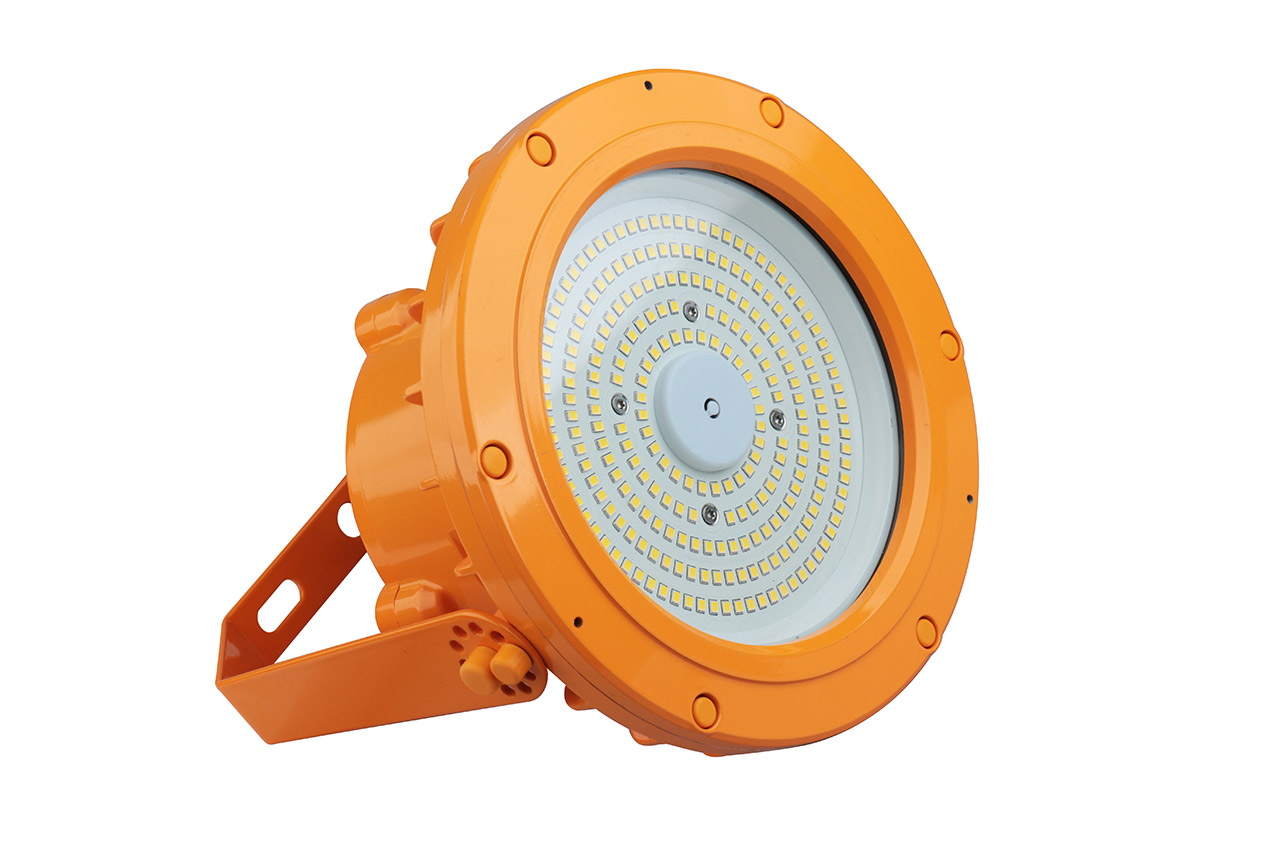

Round Explosion-Proof Fixture
Suitable for hazardous environments where flammable gases, vapours, and liquids may exist
Also suited for wet locations, marine environments, and high-vibration applications
Die-cast aluminum - Orange finish
IP66 driver with 10kV surge protection
C1, D2, (Groups A,B,C,D), UL844, UL1598, UL8750
Atex II2G Ex db IIC T6 Gb
Faceted reflectors in each LED chip for glare control and beam precision
Tempered glass lens allows for soft, uniform light
Complete with yoke mount
Certifications:
cUL
Garantie CSC LED:
5 Year Warranty
Numéro de produit:
EXPR-60W-50K
Caractéristiques lumineuses
Angle du faisceau:
110
Température de couleur:
5000 K
IRC:
80+
Dimmable:
No
Efficacité:
130 LM/W
Lumens initiaux:
8870 lm
Durée de vie (L70):
>50,000 hrs
Caractéristiques électriques
Indice IP:
IP 66
Température de fonctionnement:
-40°C to 55°C
Power Factor:
0.99
DHT:
<20%
Tension:
120-277V
Watts:
60W
Caractéristiques de construction
Couleur de finition:
Orange
Boîtier:
Aluminum
Logistique
Qté par carton:
1
Qté par carton principal:
2
Poids du carton principal:
20.0 lbs
Longueur du carton principal:
20.0 in
Largeur du carton principal:
10.0 in
Hauteur du carton principal:
10.0 in
Qté par palette:
144
CUP:
845599001560
GTIN:
10845599001567
