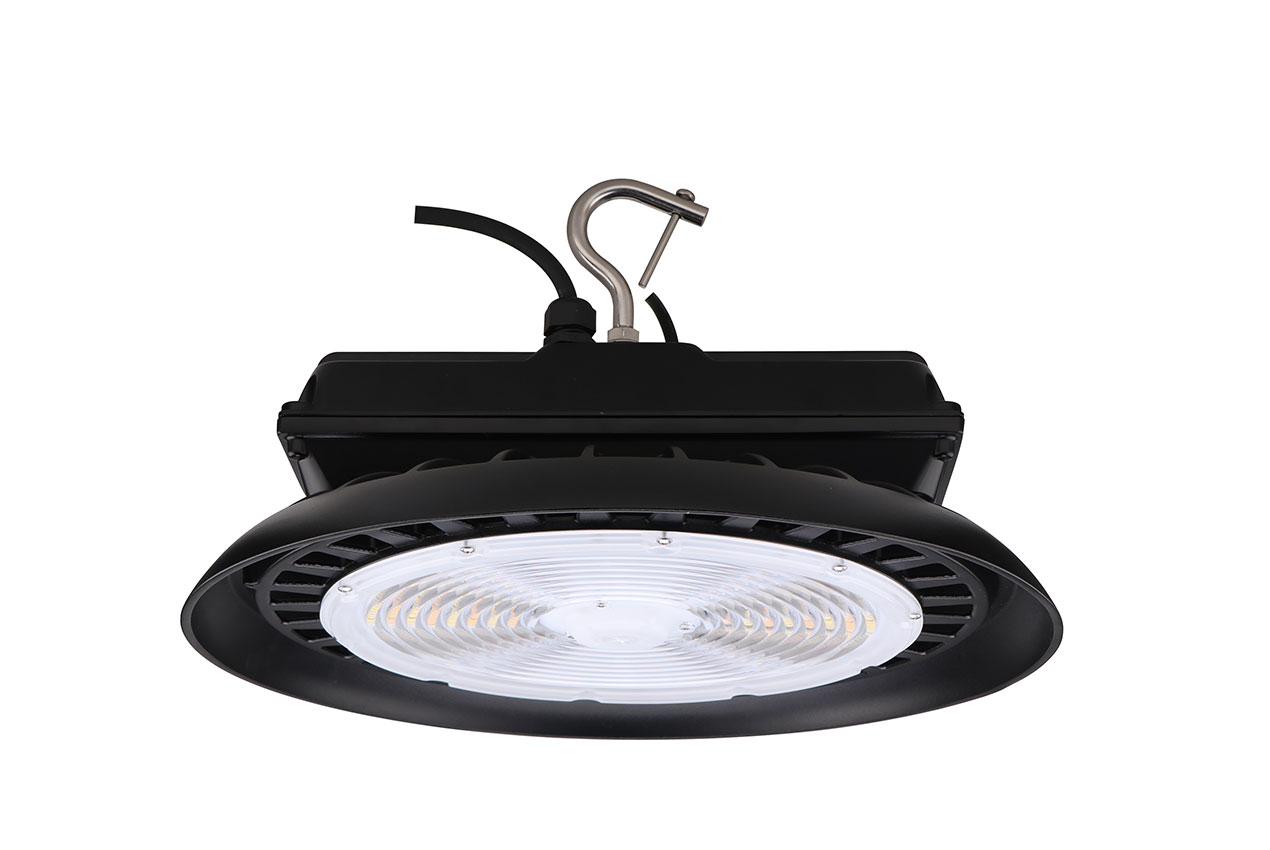

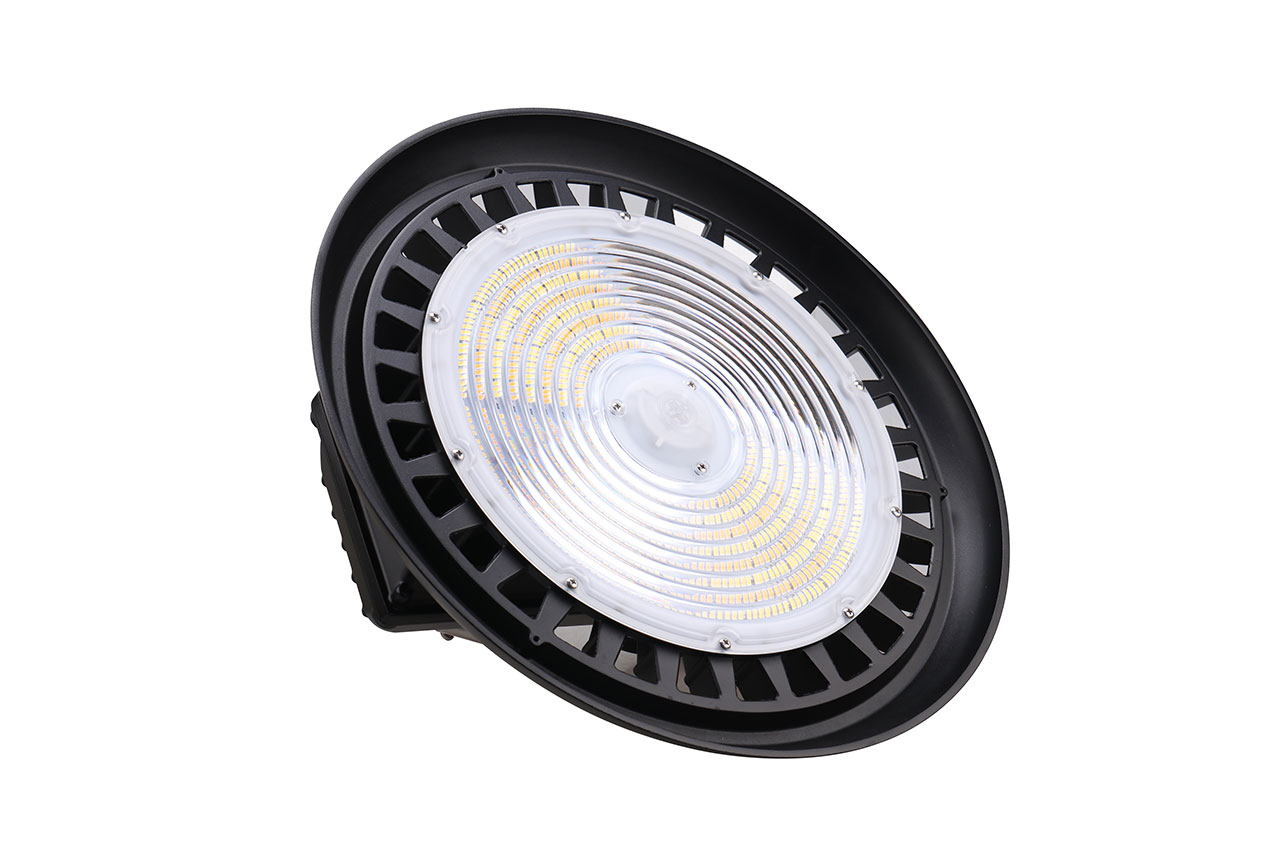

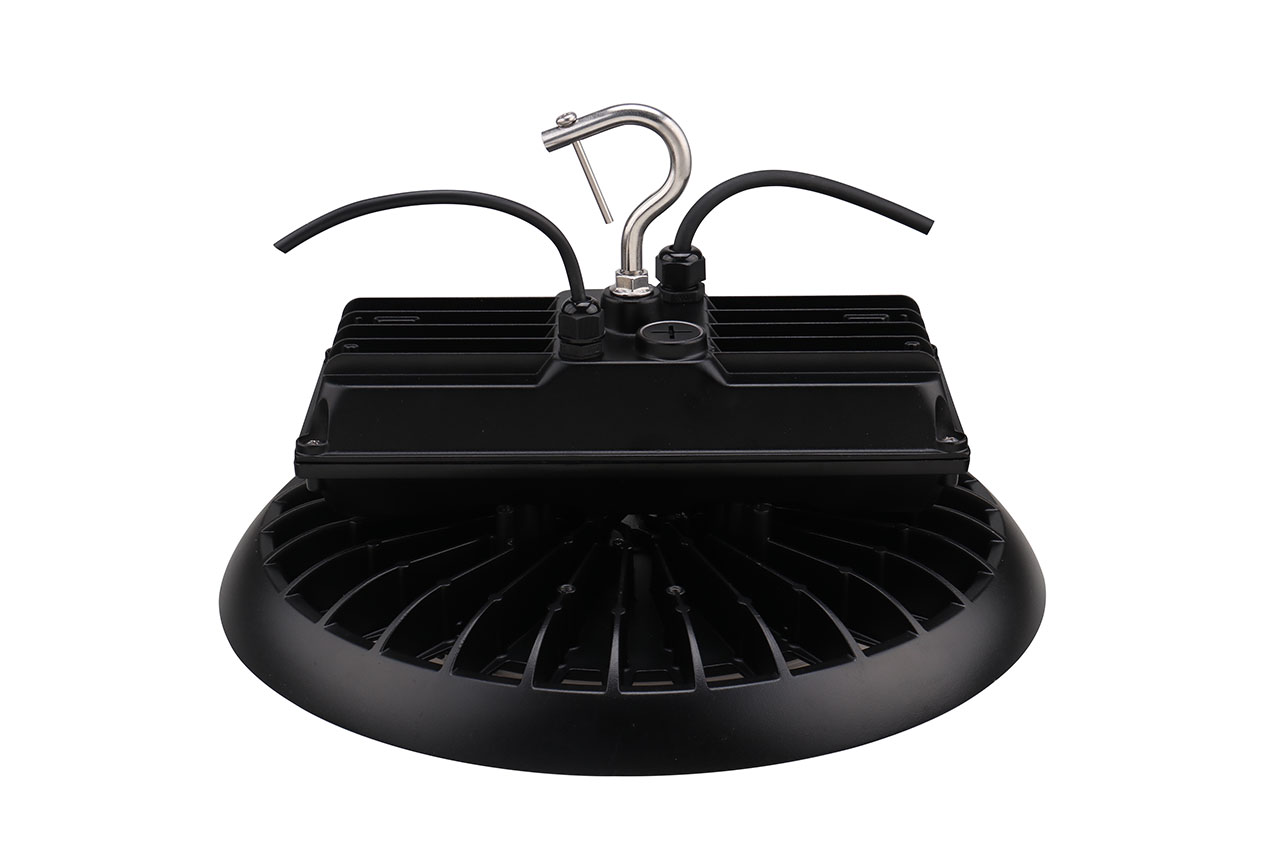

HB8-300W-3P-3CCT-LV
12 avis
HB8 High Bay
240W/270W/300W | 3CCT | 120-277V | 32425-46362 lm
GTIN / UPC : 10845599001994
Code-barres : 845599001997
12 avis
Power Selectable (240W/270W/300W)
Colour Selectable (3000K/4000K/5000K)
Long life, elevated driver for cooler operation
Newly designed shatterproof polycarbonate optics meet/exceed DLC glare standards
Polyester powder coat finish (black)
Instant start and 10V dimmable
Complete with 65" power cord
Certifications Listed:
cUL, DLCPremium, IK08, NEMA4X, NSF
CSC DLC Number:
S-5UB7WL
CSC LED Warranty:
5 Year Warranty
Product Number:
HB8-300W-3P-3CCT-LV
Light Specifications
Beam Angle:
90
Colour Temperature:
3000K/4000K/5000K
CRI:
82
Dimmable:
0-10
Efficacy:
131.2 LM/W
Initial Lumens:
39313 lm
Life (L70):
>50,000 hrs
Electrical Specifications
Amperage:
4.0 A
IP Rating:
IP65
Operating Temperature:
-40°C to 50°C
Power Factor:
0.9
THD:
15%
Voltage:
120-277V
Watts:
240W/270W/300W
Construction Specifications
Finish:
Powder Coat
Finish Colour:
Black
Housing:
Die-Cast Aluminum
Mounting Type:
Hook
Power Cord Length:
65"
Logistics
Unit Weight:
8.4 lbs
Unit Length:
15.4 in
Unit Width:
15.4 in
Unit Height:
8.8 in
Qty per Master Carton:
1
Master Carton Weight:
10.8 lbs
Master Carton Length:
17.7 in
Master Carton Width:
17.7 in
Master Carton Height:
7.3 in
Qty per Skid:
60
