KWP-120W-3P-3CCT-UD-BK
4 avis

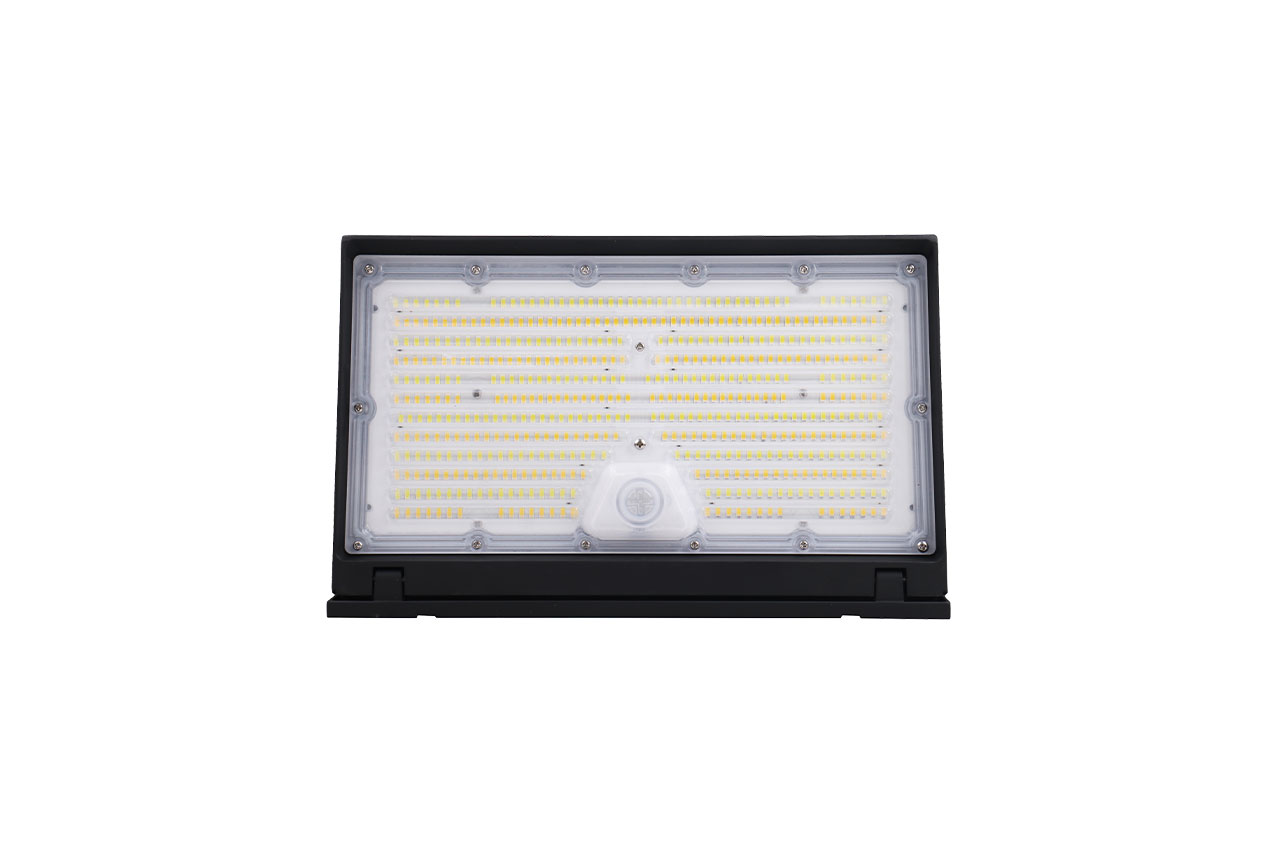

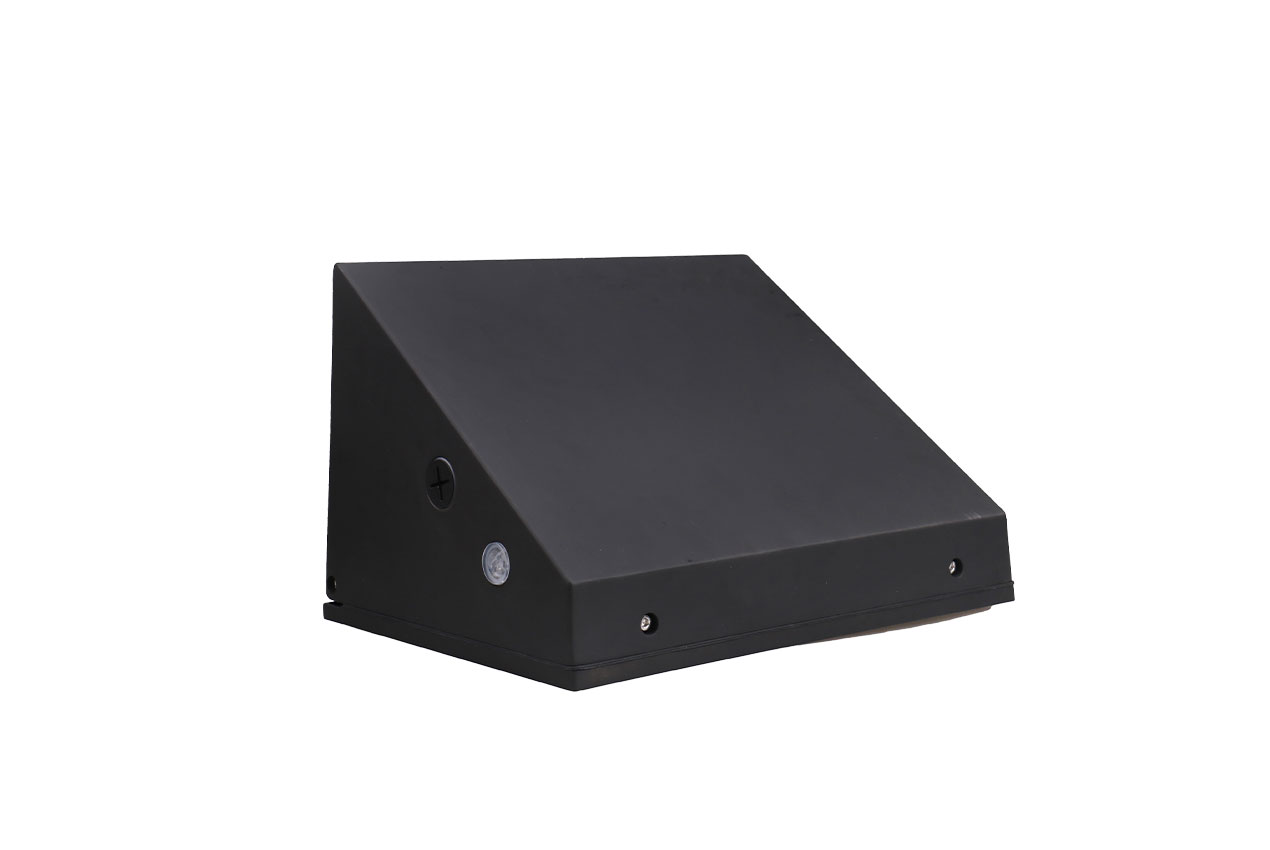

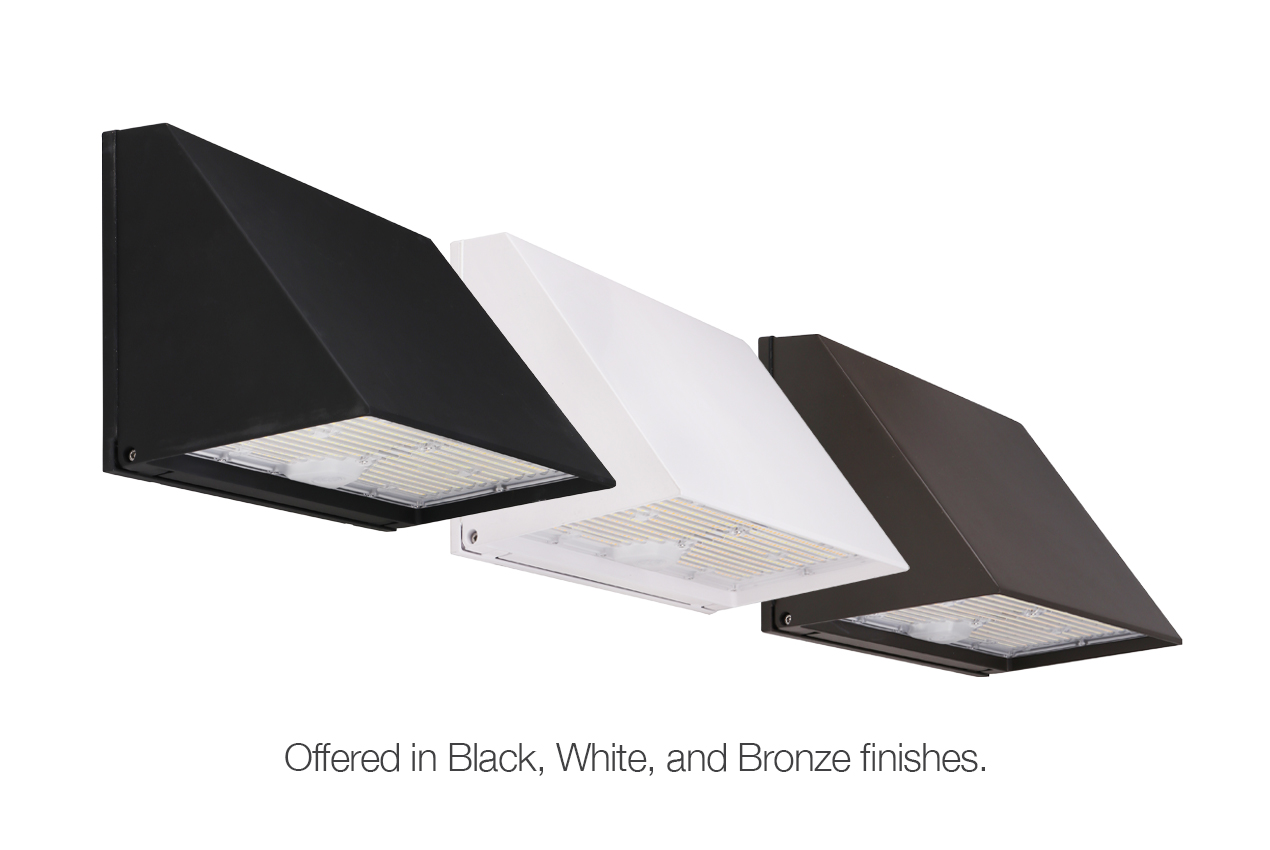

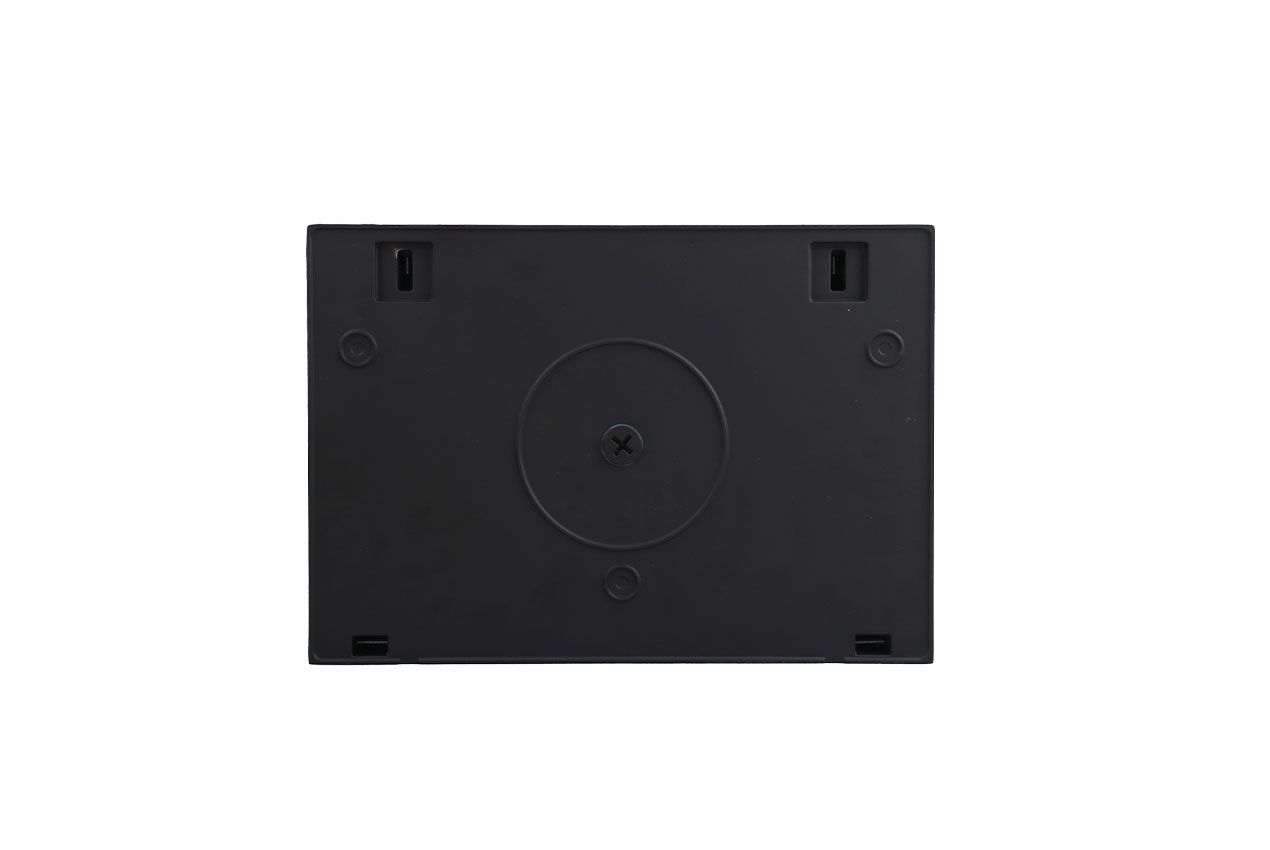

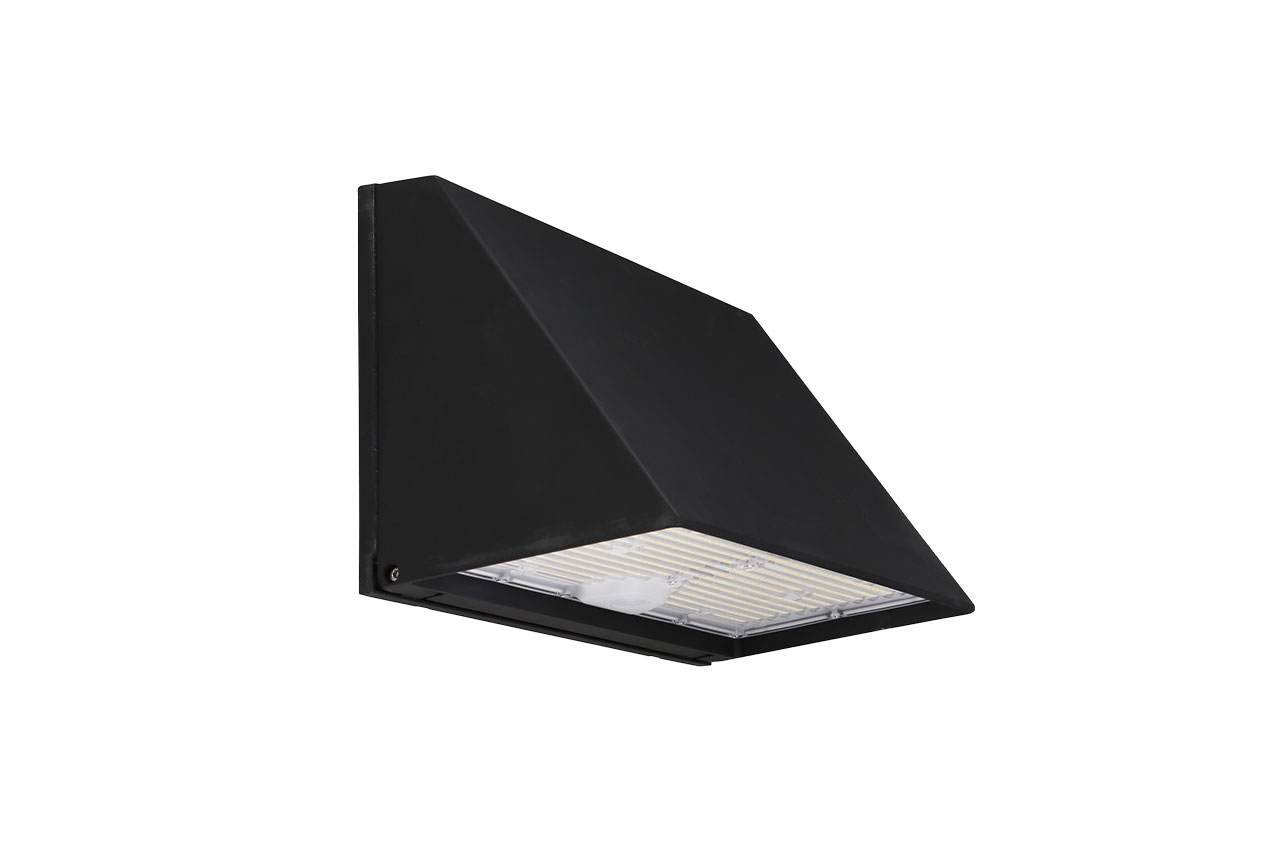

Keystone Wall Pack
80W/100W/120W | 3CCT | 120-347V | 14671-20914 lm
GTIN / UPC : 10845599031373
Code-barres : 845599031376
4 avis
Power selectable 80W/100W/120W
Colour selectable 3000K/4000K/5000K
120-347V universal driver
Built-in Photocell (unplug to bypass)
Type II Optics standard with Type III and Type IV interchangeable Optics available (sold separately)
Motion Sensor compatible
DarkSky Approved when set to 3000K
Black
Certifications Listed:
cUL, DarkSky, DLCPremium, IK06
CSC DLC Number:
S-3KR93Y
CSC LED Warranty:
10 Year Warranty
Product Number:
KWP-120W-3P-3CCT-UD-BK
Light Specifications
Beam Angle:
Type II
Colour Temperature:
3000K/4000K/5000K
CRI:
80+
Dimmable:
0-10
Efficacy:
172 LM/W
Initial Lumens:
20641 lm
Life (L70):
>50,000 hrs
Electrical Specifications
Amperage:
1.2 A
IP Rating:
IP65
Operating Temperature:
-40°C to 50°C
Power Factor:
>0.9
THD:
<20%
Voltage:
120-347V
Watts:
80W/100W/120W
Construction Specifications
Finish:
Powder Coat
Finish Colour:
Black
Housing:
Die-Cast Aluminum
Logistics
Unit Weight:
5.28 lbs
Unit Length:
13.28 in
Unit Width:
9.36 in
Unit Height:
8.11 in
Qty per Master Carton:
1
Master Carton Weight:
7.9 lbs
Master Carton Length:
14.7 in
Master Carton Width:
10.3 in
Master Carton Height:
9.1 in
Qty per Skid:
78
