MWP04-20W-3P-3CCT-UD-BZ
2 avis

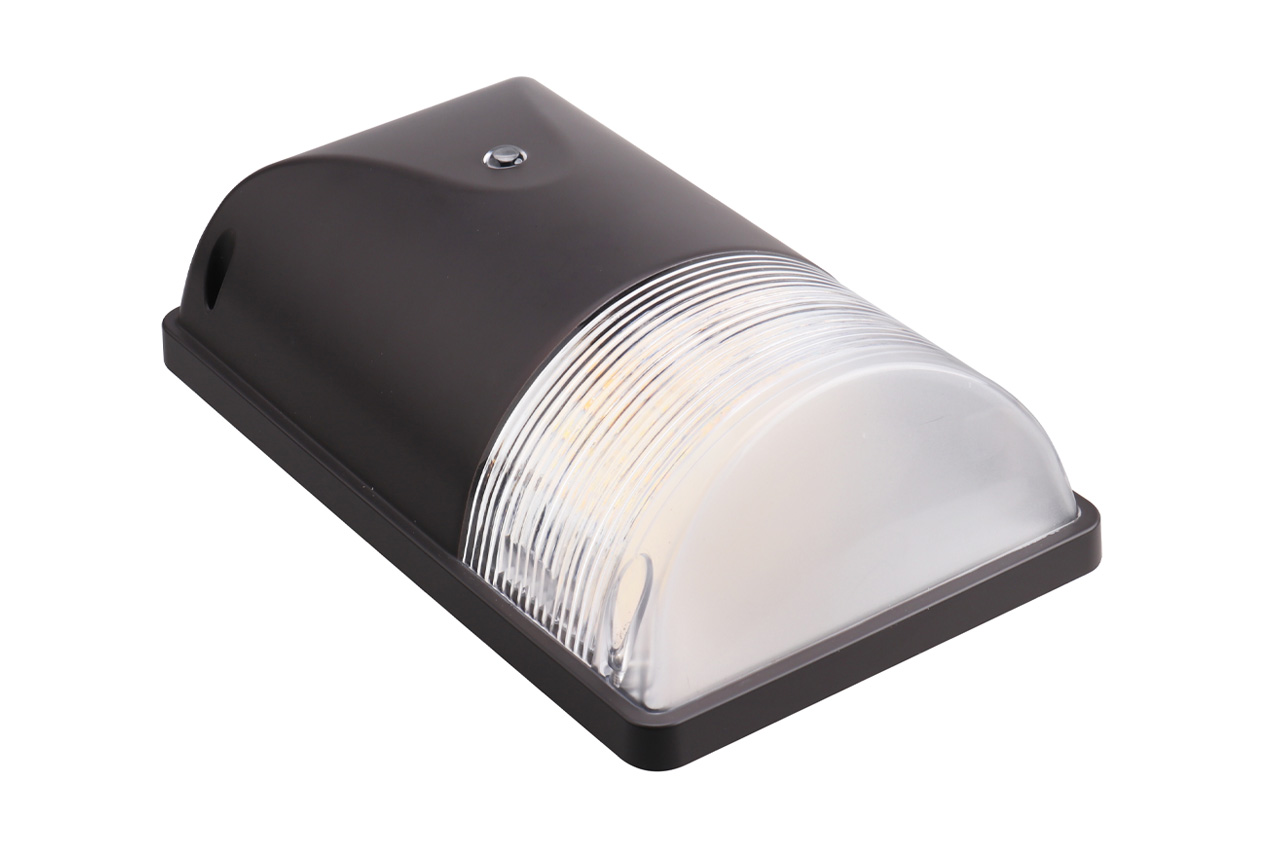

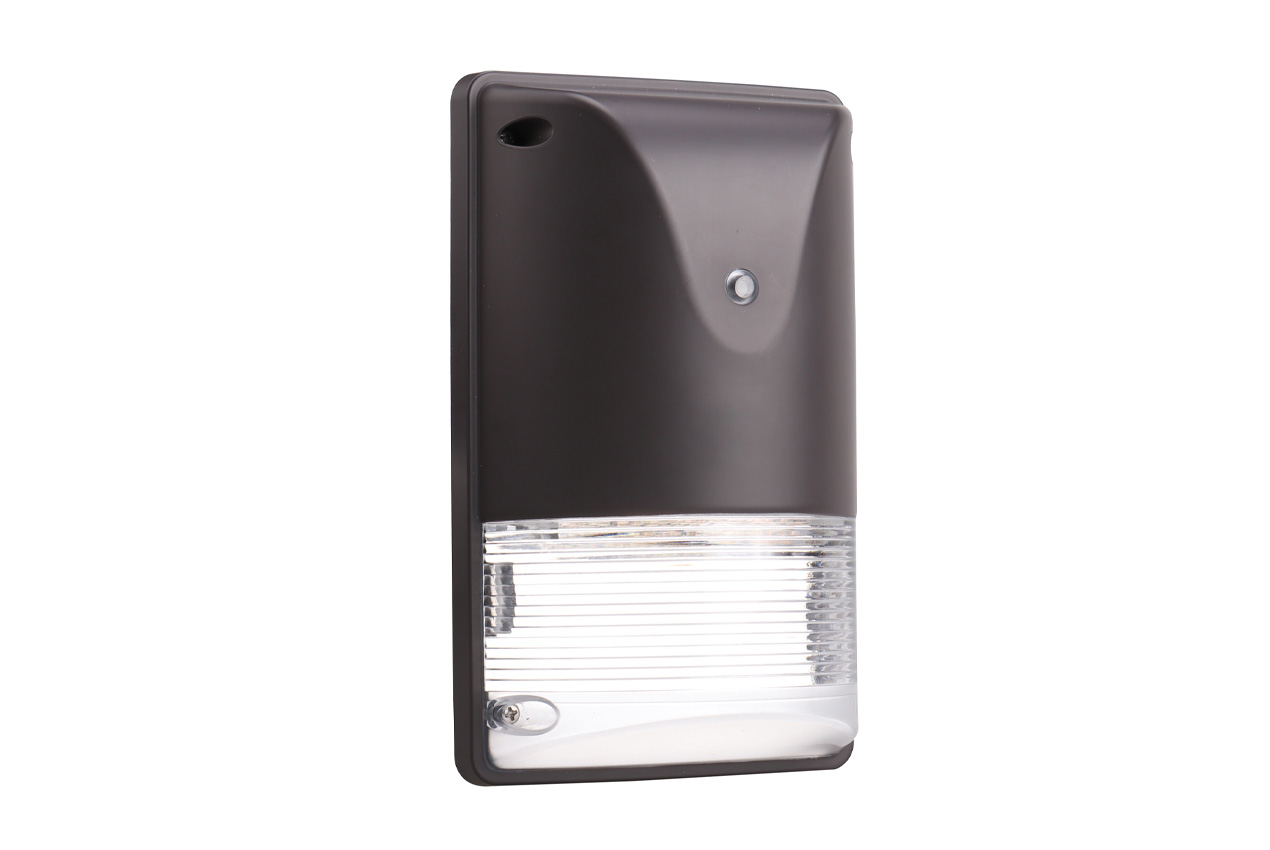

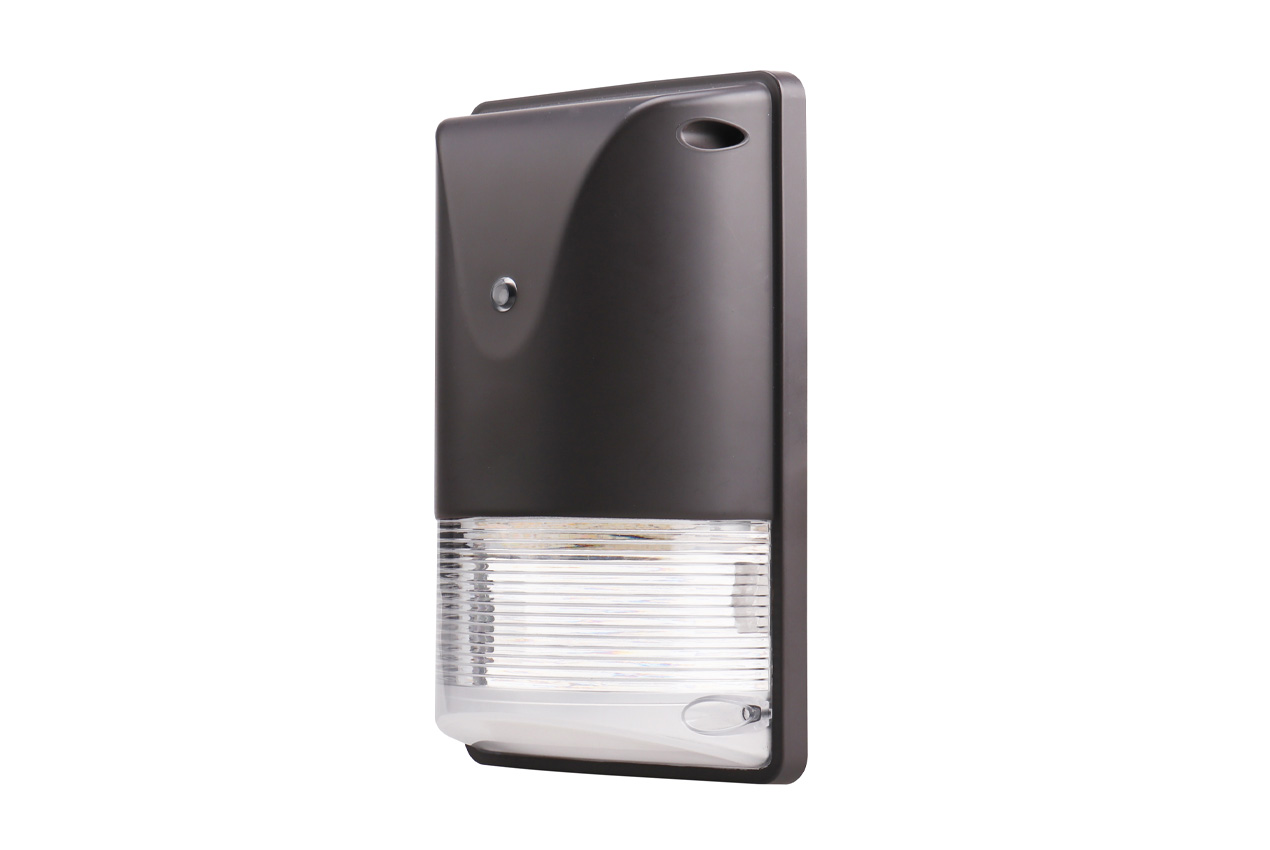

Mini Wall Pack
10W/15W/20W | 3CCT | 120-347V | 1322-2749 lm
GTIN / UPC : 10845599031298
Code-barres : 845599031291
2 avis
Power selectable 10W/15W/20W
Colour selectable 3000K/4000K/5000K
0-10V dimmable

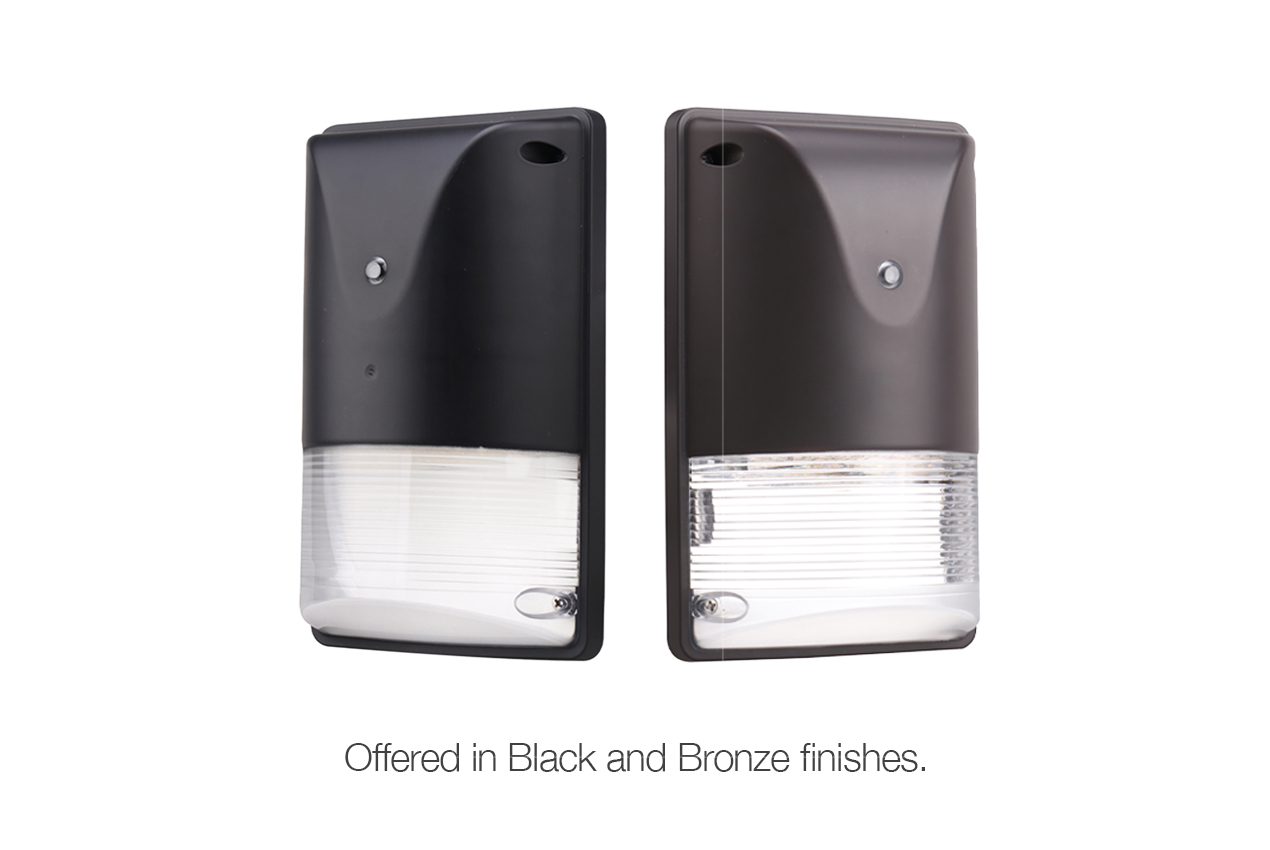

Polyester powder coat finish (bronze)
Low glare, frosted polycarbonate lens
Built-in photocell
Certifications Listed:
cUL, IK08, DLCPremium
CSC DLC Number:
S-0P4MJU
CSC LED Warranty:
10 Year Warranty
Product Number:
MWP04-20W-3P-3CCT-UD-BZ
Light Specifications
Beam Angle:
100°
Colour Temperature:
3000K/4000K/5000K
CRI:
82
Dimmable:
0-10
Efficacy:
125.27 LM/W
Initial Lumens:
2557 lm
Life (L70):
>54,000 hrs
Electrical Specifications
Amperage:
0.3 A
IP Rating:
IP65
Operating Temperature:
-40°C to 50°C
Power Factor:
0.9
THD:
15%
Voltage:
120-347V
Watts:
10W/15W/20W
Construction Specifications
Finish:
Powder Coated
Finish Colour:
Bronze
Housing:
Die-Cast Aluminum
Power Cord Length:
11.8"
Logistics
Unit Weight:
1.54 lbs
Unit Length:
5.0 in
Unit Width:
2.8 in
Unit Height:
8.2 in
Qty per Carton:
1
Carton Weight:
1.7 lbs
Carton Length:
5.3 in
Carton Width:
3.2 in
Carton Height:
8.6 in
Qty per Master Carton:
10
Master Carton Weight:
19.9 lbs
Master Carton Length:
9.4 in
Master Carton Width:
11.2 in
Master Carton Height:
16.4 in
Qty per Skid:
810
