PLP24-50W-3P-3CCT-UD
4 avis
PLP Panel Light
2' x 4' | 30W/40W/50W | 3CCT | 120-347V | 3918-6478 lm
GTIN / UPC : 10845599040740
Code-barres : 845599040743
4 avis
Power selectable (30W/40W/50W)
Colour selectable (3000K/3500K/4000K)
120-347V driver with 0-10V dimming
Measures 2' x 4'
Seismic clips included
Waffle stamping increases heat dissipation and driver life

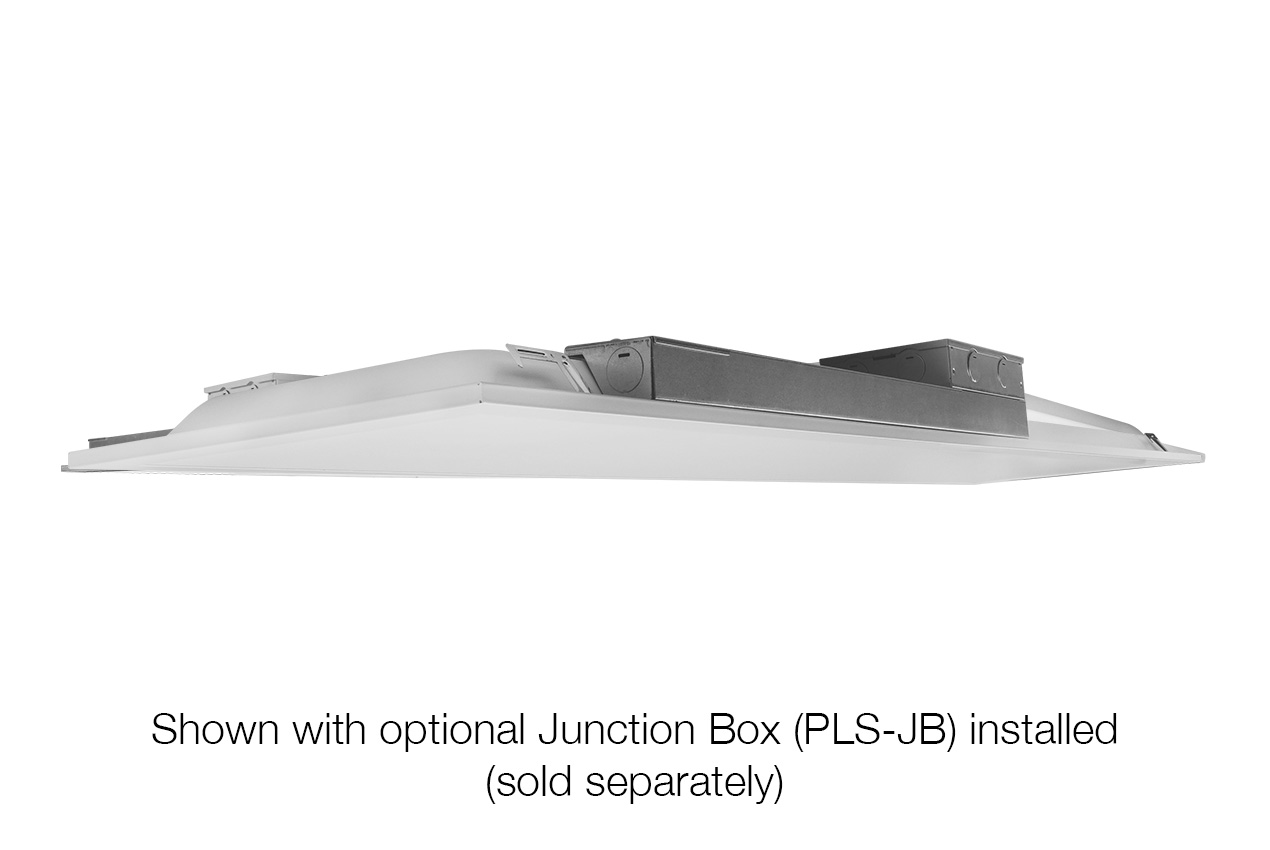

0-10V dimming leads on both ends of optional Junction Box (PLS-JB)
Less than 1.8'' deep ideal for tight plenum areas
Non-yellowing frosted lens
Certifications Listed:
cETL, DLCPremium
CSC DLC Number:
S-D7YN9G, S-YZH93D
CSC LED Warranty:
7 Year Warranty
Product Number:
PLP24-50W-3P-3CCT-UD
Light Specifications
Beam Angle:
120
Colour Temperature:
3000K/3500K/4000K
CRI:
80
Dimmable:
0-10
Efficacy:
125 LM/W
Initial Lumens:
6250 lm
Life (L70):
>50,000 hrs
Electrical Specifications
IP Rating:
IP20
Operating Temperature:
-20°C to 40°C
Power Factor:
0.9
THD:
6%
Voltage:
120-347V
Watts:
30W/40W/50W
Construction Specifications
Finish:
Polyester Powder Coat
Finish Colour:
White
Housing:
Metal
Logistics
Unit Weight:
7.39 lbs
Unit Length:
47.72 in
Unit Width:
1.67 in
Unit Height:
23.74 in
Qty per Carton:
1
Qty per Master Carton:
4
Master Carton Weight:
36.0 lbs
Master Carton Length:
49.0 in
Master Carton Width:
7.0 in
Master Carton Height:
36.0 in
Qty per Skid:
78
