LIQUIDATION
PLS22-40W-3P-40K-LV
4 avis
PLS Panel Light
2' x 2' | 20W/30W/40W | 4000K | 120-277V | 4375 lm
GTIN / UPC : 10845599040733
Code-barres : 845599040736
4 avis
ARTICLE EN LIQUIDATION - Jusqu'à épuisement des stocks
Vente finale - Garantie du fabricant de 1 an
Power selectable (20W/30W/40W)
120-277V driver with 0-10V dimming
Seismic clips included
Waffle stamping increases heat dissipation and driver life

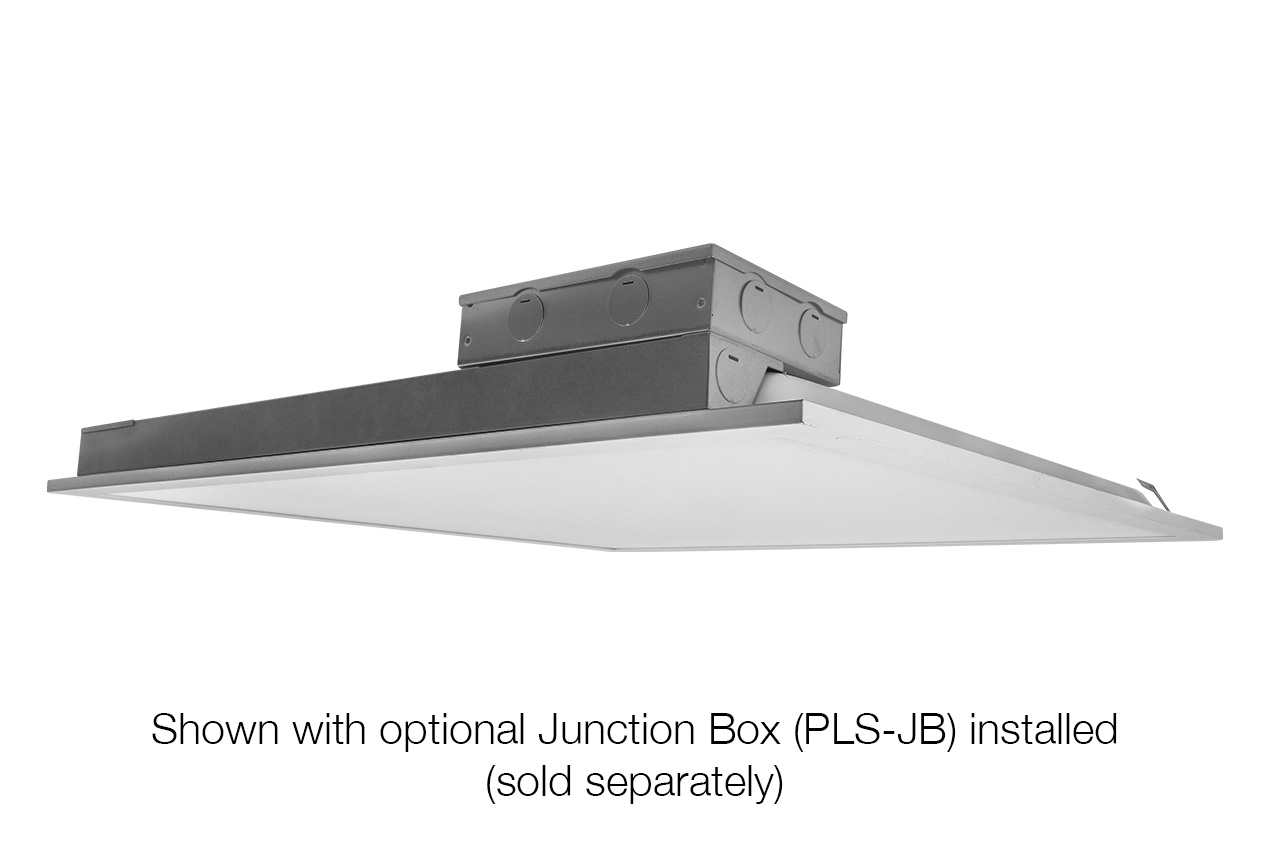

0-10V dimming leads on both ends of optional Junction Box (PLS-JB)
Less than 1.8'' deep ideal for tight plenum areas
Non-yellowing frosted lens
Certifications Listed:
cETL, DLC
CSC DLC Number:
S-8PSYB9
CSC LED Warranty:
1 Year Warranty
Product Number:
PLS22-40W-3P-40K-LV
Light Specifications
Beam Angle:
120
Colour Temperature:
4000K
CRI:
84
Dimmable:
0-10
Efficacy:
107 LM/W
Initial Lumens:
4375 lm
Life (L70):
>50,000 hrs
Electrical Specifications
IP Rating:
IP20
Operating Temperature:
-20°C to 40°C
Power Factor:
0.94
THD:
11.4%
Voltage:
120-277V
Watts:
20W/30W/40W
Construction Specifications
Finish:
Polyester Powder Coat
Finish Colour:
White
Housing:
Metal
Logistics
Unit Weight:
3.86 lbs
Unit Length:
23.74 in
Unit Width:
1.67 in
Unit Height:
23.74 in
Qty per Carton:
1
Qty per Master Carton:
4
Master Carton Weight:
20.0 lbs
Master Carton Length:
26.0 in
Master Carton Width:
8.0 in
Master Carton Height:
26.0 in
Qty per Skid:
144
PLS22-40W-3P-40K-LV
4 avis
PLS Panel Light
2' x 2' | 20W/30W/40W | 4000K | 120-277V | 4375 lm
GTIN / UPC : 10845599040733
Code-barres : 845599040736
4 avis
