VNL-2S-19W-3P-5CCT-LV-BK

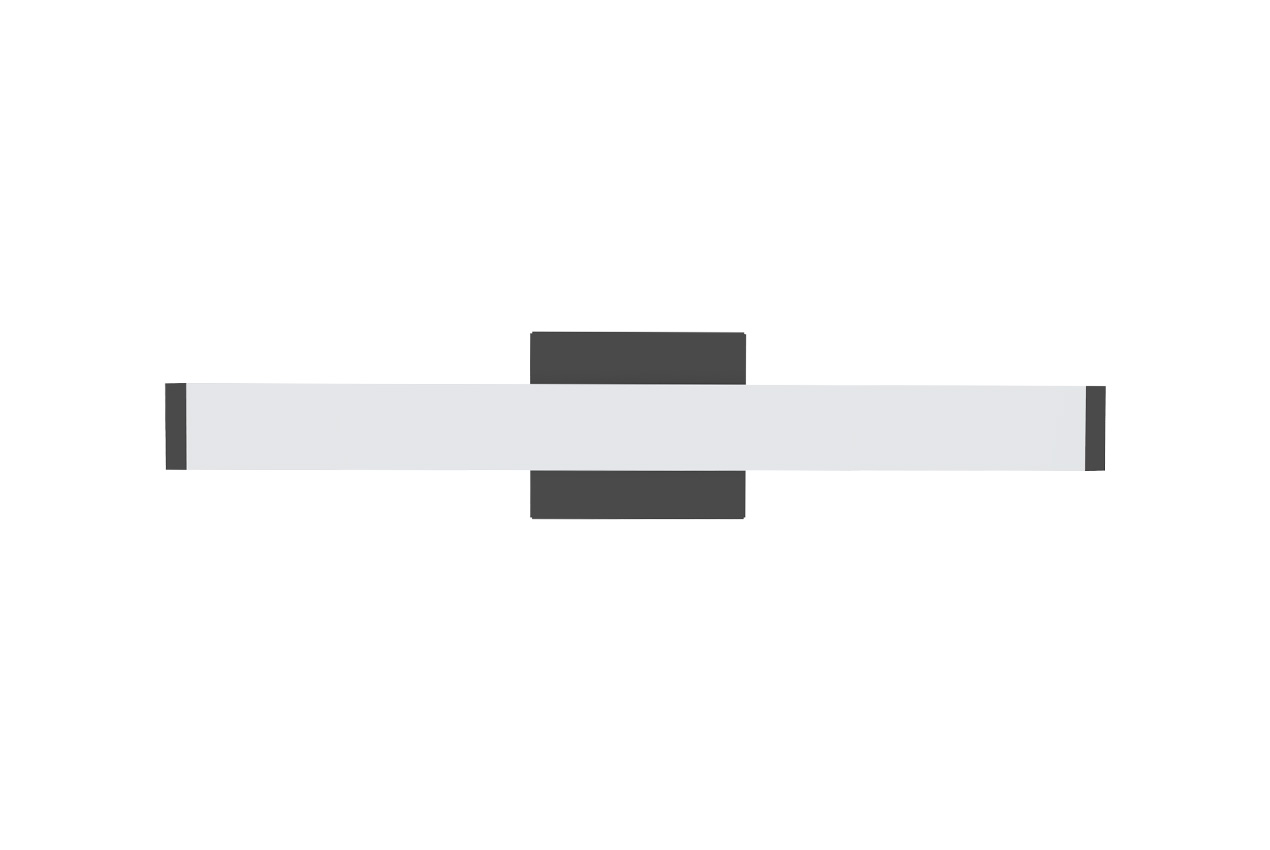

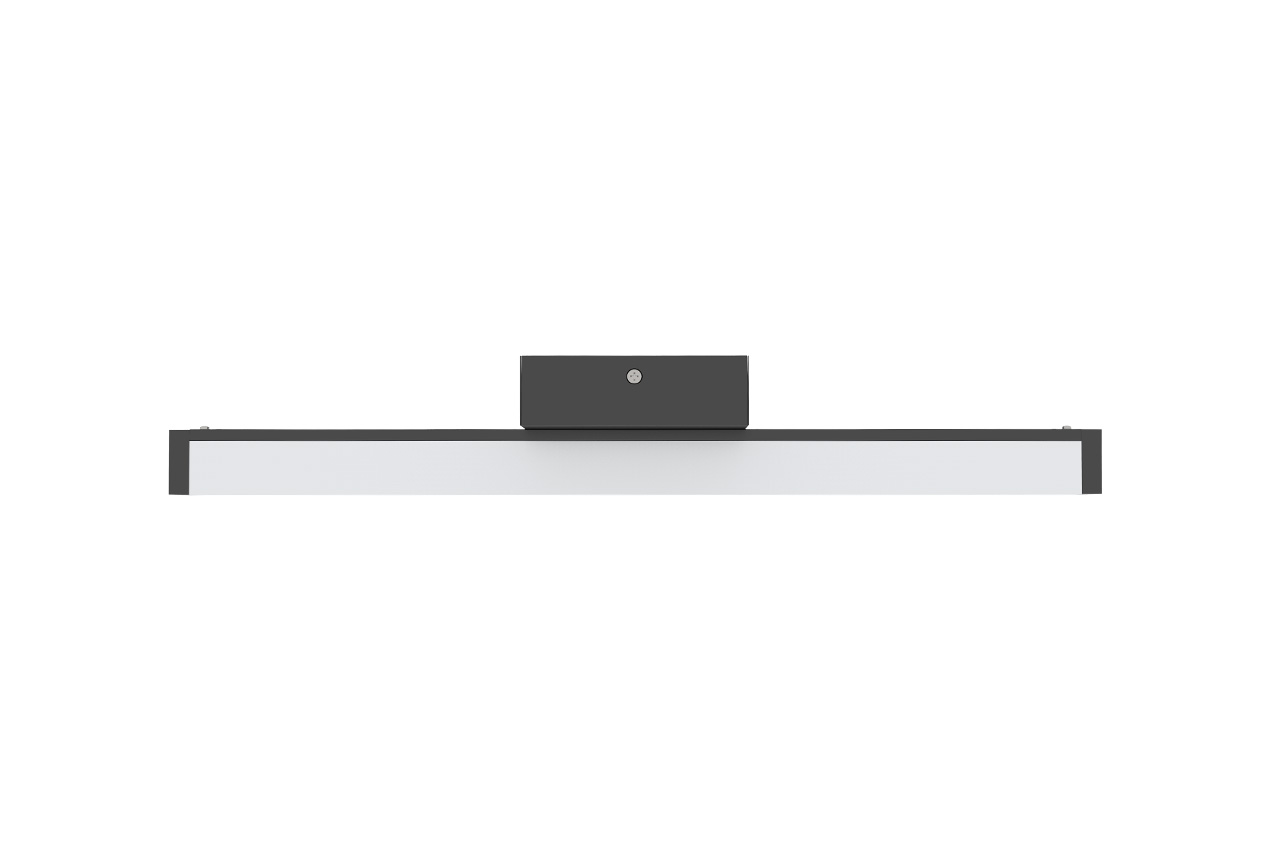

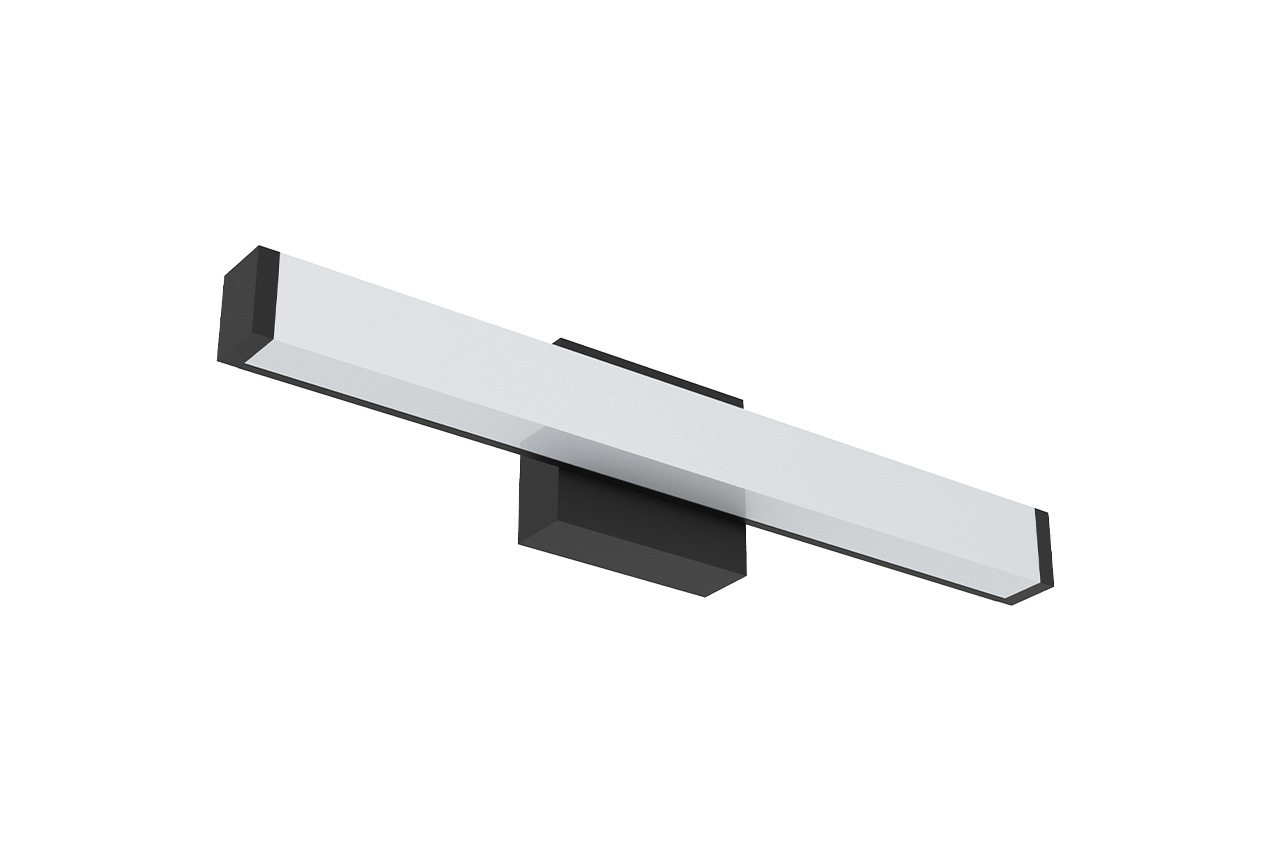

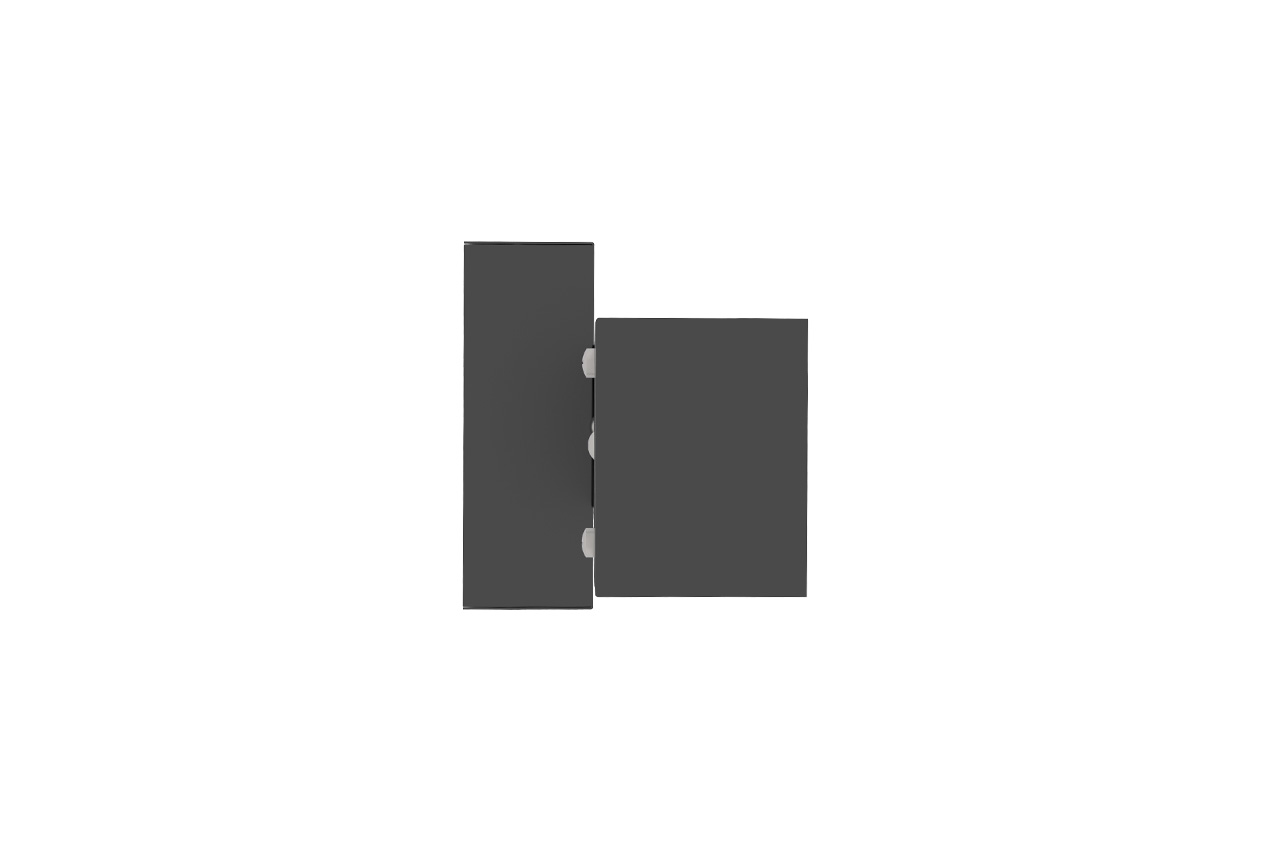

2' VNL Vanity Light
9W/15W/19W | 5CCT | 120-277V | 820-1850 lm
GTIN / UPC : 10845599062896
Code-barres : 845599062899
3 power selectable (9W/15W/19W)
5CCT (2700K/3000K/3500K/4000K/5000K)
120-277V Driver
2' length

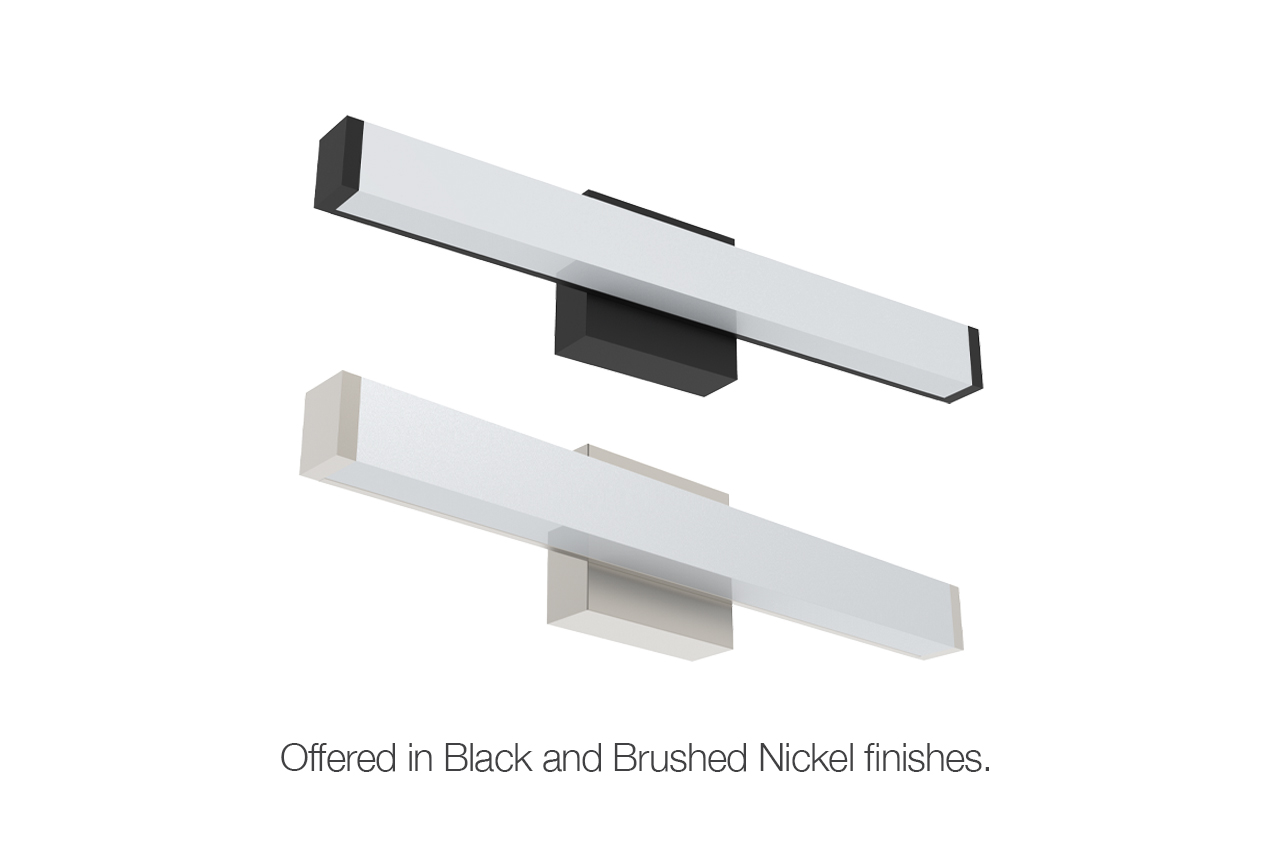

Black powder coated finish

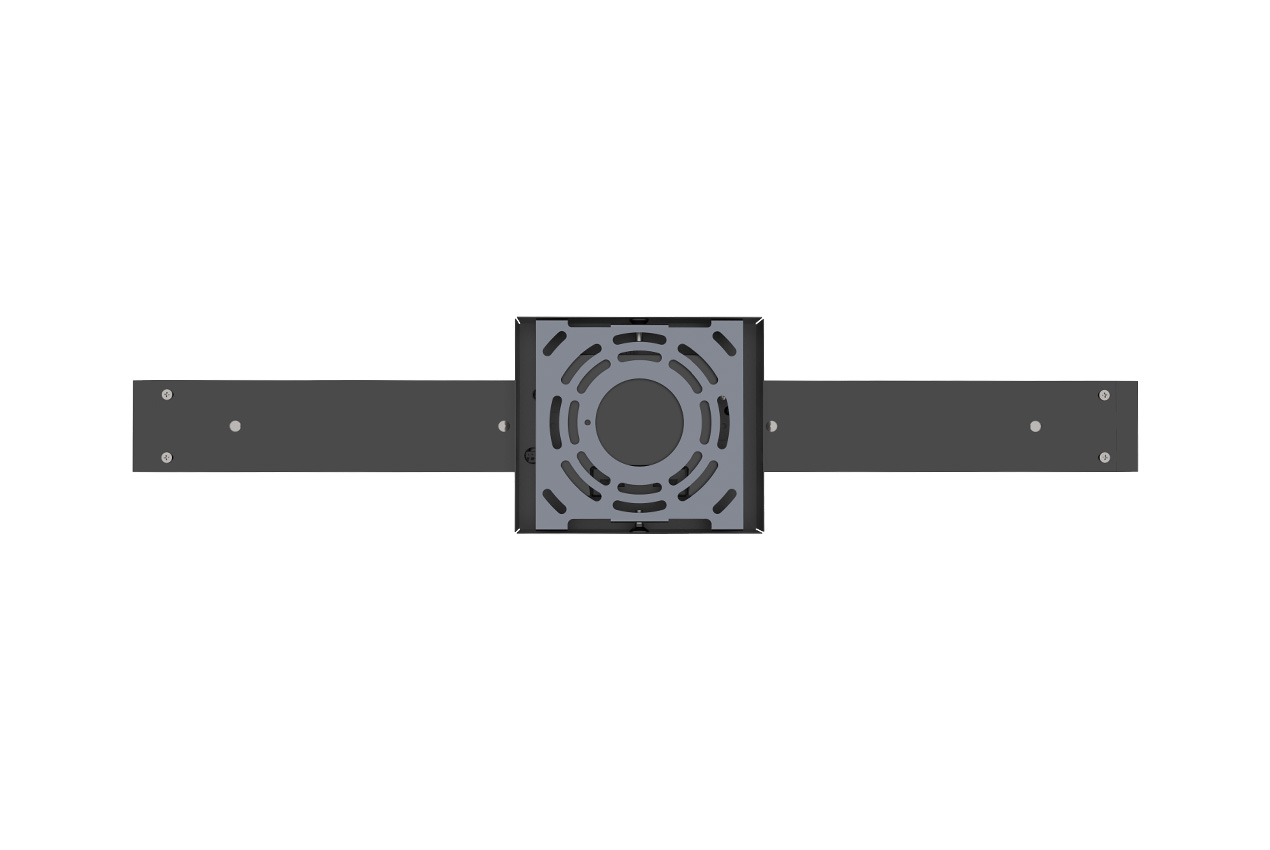

Dual mount - use as a Vanity or Wall Sconce, surface mounted vertically or horizontally
Durable steel construction
0-10V / ELV / TRIAC dimmable
Smooth, uniform illumination with square ends
Suitable for damp locations
Certifications Listed:
cETL
CSC LED Warranty:
5 Year Warranty
Product Number:
VNL-2S-19W-3P-5CCT-LV-BK
Light Specifications
Beam Angle:
135°
Colour Temperature:
2700K/3000K/3500K/4000K/5000K
CRI:
>90
Dimmable:
ELV/TRIAC/0-10
Efficacy:
92 LM/W
Initial Lumens:
1750 lm
Life (L70):
>50,000 hrs
Electrical Specifications
Amperage:
0.2 A
IP Rating:
IP20
Operating Temperature:
-20°C to 40°C
Power Factor:
>0.9
THD:
<25%
Voltage:
120-277V
Watts:
9W/15W/19W
Construction Specifications
Finish:
Powder Coat
Finish Colour:
Black
Housing:
Steel
Mounting Type:
Wall
Logistics
Unit Weight:
1.94 lbs
Unit Length:
21.5 in
Unit Width:
2.0 in
Unit Height:
3.0 in
Qty per Carton:
1
Carton Weight:
2.2 lbs
Carton Length:
22.05 in
Carton Width:
3.46 in
Carton Height:
4.8 in
Qty per Master Carton:
6
Master Carton Weight:
14.9 lbs
Master Carton Length:
22.6 in
Master Carton Width:
11.1 in
Master Carton Height:
10.6 in
Qty per Skid:
288
