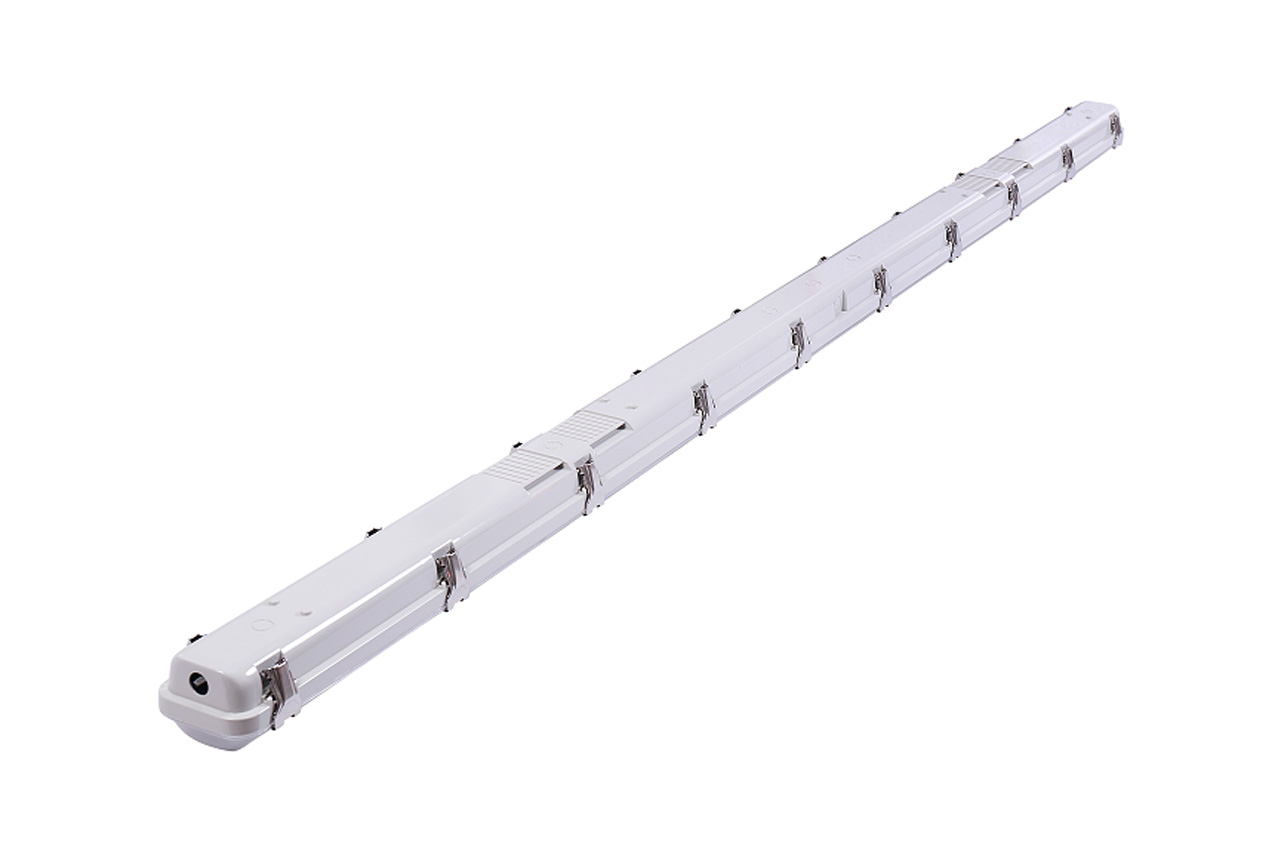

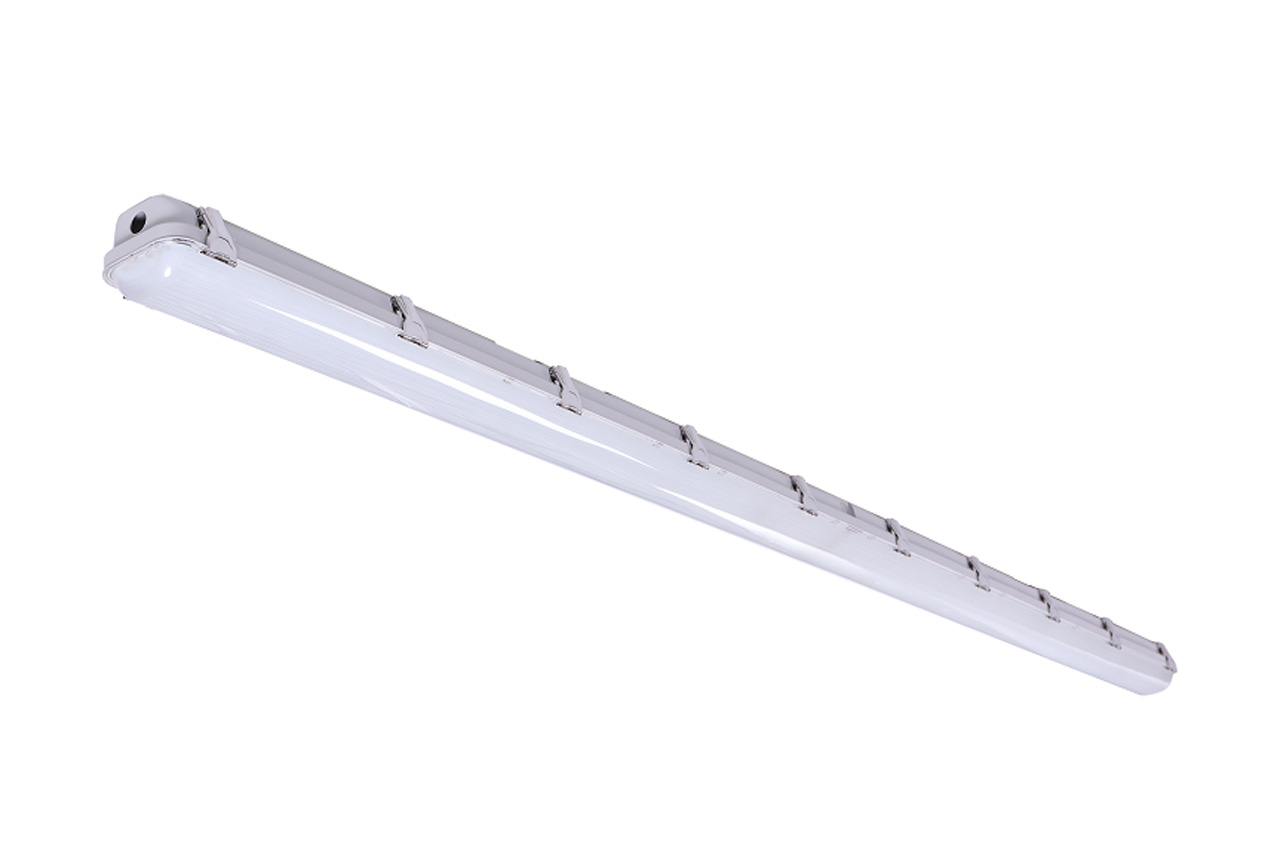

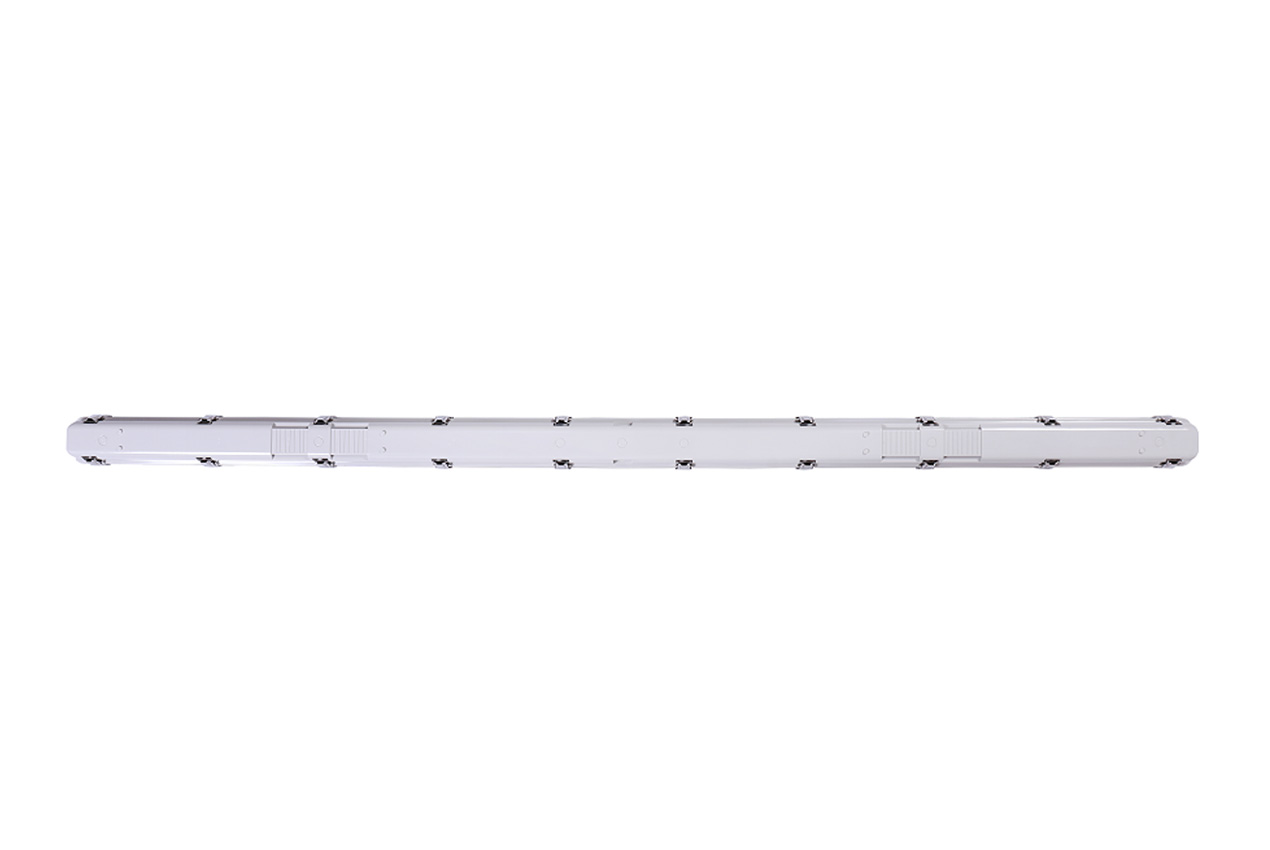

VT8-110W-4P-3CCT-UD
12 avis
NEMA 4X Vapour Tight
65W/75W/90W/110W | 3CCT | 120-347V | 9699-15881 lm
GTIN / UPC : 10845599020551
Code-barres : 845599020554
12 avis
8ft length
One piece gear tray for quick access to driver and accessories
Stainless steel spring clips
Polycarbonate low glare lens
1/2'' NPT entry
Power selectable (65W / 75W / 90W / 110W)
Colour selectable (3500K / 4000K / 5000K)
Certifications Listed:
cETL, DLCPremium, IK10, NEMA4X, NSF
CSC DLC Number:
S-PUF6XT, S-9VC8KG
CSC LED Warranty:
5 Year Warranty
Product Number:
VT8-110W-4P-3CCT-UD
Light Specifications
Beam Angle:
110
Colour Temperature:
3500K/4000K/5000K
CRI:
83
Dimmable:
0-10
Efficacy:
140 LM/W
Initial Lumens:
15554 lm
Life (L70):
>50,000 hrs
Electrical Specifications
Amperage:
0.6 A
IP Rating:
IP66
Operating Temperature:
-40°C to 40°C
Power Factor:
0.95
THD:
9.5%
Voltage:
120-347V
Watts:
65W/75W/90W/110W
Construction Specifications
Base:
NA
Finish:
NA
Finish Colour:
White/Grey
Housing:
Polycarbonate
Mounting Type:
Surface or Pendant
Logistics
Unit Weight:
10.5 lbs
Unit Length:
92.0 in
Unit Width:
3.3 in
Unit Height:
4.3 in
Qty per Master Carton:
1
Master Carton Weight:
12.3 lbs
Master Carton Length:
94.0 in
Master Carton Width:
4.0 in
Master Carton Height:
4.7 in
Qty per Skid:
100
