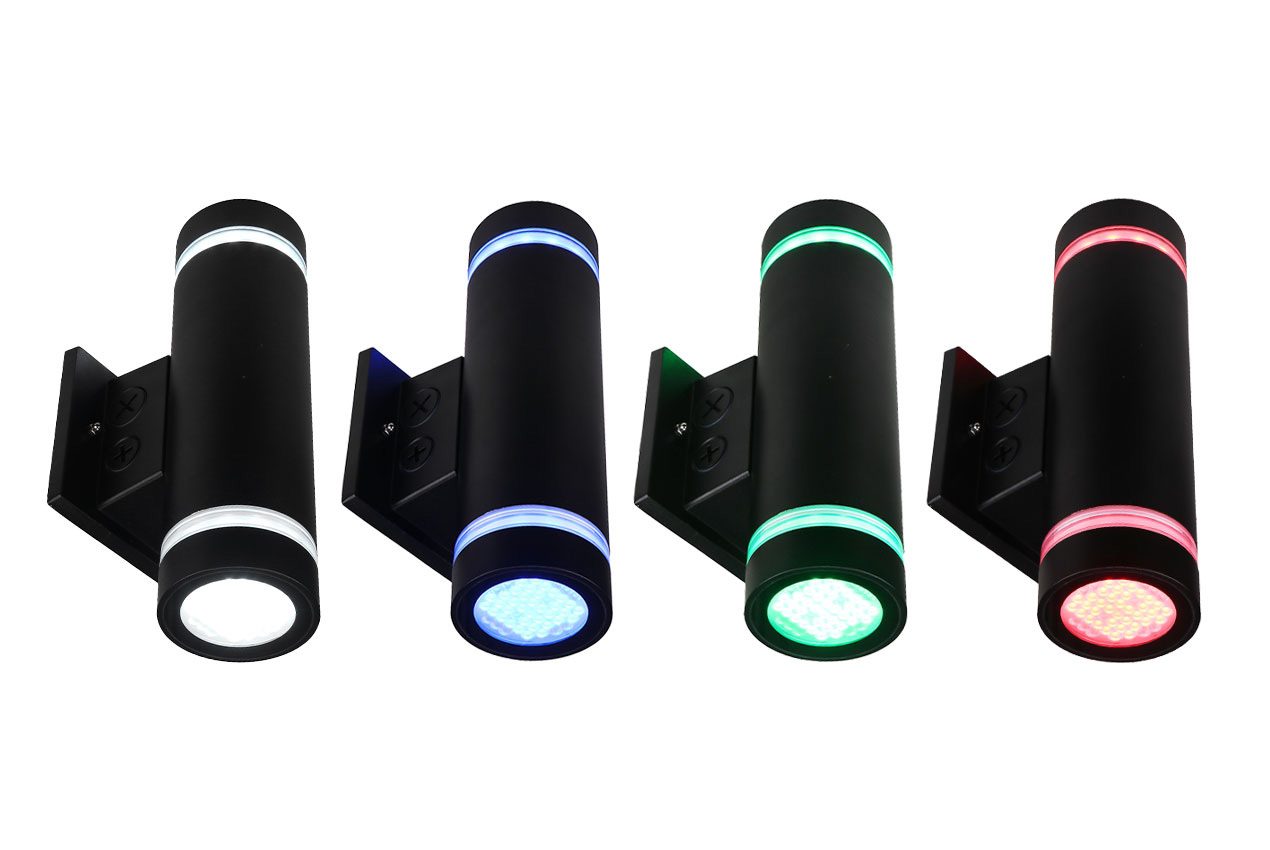

WCYL-DI-30W-RGBW-LV
3 avis
Wall Cylinder
30W | RGBW | 120-277V | Direct/Indirect | 270-1230 lm
GTIN / UPC : 10845599031526
Code-barres : 845599031529
3 avis
16 colours and 5 operating modes
120-277V driver with 0-10V dimming
Direct / Indirect (50% downlight, 50% uplight)
Powder coat black finish

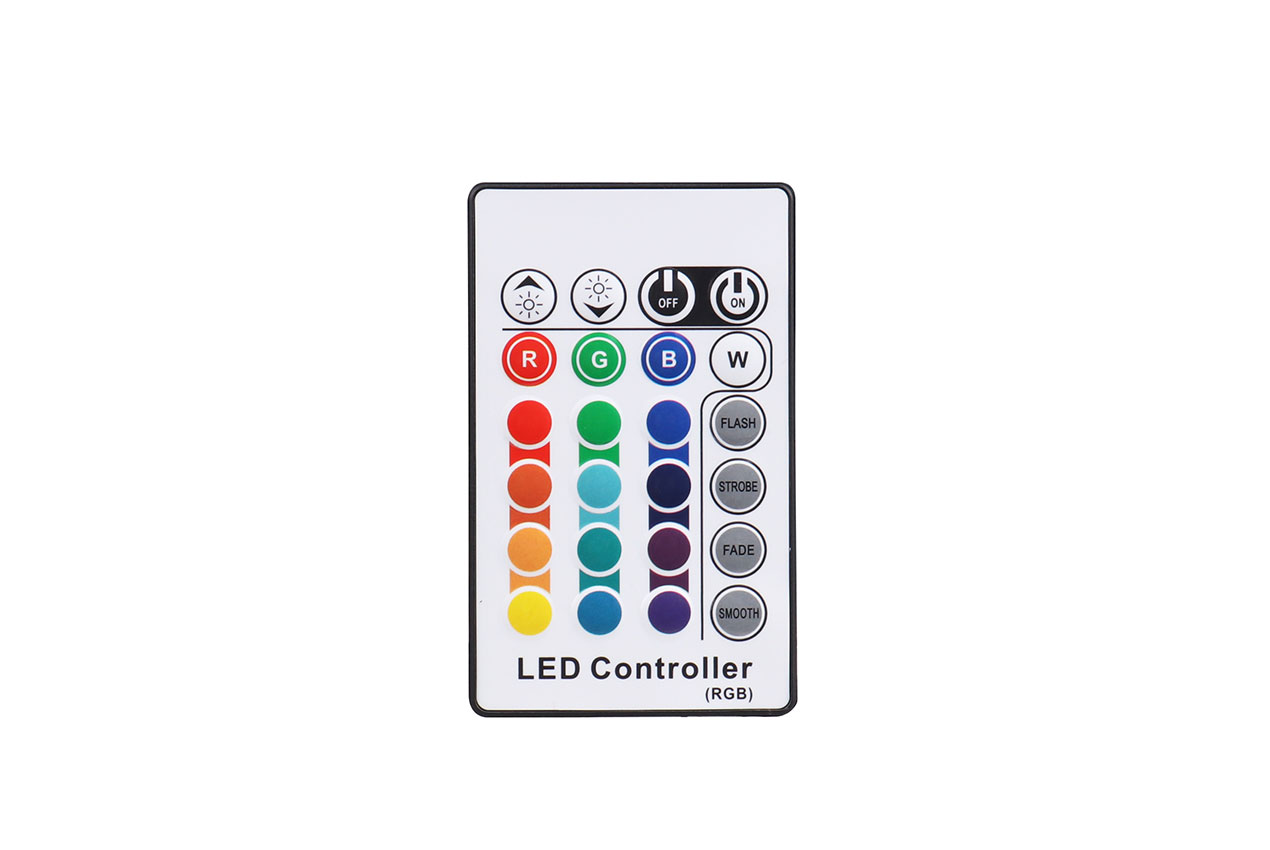

Remote Control included for colour and operating mode selection

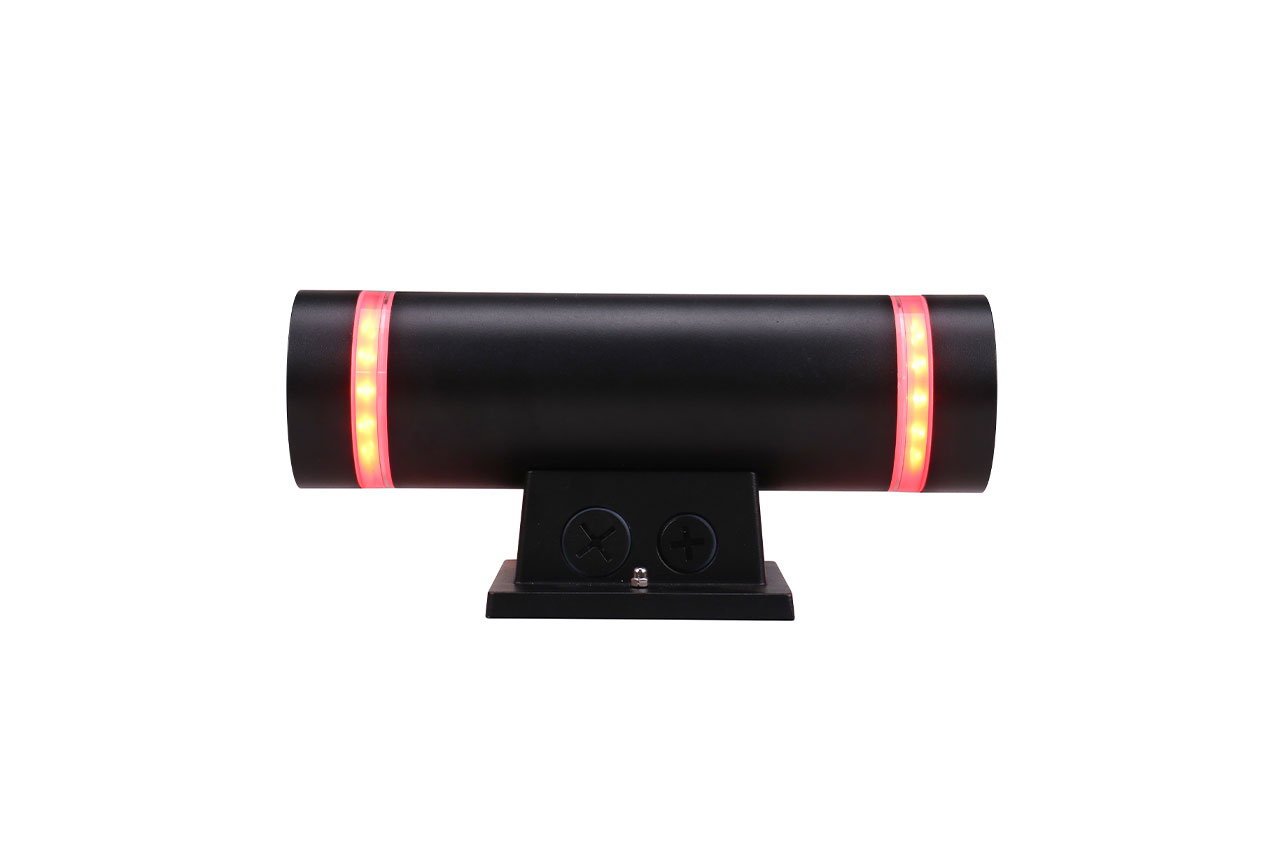

Cylinder rings illuminate
Packaged in eco-friendly packaging without plastic
Rated IP65
Certifications Listed:
cUL, IK06
CSC LED Warranty:
10 Year Warranty
Product Number:
WCYL-DI-30W-RGBW-LV
Light Specifications
Beam Angle:
60°
Colour Temperature:
RGBW
Dimmable:
0-10
Efficacy:
93 LM/W
Initial Lumens:
1800 lm
Life (L70):
>50,000 hrs
Electrical Specifications
Amperage:
0.3 A
IP Rating:
IP65
Operating Temperature:
-40°C to 45°C
Power Factor:
>0.9
THD:
<20%
Voltage:
120-277V
Watts:
30W
Construction Specifications
Finish:
Polyester Powder Coat
Finish Colour:
Black
Housing:
Die-Cast Aluminum
Power Cord Length:
7.87''
Logistics
Unit Weight:
3.13 lbs
Unit Length:
10.35 in
Unit Width:
4.76 in
Unit Height:
4.72 in
Qty per Carton:
1
Carton Weight:
3.44 lbs
Carton Length:
11.22 in
Carton Width:
5.31 in
Carton Height:
5.12 in
Qty per Master Carton:
6
Master Carton Weight:
22.8 lbs
Master Carton Length:
16.1 in
Master Carton Width:
11.8 in
Master Carton Height:
11.4 in
Qty per Skid:
408
