WR2-35W-3P-3CCT-UD
2 avis
WR2 Wrap Fixture
20W/28W/35W l 3CCT l 120-347V | 2823-4989 lm
GTIN / UPC : 10845599061905
Code-barres : 845599061908
2 avis
Power selectable 20W/28W/35W
Colour selectable 3500K/4000K/5000K
120-347V universal driver

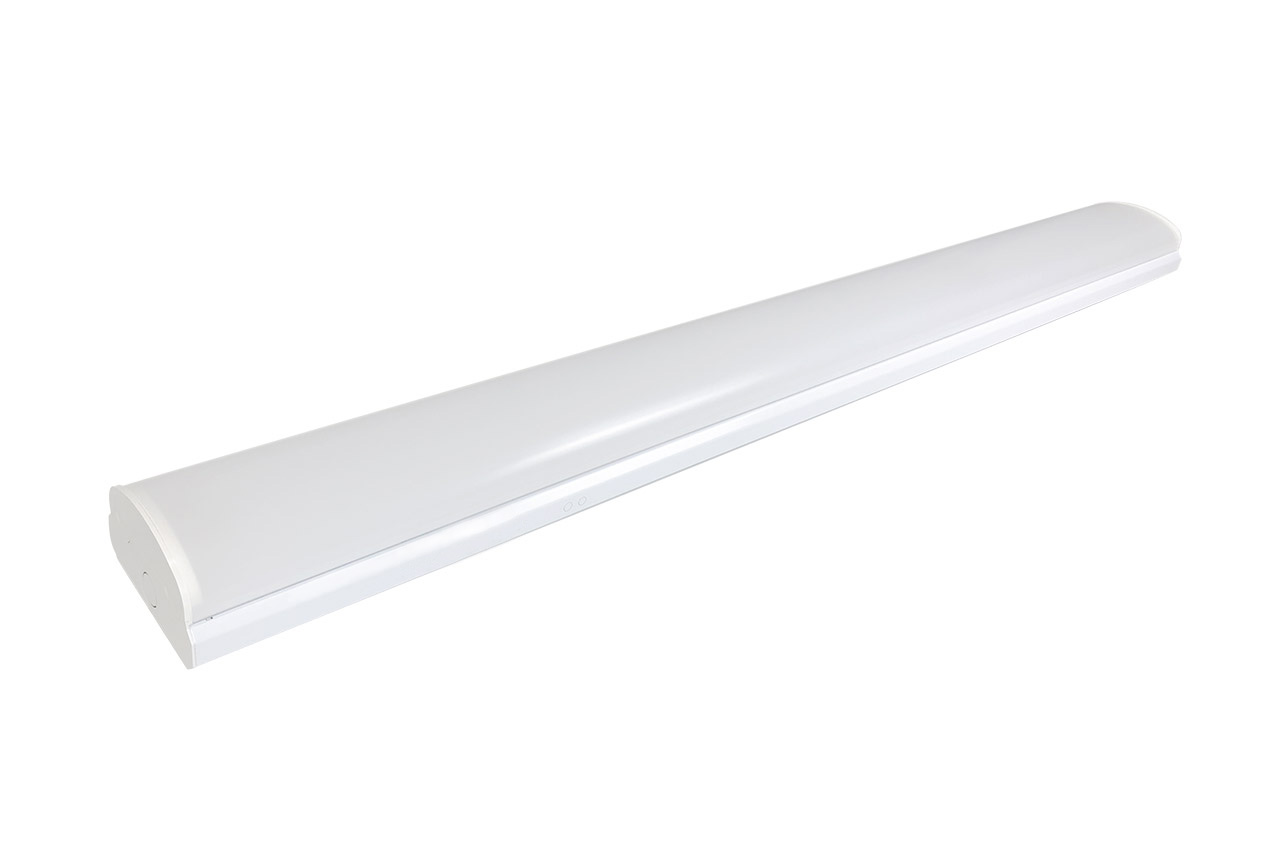

Elegant wraparound acrylic lens delivers low glare and even illumination with wide throw
2 DIP switches for the easy selection of colour temperature and wattage
Surface or Pendant mount ready

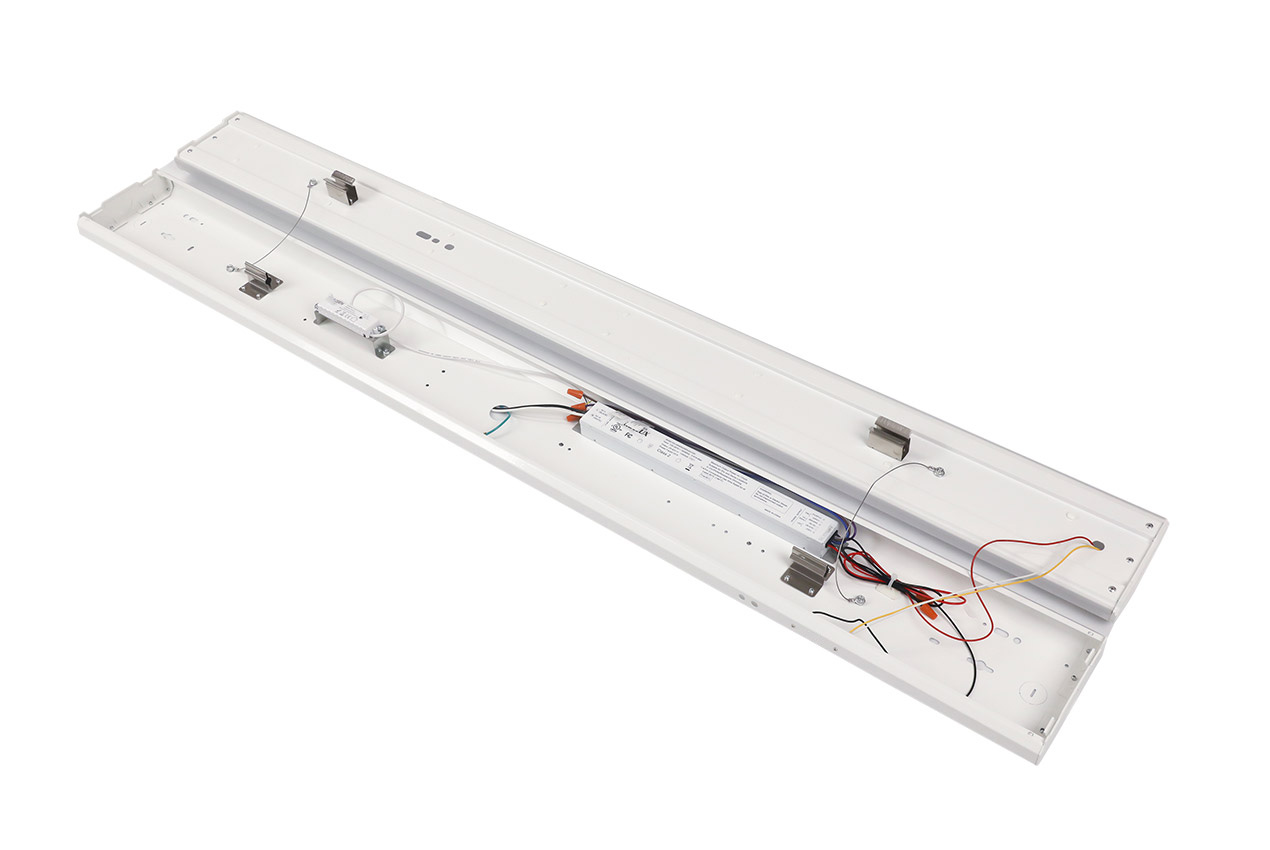

2-Piece design with separate light engine and base allows for fast and easy installation
Knockouts on each end for Conduit Wiring
NOTE: If using with optional emergency LED driver, modifications and installation should be done by CSC LED prior to shipping
Certifications Listed:
cETL, DLC
CSC DLC Number:
S-V4D0H0, S-N4KXYF
CSC LED Warranty:
5 Year Warranty
Product Number:
WR2-35W-3P-3CCT-UD
Light Specifications
Beam Angle:
120
Colour Temperature:
3500K/4000K/5000K
CRI:
80
Dimmable:
0-10
Efficacy:
138 LM/W
Initial Lumens:
4725 lm
Life (L70):
>54,000 hrs
Electrical Specifications
Amperage:
0.4 A
IP Rating:
IP20
Operating Temperature:
-25°C to -40°C
Power Factor:
0.9
THD:
<20%
Voltage:
120-347V
Watts:
20W/28W/35W
Construction Specifications
Finish:
Powder Coat
Finish Colour:
White
Housing:
Steel
Mounting Type:
Surface or Pendant
Logistics
Unit Weight:
6.8 lbs
Unit Length:
48.0 in
Unit Width:
5.3 in
Unit Height:
2.8 in
Qty per Carton:
1
Carton Weight:
7 lbs
Carton Length:
48.0 in
Carton Width:
5.5 in
Carton Height:
3.1 in
Qty per Master Carton:
4
Master Carton Weight:
30.0 lbs
Master Carton Length:
49.0 in
Master Carton Width:
11.6 in
Master Carton Height:
6.9 in
Qty per Skid:
144
