Understanding IK Ratings: Why Impact Resistance Matters in LED Lighting

Understanding IK Ratings: Why Impact Resistance Matters in LED Lighting

When selecting your lighting fixtures, performance, efficiency, and longevity are often top priorities. But there’s another critical factor that’s sometimes overlooked — impact resistance, measured by an IK rating. Whether your lighting is installed in a rugged industrial facility or an exposed outdoor environment, understanding IK ratings ensures your fixtures can handle the job safely and reliably.

What Is an IK Rating?

An IK rating measures a fixture’s ability to withstand mechanical impact. It’s part of the IEC 62262 international standard, which uses a numerical scale from IK00 to IK10 to represent how much physical impact a fixture’s enclosure can endure.

In simple terms — the higher the IK rating, the tougher the fixture.

An IK10 rating means a fixture can withstand a 20-joule impact, roughly equivalent to being hit with a 5 kg object dropped from 40 cm. That’s serious durability.

Why IK Ratings Matter

IK ratings aren’t just about toughness — they’re about safety, reliability, and cost-efficiency.
Fixtures in areas where they might be exposed to accidental impacts, vandalism, or heavy equipment need higher IK ratings to:

• Prevent damage and downtime — minimizing replacement and maintenance costs.

• Maintain light output and performance — even after minor impacts.

• Ensure safety — protecting both people and equipment from broken lenses or exposed wiring.

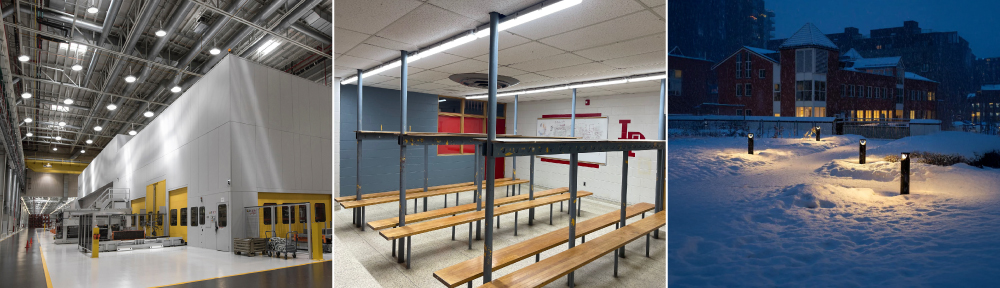

When You Need High IK Ratings

You should always consider IK ratings in environments where lights are exposed, accessible, or at risk of impact. Examples include:

• Parking garages and warehouses – where forklifts, vehicles, or machinery may bump fixtures.

• Industrial facilities and gymnasiums – where equipment or sports activity can strike fixtures.

• Outdoor walkways and public spaces – where vandalism or accidental contact can occur.

CSC LED Fixtures with IK Ratings You Can Trust

At CSC LED, durability and performance go hand-in-hand. Several of our fixtures are designed with high IK ratings to ensure dependable performance wherever they’re installed.

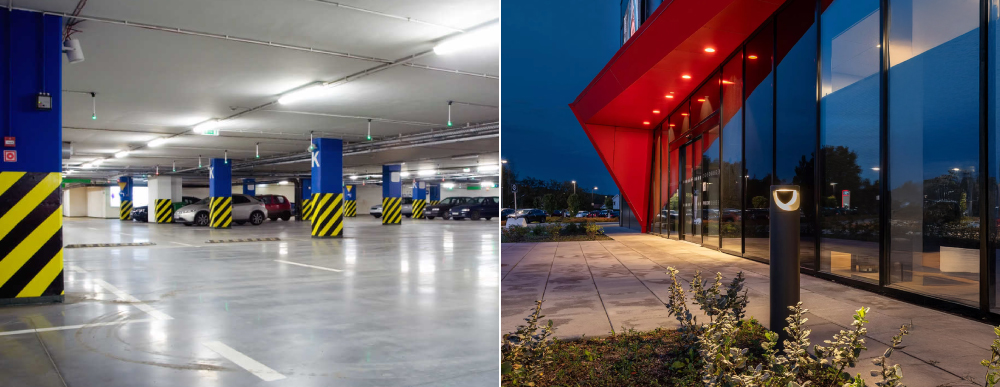

IK10-Rated Products

• VT Vapour Proof Series – Perfect for parking garages, car washes, and industrial settings, these fixtures combine rugged, impact-resistant construction with moisture and dust protection for long-lasting reliability.

• BL01 Bollards – Built for outdoor pathways, parks, and commercial landscapes, the BL01’s IK10 rating ensures it can handle physical impacts and harsh outdoor conditions while maintaining a sleek, modern look.

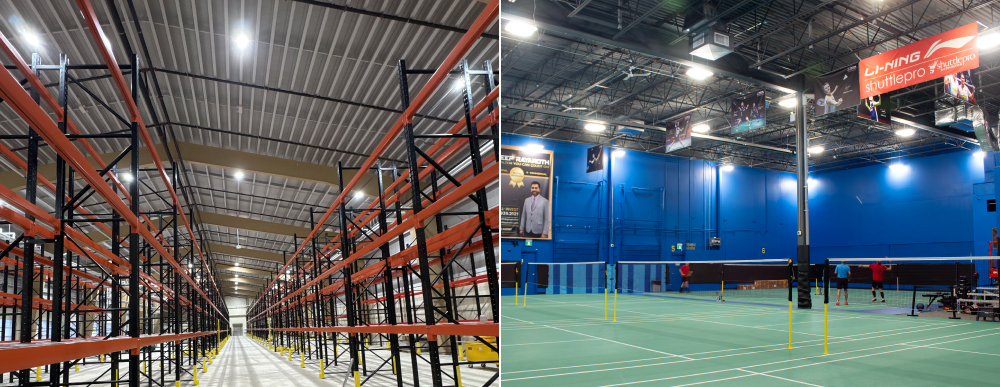

IK08-Rated Products

• HB8 High Bays – Designed for warehouses, manufacturing floors, and gymnasiums, these high bays withstand everyday impacts and vibrations while delivering exceptional illumination.

• LHB04 Linear High Bays – Ideal for aisles, sports facilities, and workshops, these fixtures combine impact resistance with energy-efficient design, offering reliability in busy environments.

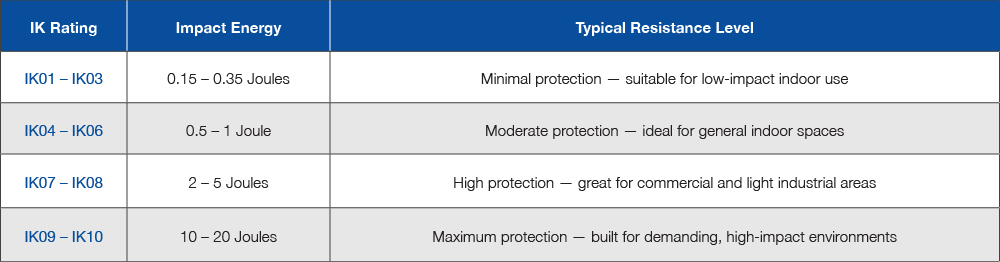

Choosing the Right IK Rating for Your Application

• IK06 or lower: Ideal for protected indoor spaces where minimal impact risk exists, such as offices or retail areas.

• IK07–IK08: Suitable for commercial, warehouse, or industrial use.

• IK09–IK10: Best for outdoor, public, or industrial spaces where fixtures are exposed to higher impact risk.

When in doubt, choose a higher IK rating to ensure long-term performance and safety — especially in high-traffic or exposed environments.

Watch our Youtube video on IK testing and see how durable our HB8 High Bays really are!

Built to Last

IK ratings are a simple but powerful way to understand how durable your lighting truly is. At CSC LED, we design our fixtures to meet real-world demands — from IK08 high bays in busy warehouses to IK10 bollards in outdoor environments. Because durable lighting doesn’t just perform better — it lasts longer, saves money, and delivers peace of mind.

Interested in safety in the lighting industry? Check out the importance of HazLoc lighting for safe work places.
