CLEARANCE

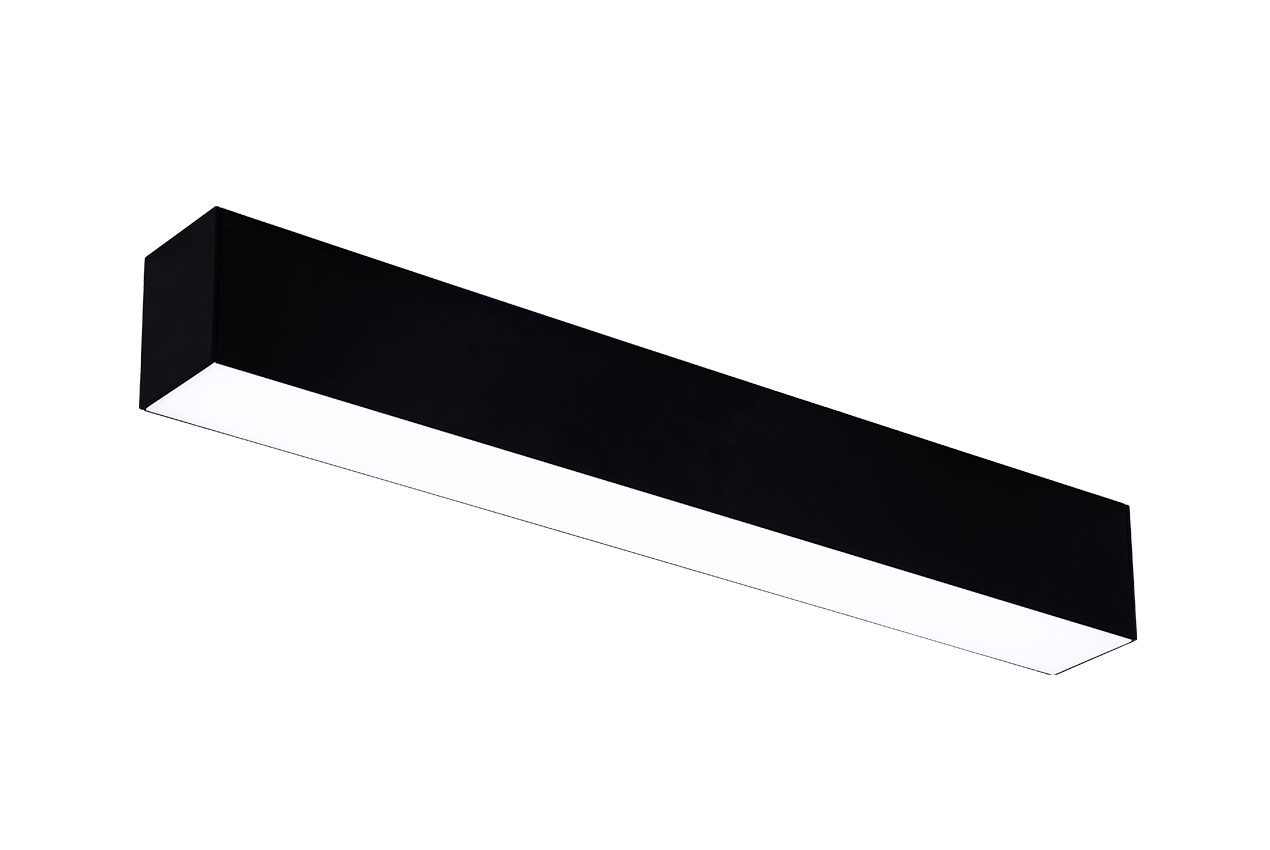

AL2-DI-20W-3CCT-UD-BK
4 reviews
2' Architectural Linear
20W | 3CCT | 120-347V | Direct/Indirect | 2100 lm
GTIN / UPC: 10845599061387
Barcode: 845599061380
4 reviews
CLEARANCE ITEM - While supplies last
Final Sale - 1-Year Manufacturer Warranty
Elevate your space by creating your own custom lighting design
Ideal for use in offices, conference rooms, hallways, educational facilities, and more
4 Backlit Connector options available to help you create your own seamless and unique design (sold separately)
70% Downlight, 30% Uplight
Flexible mounting options available (sold separately)
Colour Selectable (3000K/3500K/4000K)
24'' power cord with dimming cables connects to input power or other luminaires in row mounting applications
Certifications Listed:
cUL
CSC LED Warranty:
1 Year Warranty
Product Number:
AL2-DI-20W-3CCT-UD-BK
Light Specifications
Colour Temperature:
3000K/3500K/4000K
CRI:
80+
Dimmable:
0-10
Efficacy:
105 LM/W
Initial Lumens:
2100 lm
Life (L70):
>50,000 hrs
Electrical Specifications
Amperage:
0.2 A
IP Rating:
IP20
Operating Temperature:
-40°C to 55°C
Power Factor:
>0.9
THD:
>20%
Voltage:
120-347V
Watts:
20W
Construction Specifications

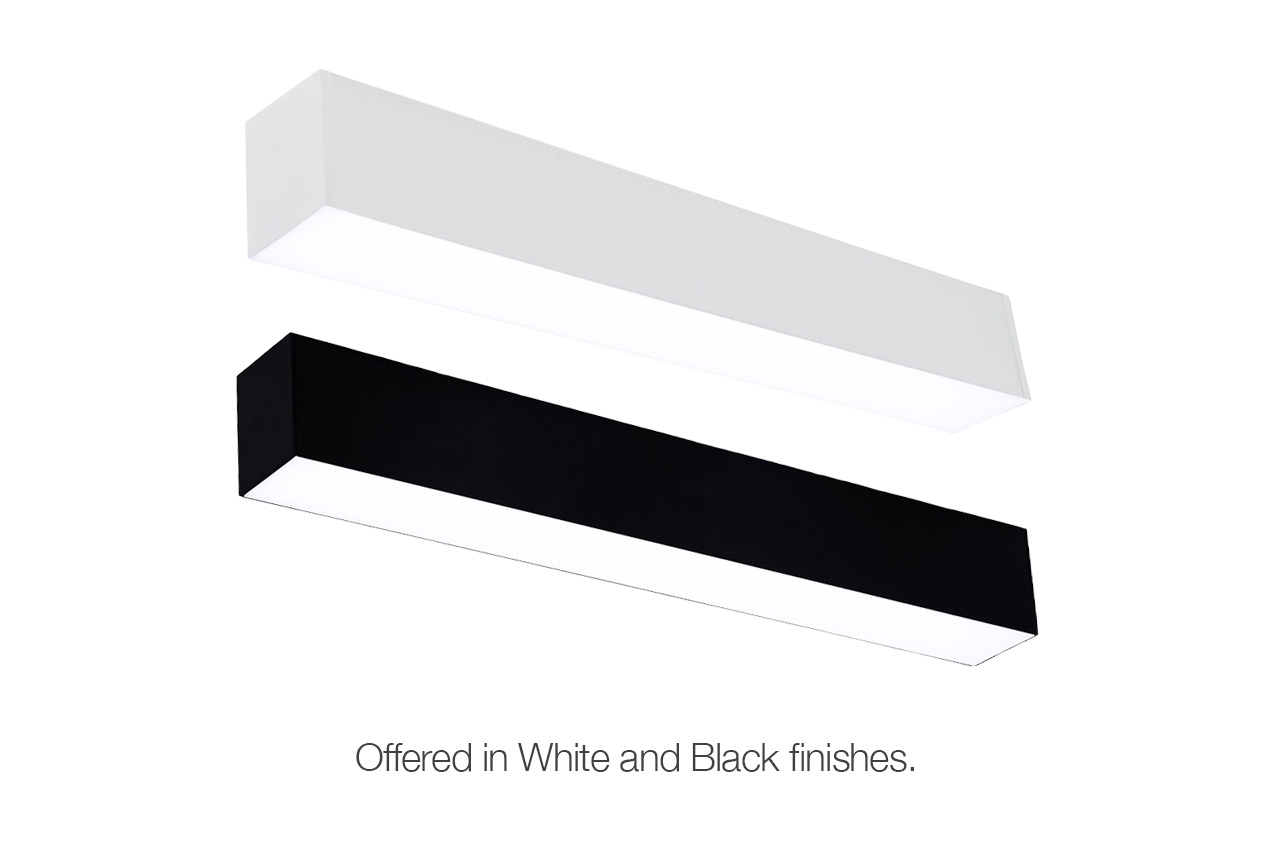

Finish Colour:
Black
Housing:
Aluminum
Power Cord Length:
24''
Logistics
Unit Weight:
3.96 lbs
Unit Length:
24.0 in
Unit Width:
2.8 in
Unit Height:
3.3 in
Qty per Carton:
1
Carton Weight:
4.2 lbs
Carton Length:
24.8 in
Carton Width:
3.0 in
Carton Height:
3.7 in
Qty per Master Carton:
6
Master Carton Weight:
28.9 lbs
Master Carton Length:
25.4 in
Master Carton Width:
11.8 in
Master Carton Height:
6.9 in
Qty per Skid:
300
