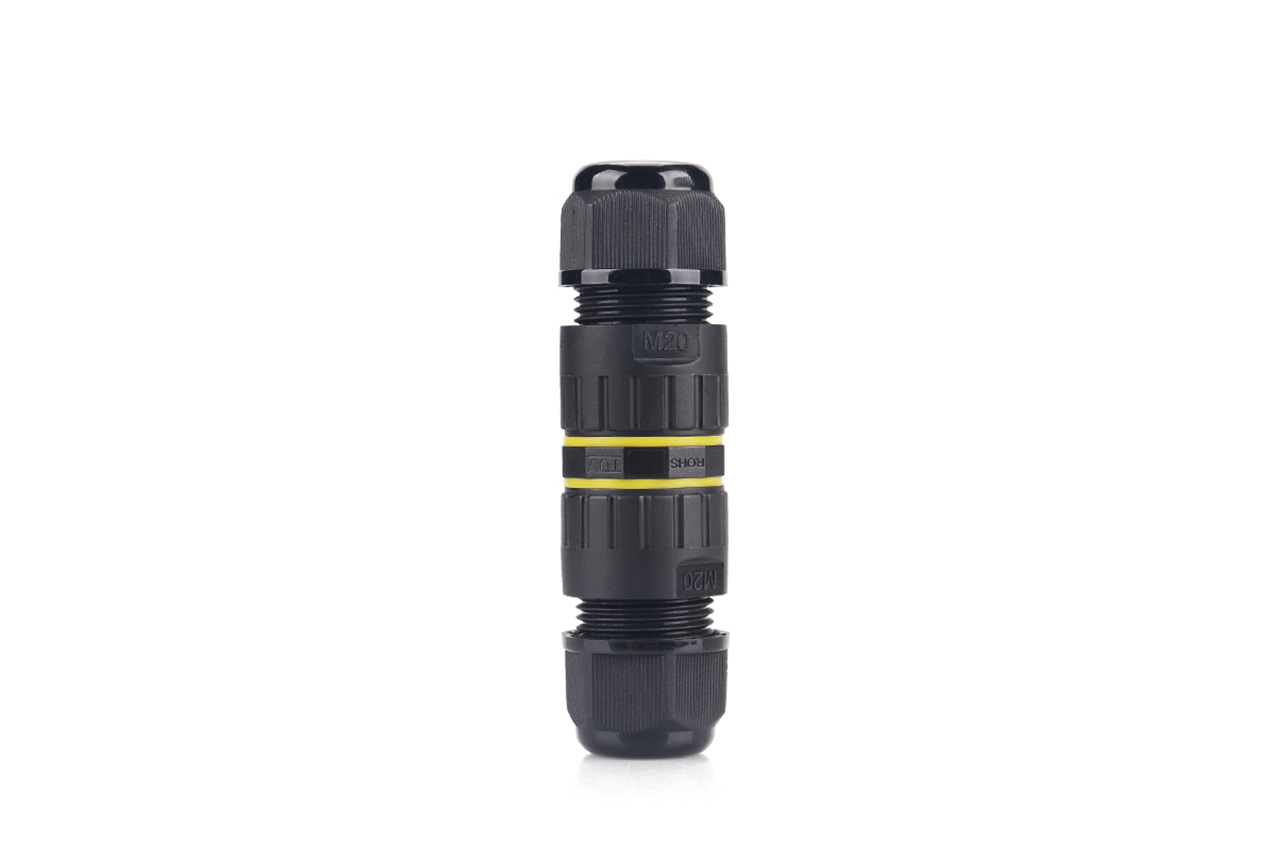

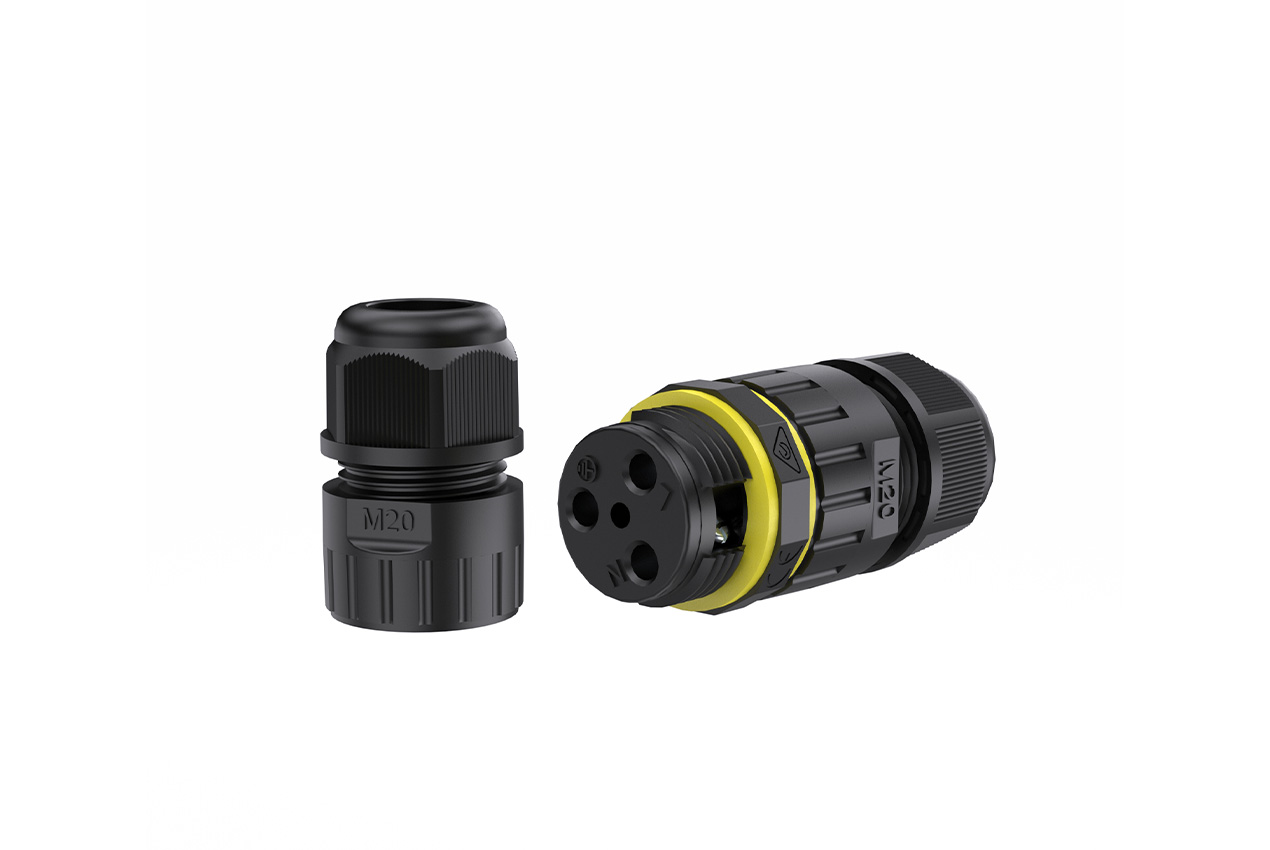

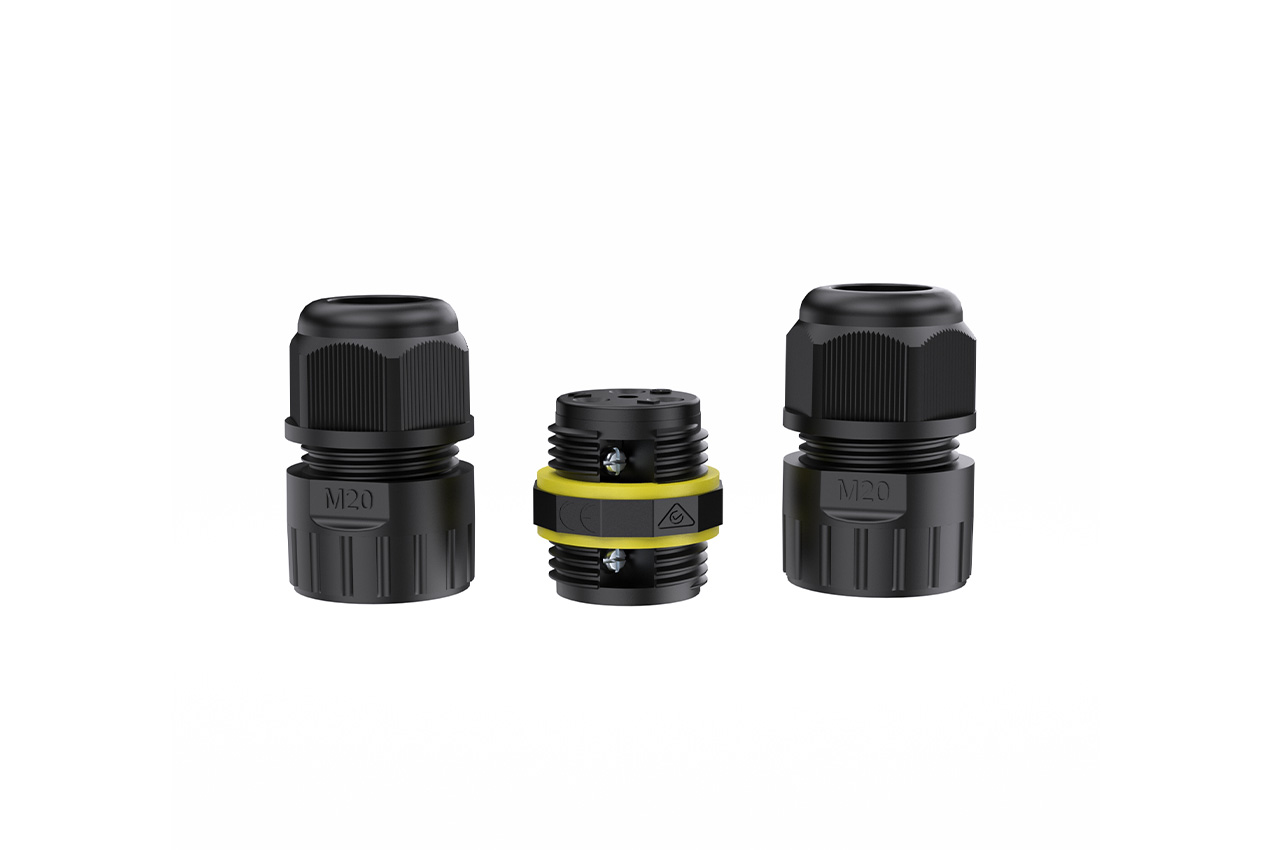

EW-M20-3P
Inline Connector
400V Max | 24A Max | 3 Poles
GTIN / UPC: 10845599062070
Barcode: 845599062073
cUL Rated
5-9mm cable diameter
Rated IP68
400V max
24A max
3 poles
Screw-down wire terminals
Certifications Listed:
cUL
CSC LED Warranty:
3 Year Warranty
Product Number:
EW-M20-3P
Electrical Specifications
IP Rating:
IP68
Operating Temperature:
-40°C to 105°C
Construction Specifications
Finish Colour:
Black
Housing:
Nylon PA66
Logistics
Unit Length:
3.45 in
Unit Width:
0.95 in
Unit Height:
0.95 in
Qty per Carton:
1
Qty per Master Carton:
400
Master Carton Weight:
29.1 lbs
Master Carton Length:
16.5 in
Master Carton Width:
11.8 in
Master Carton Height:
10.8 in
Qty per Skid:
28800
EW-M20-3P
Inline Connector
400V Max | 24A Max | 3 Poles
GTIN / UPC: 10845599062070
Barcode: 845599062073
