EXPL-40W-2FT-50K
3 reviews
Linear Explosion-Proof / Hazloc
40W l 5000K l 120-277V | 5881 lm | 2ft
GTIN / UPC: 10845599001611
Barcode: 845599001614
3 reviews

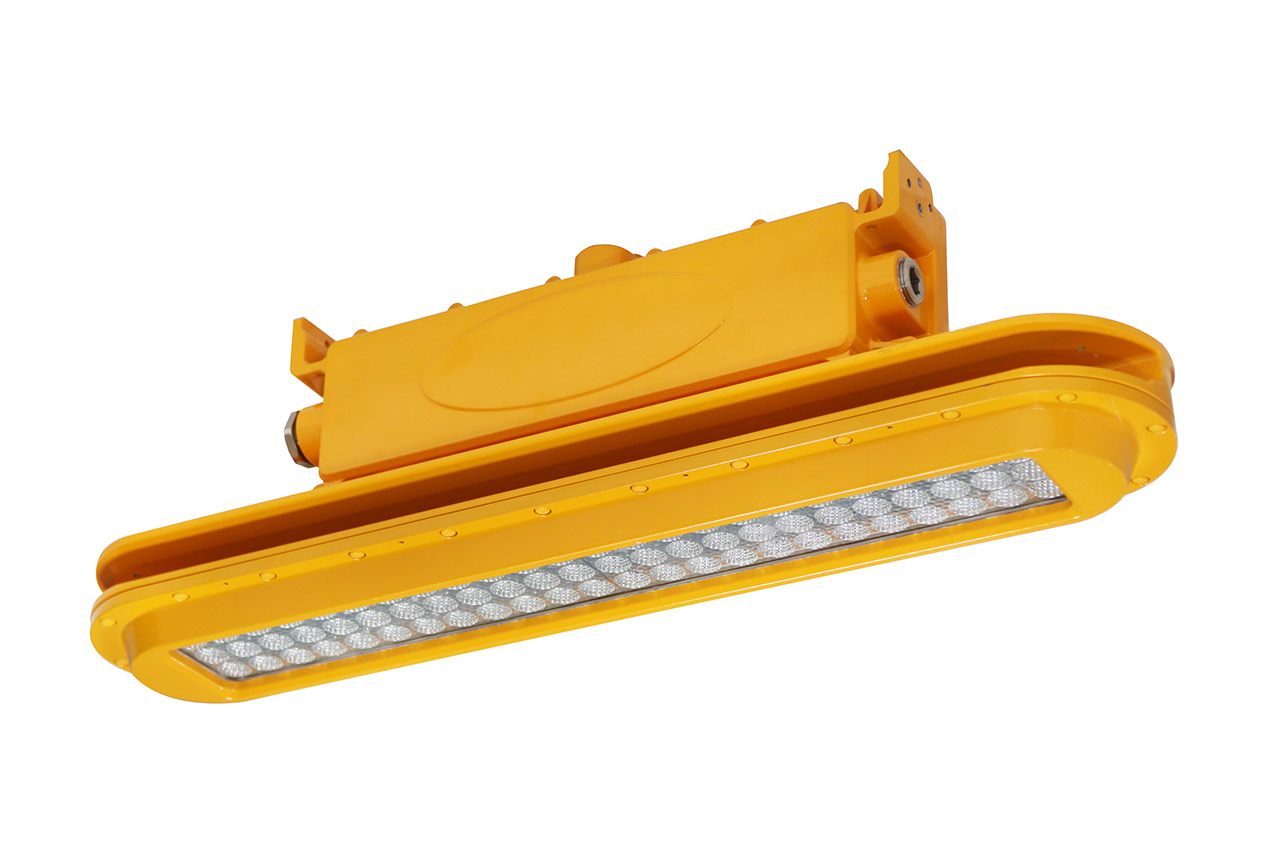

Linear Explosion-Proof Fixture
Suitable for hazardous environments where flammable gases, vapours, and liquids may exist
Suited for wet locations, marine environments, and high-vibration applications
Die-cast aluminum - Orange finish
IP66 driver in a separate compartment with 10kV surge protection
C1, D2, (Groups A,B,C,D), UL844, UL1598, UL8750
Atex II 2 G Ex db IIC T6 Gb
Faceted reflectors in each LED chip for glare control and beam precision
3 x 3/4'' NPT conduit entry points for added flexibility
Tempered glass lens allows for soft, uniform light
Suspension kit included

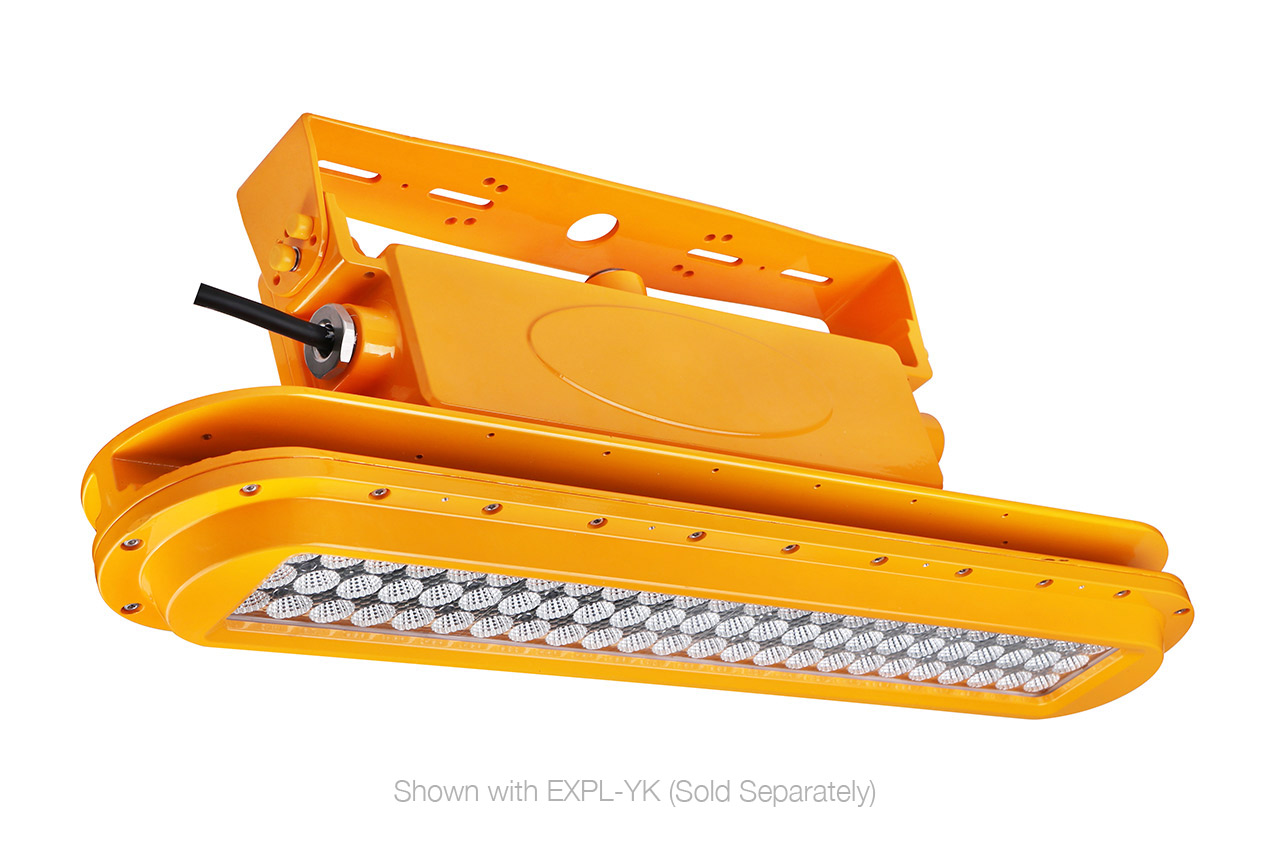

Yoke Mount available, ordered separately
Certifications Listed:
cUL, IK08
CSC LED Warranty:
5 Year Warranty
Product Number:
EXPL-40W-2FT-50K
Light Specifications
Beam Angle:
110 x 100
Colour Temperature:
5000K
CRI:
70+
Dimmable:
Yes
Efficacy:
130 LM/W
Initial Lumens:
5881 lm
Life (L70):
>50,000 hrs
Electrical Specifications
IP Rating:
IP66
Operating Temperature:
-40°C to 65°C
Power Factor:
0.99
THD:
<20%
Voltage:
120-277V
Watts:
40W
Construction Specifications
Finish Colour:
Orange
Housing:
Aluminum
Logistics
Unit Weight:
12.5 lbs
Qty per Master Carton:
1
Master Carton Weight:
28.0 lbs
Master Carton Length:
30.0 in
Master Carton Width:
9.0 in
Master Carton Height:
12.0 in
Qty per Skid:
45
