PLP02-14-35W-3P-3CCT-UD
PLP02 Panel Light
1' x 4' | 20W/30W/35W | 3CCT | 120-347V | 2860-4935 lm
GTIN / UPC: 10845599040900
Barcode: 845599040903
1' x 4' Panel suitable for pendant, lay-in, or suspended installation
Power selectable (20W/30W/35W)
3CCT selectable (3500K/4000K/5000K)
120-347V driver with 0-10V dimming

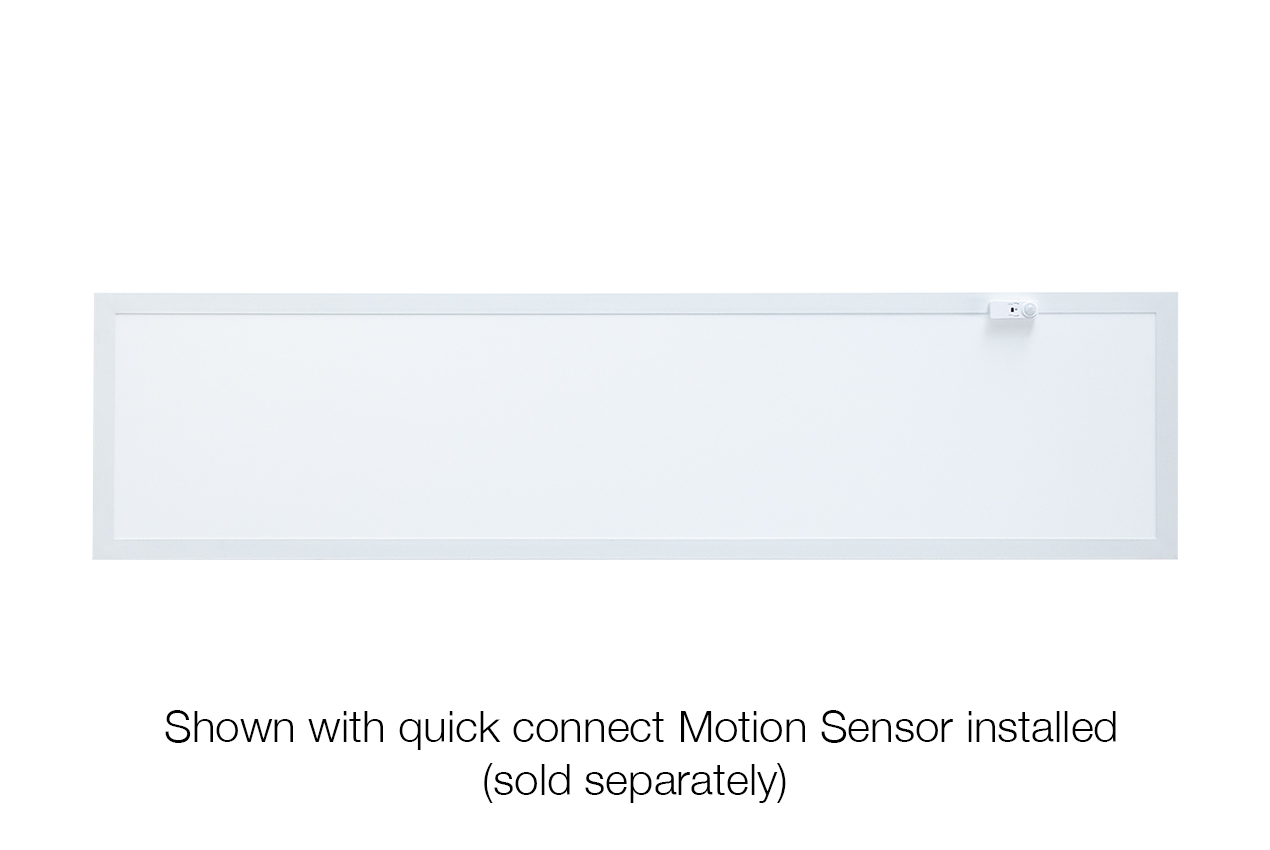

Built-in Motion Sensor receptacle with easy quick-connect design for optional Motion Sensor
Optional Junction Box (PLS-JB) sold separately for an additional 25.5 in³ of volume for wiring
Certifications Listed:
cETL, DLCPremium
CSC DLC Number:
S-X7WKTS, S-XP65M8
CSC LED Warranty:
7 Year Warranty
Product Number:
PLP02-14-35W-3P-3CCT-UD
Light Specifications
Beam Angle:
110°
Colour Temperature:
3500K/4000K/5000K
CRI:
80+
Dimmable:
0-10V
Efficacy:
135 LM/W
Initial Lumens:
4725 lm
Life (L70):
>50,000 hrs
Electrical Specifications
Amperage:
0.4 A
IP Rating:
IP20
Operating Temperature:
-30°C to 45°C
Power Factor:
>0.9
THD:
<20%
Voltage:
120-347V
Watts:
20W/30W/35W
Construction Specifications
Finish:
Polyester Powder Coat
Finish Colour:
White
Housing:
Metal
Logistics
Unit Weight:
4.41 lbs
Unit Length:
47.72 in
Unit Width:
11.85 in
Unit Height:
1.48 in
Qty per Carton:
1
Qty per Master Carton:
4
Master Carton Weight:
21.1 lbs
Master Carton Length:
49.1 in
Master Carton Width:
6.9 in
Master Carton Height:
13.5 in
Qty per Skid:
144
