PLS02-22-35W-3P-3CCT-UD

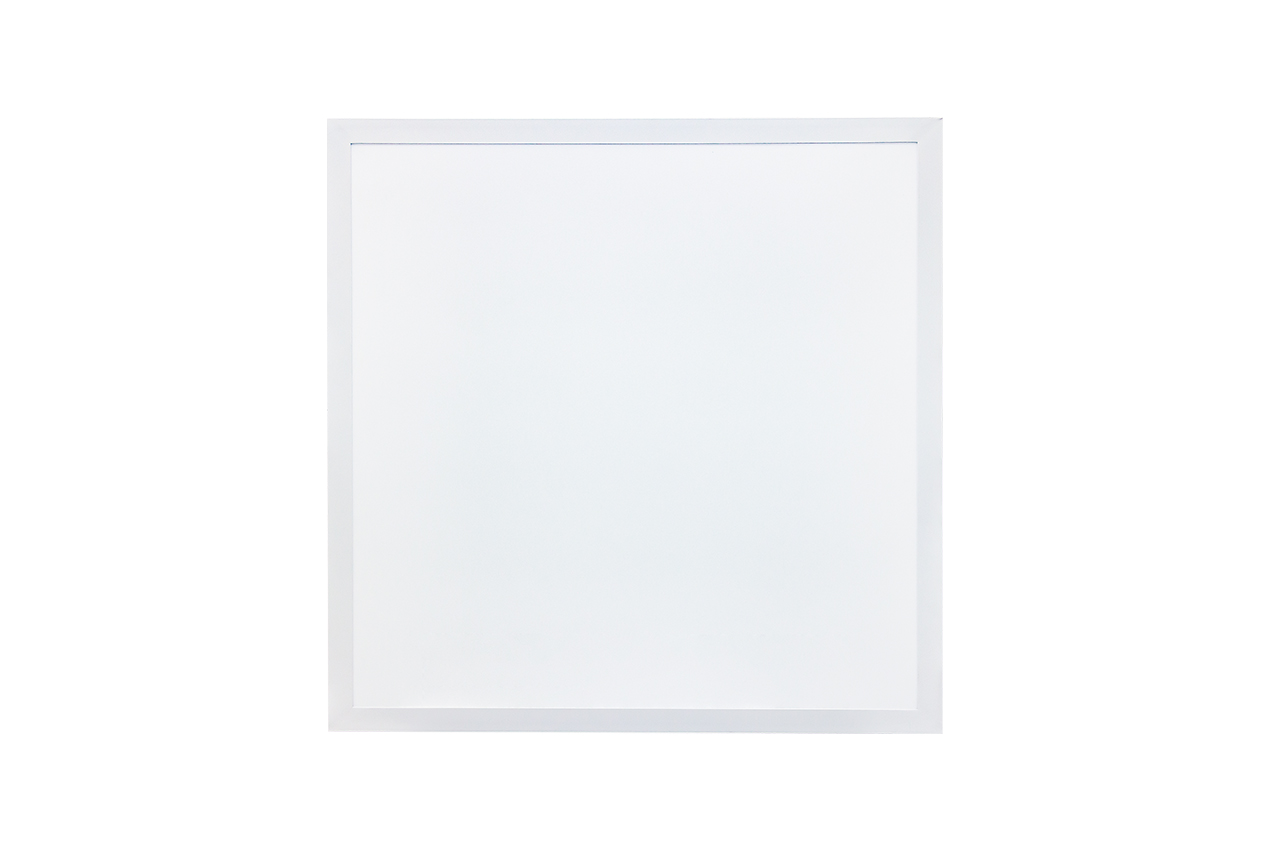

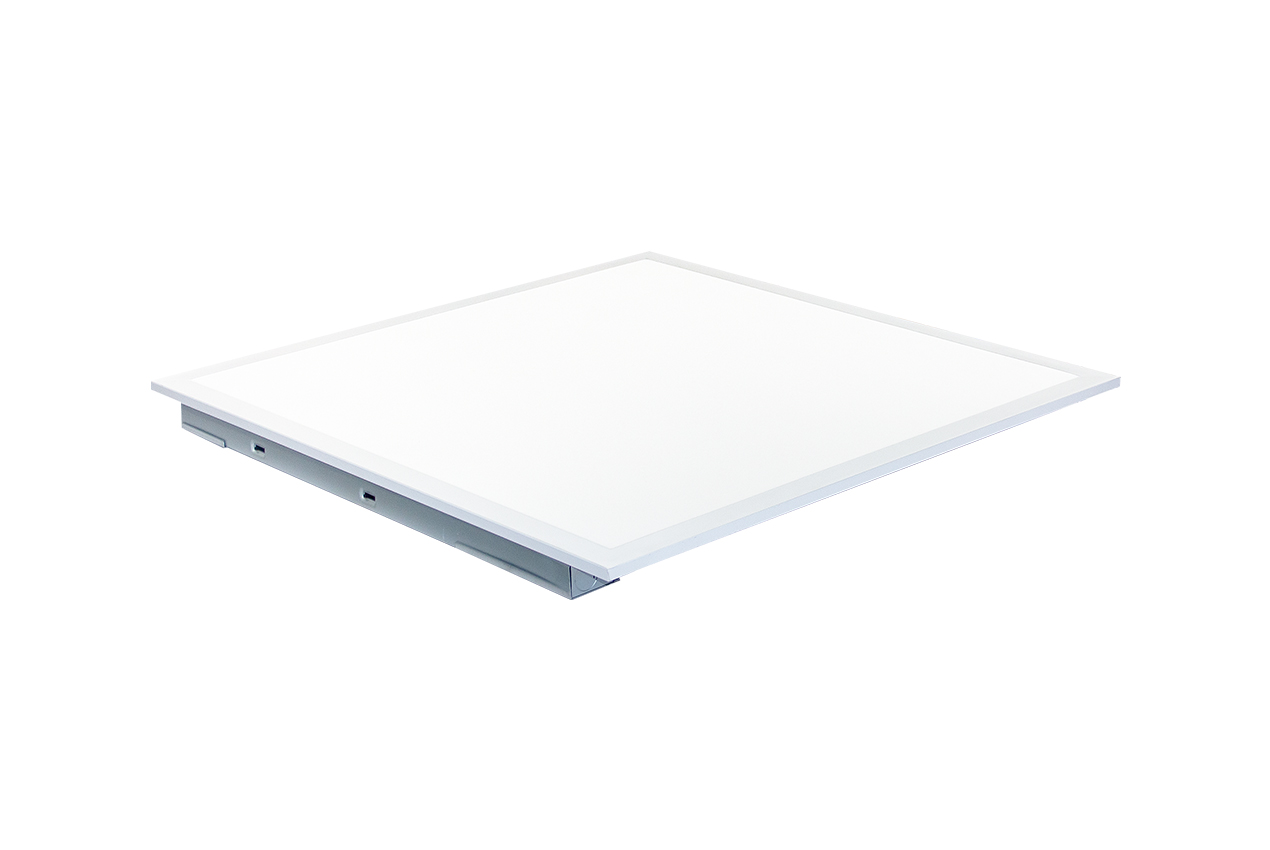

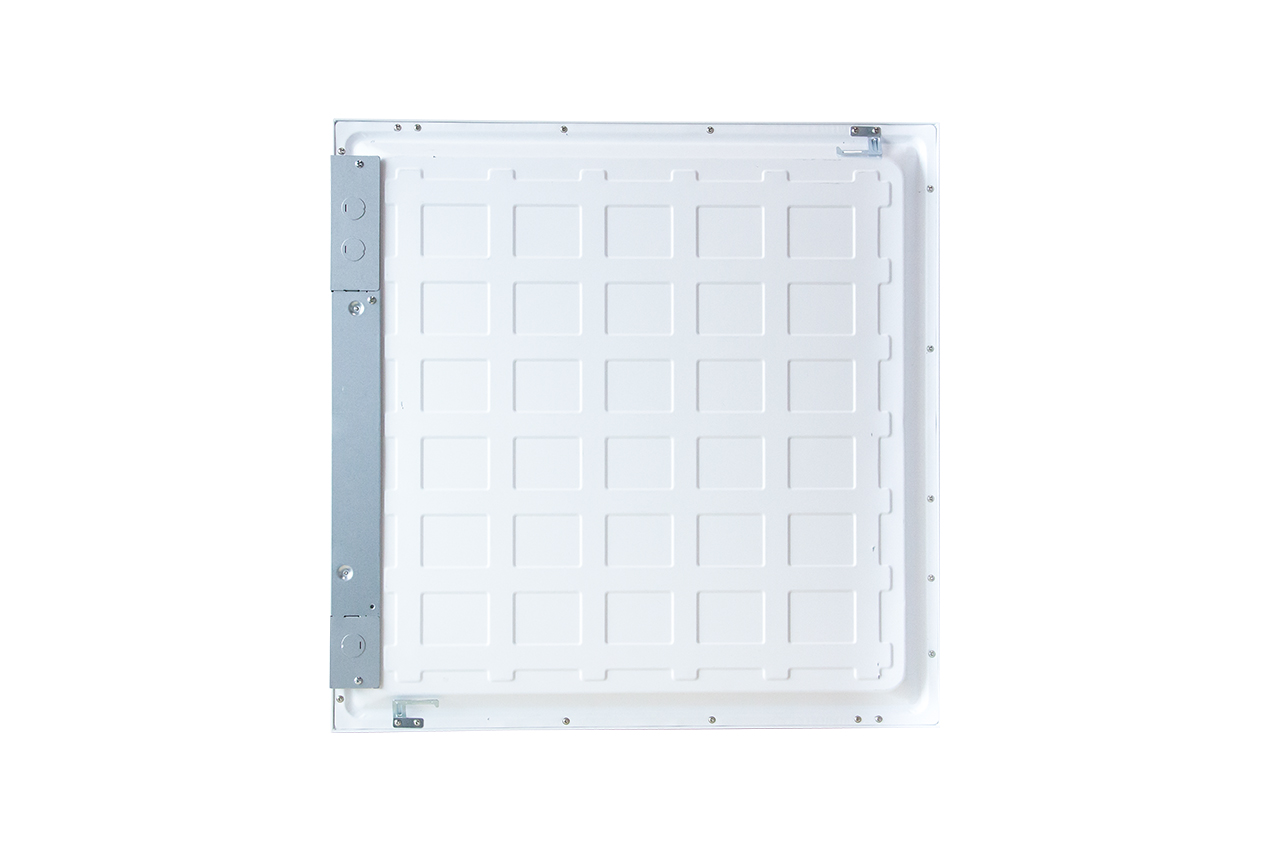

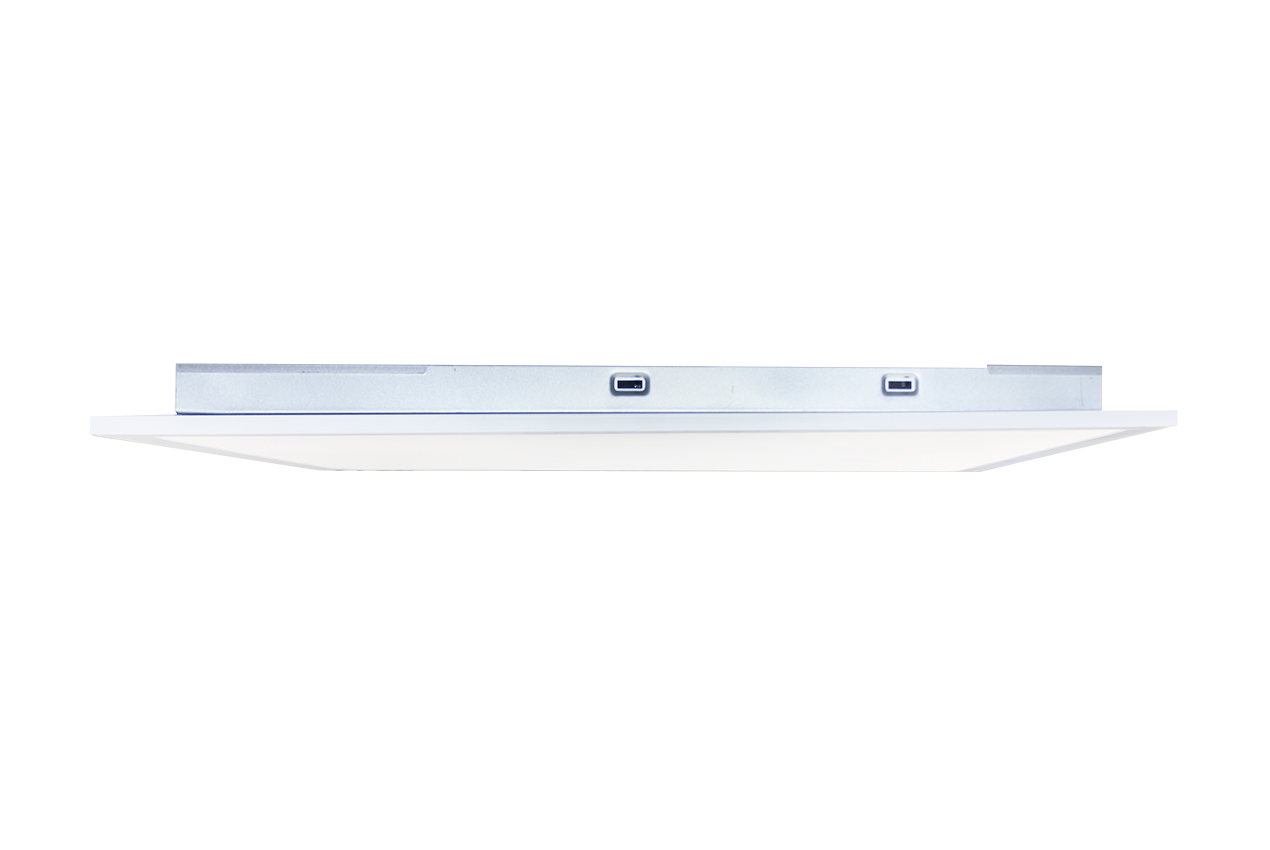

PLS02 Panel Light
2' x 2' | 20W/30W/35W | 3CCT | 120-347V | 2520-4375 lm
GTIN / UPC: 10845599040948
Barcode: 845599040941
2' x 2' Panel suitable for pendant, lay-in, or suspended installation
Power selectable (20W/30W/35W)
3CCT selectable (3500K/4000K/5000K)
120-347V driver with 0-10V dimming
Optional Junction Box (PLS-JB) sold separately for an additional 25.5 in³ of volume for wiring
Certifications Listed:
cETL, DLC
CSC DLC Number:
S-ND6V8C
CSC LED Warranty:
7 Year Warranty
Product Number:
PLS02-22-35W-3P-3CCT-UD
Light Specifications
Beam Angle:
110°
Colour Temperature:
3500K/4000K/5000K
CRI:
80+
Dimmable:
0-10V
Efficacy:
120 LM/W
Initial Lumens:
4200 lm
Life (L70):
>50,000 hrs
Electrical Specifications
Amperage:
0.4 A
IP Rating:
IP20
Operating Temperature:
-30°C to 45°C
Power Factor:
>0.9
THD:
<20%
Voltage:
120-347V
Watts:
20W/30W/35W
Construction Specifications
Finish:
Polyester Powder Coat
Finish Colour:
White
Housing:
Metal
Logistics
Unit Weight:
4.19 lbs
Unit Length:
23.74 in
Unit Width:
23.74 in
Unit Height:
1.48 in
Qty per Carton:
1
Qty per Master Carton:
4
Master Carton Weight:
19.1 lbs
Master Carton Length:
25.2 in
Master Carton Width:
6.4 in
Master Carton Height:
25.4 in
Qty per Skid:
156
PLS02-22-35W-3P-3CCT-UD
PLS02 Panel Light
2' x 2' | 20W/30W/35W | 3CCT | 120-347V | 2520-4375 lm
GTIN / UPC: 10845599040948
Barcode: 845599040941
