CLEARANCE
TBAR4-DM-40K
2 reviews

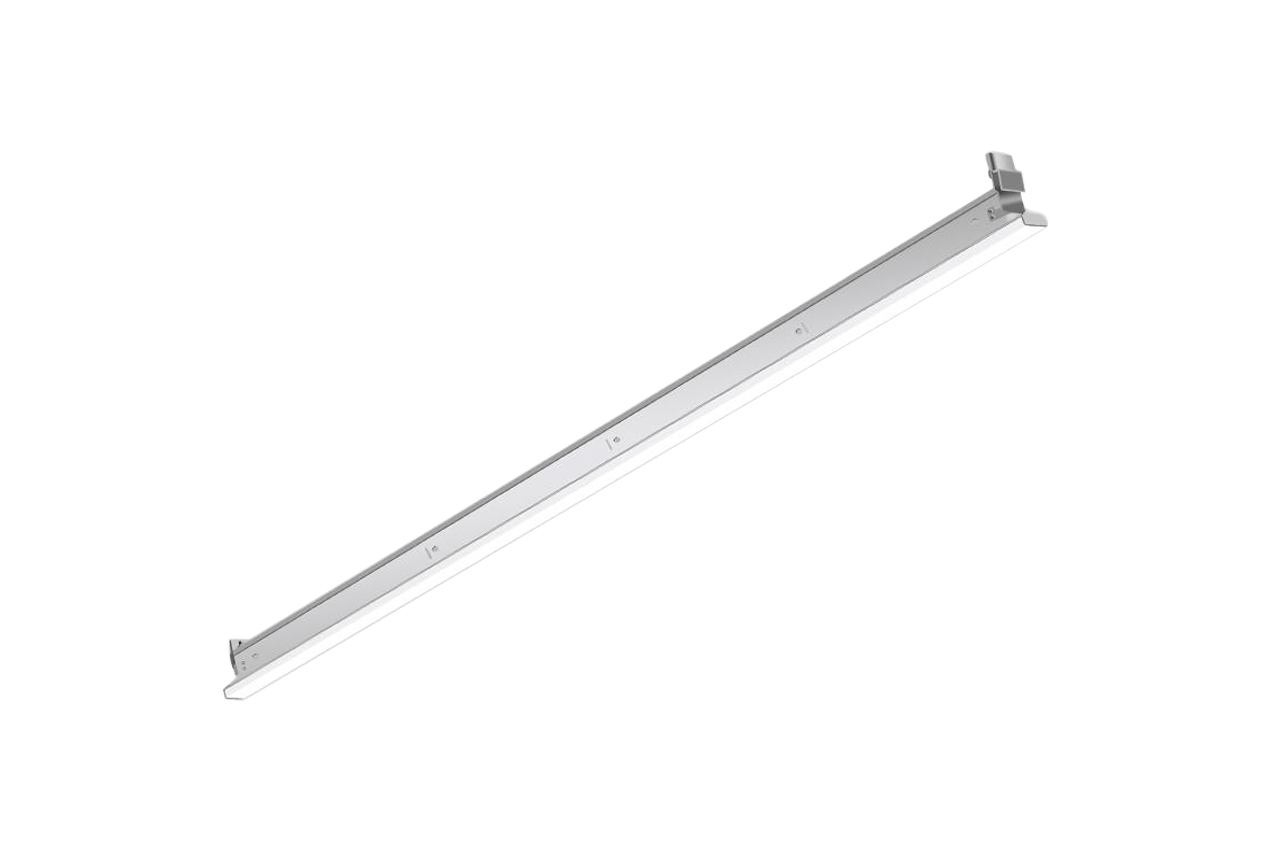

T-Grid Integrated Luminaire
20W | 4000K | 120-277V | 2600 lm | 4ft
GTIN / UPC: 10845599040344
Barcode: 845599040347
2 reviews
CLEARANCE ITEM - While supplies last
Final Sale - 1-Year Manufacturer Warranty
T-Grid Integrated Luminaire
15/16", 4 ft, 0-10V dimming
Comes with frosted lens and 6ft cable with RJ45 Jack

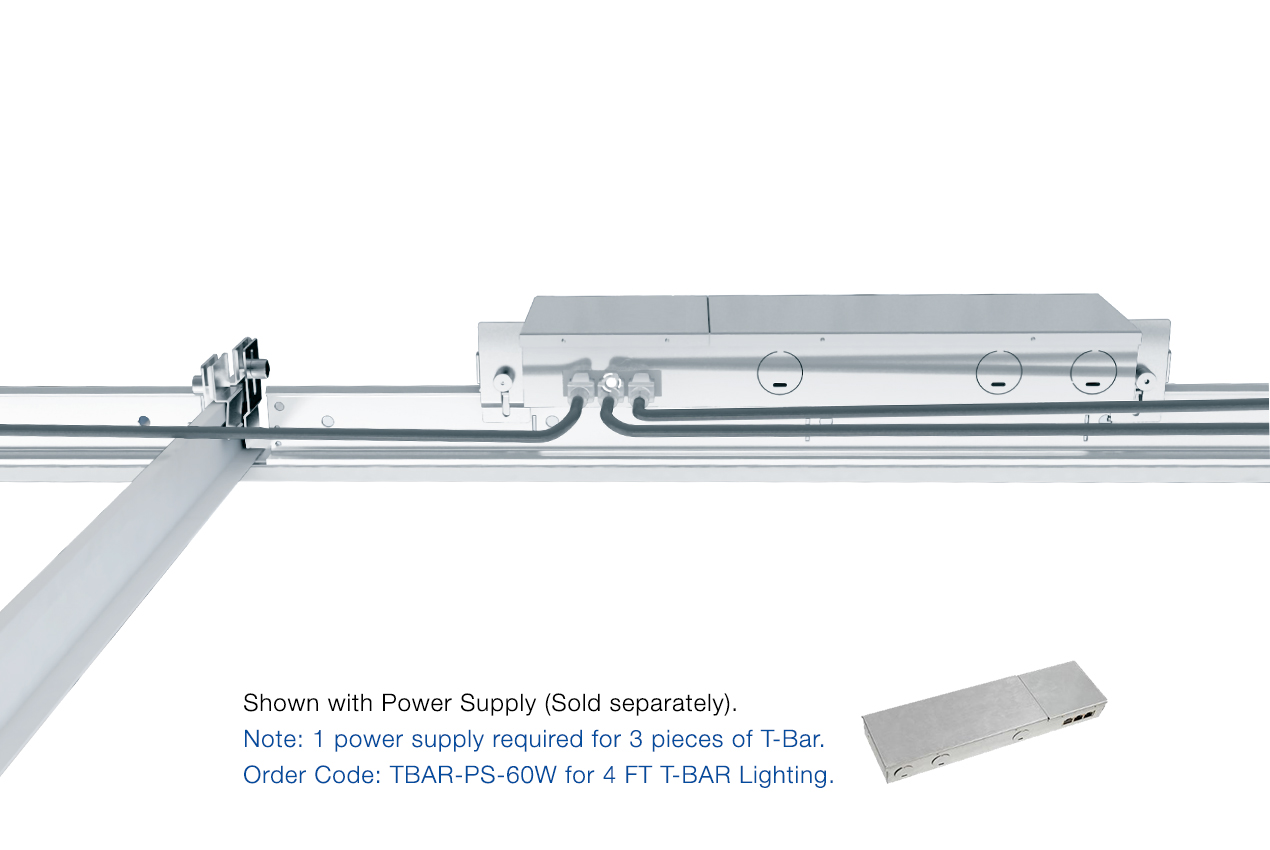

Power supply ordered separately (Order Code: TBAR-PS-60W)
Remote driver with RJ45 terminal that allows for easy installation and reduced labour costs
NOTE: The cable is CM rated
POWER SUPPLY REQUIRED:
- 1 power supply (TBAR-PS-60W) required for 3 pieces of T-Grid. Ordered separately.
Certifications Listed:
cUL
CSC LED Warranty:
1 Year Warranty
Product Number:
TBAR4-DM-40K
Light Specifications
Beam Angle:
120
Colour Temperature:
4000K
CRI:
80
Dimmable:
0-10
Efficacy:
130 LM/W
Initial Lumens:
2600 lm
Life (L70):
>50,000 hrs
Electrical Specifications
Power Factor:
0.90
THD:
11.08%
Voltage:
120-277V
Watts:
20W
Construction Specifications
Finish Colour:
Silver
Housing:
Aluminum
Power Cord Length:
96"
Logistics
Unit Weight:
2.53 lbs
Qty per Carton:
1
Qty per Master Carton:
18
Master Carton Weight:
44.0 lbs
Master Carton Length:
50.0 in
Master Carton Width:
21.0 in
Master Carton Height:
8.0 in
Qty per Skid:
270
