CLEARANCE
WPX-30W-3CCT-UD-WH
10 reviews

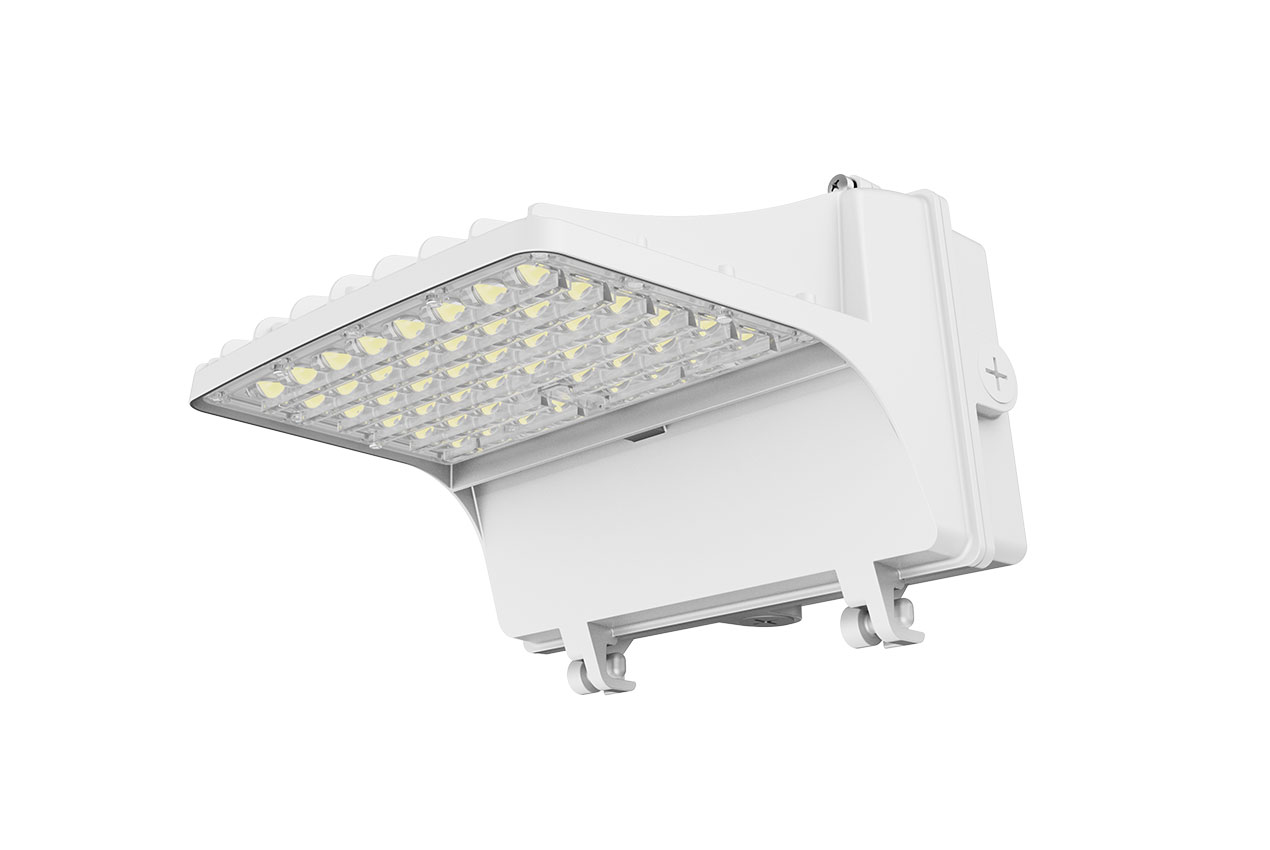

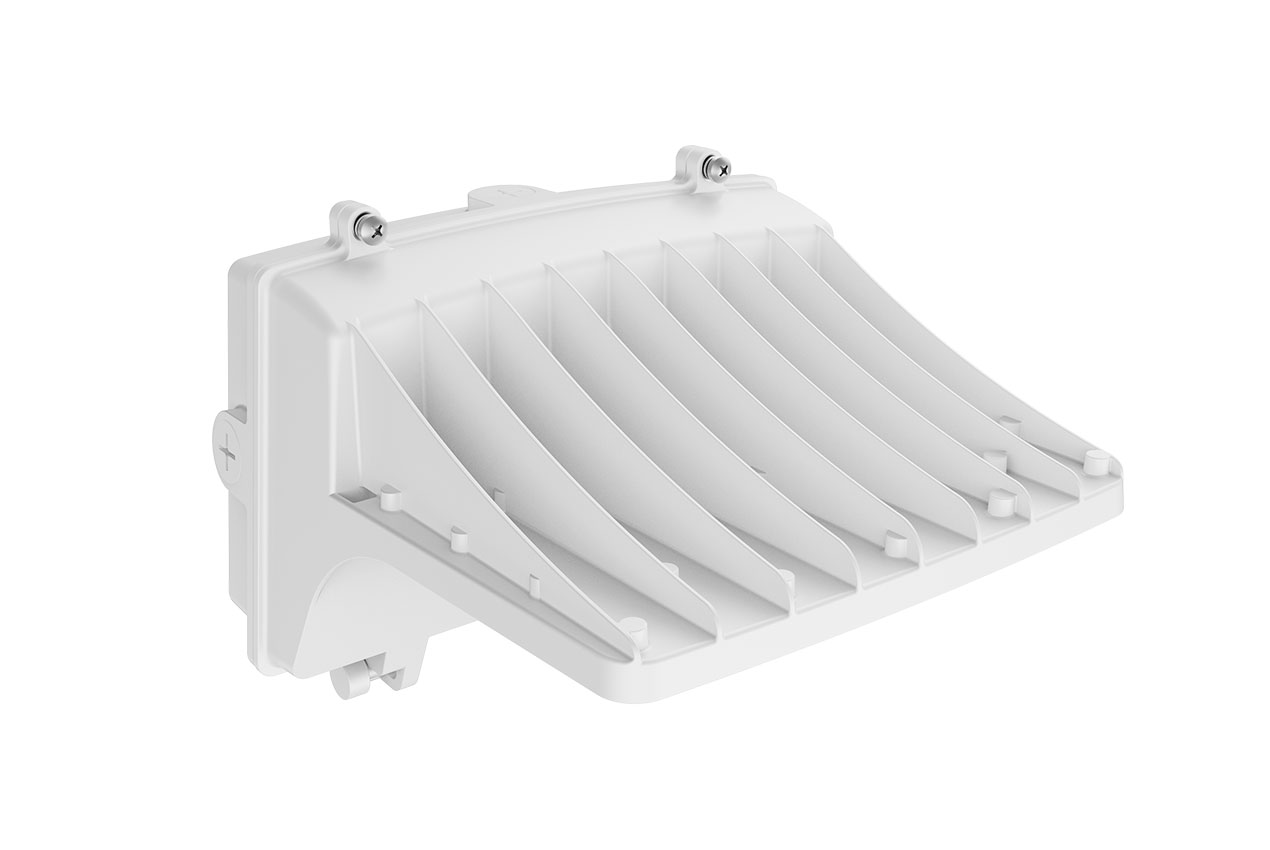

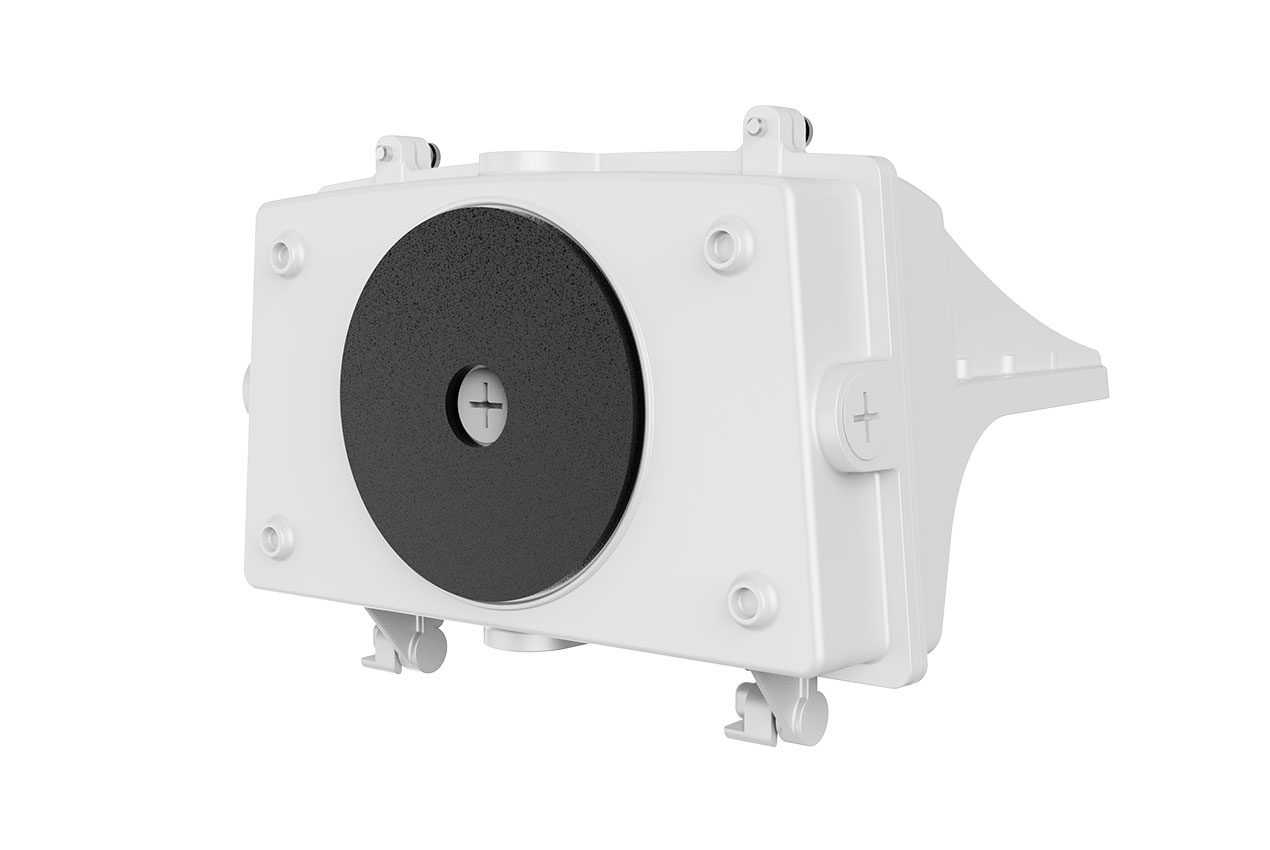

WPX Wall Pack
30W l 3CCT l 120-347V | 3764 lm
GTIN / UPC: 10845599031267
Barcode: 845599031260
10 reviews
CLEARANCE ITEM - While supplies last
Final Sale - 1-Year Manufacturer Warranty
DarkSky approved when set to 3000K operation
Colour selectable (3000K/4000K/5000K)
Durable die-cast aluminum housing
120-347V
Type III Distribution Optics standard (Type II and Type IV options available)
1/2" NPT Entry on all sides
Ideal for outdoor wall-mount applications such as commercial, industrial, retail, and hospitality buildings
Certifications Listed:
cETL, DarkSky, DLCPremium
CSC DLC Number:
PLYPS6YKR048
CSC LED Warranty:
1 Year Warranty
Product Number:
WPX-30W-3CCT-UD-WH
Light Specifications
Colour Temperature:
3000K/4000K/5000K
CRI:
70+
Dimmable:
0-10
Efficacy:
122 LM/W
Initial Lumens:
3764 lm
Life (L70):
>50,000 hrs
Electrical Specifications
Amperage:
0.5 A
IP Rating:
IP65
Operating Temperature:
-40°C to 45°C
Power Factor:
0.9
THD:
14%
Voltage:
120-347V
Watts:
30W
Construction Specifications
Finish:
Polyester Powder Coat
Finish Colour:
White
Housing:
Die-Cast Aluminum
Logistics
Unit Weight:
3.65 lbs
Unit Length:
9.8 in
Unit Width:
8.7 in
Unit Height:
6.7 in
Qty per Master Carton:
1
Master Carton Weight:
5.2 lbs
Master Carton Length:
10.4 in
Master Carton Width:
10.2 in
Master Carton Height:
8.0 in
