ALV-4-DI-50W-3P-5CCT-UD-BK

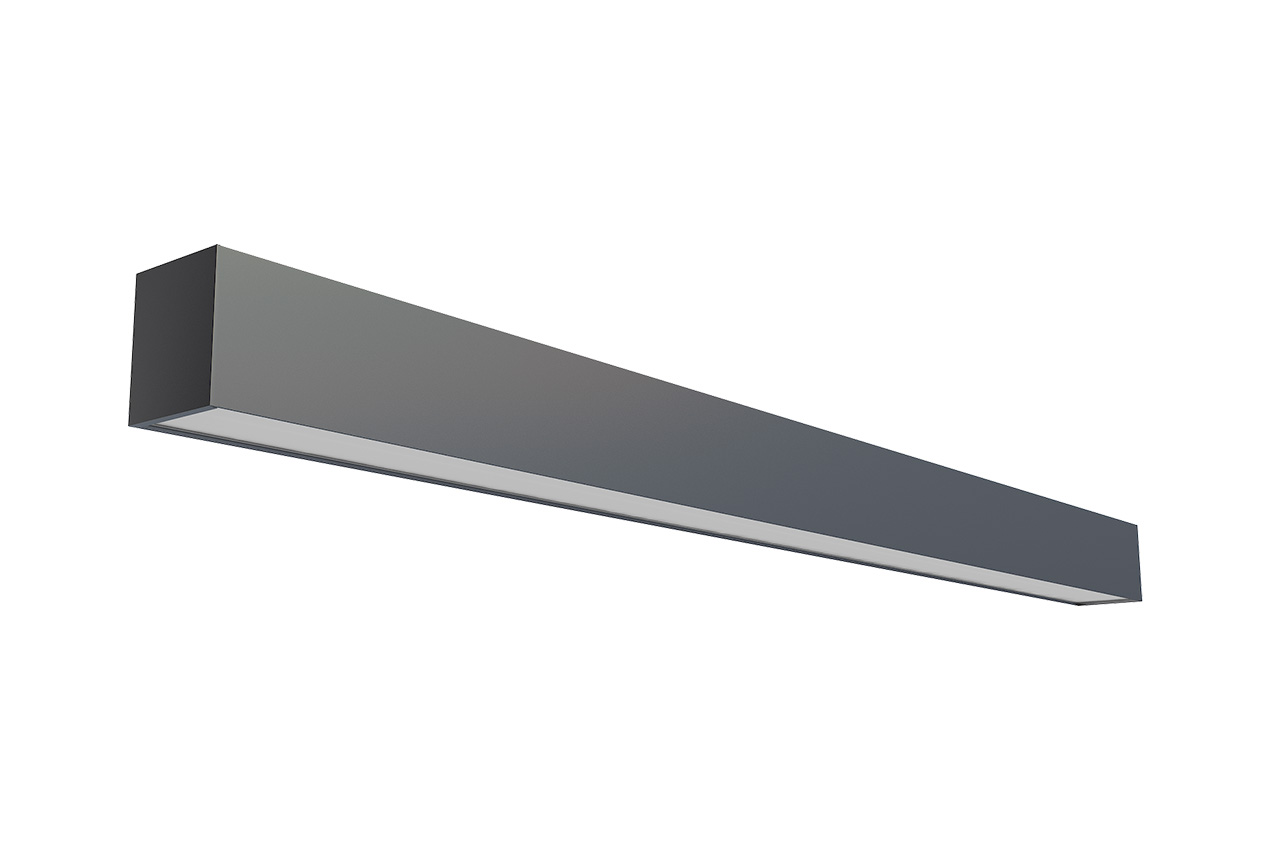

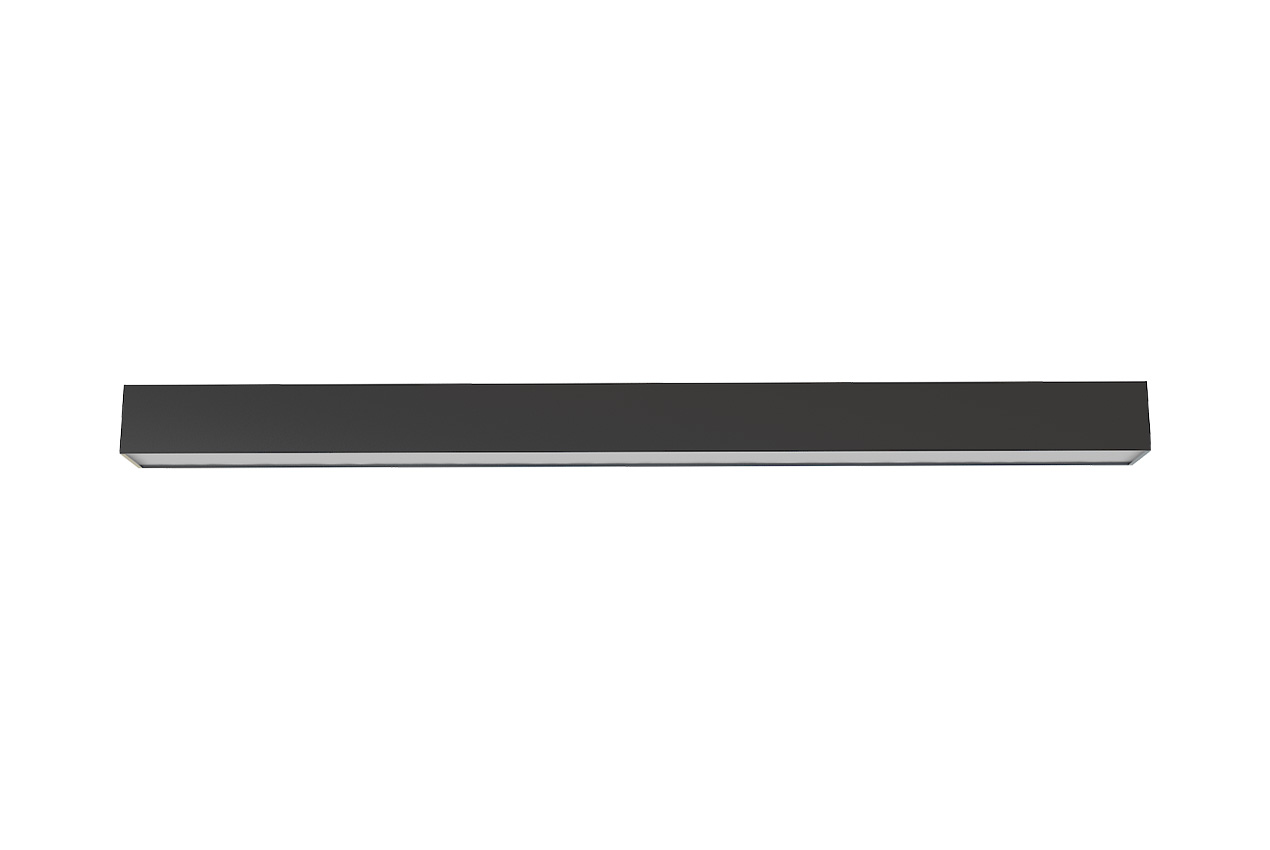

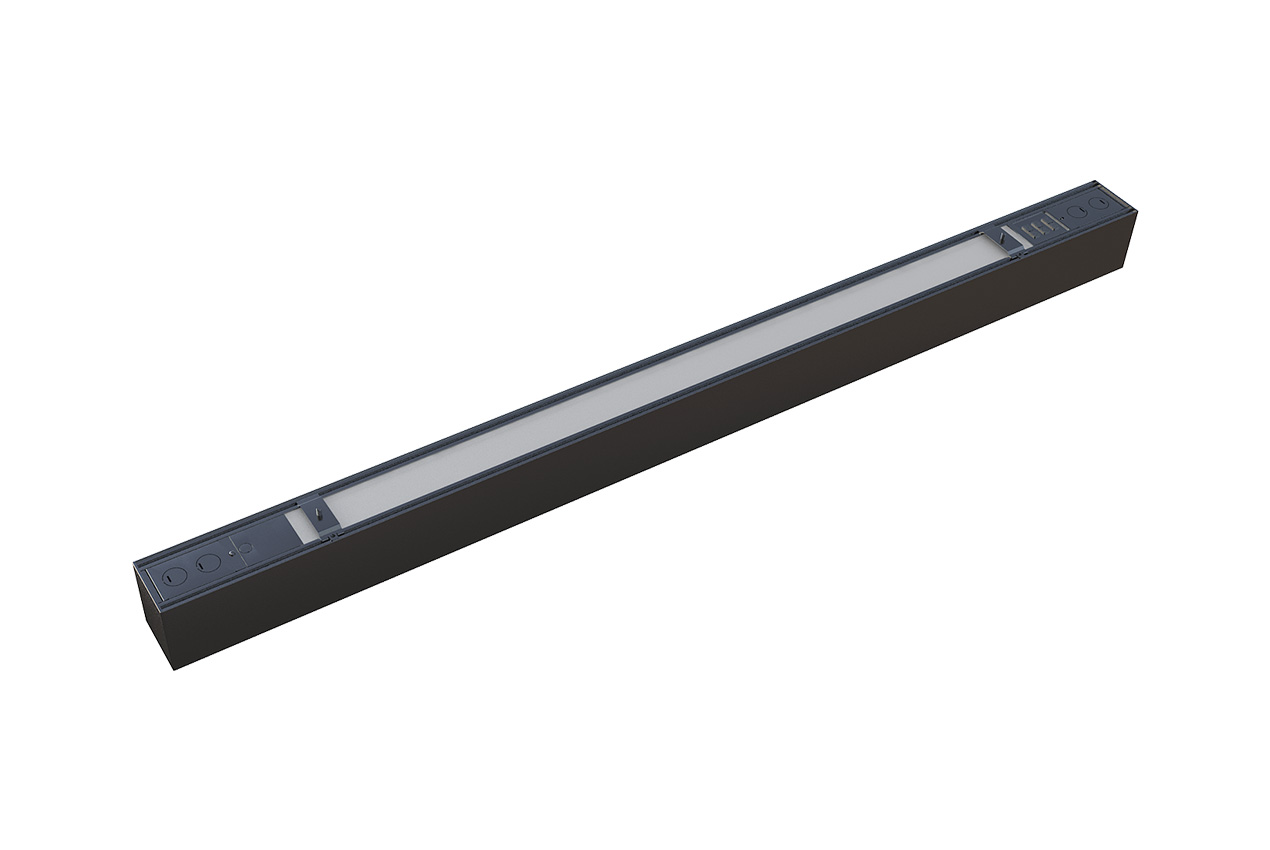

4' Varo Architectural Linear
30W/40W/50W | 5CCT | 120-347V | 4110-6750 lm
GTIN / UPC : 10845599062209
Code-barres : 845599062202
Easily create runs and shapes with quick connect design!
3 power selectable (30W/40W/50W)
5CCT (2700K/3000K/3500K/4000K/5000K)
Configurable uplight and downlight
Only 1 Power Cord required per run

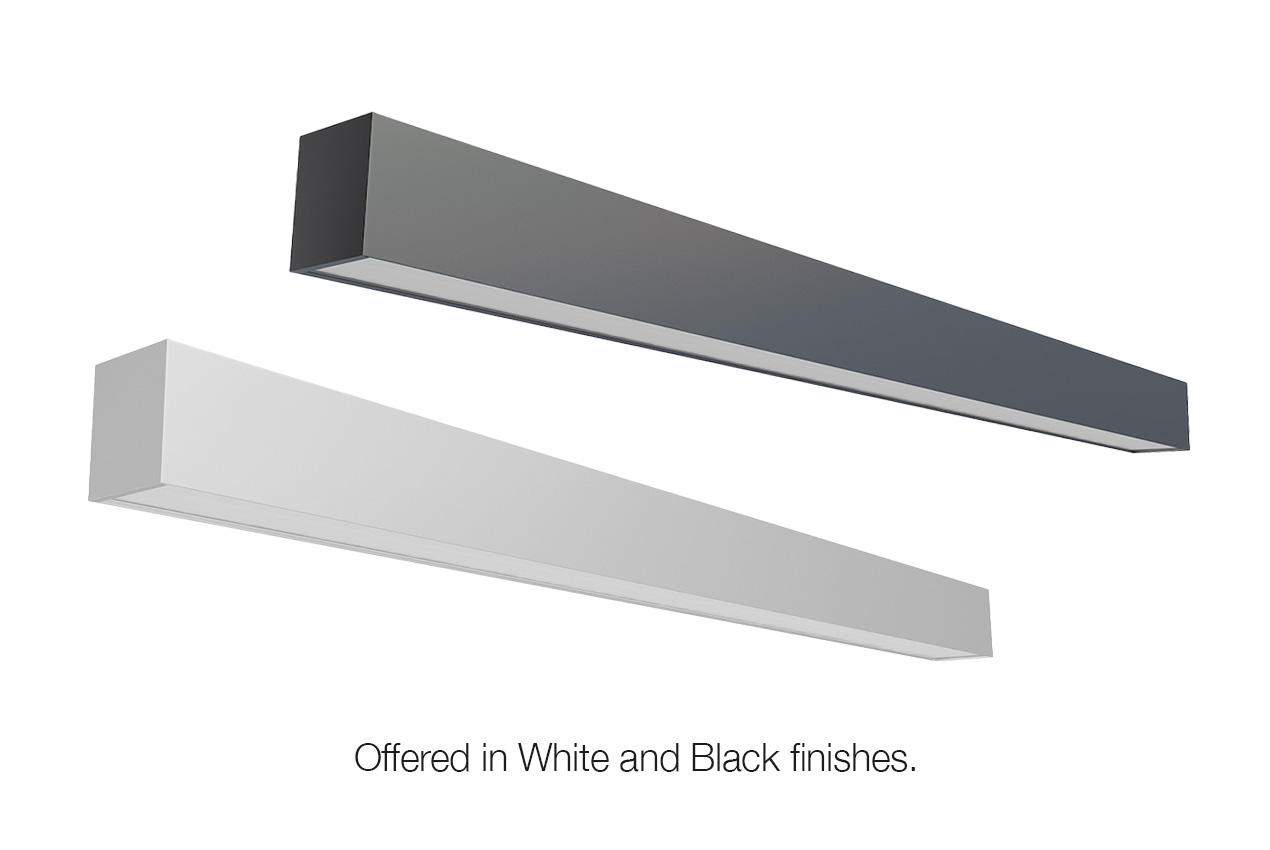

Black powder coat finish
IMPORTANT NOTES:
1. Power cord is sold separately (6' or 12'). 1 power cord is required per fixture or per run. For maximum wattage per run, see the Maximum Wattage Connection table on page 1 of the Installation Instructions in the Resource Downloads table.
2. Mounting is sold separately
Certifications Listed:
cUL, DLC, DLCPremium
CSC DLC Number:
S-WM0WVT, S-V7KHB9, S-GHG48H
CSC LED Warranty:
5 Year Warranty
Product Number:
ALV-4-DI-50W-3P-5CCT-UD-BK
Light Specifications
Beam Angle:
110°
Colour Temperature:
2700K/3000K/3500K/4000K/5000K
CRI:
80+
Dimmable:
0-10
Efficacy:
130 LM/W
Initial Lumens:
6500 lm
Life (L70):
>54,000 hrs
Electrical Specifications
Amperage:
0.5 A
IP Rating:
IP20
Operating Temperature:
-30°C to 45°C
Power Factor:
>0.9
THD:
<20%
Voltage:
120-347V
Watts:
30W/40W/50W
Construction Specifications
Finish:
Powder Coat
Finish Colour:
Black
Housing:
Aluminum
Mounting Type:
Suspension, Recessed, Wall, T-Bar Mount
Logistics
Unit Weight:
4.85 lbs
Unit Length:
47.36 in
Unit Width:
2.75 in
Unit Height:
3.15 in
Qty per Carton:
1
Carton Weight:
5.1 lbs
Carton Length:
47.95 in
Carton Width:
3.11 in
Carton Height:
3.94 in
Qty per Master Carton:
6
Master Carton Weight:
32.6 lbs
Master Carton Length:
48.7 in
Master Carton Width:
10.6 in
Master Carton Height:
9.4 in
Qty per Skid:
216
