Easily create runs and shapes with quick connect design!
3 power selectable (60W/80W/100W)
5CCT (2700K/3000K/3500K/4000K/5000K)
Configurable uplight and downlight
Only 1 Power Cord required per run
Black powder coat finish
IMPORTANT NOTES:
1. Power cord is sold separately (6' or 12'). 1 power cord is required per fixture or per run. For maximum wattage per run, see the Maximum Wattage Connection table on page 1 of the Installation Instructions in the Resource Downloads table.
2. Mounting is sold separately
Certifications:
cUL, DLC, DLCPremium
CSC DLC Number:
S-9DRRVG, S-S969FY, S-C5L455
Garantie CSC LED:
5 Year Warranty
Numéro de produit:

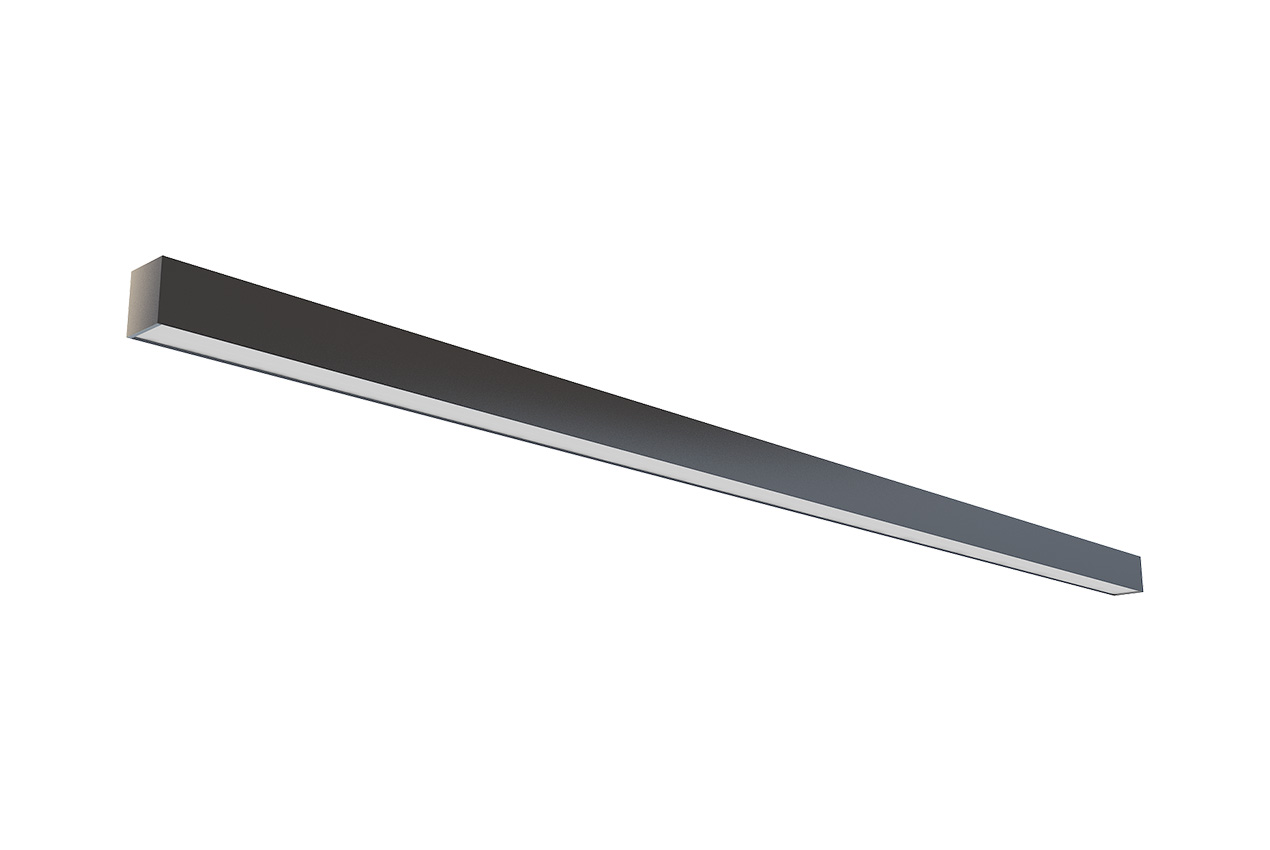

ALV-8-DI-100W-3P-5CCT-UD-BK
Caractéristiques lumineuses
Angle du faisceau:
110°
Température de couleur:
2700 K/3000 K/3500 K/4000 K/5000 K
IRC:
80+
Dimmable:
0-10
Efficacité:
130 LM/W
Lumens initiaux:
13000 lm
Durée de vie (L70):
>54,000 hrs
Caractéristiques électriques
Amperage:
0.9 A
Indice IP:
IP 20
Température de fonctionnement:
-30°C to 45°C
Power Factor:
>0.9
DHT:
<20%
Tension:
120-347V
Watts:
60W/80W/100W
Caractéristiques de construction
Finish:
Powder Coat
Couleur de finition:
Black
Boîtier:
Aluminum
Type de fixation:
Suspension, Recessed, Wall, T-Bar Mount
Logistique
Poids unitaire:
9.04 lbs
Unit Length:
94.5 in
Unit Width:
2.75 in
Unit Height:
3.15 in
Qté par carton:
1
Carton Weight:
9.44 lbs
Carton Length:
95.08 in
Carton Width:
3.11 in
Carton Height:
3.94 in
Qté par carton principal:
6
Poids du carton principal:
60.6 lbs
Longueur du carton principal:
95.9 in
Largeur du carton principal:
10.6 in
Hauteur du carton principal:
9.4 in
Qté par palette:
216
CUP:
845599062226
GTIN:
10845599062223
