AWP05-120W-3CCT-4P-UD
AWP05 Series Wall Pack
60W/90W/100W/120W | 3CCT | 120-347V | 9992-18560 lm
GTIN / UPC : 10845599031656
Code-barres : 845599031659
Power selectable (60W/90W/100W/120W)
3CCT selectable (3000K/4000K/5000K)
Built-in Photocell

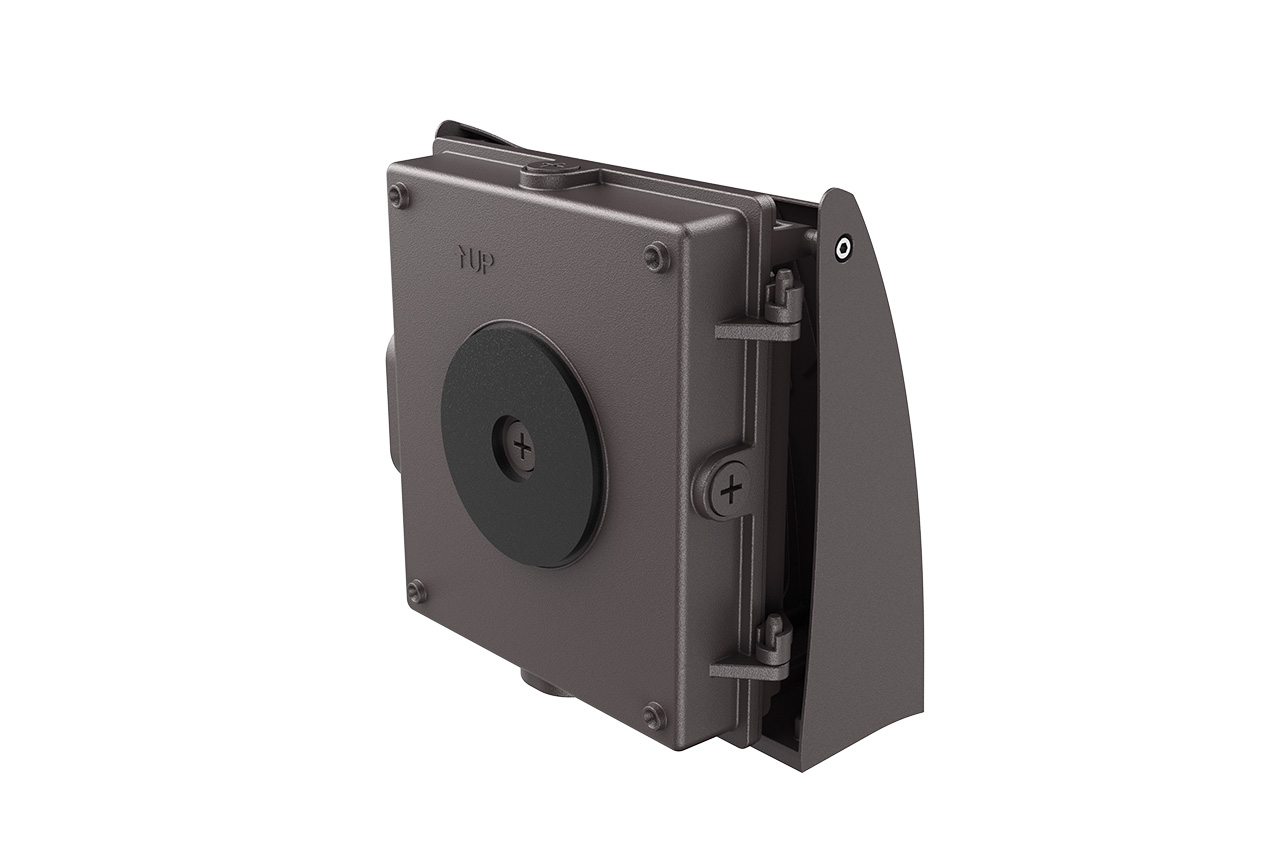

Junction box mount with conduit entries
Built-in water drainage
UV-resistant polycarbonate refractor lens with type III distribution
Durable die-cast aluminum housing
Adjustable 0-90° for precise aiming
Certifications Listed:
cUL, DLCPremium, IK08
CSC DLC Number:
S-11JR90
CSC LED Warranty:
10 Year Warranty
Product Number:
AWP05-120W-3CCT-4P-UD
Light Specifications
Colour Temperature:
3000K/4000K/5000K
CRI:
80+
Dimmable:
0-10
Efficacy:
153 LM/W
Initial Lumens:
18377 lm
Life (L70):
>50,000 hrs
Electrical Specifications
Amperage:
1.0 A
IP Rating:
IP65
Operating Temperature:
-40°C to 50°C
Power Factor:
>0.90
THD:
<20%
Voltage:
120-347V
Watts:
60W/90W/100W/120W
Construction Specifications
Finish:
Powder Coat
Finish Colour:
Bronze
Housing:
Die-Cast Aluminum
Mounting Type:
Wall Mount
Logistics
Unit Weight:
6.17 lbs
Unit Length:
9.76 in
Unit Width:
5.88 in
Unit Height:
10.05 in
Qty per Carton:
1
Carton Weight:
7.05 lbs
Carton Length:
10.07 in
Carton Width:
6.9 in
Carton Height:
11.1 in
Qty per Master Carton:
1
Qty per Skid:
120
