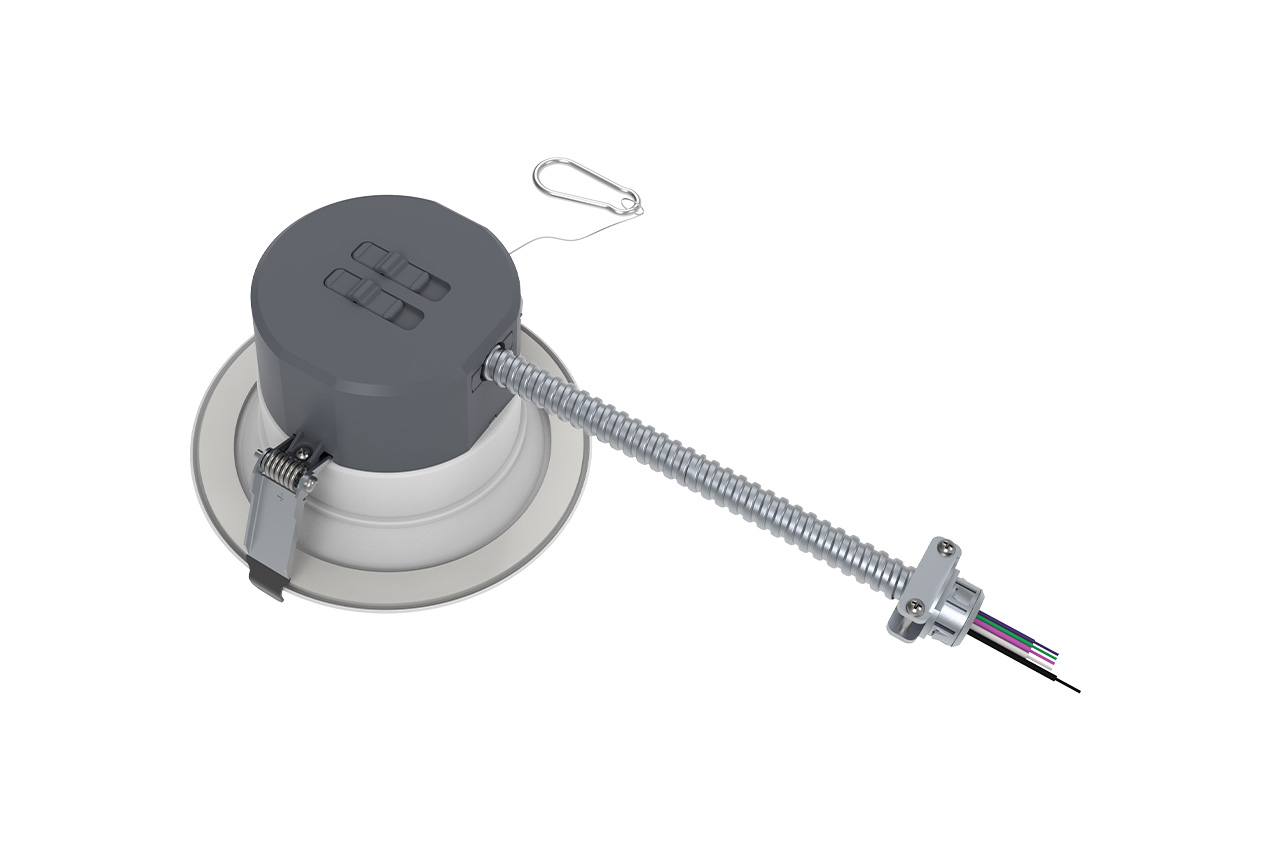

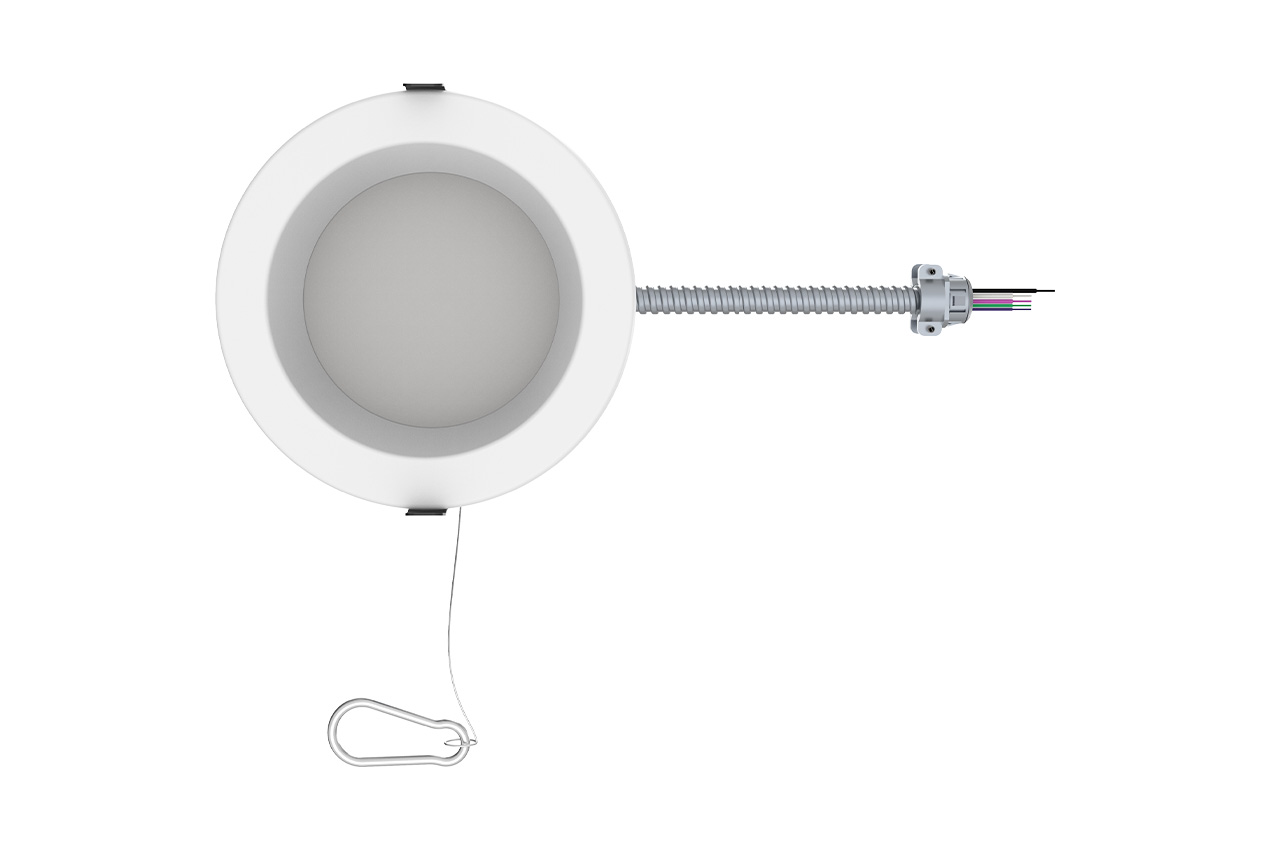

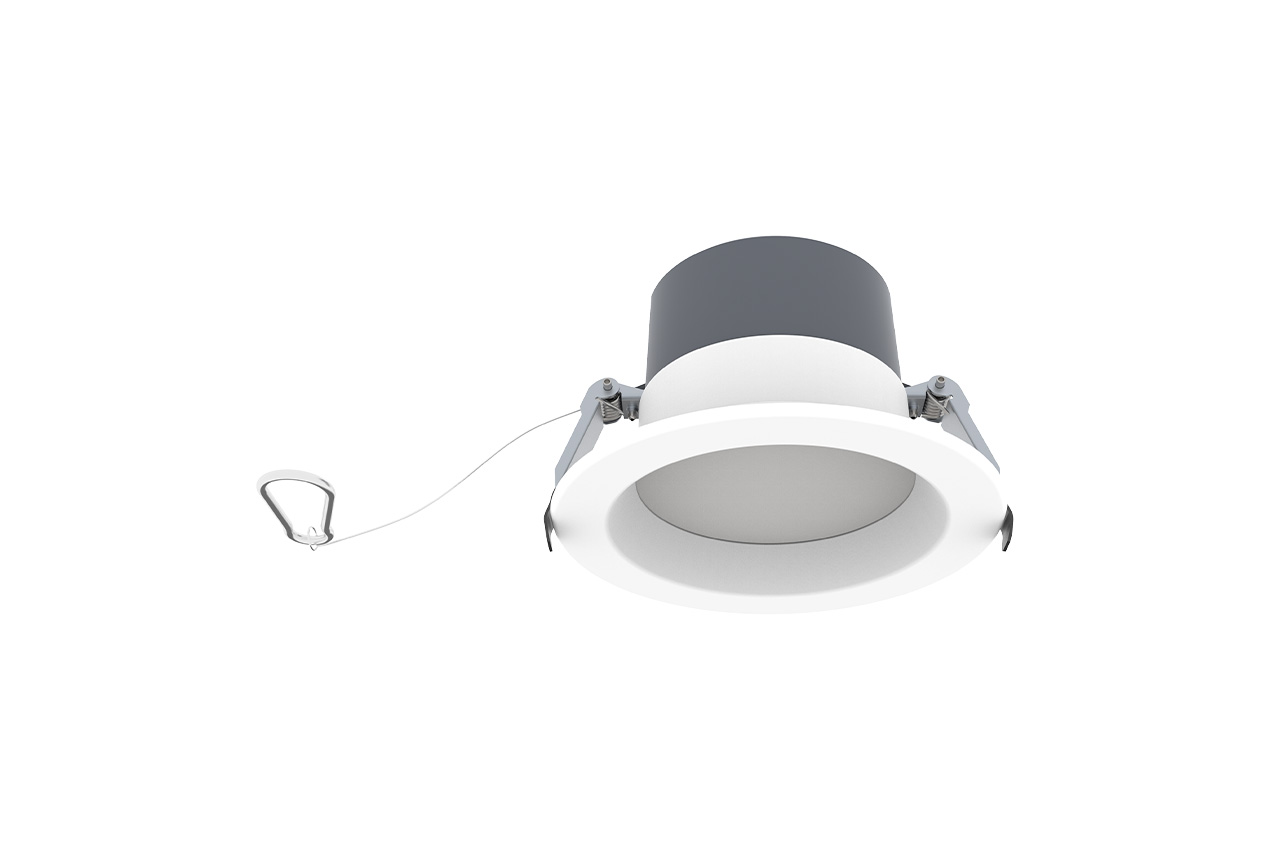

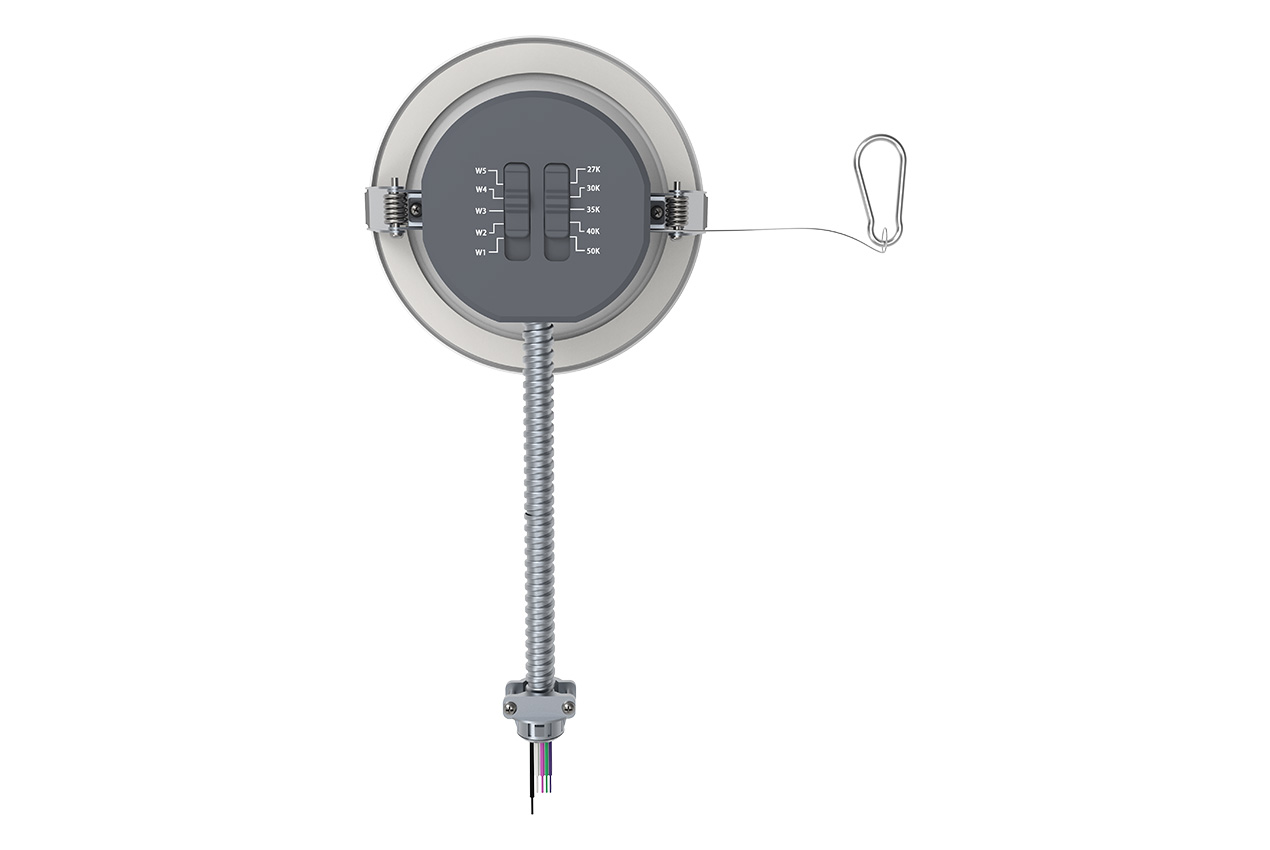

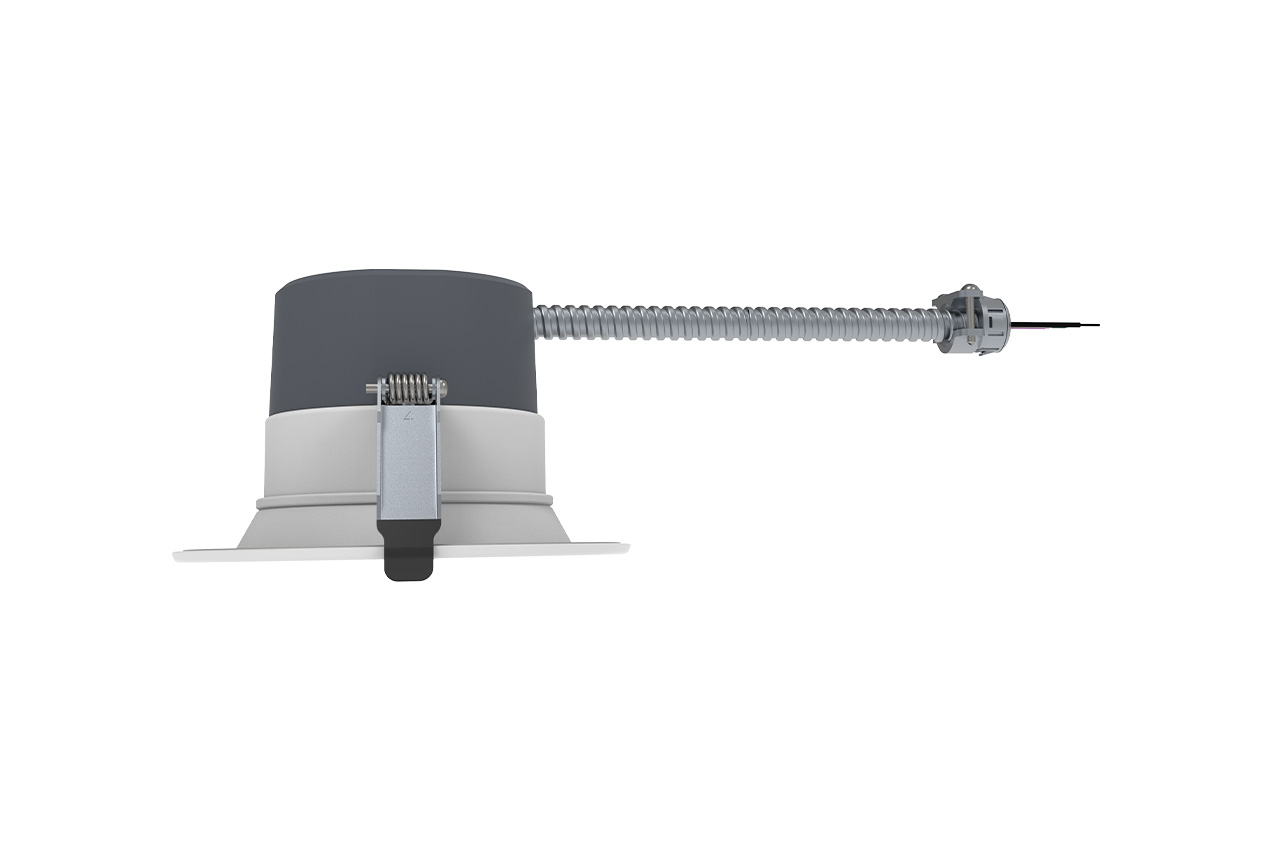

CDL03-4R-16W-5P-5CCT-UD-WH
4" CDL03 Commercial Downlight
7W/9W/11W/13W/16W | 5CCT | 120-347V | 700-1650 lm
GTIN / UPC : 10845599062704
Code-barres : 845599062707
Suitable for new construction and retrofit applications!
5 power selectable (7W/9W/11W/13W/16W)
5CCT (2700K/3000K/3500K/4000K/5000K)
Integral driver eliminates the need for a traditional multi-piece fixture setup
0-10V / ELV / TRIAC Dimmable
Rough-in plates (with and without hanger bars) for drywall and t-bar installations sold separately
26" flexible conduit whip with knockout quick connector
Suitable for use in wet locations
Certifications Listed:
cETL, EnergyStar
CSC LED Warranty:
5 Year Warranty
Product Number:
CDL03-4R-16W-5P-5CCT-UD-WH
Light Specifications
Beam Angle:
90°
Colour Temperature:
2700K/3000K/3500K/4000K/5000K
CRI:
90
Dimmable:
TRIAC/ELV/0-10V
Efficacy:
89 LM/W
Initial Lumens:
1420 lm
Life (L70):
>50,000 hrs
Electrical Specifications
Amperage:
0.1 A
Operating Temperature:
-20°C to 40°C
Power Factor:
>0.9
THD:
<20%
Voltage:
120-347V
Watts:
7W/9W/11W/13W/16W
Construction Specifications
Finish:
Powder Coat
Finish Colour:
White
Housing:
Aluminum & Polycarbonate
Mounting Type:
Recessed Mount
Power Cord Length:
26"
Logistics
Unit Weight:
0.99 lbs
Unit Length:
5.98 in
Unit Width:
5.98 in
Unit Height:
3.71 in
Qty per Carton:
1
Carton Weight:
1.32 lbs
Carton Length:
7.09 in
Carton Width:
7.09 in
Carton Height:
4.82 in
Qty per Master Carton:
6
Master Carton Weight:
9.1 lbs
Master Carton Length:
15.2 in
Master Carton Width:
7.9 in
Master Carton Height:
16.1 in
Qty per Skid:
486
