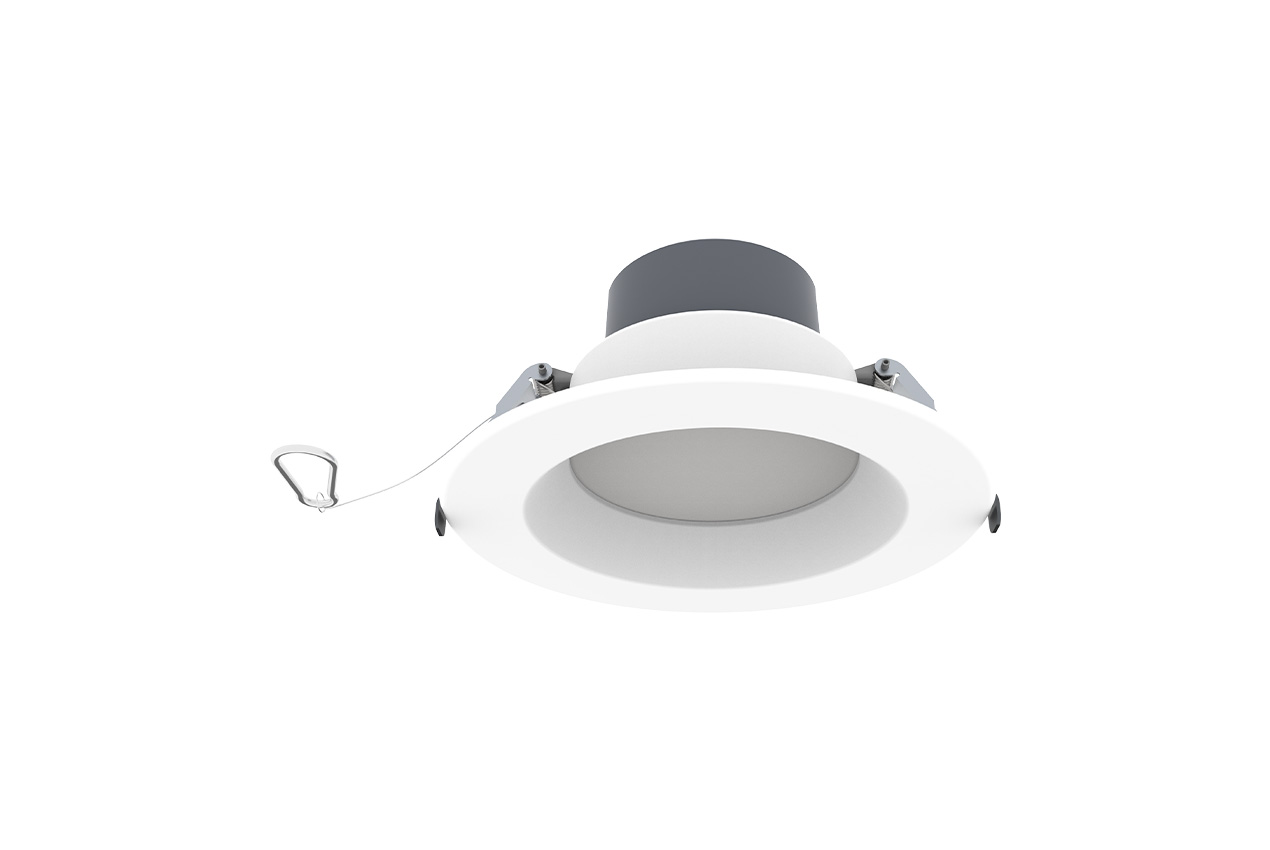

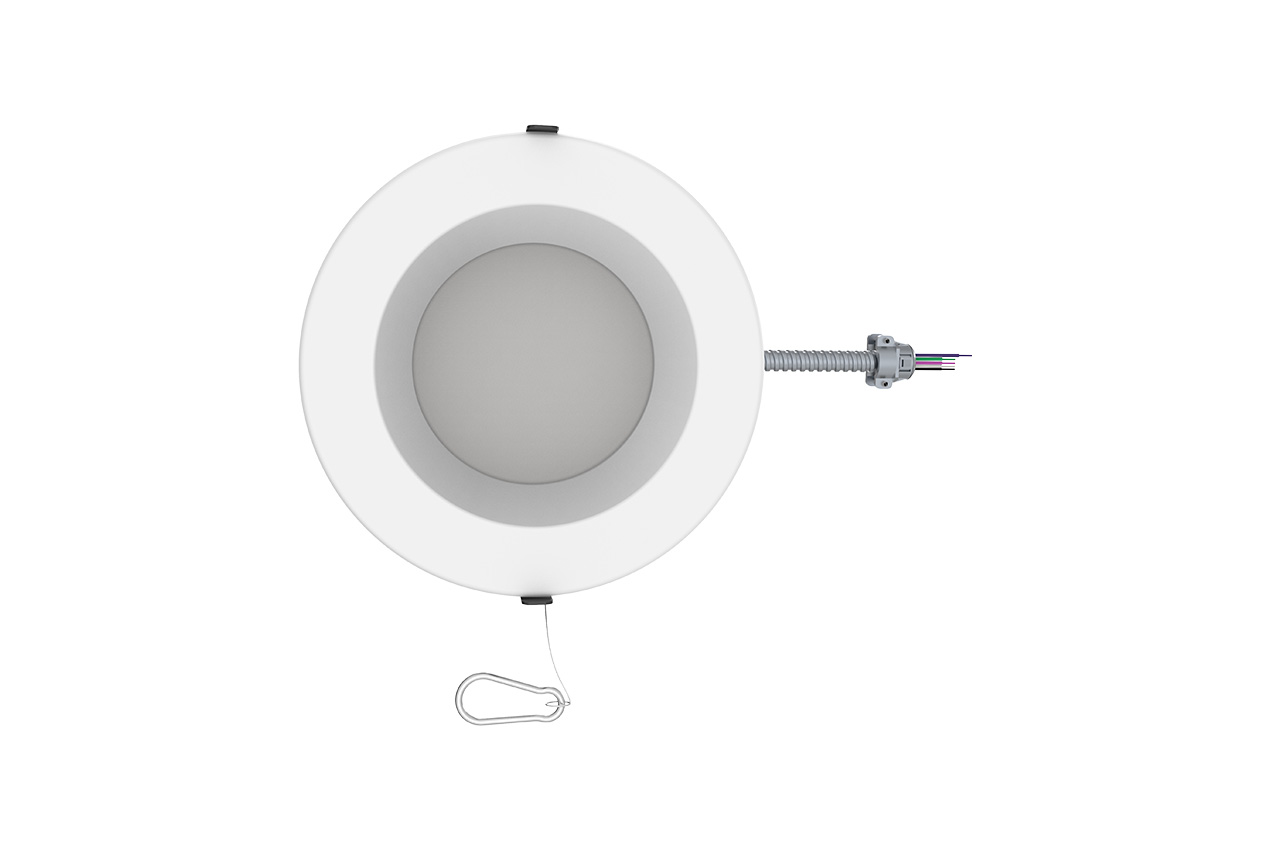

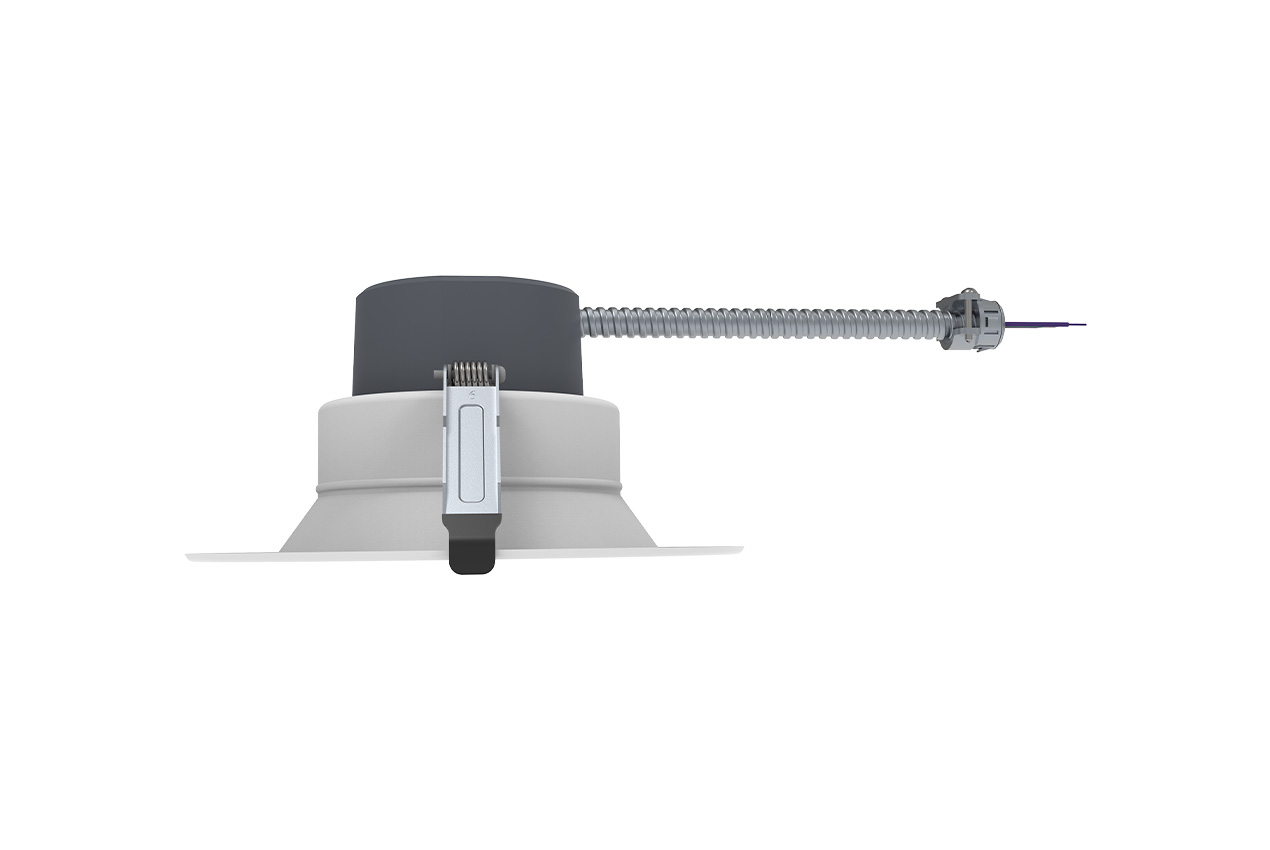

CDL03-6R-24W-5P-5CCT-UD-WH
6" CDL03 Commercial Downlight
10W/13W/18W/21W/24W | 5CCT | 120-347V | 1050-2650 lm
GTIN / UPC : 10845599062711
Code-barres : 845599062714
Suitable for new construction and retrofit applications!

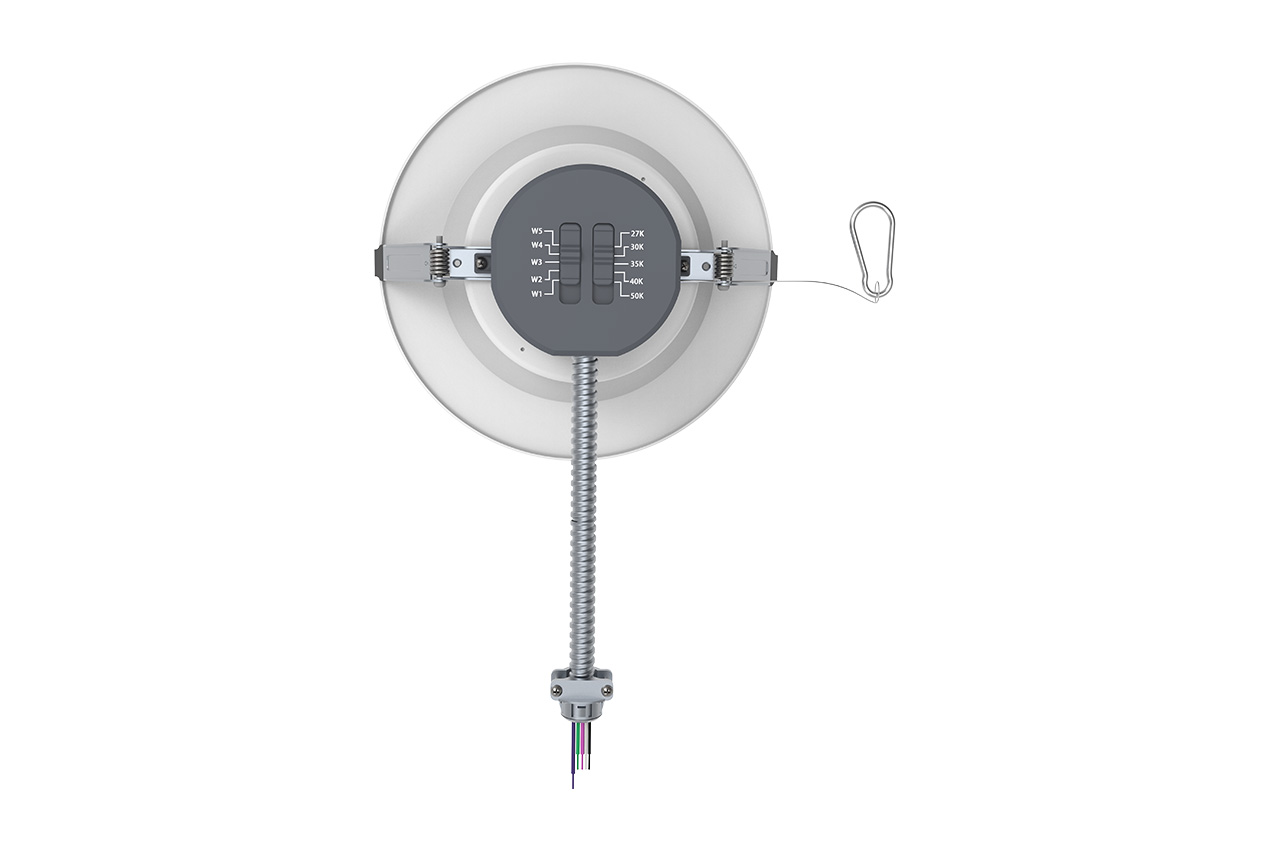

5 power selectable (10W/13W/18W/21W/24W)
5CCT (2700K/3000K/3500K/4000K/5000K)
Integral driver eliminates the need for a traditional multi-piece fixture setup
0-10V / ELV / TRIAC Dimmable
Rough-in plates (with and without hanger bars) for drywall and t-bar installations sold separately

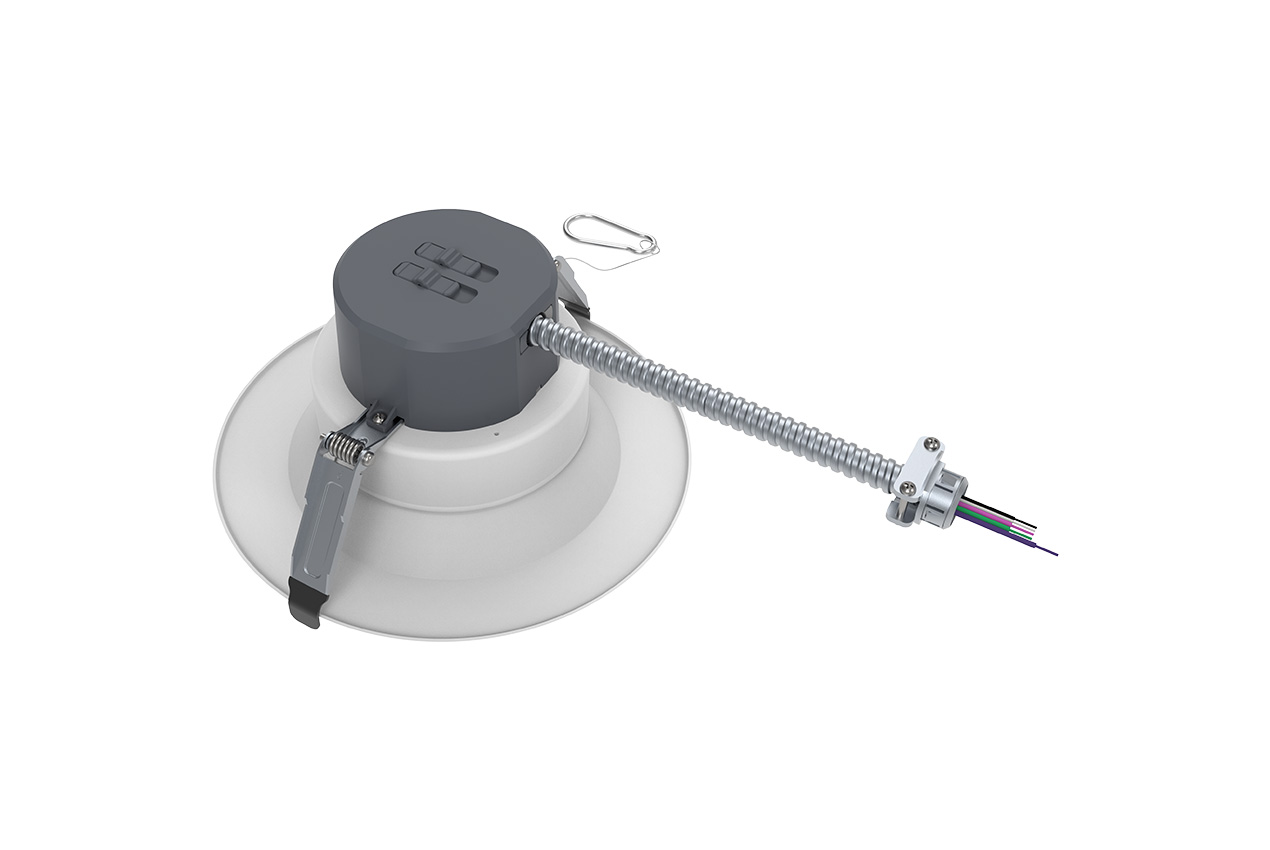

26" flexible conduit whip with knockout quick connector
Suitable for use in wet locations
Certifications Listed:
cETL, EnergyStar
CSC LED Warranty:
5 Year Warranty
Product Number:
CDL03-6R-24W-5P-5CCT-UD-WH
Light Specifications
Beam Angle:
90°
Colour Temperature:
2700K/3000K/3500K/4000K/5000K
CRI:
90
Dimmable:
TRIAC/ELV/0-10V
Efficacy:
100 LM/W
Initial Lumens:
2400 lm
Life (L70):
>50,000 hrs
Electrical Specifications
Amperage:
0.2 A
Operating Temperature:
-20°C to 40°C
Power Factor:
>0.9
THD:
<20%
Voltage:
120-347V
Watts:
10W/13W/18W/21W/24W
Construction Specifications
Finish:
Polyester Powder Coat
Finish Colour:
White
Housing:
Aluminum & Polycarbonate
Mounting Type:
Recessed Mount
Power Cord Length:
26"
Logistics
Unit Weight:
1.326 lbs
Unit Length:
8.41 in
Unit Width:
8.41 in
Unit Height:
4.19 in
Qty per Carton:
1
Carton Weight:
1.773 lbs
Carton Length:
9.53 in
Carton Width:
9.53 in
Carton Height:
5.28 in
Qty per Master Carton:
6
Master Carton Weight:
12.4 lbs
Master Carton Length:
20.0 in
Master Carton Width:
10.3 in
Master Carton Height:
17.4 in
Qty per Skid:
180
