CPM-R-75W-5P-3CCT-UD-BZ
Marquee Canopy Light
20W/40W/55W/65W/75W | 3CCT | 120-347V | 3299-12655 lm | Round
GTIN / UPC : 10845599020636
Code-barres : 845599020639
5 power selectable (20W/40W/55W/65W/75W)
3CCT (3000K/4000K/5000K)
120-347V universal driver
Round

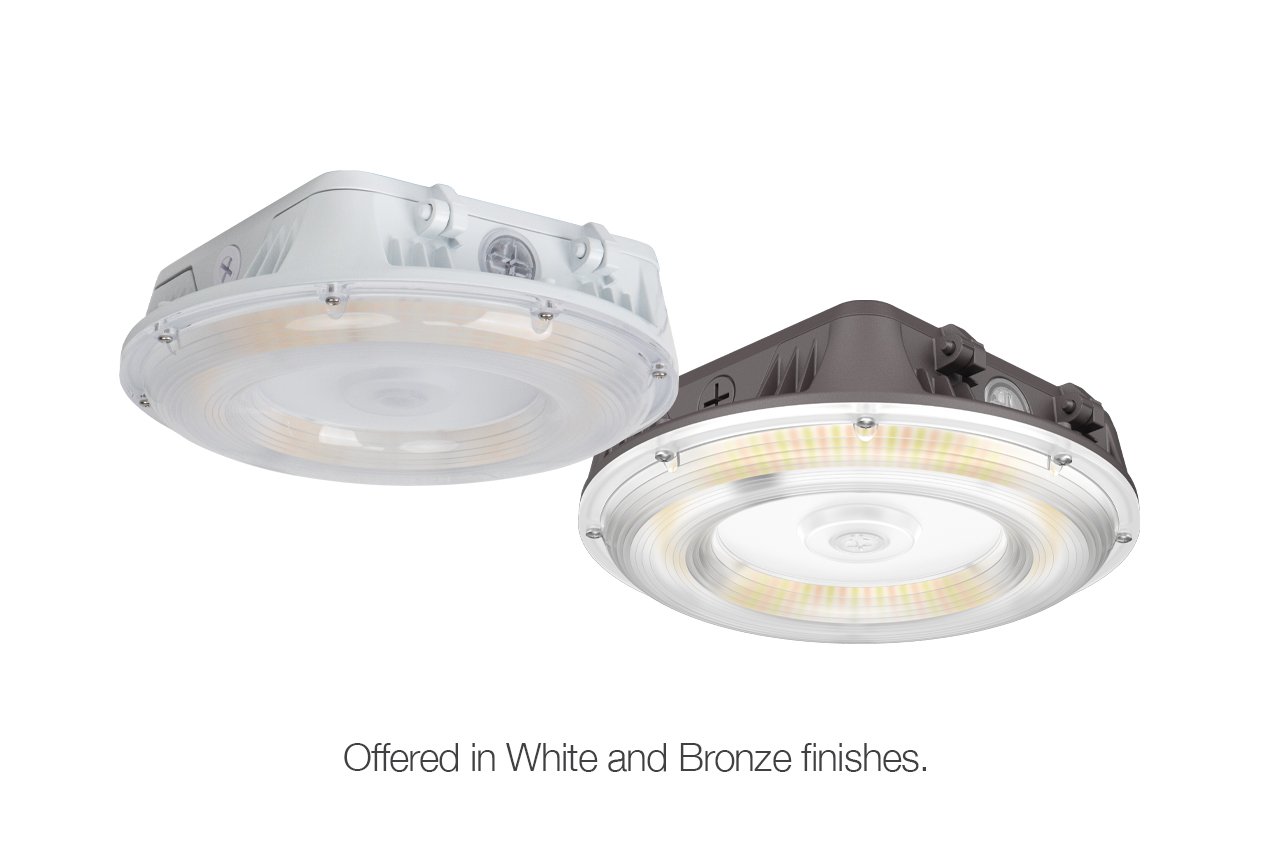

Bronze powder coat finish
Built-in photocell

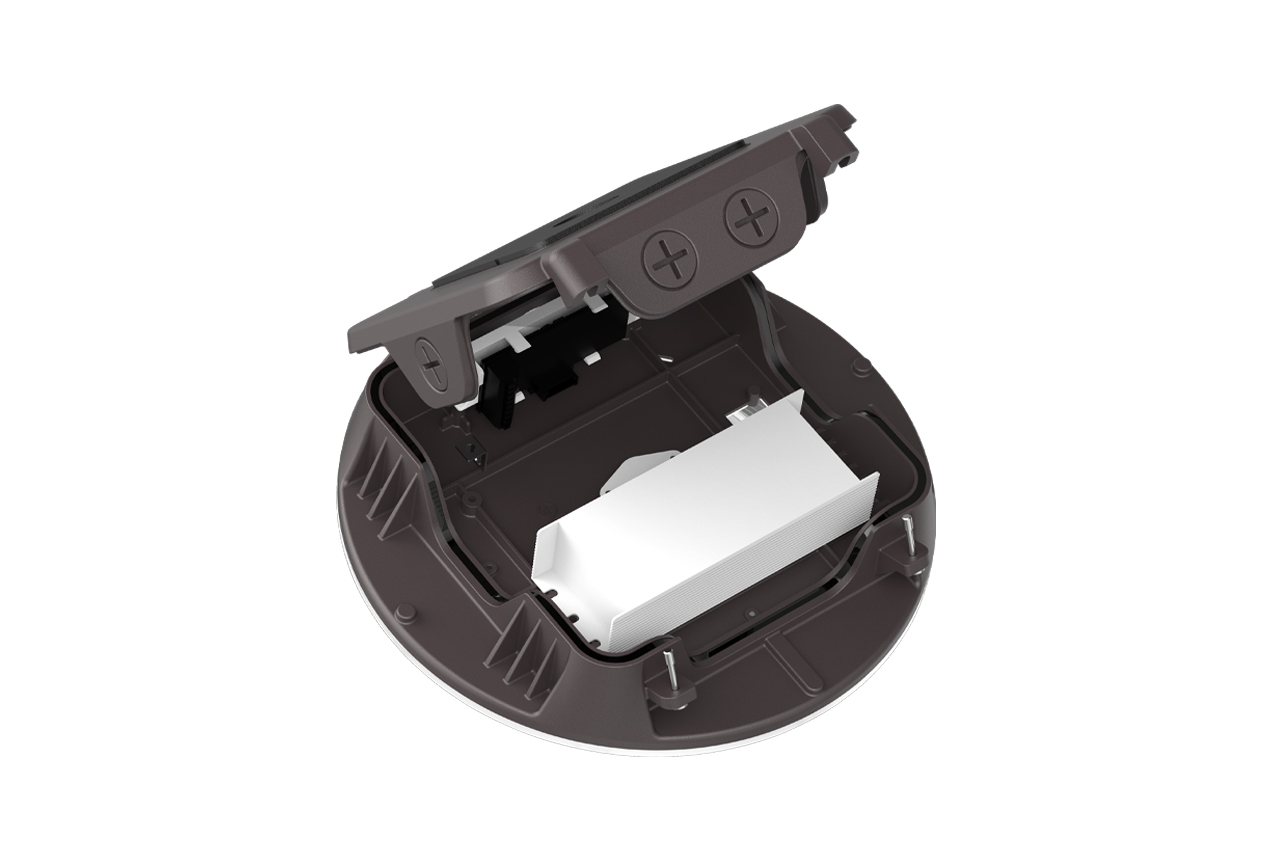

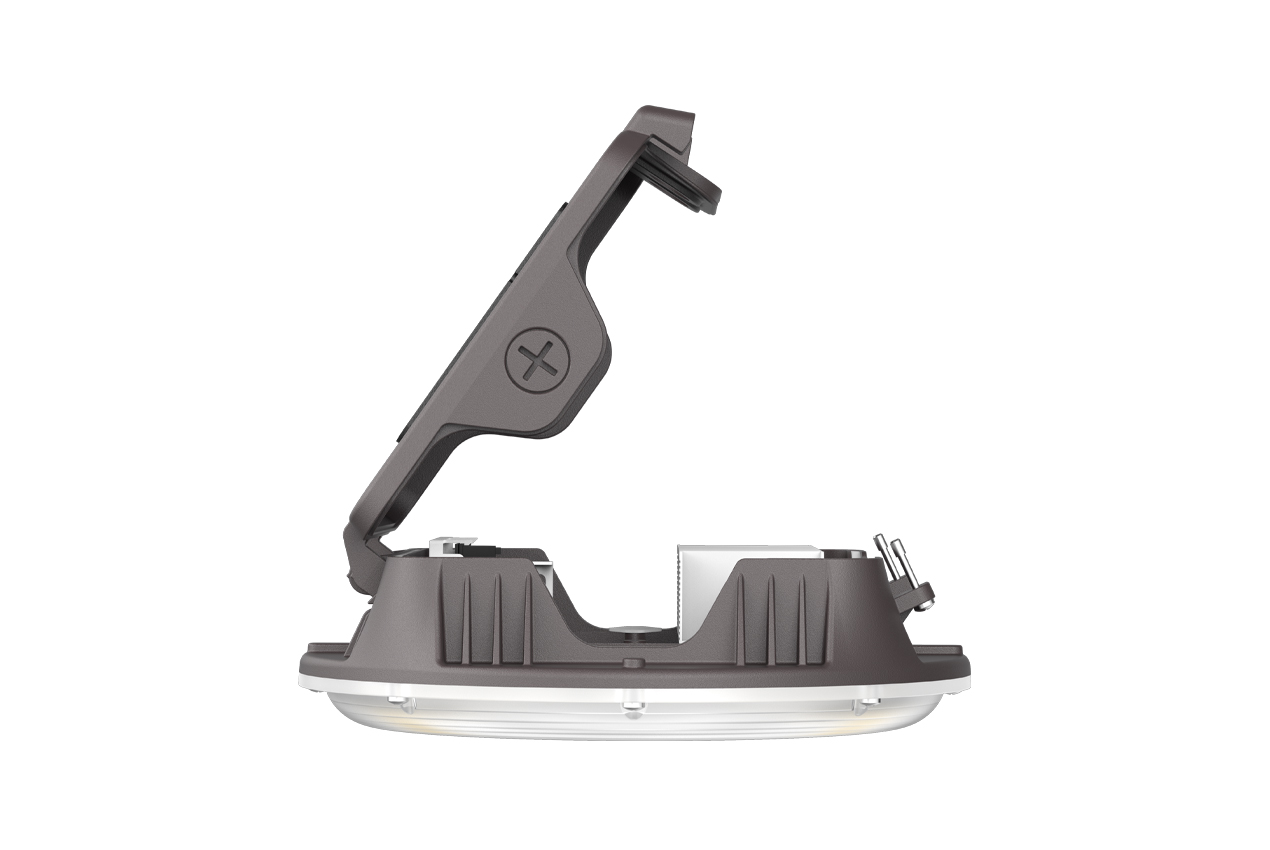

Hinged driver compartment for easy wiring and installation
0-10V dimmable
IK10 and IP65 rated
4 conduit entries for installations requiring flexibility
Certifications Listed:
cUL, DLCPremium, IK10
CSC DLC Number:
S-S9TSGW, S-NK3HHD
CSC LED Warranty:
5 Year Warranty
Product Number:
CPM-R-75W-5P-3CCT-UD-BZ
Light Specifications
Beam Angle:
135°
Colour Temperature:
3000K/4000K/5000K
CRI:
80+
Dimmable:
0-10V
Efficacy:
148 LM/W
Initial Lumens:
11672 lm
Life (L70):
>50,000 hrs
Electrical Specifications
Amperage:
0.7 A
IP Rating:
IP65
Operating Temperature:
-40°C to 45°C
Power Factor:
>0.9
THD:
<20%
Voltage:
120-347V
Watts:
20W/40W/55W/65W/75W
Construction Specifications
Finish:
Powder Coat
Finish Colour:
Bronze
Housing:
Die-Cast Aluminum
Mounting Type:
Surface or Pendant Mount
Power Cord Length:
5.9"
Logistics
Unit Weight:
4.31 lbs
Unit Length:
10.0 in
Unit Width:
10.0 in
Unit Height:
3.05 in
Qty per Carton:
1
Carton Weight:
4.99 lbs
Carton Length:
10.75 in
Carton Width:
10.88 in
Carton Height:
4.0 in
Qty per Master Carton:
4
Master Carton Weight:
21.8 lbs
Master Carton Length:
16.8 in
Master Carton Width:
11.4 in
Master Carton Height:
11.5 in
Qty per Skid:
252
