5 power selectable (20W/40W/55W/65W/75W)
3CCT (3000K/4000K/5000K)
120-347V universal driver
Square
White powder coat finish
Built-in photocell
Hinged driver compartment for easy wiring and installation
0-10V dimmable
IK10 and IP65 rated
4 conduit entries for installations requiring flexibility
Certifications:
cUL, DLCPremium, IK10
CSC DLC Number:
S-L2SL3M, S-60VBLT
Garantie CSC LED:
5 Year Warranty
Numéro de produit:

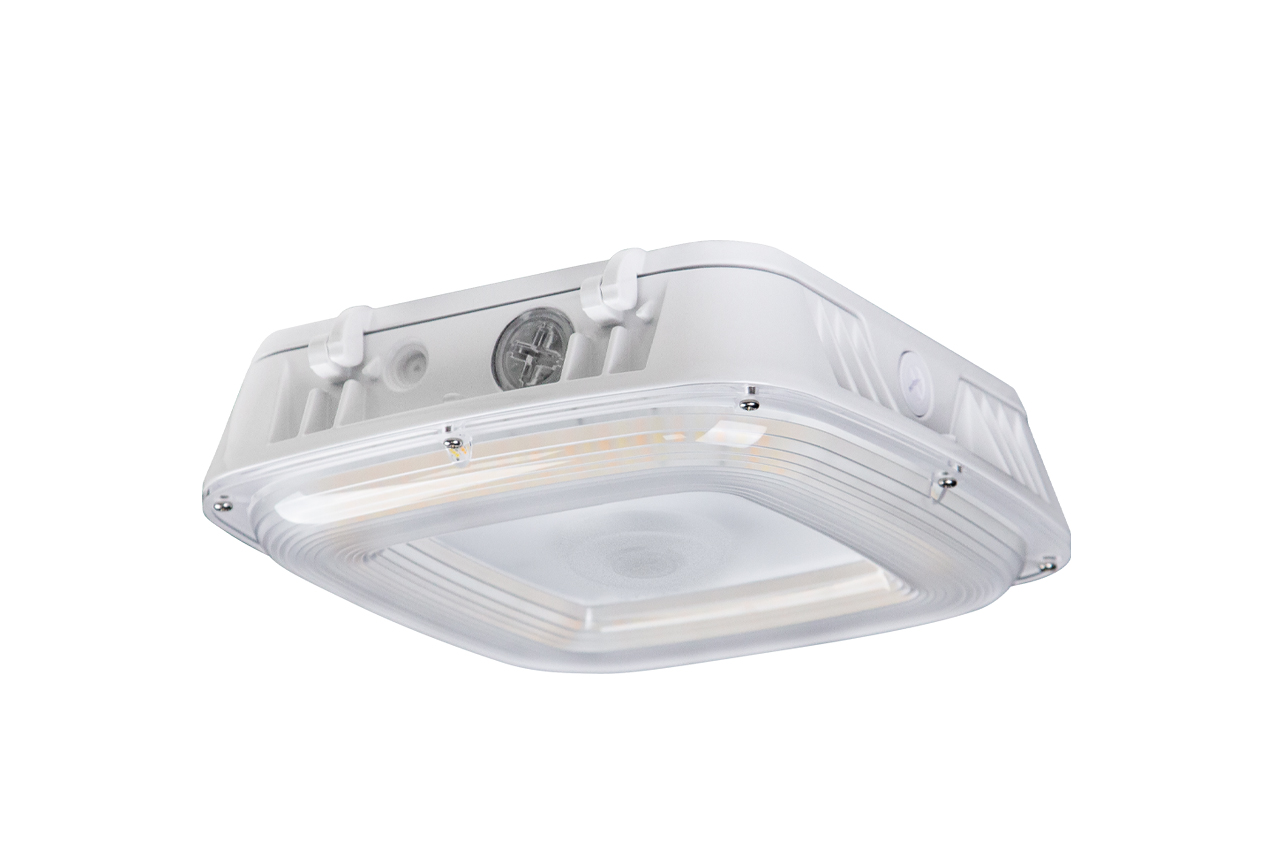

CPM-S-75W-5P-3CCT-UD-WH
Caractéristiques lumineuses
Angle du faisceau:
135°
Température de couleur:
3000 K/4000 K/5000 K
IRC:
80+
Dimmable:
0-10V
Efficacité:
148 LM/W
Lumens initiaux:
11672 lm
Durée de vie (L70):
>50,000 hrs
Caractéristiques électriques
Amperage:
0.7 A
Indice IP:
IP 65
Température de fonctionnement:
-40°C to 45°C
Power Factor:
>0.9
DHT:
<20%
Tension:
120-347V
Watts:
20W/40W/55W/65W/75W
Caractéristiques de construction
Finish:
Powder Coat
Couleur de finition:
White
Type de fixation:
Surface or Pendant Mount
Power Cord Length:
5.9 "
Logistique
Poids unitaire:
4.85 lbs
Unit Length:
10.0 in
Unit Width:
10.0 in
Unit Height:
2.96 in
Qté par carton:
1
Carton Weight:
5.6 lbs
Carton Length:
11.0 in
Carton Width:
11.0 in
Carton Height:
4.0 in
Qté par carton principal:
4
Poids du carton principal:
23.8 lbs
Longueur du carton principal:
16.5 in
Largeur du carton principal:
11.4 in
Hauteur du carton principal:
11.8 in
Qté par palette:
252
CUP:
845599020622
GTIN:
10845599020629
