CYL-35W-3P-4CCT-UD-BK
2 avis
Cylinder Light
21W/28W/35W | 4CCT | 120-347V | 2370-3476 lm
GTIN / UPC : 10845599061622
Code-barres : 845599061625
2 avis
Power selectable (21W/28W/35W)
Colour selectable (2700K/3000K/3500K/4000K)
Adjustable beam angle (30°/40°/50°/60°)
120-347V universal driver
0-10V dimming

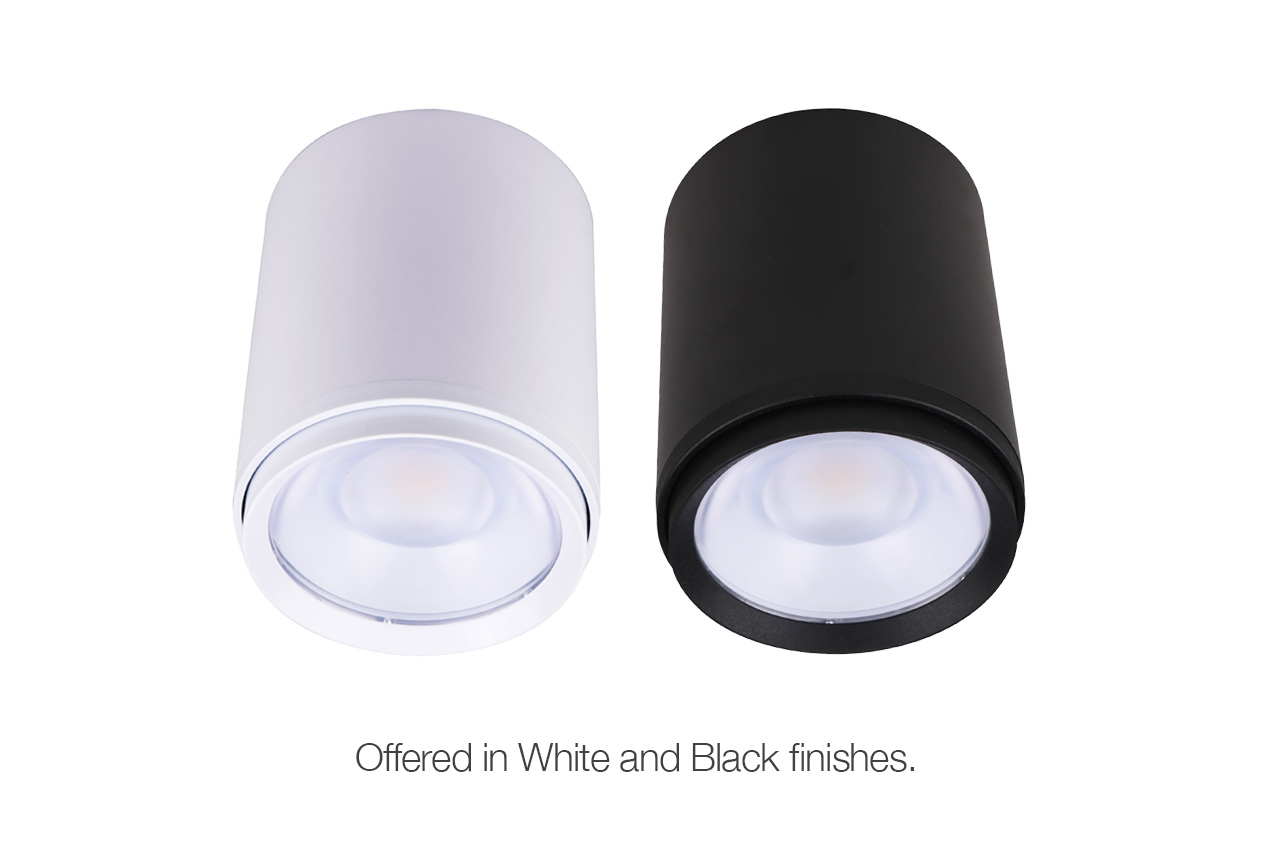

Black powder coat finish

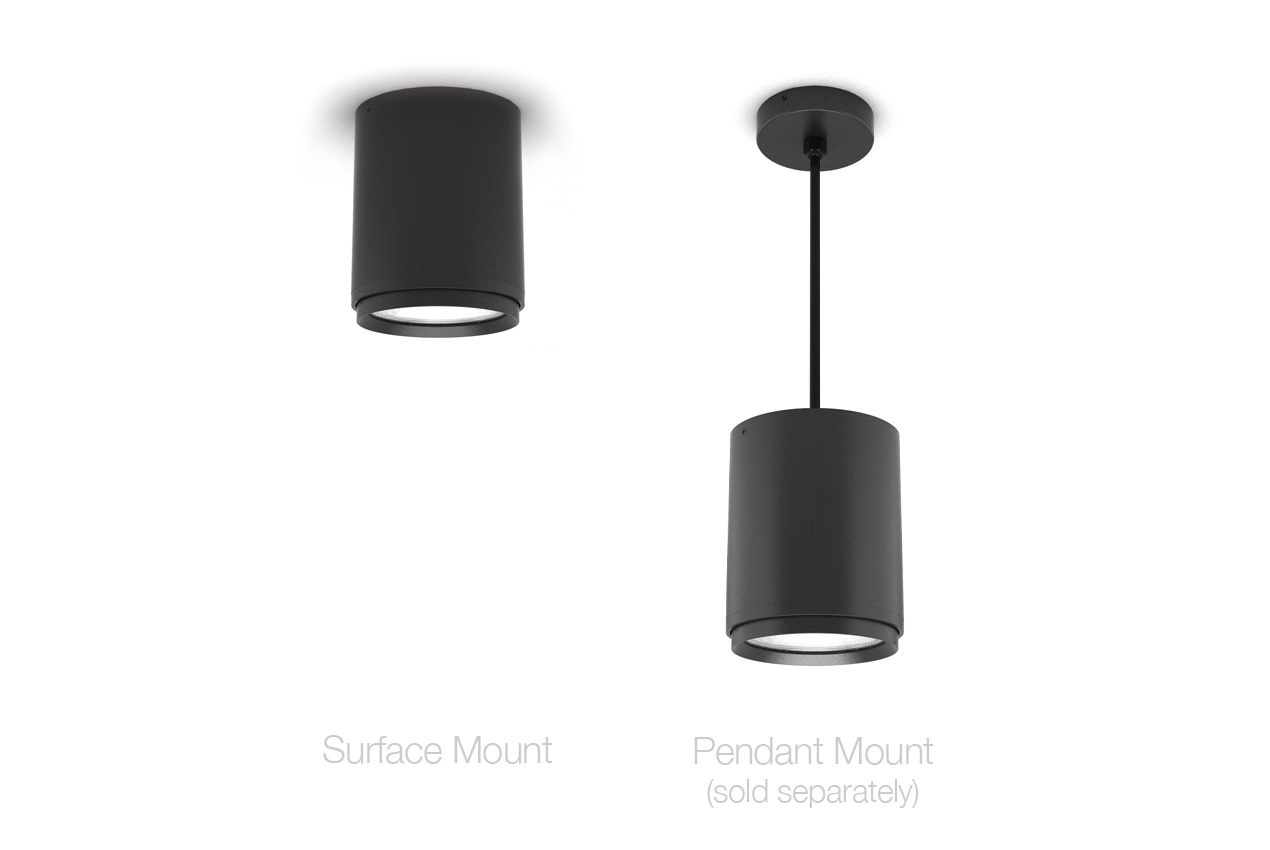

Pendant mount kit available (sold separately)
Certifications Listed:
cUL, IK05
CSC LED Warranty:
5 Year Warranty
Product Number:
CYL-35W-3P-4CCT-UD-BK
Light Specifications
Beam Angle:
30/40/50/60
Colour Temperature:
2700K/3000K/3500K/4000K
CRI:
80+
Dimmable:
0-10
Efficacy:
81.81 LM/W
Initial Lumens:
2857 lm
Life (L70):
>54,000 hrs
Electrical Specifications
Amperage:
0.5 A
IP Rating:
IP40
Operating Temperature:
-40°C to 50°C
Power Factor:
>0.9
THD:
<20%
Voltage:
120-347V
Watts:
21W/28W/35W
Construction Specifications
Finish:
Powder Coated
Finish Colour:
Black
Housing:
Aluminum
Mounting Type:
Surface or Pendant
Logistics
Unit Weight:
2.86 lbs
Unit Length:
5.75 in
Unit Width:
5.75 in
Unit Height:
7.2 in
Qty per Carton:
1
Carton Weight:
3.3 lbs
Carton Length:
6.1 in
Carton Width:
6.1 in
Carton Height:
7.48 in
Qty per Master Carton:
4
Master Carton Weight:
15.4 lbs
Master Carton Length:
13.0 in
Master Carton Width:
13.0 in
Master Carton Height:
8.3 in
Qty per Skid:
420
