Power selectable (21W/28W/35W)
Colour selectable (2700K/3000K/3500K/4000K)
Adjustable beam angle (30°/40°/50°/60°)
120-347V universal driver
0-10V dimming

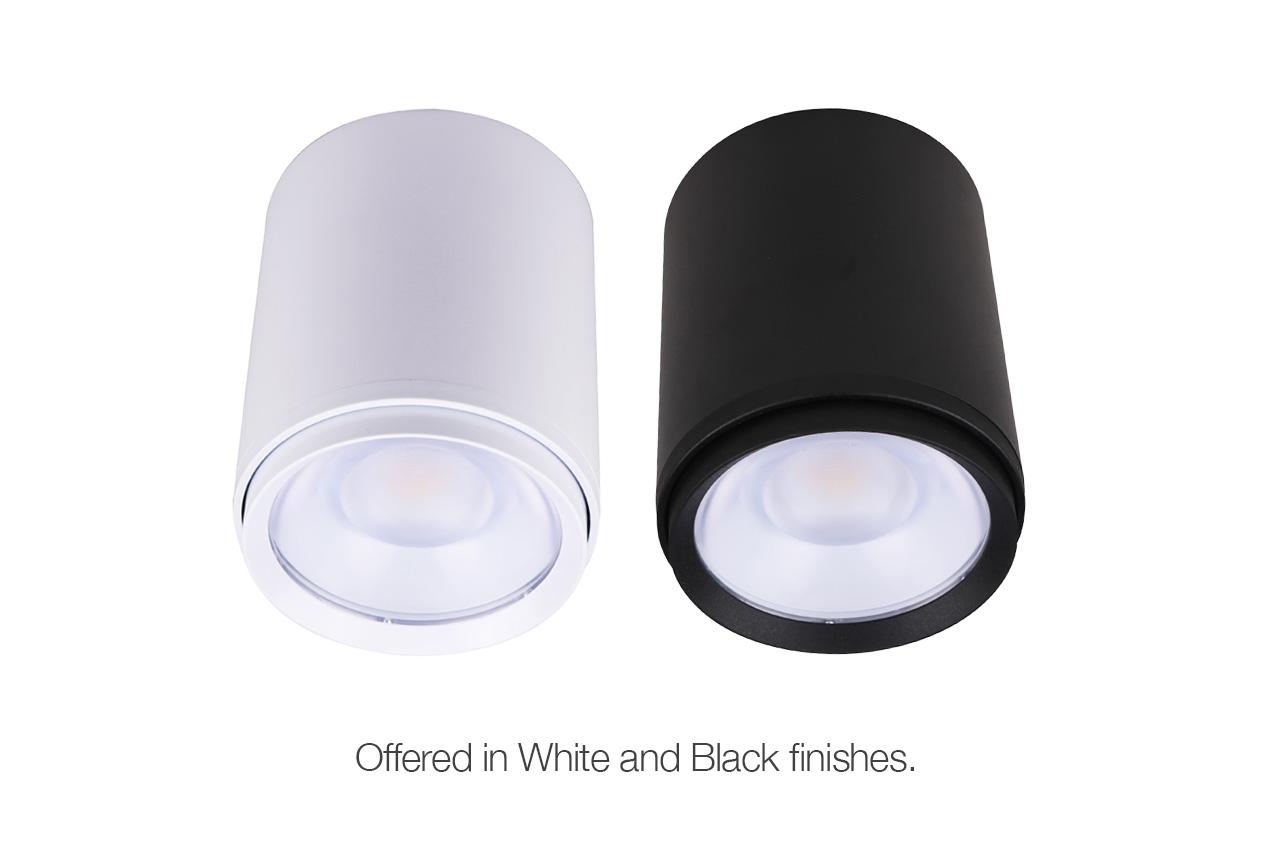

White powder coat finish

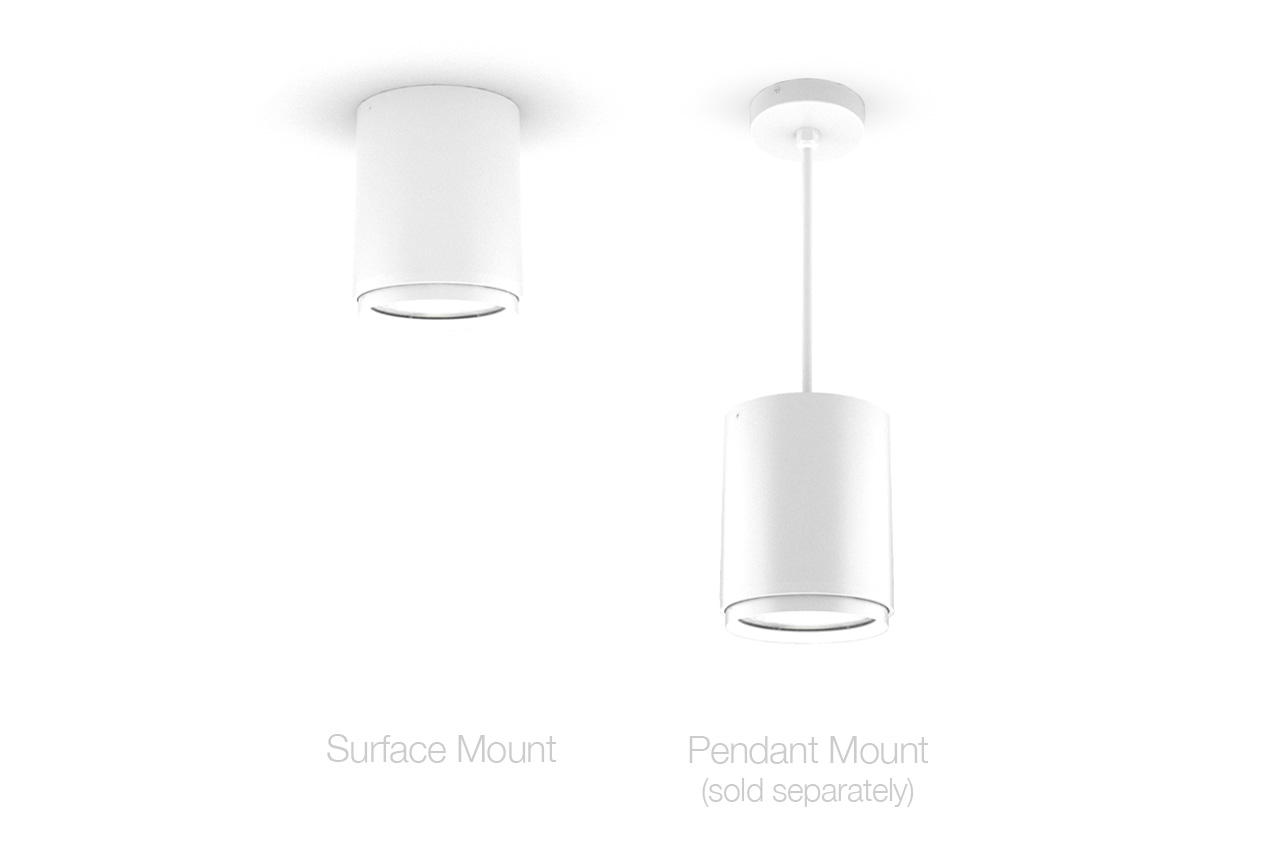

Pendant mount kit available (sold separately)
Certifications:
cUL, IK05
Garantie CSC LED:
5 Year Warranty
Numéro de produit:
CYL-35W-3P-4CCT-UD-WH
Caractéristiques lumineuses
Angle du faisceau:
30/40/50/60
Température de couleur:
2700 K/3000 K/3500 K/4000 K
IRC:
80+
Dimmable:
0-10
Efficacité:
81.81 LM/W
Lumens initiaux:
2857 lm
Durée de vie (L70):
>54,000 hrs
Caractéristiques électriques
Amperage:
0.5 A
Indice IP:
IP 40
Température de fonctionnement:
-40°C to 50°C
Power Factor:
>0.9
DHT:
<20%
Tension:
120-347V
Watts:
21W/28W/35W
Caractéristiques de construction
Finish:
Powder Coated
Couleur de finition:
White
Boîtier:
Aluminum
Type de fixation:
Surface or Pendant
Logistique
Poids unitaire:
2.86 lbs
Unit Length:
5.75 in
Unit Width:
5.75 in
Unit Height:
7.2 in
Qté par carton:
1
Carton Weight:
3.3 lbs
Carton Length:
6.1 in
Carton Width:
6.1 in
Carton Height:
7.48 in
Qté par carton principal:
4
Poids du carton principal:
15.4 lbs
Longueur du carton principal:
13.0 in
Largeur du carton principal:
13.0 in
Hauteur du carton principal:
8.3 in
Qté par palette:
420
CUP:
845599061618
GTIN:
10845599061615
