GCL01-45W-40K-UD
1 avis

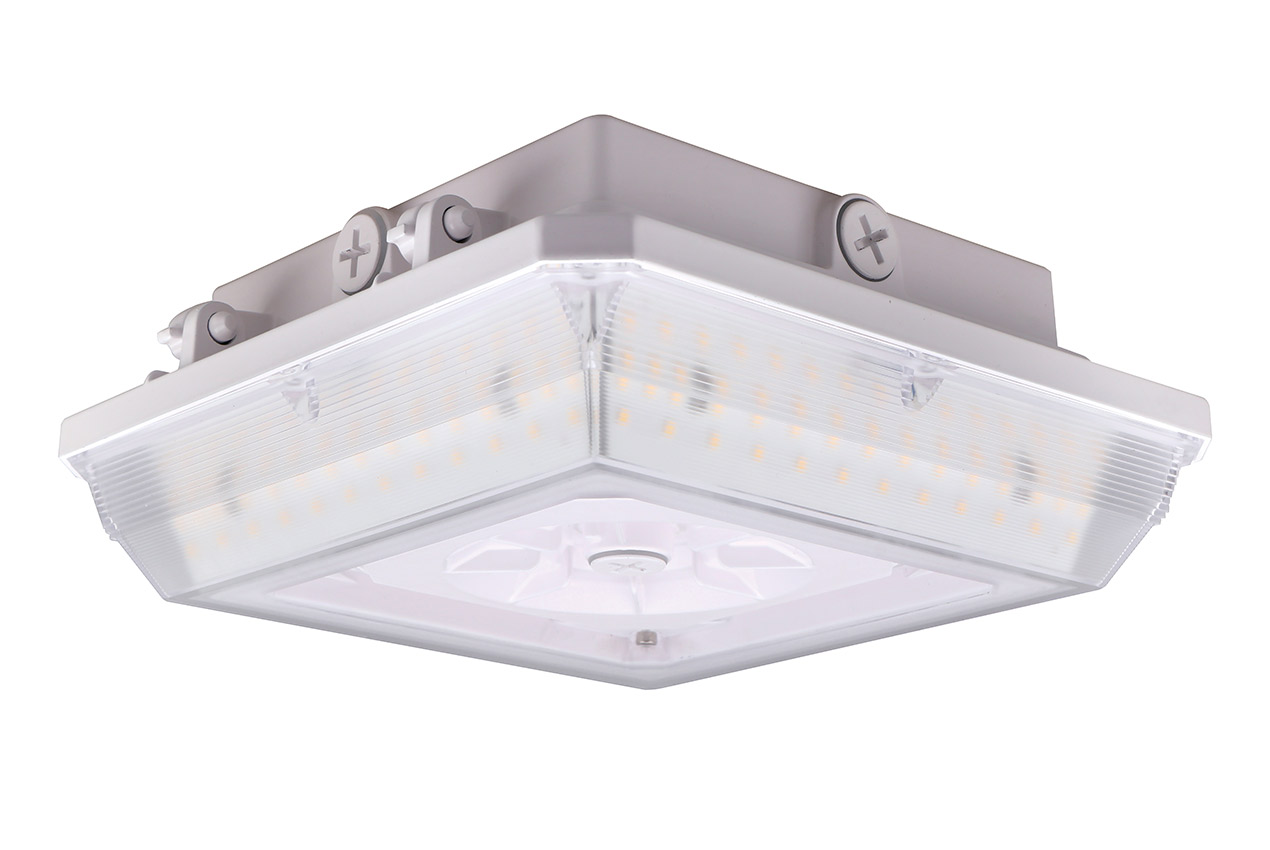

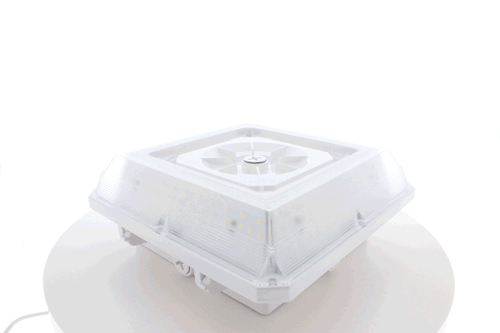

Garage Canopy Light
45W l 4000K l 120-347V | 5958 lm
GTIN / UPC : 10845599020476
Code-barres : 845599020479
1 avis
Cost-effective and efficient lighting for parking garages, covered walkways, and canopies
120-347V Universal Driver
Superior Thermal Management
170° Beam Angle
Horizontal Light Dispersion for maximum uniform coverage and optimal visual comfort
Optional motion sensor available (sold separately)
Certifications Listed:
cUL, DLCPremium
CSC DLC Number:
PL8F1N9ML4HC
CSC LED Warranty:
5 Year Warranty
Product Number:
GCL01-45W-40K-UD
Light Specifications
Beam Angle:
170
Colour Temperature:
4000K
CRI:
80+
Dimmable:
0-10
Efficacy:
130.37 LM/W
Initial Lumens:
5958 lm
Life (L70):
>54,000 hrs
Electrical Specifications
IP Rating:
IP65
Operating Temperature:
-40°C to 50°C
Power Factor:
>0.9
THD:
<20%
Voltage:
120-347V
Watts:
45W
Construction Specifications
Finish Colour:
White
Housing:
Die-Cast Aluminum
Logistics
Unit Weight:
6 lbs
Unit Length:
11.0 in
Unit Width:
6.0 in
Unit Height:
11.0 in
Qty per Carton:
1
Qty per Master Carton:
8
Master Carton Weight:
45.9 lbs
Master Carton Length:
21.0 in
Master Carton Width:
12.0 in
Master Carton Height:
23.0 in
Qty per Skid:
256
