Cost-effective and efficient lighting for parking garages, covered walkways, and canopies
120-347V Universal Driver
Superior Thermal Management
170° Beam Angle
Horizontal Light Dispersion for maximum uniform coverage and optimal visual comfort
Optional motion sensor available (sold separately)
Certifications:
cUL, DLCPremium
CSC DLC Number:
PLJAGRACX7NC
Garantie CSC LED:
5 Year Warranty
Numéro de produit:

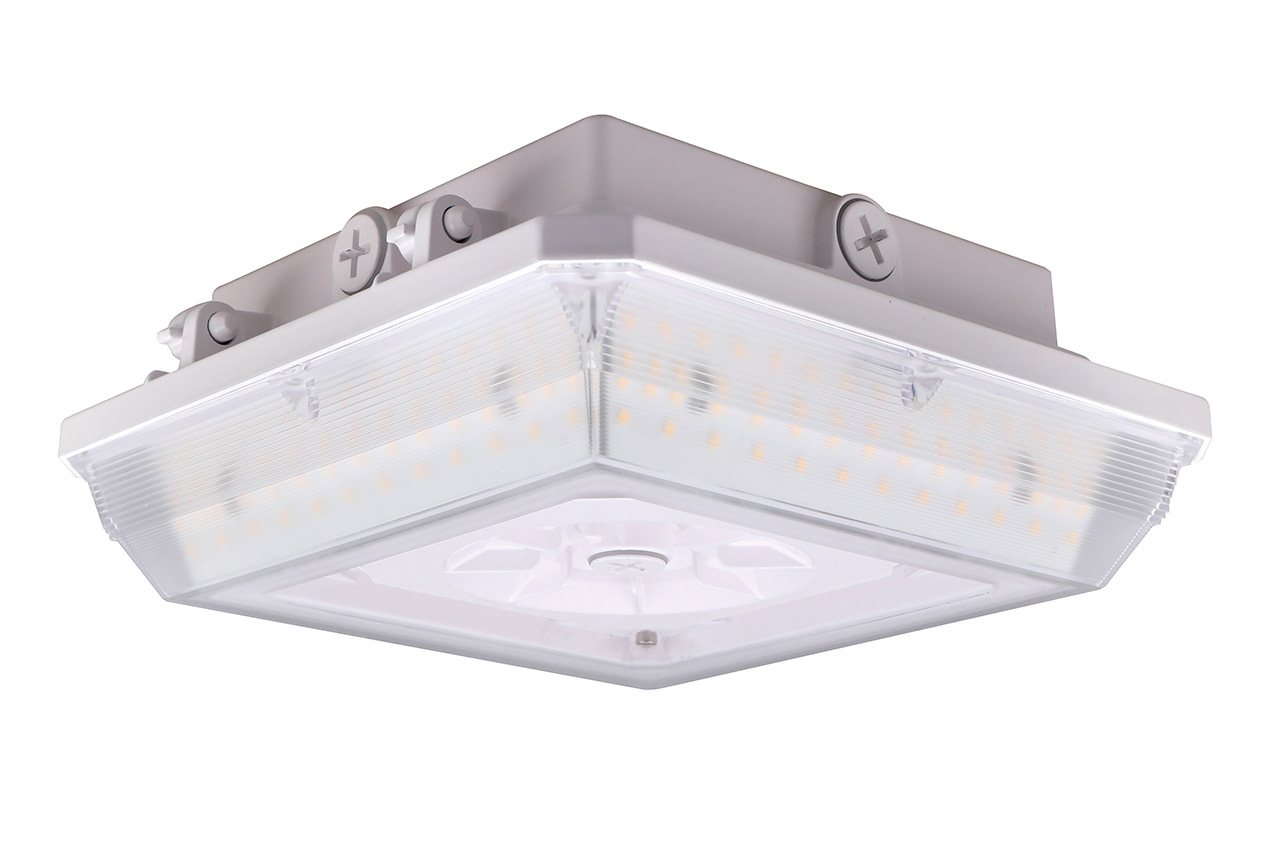

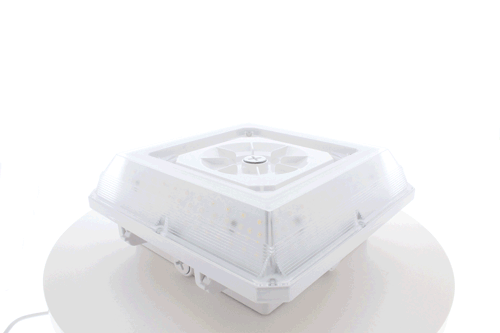

GCL01-75W-40K-UD
Caractéristiques lumineuses
Angle du faisceau:
170
Température de couleur:
4000 K
IRC:
80+
Dimmable:
0-10
Efficacité:
129.24 LM/W
Lumens initiaux:
9558 lm
Durée de vie (L70):
>54,000 hrs
Caractéristiques électriques
Indice IP:
IP 65
Température de fonctionnement:
-40°C to 50°C
Power Factor:
>0.9
DHT:
<20%
Tension:
120-347V
Watts:
75W
Caractéristiques de construction
Couleur de finition:
White
Boîtier:
Die-Cast Aluminum
Logistique
Poids unitaire:
6 lbs
Unit Length:
11.0 in
Unit Width:
6.0 in
Unit Height:
11.0 in
Qté par carton:
1
Qté par carton principal:
8
Poids du carton principal:
45.9 lbs
Longueur du carton principal:
21.0 in
Largeur du carton principal:
23.0 in
Hauteur du carton principal:
12.0 in
Qté par palette:
256
CUP:
845599020486
GTIN:
10845599020490
