HB8-240W-3P-3CCT-UD-WH
12 avis

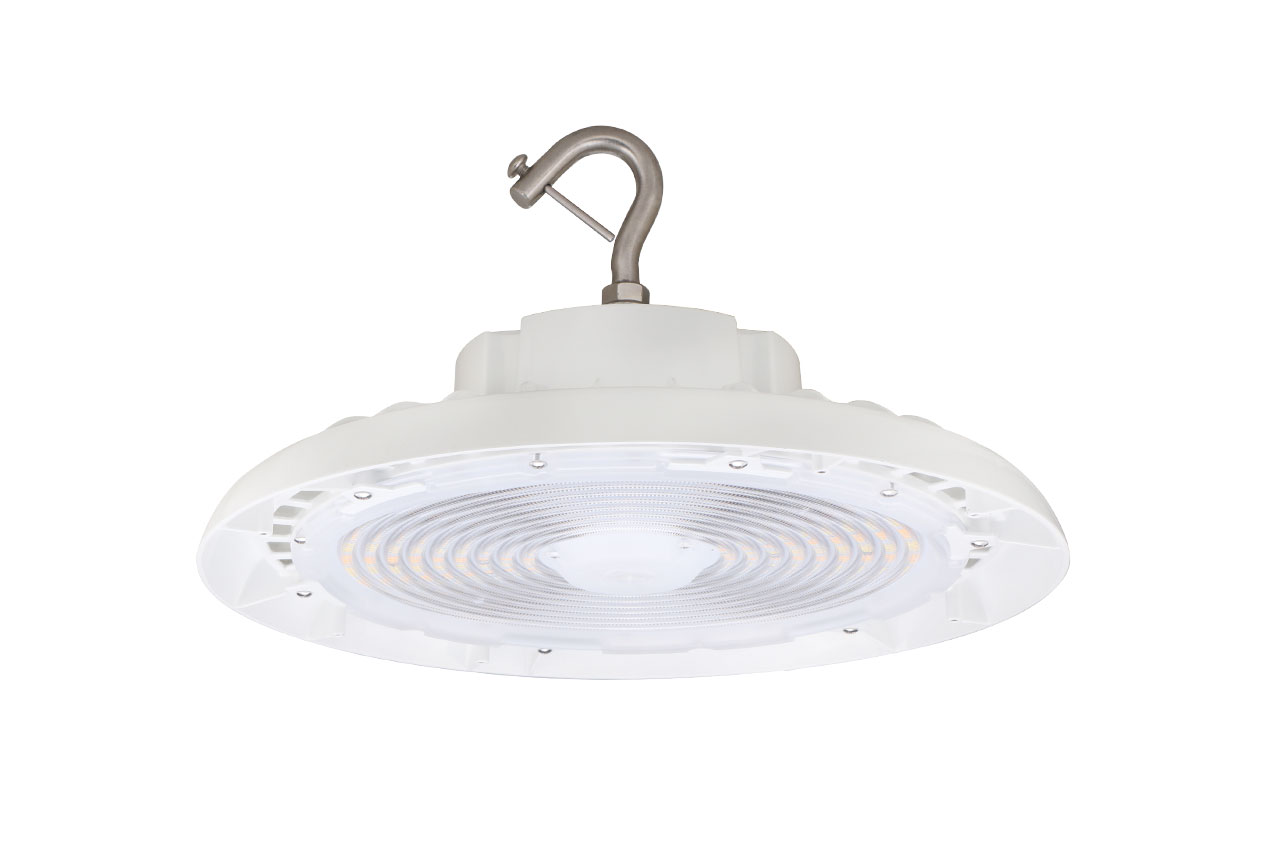

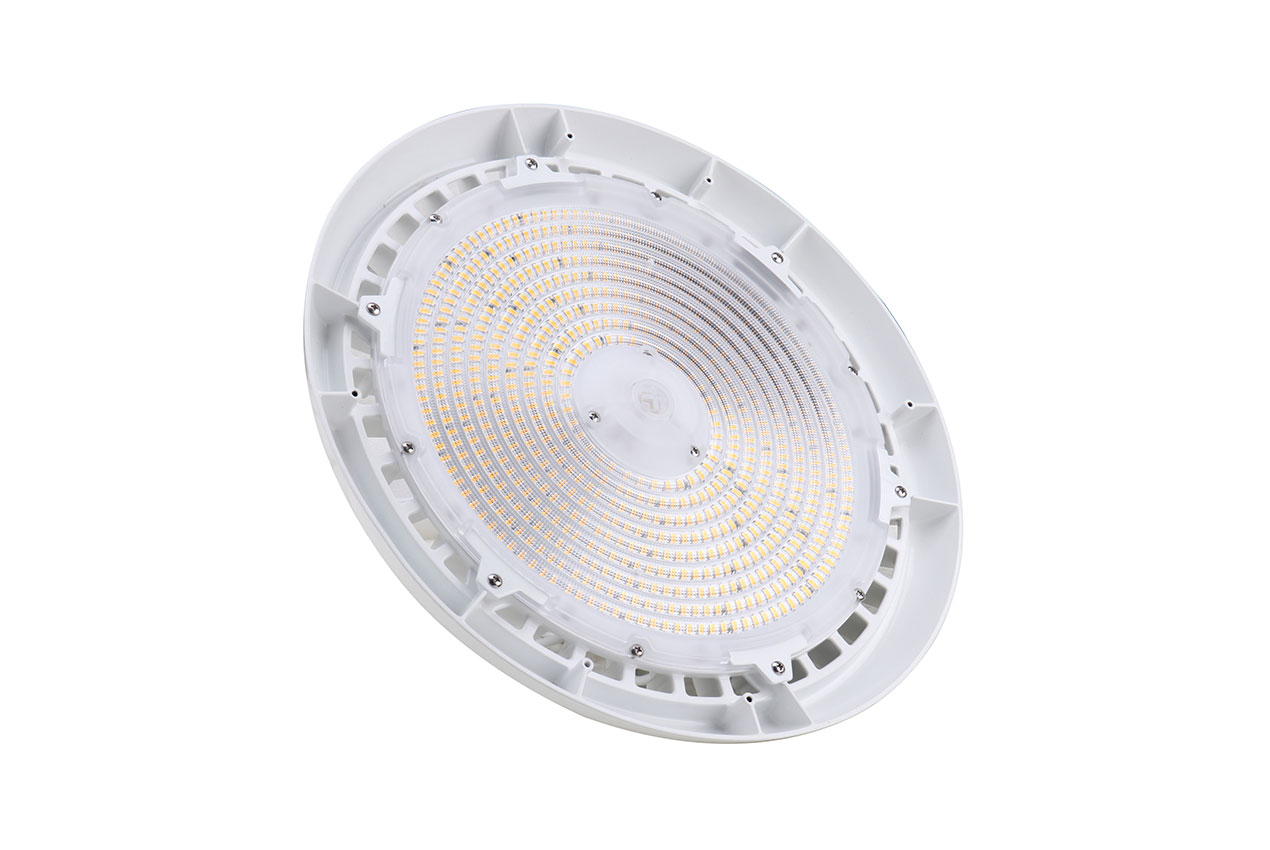

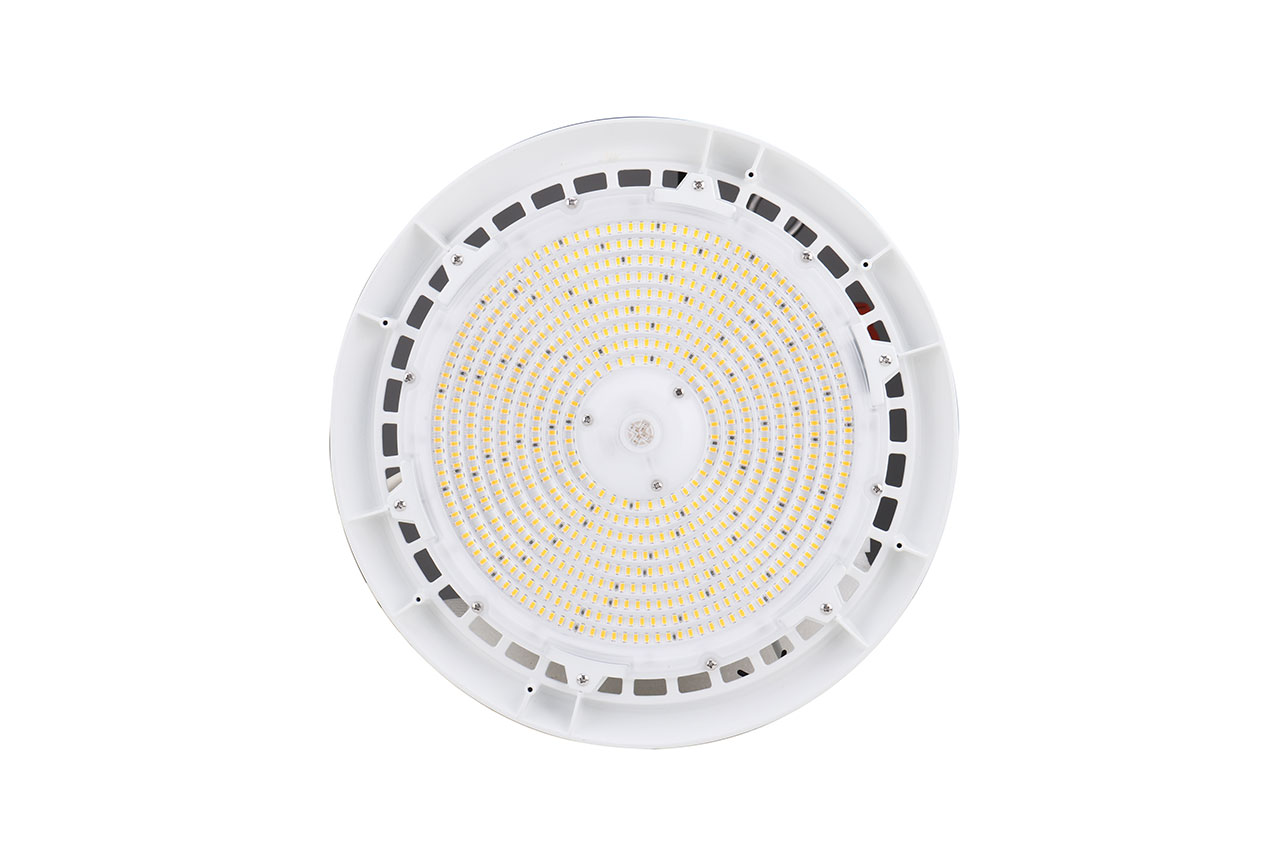

HB8 High Bay
200W/220W/240W | 3CCT | 120-347V | 27842-35550 lm
GTIN / UPC : 10845599002274
Code-barres : 845599002277
12 avis
Power Selectable (200W/220W/240W)
Colour Selectable (3000K/4000K/5000K)
Long life, elevated driver for cooler operation
Newly designed shatterproof polycarbonate optics meet/exceed DLC glare standards

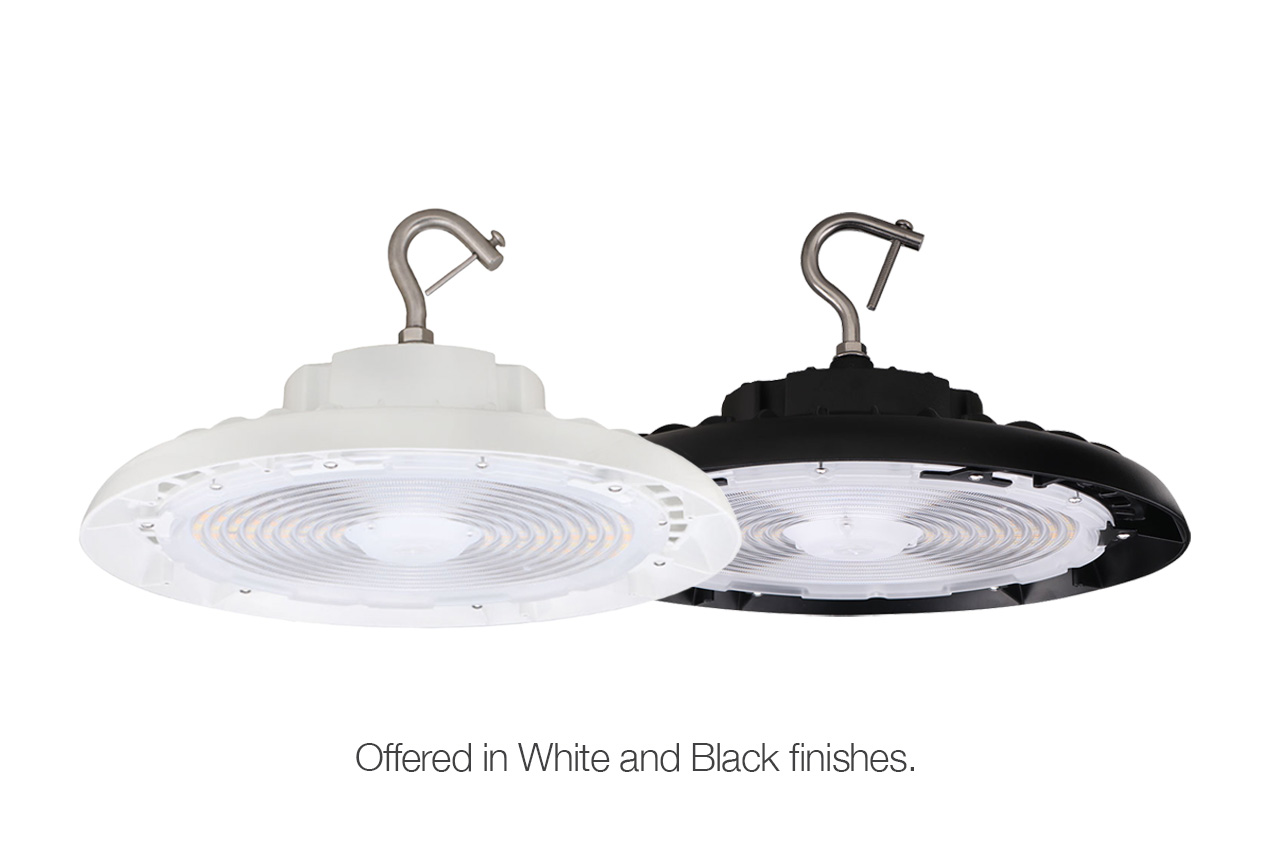

Polyester powder coat finish (white)
Instant start and 10V dimmable
Complete with 65" power cord
Certifications Listed:
cUL, DLCPremium, IK08, NEMA4X, NSF
CSC DLC Number:
S-RMOULY
CSC LED Warranty:
5 Year Warranty
Product Number:
HB8-240W-3P-3CCT-UD-WH
Light Specifications
Beam Angle:
90
Colour Temperature:
3000K/4000K/5000K
CRI:
81
Dimmable:
0-10
Efficacy:
137 LM/W
Initial Lumens:
33267 lm
Life (L70):
>50,000 hrs
Electrical Specifications
Amperage:
2.7 A
IP Rating:
IP65
Operating Temperature:
-40°C to 50°C
Power Factor:
0.9
THD:
15%
Voltage:
120-347V
Watts:
200W/220W/240W
Construction Specifications
Finish:
Polyester Powder Coat
Finish Colour:
White
Housing:
Die-Cast Aluminum
Mounting Type:
Hook
Power Cord Length:
65"
Logistics
Unit Weight:
6.83 lbs
Unit Length:
13.4 in
Unit Width:
13.4 in
Unit Height:
7.3 in
Qty per Master Carton:
1
Master Carton Weight:
7.9 lbs
Master Carton Length:
14.2 in
Master Carton Width:
14.2 in
Master Carton Height:
4.9 in
Qty per Skid:
144
HB8-240W-3P-3CCT-UD-WH
12 avis
HB8 High Bay
200W/220W/240W | 3CCT | 120-347V | 27842-35550 lm
GTIN / UPC : 10845599002274
Code-barres : 845599002277
12 avis
