LHB04-150W-3P-3CCT-UD-WH
6 avis

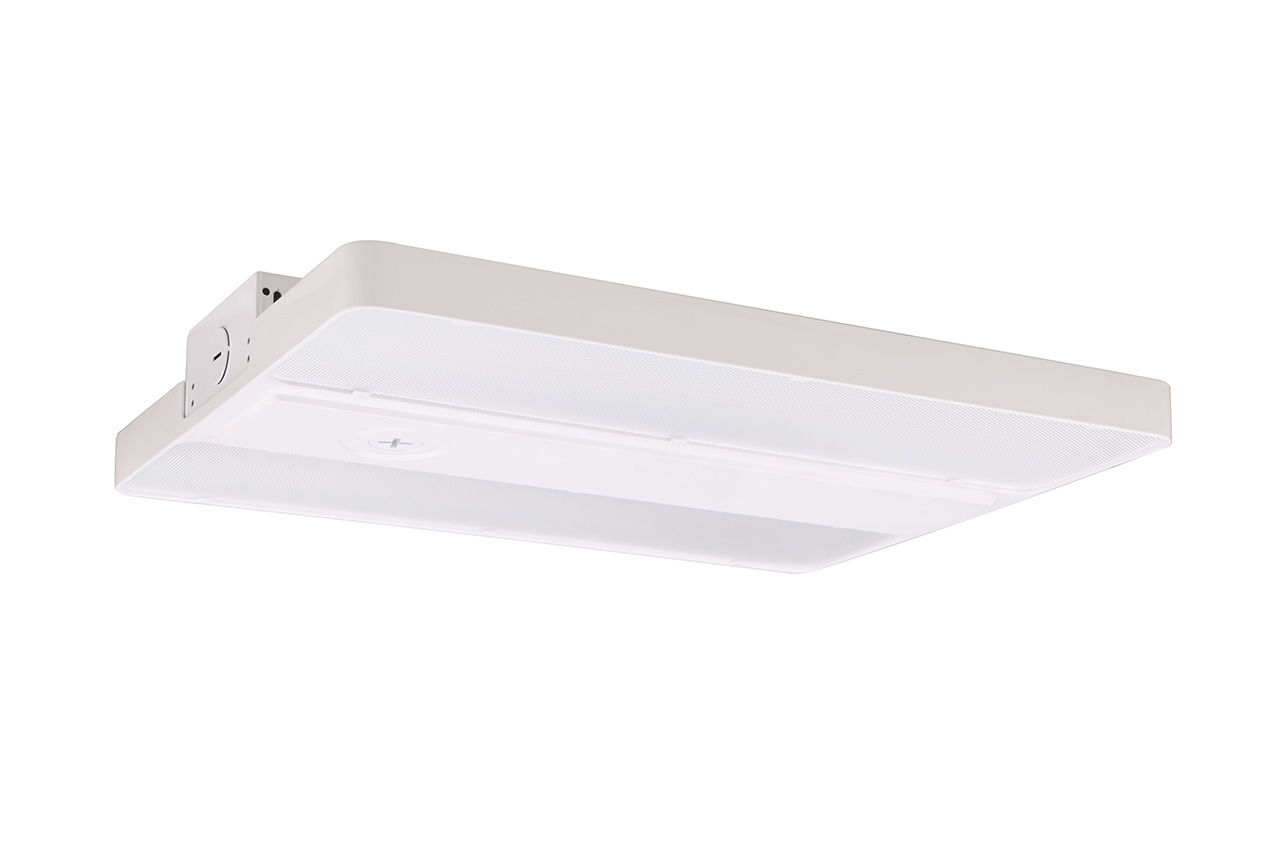

LHB04 Linear High Bay
110W/130W/150W | 3CCT | 120-347V | 15437-21483 lm
GTIN / UPC : 10845599002304
Code-barres : 845599002307
6 avis
Power selectable 110W/130W/150W
Colour selectable 3500K/4000K/5000K
0-10V dimmable
Complete with 108" power cord
Centre knockout allows for easy installation of an optional motion sensor (sold separately)
Newly designed, shatterproof polycarbonate optics meet/exceed DLC standards
Strong die cast housing and reduced size for easy installation
Certifications Listed:
cUL, DLCPremium, IK08
CSC DLC Number:
S-5T7PBJ
CSC LED Warranty:
5 Year Warranty
Product Number:
LHB04-150W-3P-3CCT-UD-WH
Light Specifications
Beam Angle:
90
Colour Temperature:
3500K/4000K/5000K
CRI:
83
Dimmable:
0-10
Efficacy:
134 LM/W
Initial Lumens:
20100 lm
Life (L70):
>50,000 hrs
Electrical Specifications
Amperage:
1.6 A
IP Rating:
IP20
Operating Temperature:
-40°C to 50°C
Power Factor:
0.9
THD:
15%
Voltage:
120-347V
Watts:
110W/130W/150W
Construction Specifications
Finish:
Powder Coat
Finish Colour:
White
Housing:
Die Cast Aluminum
Power Cord Length:
108"
Logistics
Unit Weight:
4.2 lbs
Unit Length:
14.17 in
Unit Width:
11.02 in
Unit Height:
1.89 in
Qty per Master Carton:
1
Master Carton Weight:
6.0 lbs
Master Carton Length:
15.0 in
Master Carton Width:
11.8 in
Master Carton Height:
3.4 in
Qty per Skid:
264
