Power selectable 180W/200W/220W
Colour selectable 3500K/4000K/5000K
0-10V dimmable
Complete with 108" power cord
Centre knockout allows for easy installation of an optional motion sensor (sold separately)
Newly designed, shatterproof polycarbonate optics meet/exceed DLC standards
Strong die cast housing and reduced size for easy installation
Certifications:
cUL, DLCPremium, IK08
CSC DLC Number:
S-K6B74J
Garantie CSC LED:
5 Year Warranty
Numéro de produit:

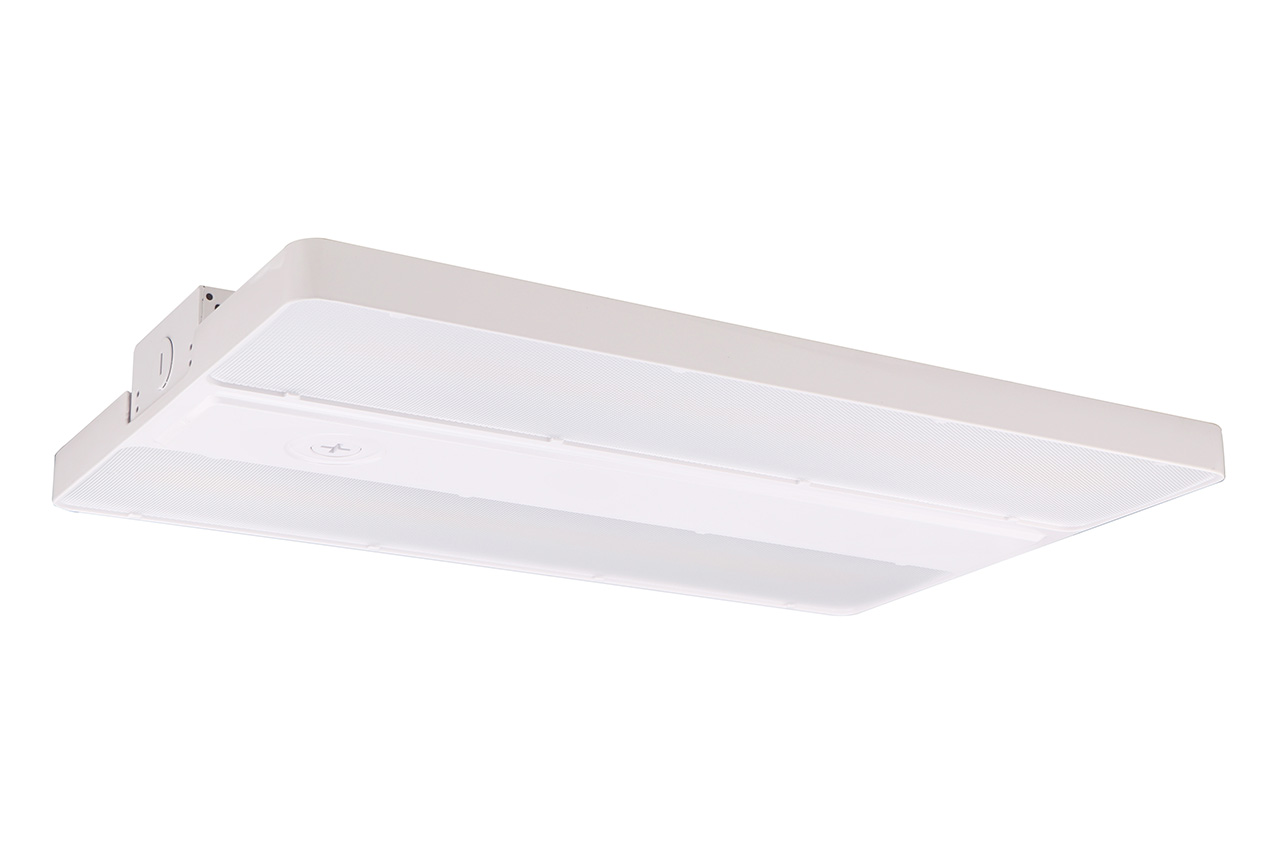

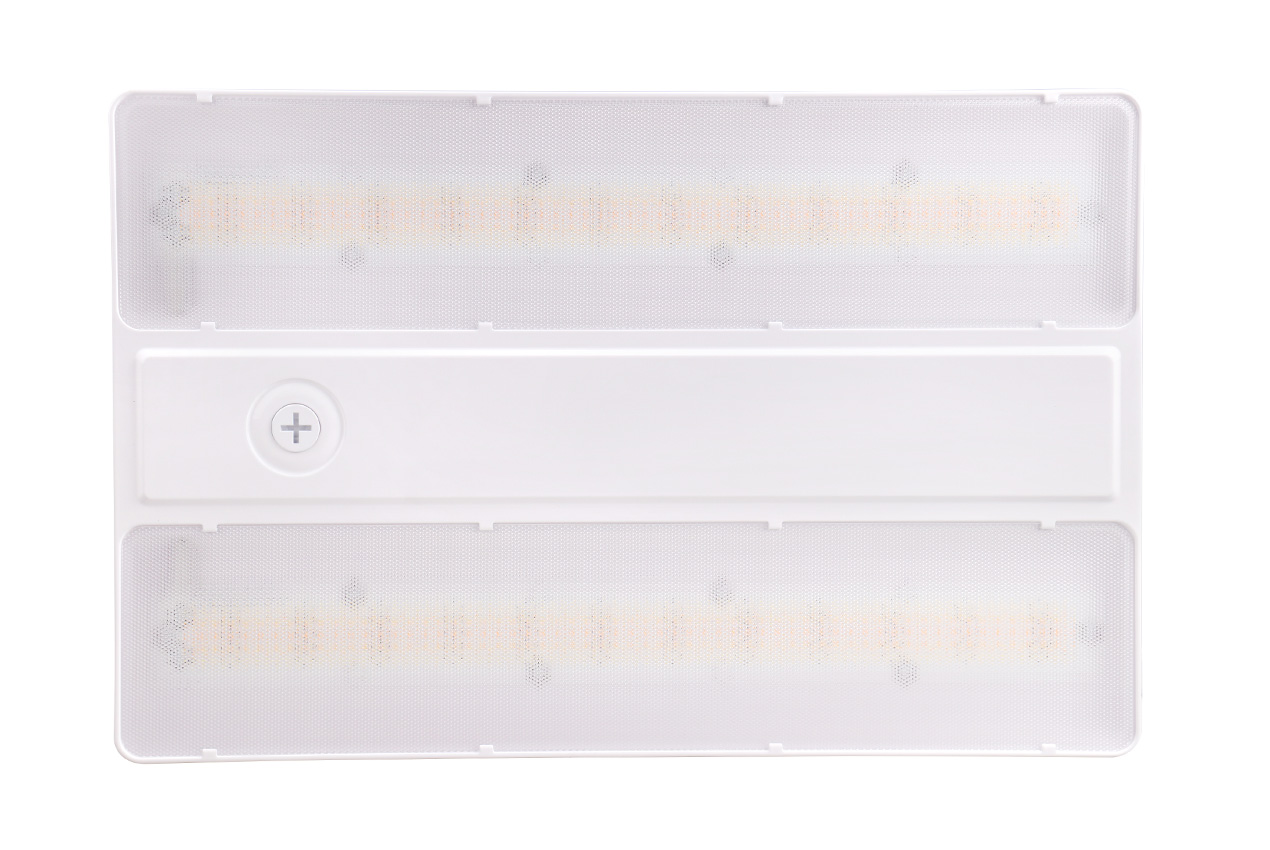

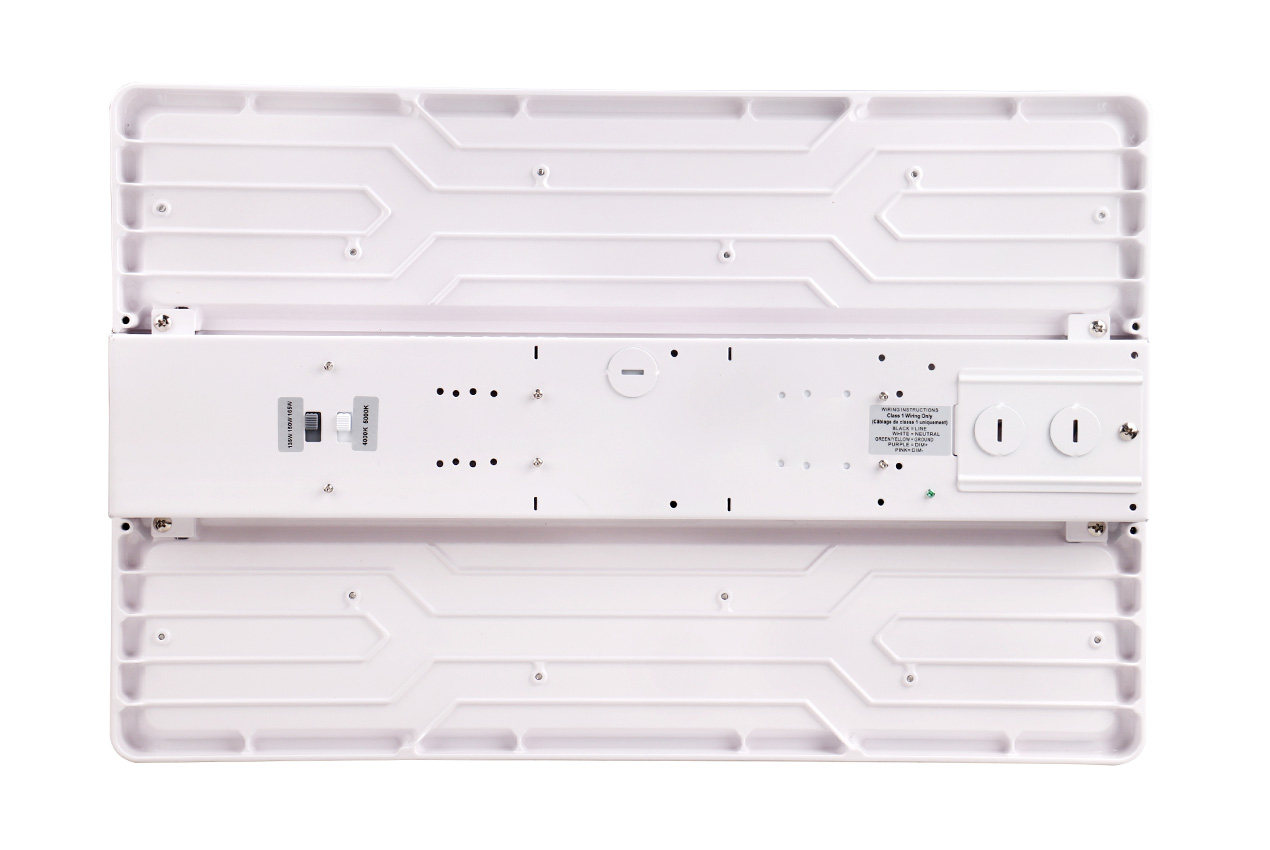

LHB04-220W-3P-3CCT-UD-WH
Caractéristiques lumineuses
Angle du faisceau:
90
Température de couleur:
3500 K/4000 K/5000 K
IRC:
83
Dimmable:
0-10
Efficacité:
135 LM/W
Lumens initiaux:
28821 lm
Durée de vie (L70):
>50,000 hrs
Caractéristiques électriques
Amperage:
2.2 A
Indice IP:
IP 20
Température de fonctionnement:
-40°C to 50°C
Power Factor:
0.9
DHT:
15%
Tension:
120-347V
Watts:
180W/200W/220W
Caractéristiques de construction
Finish:
Polyester Powder Coat
Couleur de finition:
White
Boîtier:
Die Cast Aluminum
Power Cord Length:
108 "
Logistique
Poids unitaire:
5.95 lbs
Unit Length:
18.11 in
Unit Width:
11.81 in
Unit Height:
1.89 in
Qté par carton principal:
1
Poids du carton principal:
7.9 lbs
Longueur du carton principal:
18.9 in
Largeur du carton principal:
12.6 in
Hauteur du carton principal:
3.4 in
Qté par palette:
195
CUP:
845599002314
GTIN:
10845599002311
