PTA02-150W-3CCT-UD
8 avis

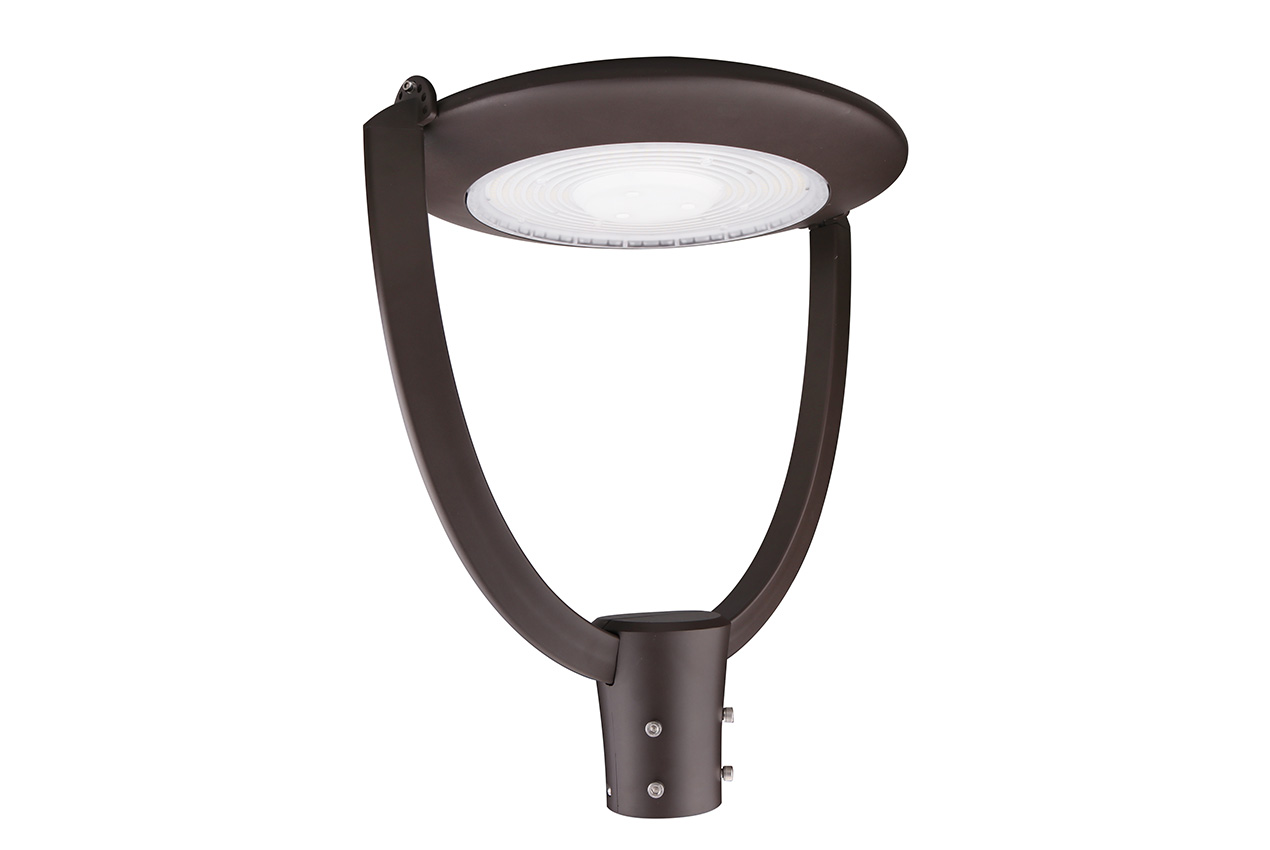

Pole Top Area Light
150W l 3CCT l 120-347V | 18747 lm
GTIN / UPC : 10845599012167
Code-barres : 845599012160
8 avis
Elegant Look And Design Ideal For Use In Parking Lots, Pathways, Parks, And More
Colour Selectable (3000K / 4000K / 5000K)
Bronze Finish
Complete With Photocell Receptacle and Shorting Cap
Optional Photocell Sold Separately
0-10V Dimmable
Certifications Listed:
cUL, DLCPremium, IK08
CSC DLC Number:
PLK0DL289PAI
CSC LED Warranty:
10 Year Warranty
Product Number:
PTA02-150W-3CCT-UD
Light Specifications
Beam Angle:
90
Colour Temperature:
3000K/4000K/5000K
CRI:
80+
Dimmable:
0-10
Efficacy:
123 LM/W
Initial Lumens:
18747 lm
Life (L70):
>50,000 hrs
Electrical Specifications
IP Rating:
IP65
Operating Temperature:
-40°C to 45°C
Power Factor:
>0.9
THD:
<20%
Voltage:
120-347V
Watts:
150W
Construction Specifications
Finish Colour:
Bronze
Housing:
Aluminum
Power Cord Length:
74"
Logistics
Unit Weight:
15 lbs
Qty per Master Carton:
1
Master Carton Weight:
20.0 lbs
Master Carton Length:
33.0 in
Master Carton Width:
23.0 in
Master Carton Height:
6.0 in
Qty per Skid:
28
