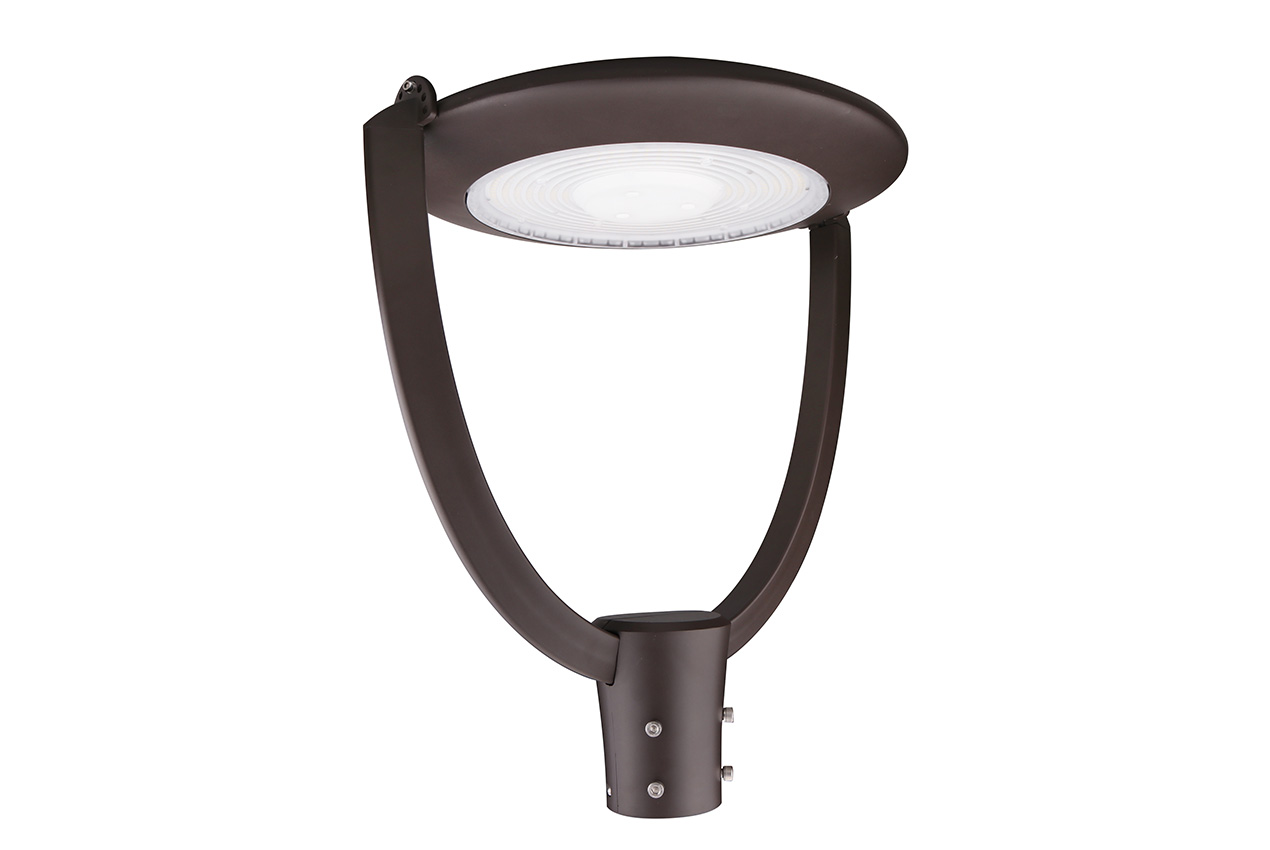

PTA02-75W-3CCT-UD
8 avis
Pole Top Area Light
75W | 3CCT | 120-347V | 9218 lm
GTIN / UPC : 10845599012143
Code-barres : 845599012146
8 avis
Elegant Look And Design Ideal For Use In Parking Lots, Pathways, Parks, And More
Colour Selectable (3000K / 4000K / 5000K)
Bronze finish
Complete with Photocell Receptacle and Shorting Cap
Optional photocell sold separately
0-10V Dimmable
Certifications Listed:
cUL, DLCPremium, IK08
CSC DLC Number:
PLGDOIKVU5WA
CSC LED Warranty:
10 Year Warranty
Product Number:
PTA02-75W-3CCT-UD
Light Specifications
Beam Angle:
90
Colour Temperature:
3000K/4000K/5000K
CRI:
80+
Dimmable:
0-10
Efficacy:
120 LM/W
Initial Lumens:
9217 lm
Life (L70):
>50,000 hrs
Electrical Specifications
IP Rating:
IP65
Operating Temperature:
-40°C to 45°C
Power Factor:
>0.9
THD:
<20%
Voltage:
120-347V
Watts:
75W
Construction Specifications
Finish Colour:
Bronze
Housing:
Aluminum
Power Cord Length:
23"
Logistics
Unit Weight:
12 lbs
Qty per Master Carton:
1
Master Carton Weight:
14.0 lbs
Master Carton Length:
29.0 in
Master Carton Width:
8.0 in
Master Carton Height:
21.0 in
Qty per Skid:
36
