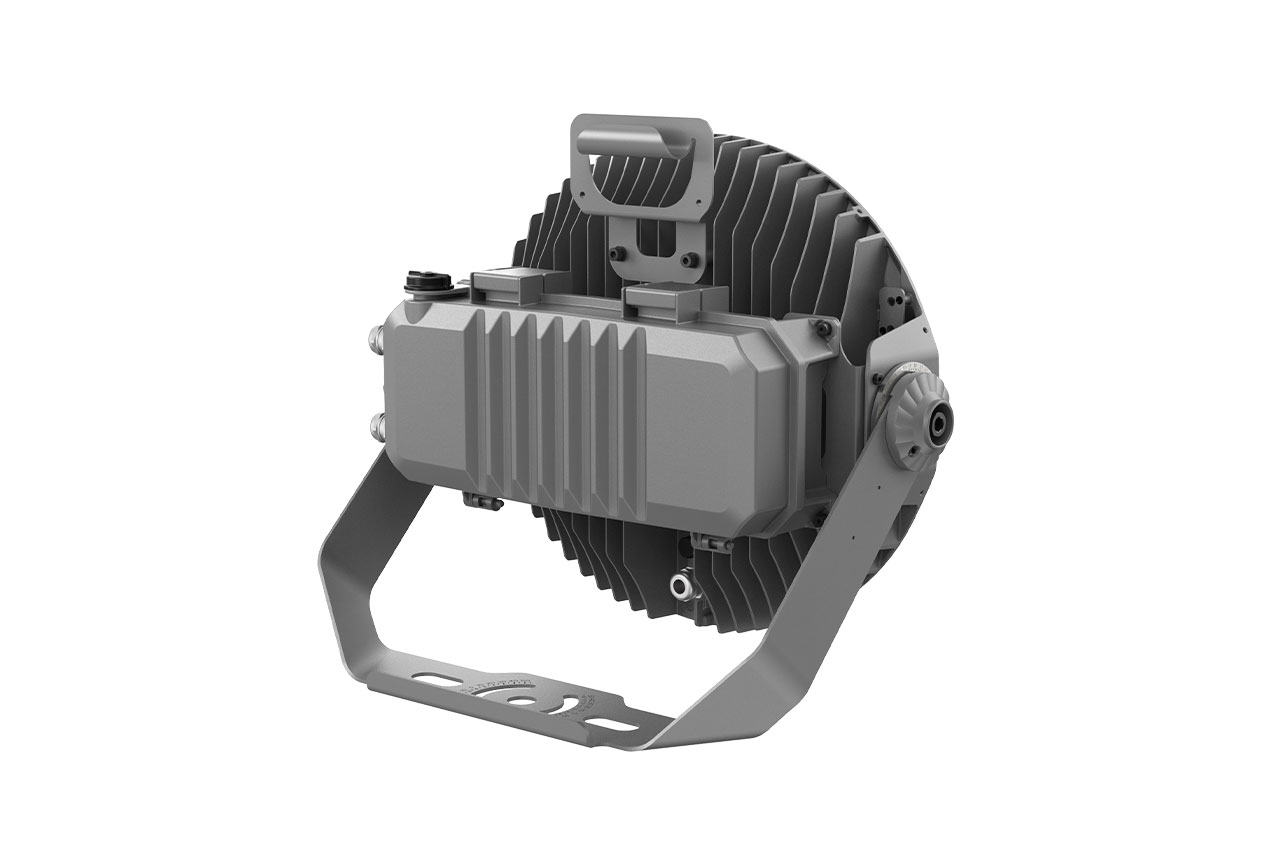

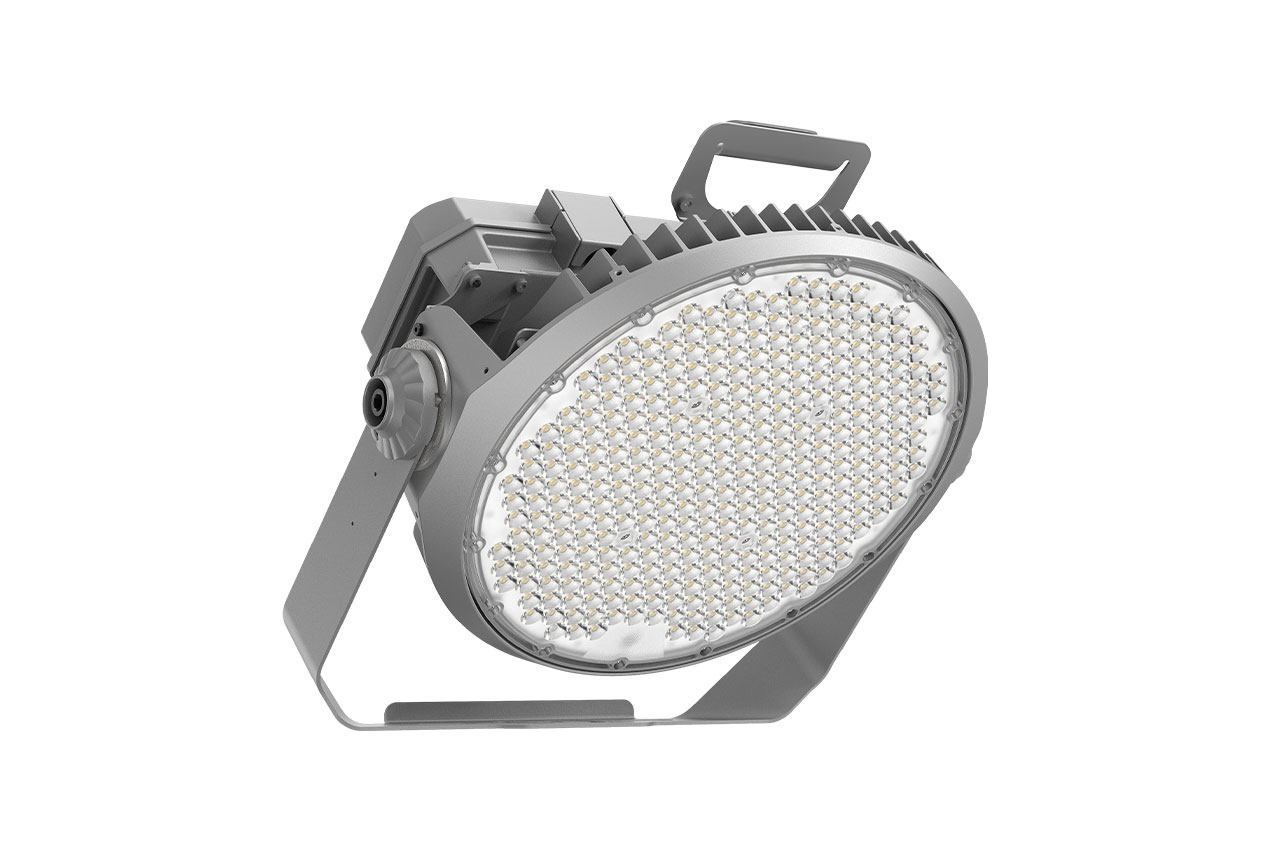

SPT-600W-3P-50K-30D-UD-GR
Titan Sports Light
400W/500W/600W | 120-347V | 5000K | 68,000 - 102,000 lm
GTIN / UPC : 10845599013140
Code-barres : 845599013143
Remote driver capability with optional Remote Driver Mount (sold separately)
Power selectable with 3 power settings per fixture
Tool-free accessible driver box
High bay mount option
1000-hour salt spray endurance
Pre-installed Yoke Mount standard with additional mounting solutions (sold separately)
Built-in Photcell Receptacle
Certifications Listed:
cUL, IK08
CSC DLC Number:
S-CS7ZW9, S-RL7RK6
Product Number:
SPT-600W-3P-50K-30D-UD-GR
Light Specifications
Beam Angle:
30°
Colour Temperature:
5000K
CRI:
70+
Dimmable:
0-10
Efficacy:
170 LM/W
Initial Lumens:
102000 lm
Life (L70):
>50,000 hrs
Electrical Specifications
Amperage:
5.0 A
IP Rating:
IP66
Operating Temperature:
-40°C to 45°C
Power Factor:
>0.9
THD:
<20%
Voltage:
120-347V
Watts:
400W/500W/600W
Construction Specifications
Finish:
Powder Coat
Finish Colour:
Grey
Housing:
Die-Cast Aluminum
Mounting Type:
Yoke Mount
Power Cord Length:
72"
Logistics
Unit Weight:
29.32 lbs
Unit Length:
16.77 in
Unit Width:
19.29 in
Unit Height:
11.46 in
Qty per Carton:
1
Qty per Master Carton:
1
Master Carton Weight:
34.0 lbs
Master Carton Length:
22.4 in
Master Carton Width:
20.5 in
Master Carton Height:
10.4 in
Qty per Skid:
28
