WCYL-D-15W-3P-3CCT-UD
3 avis

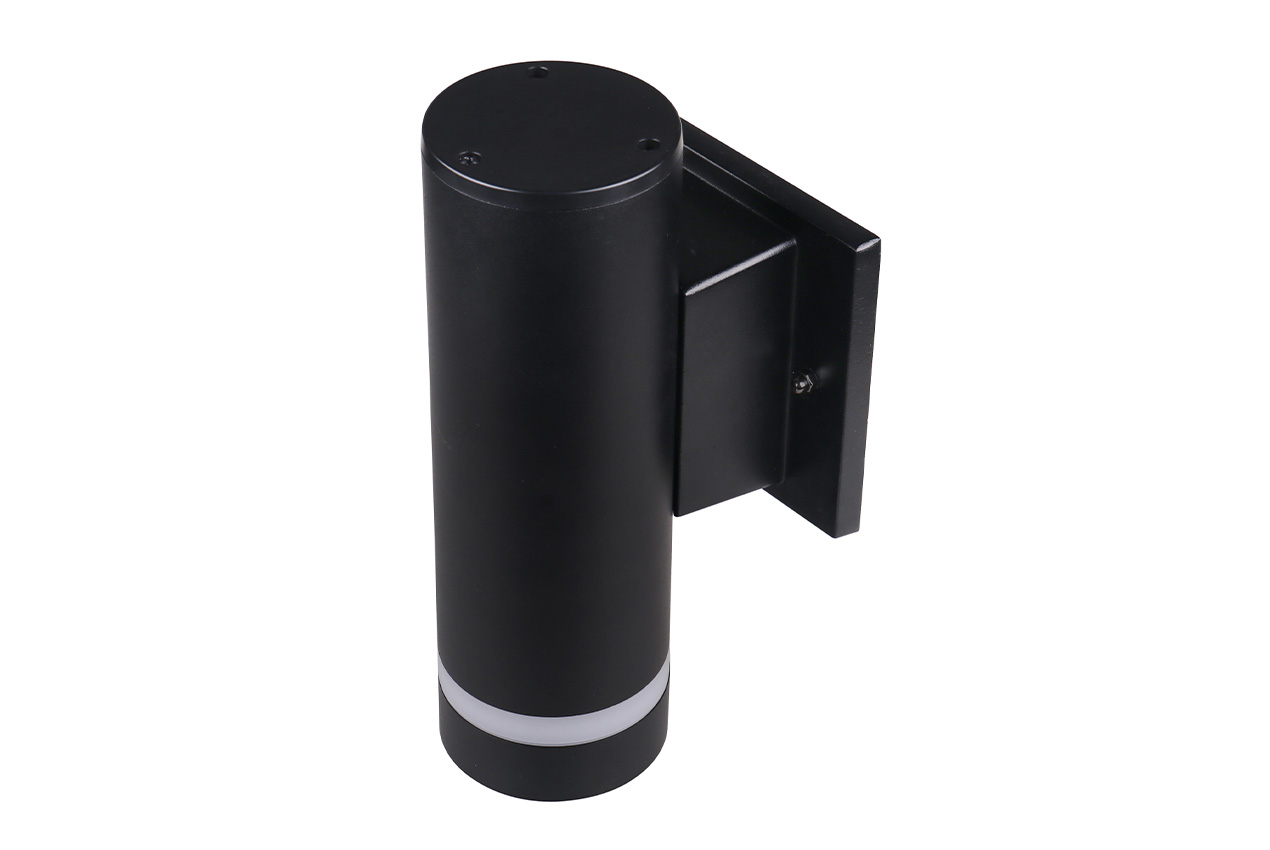

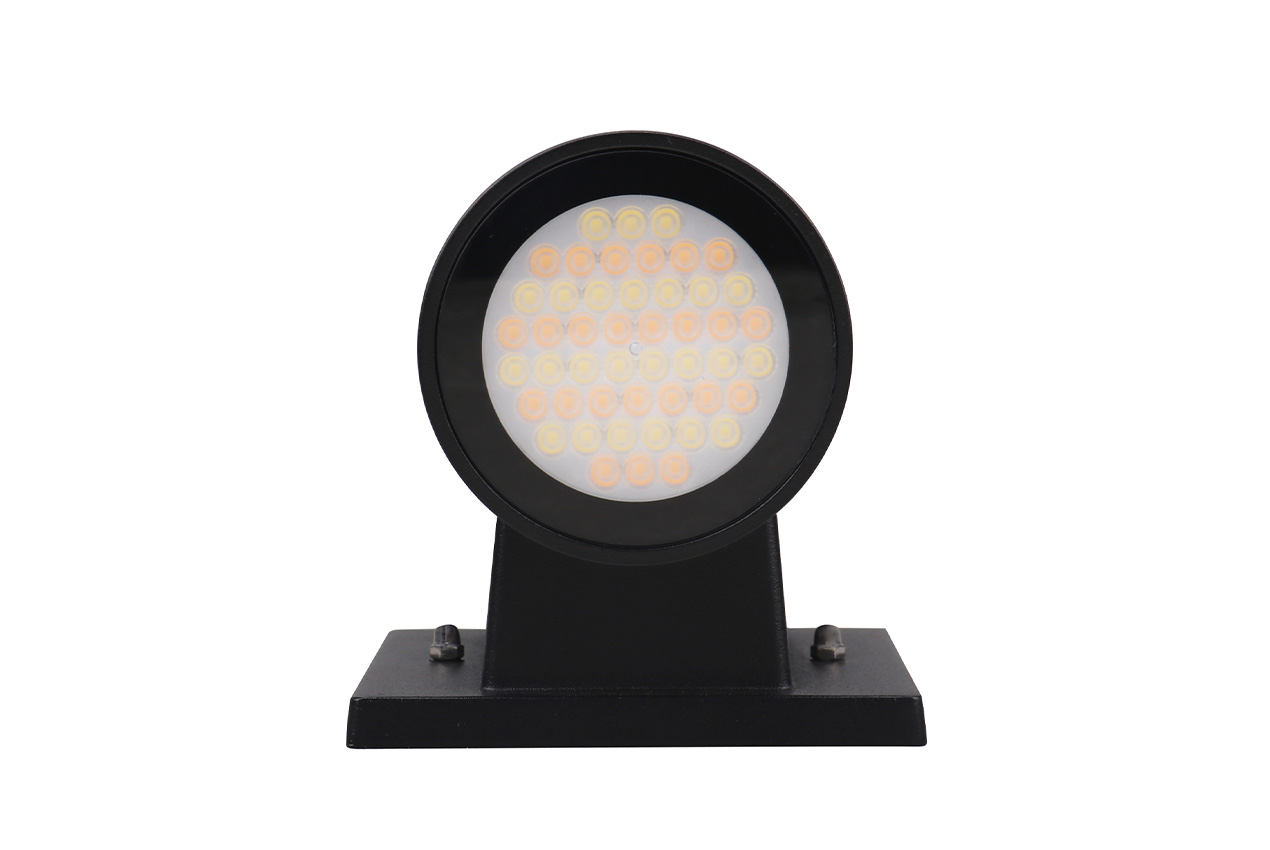

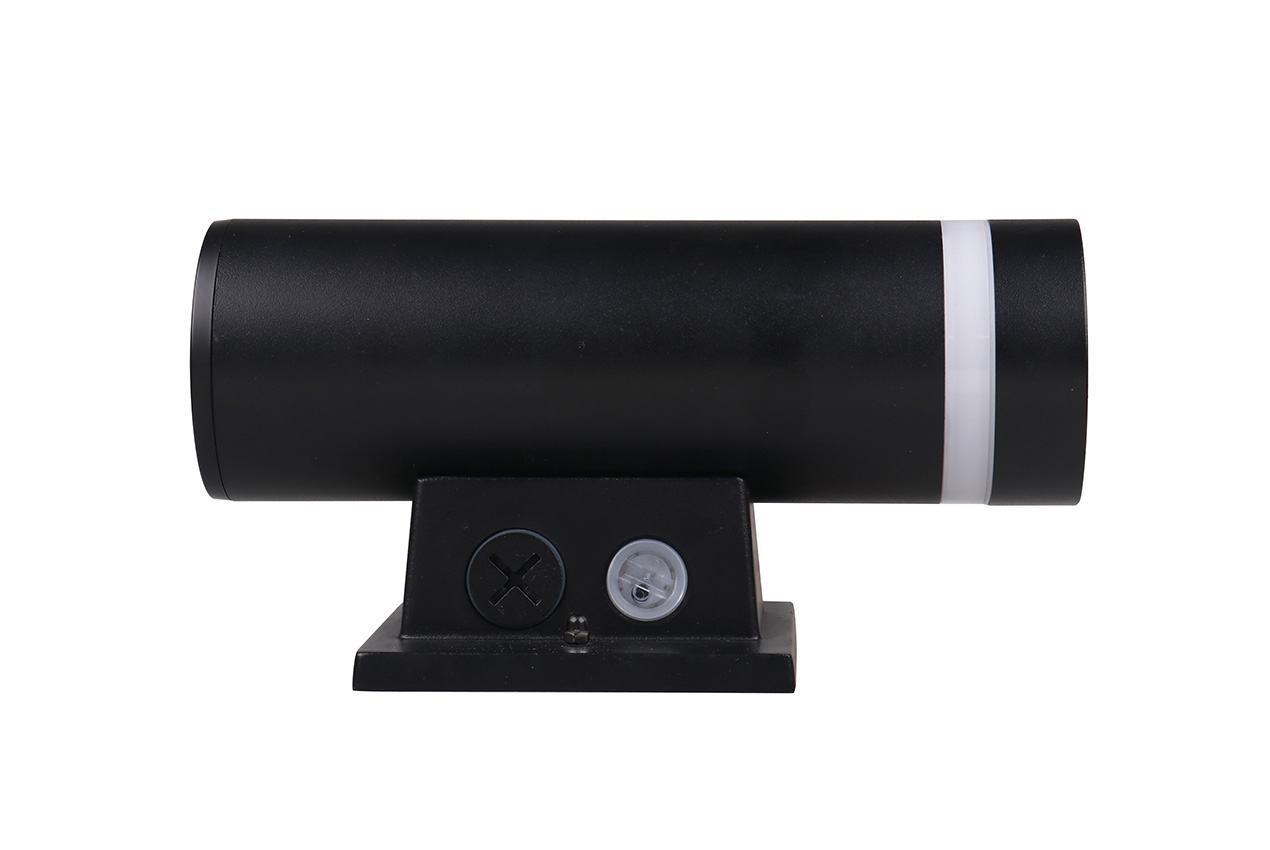

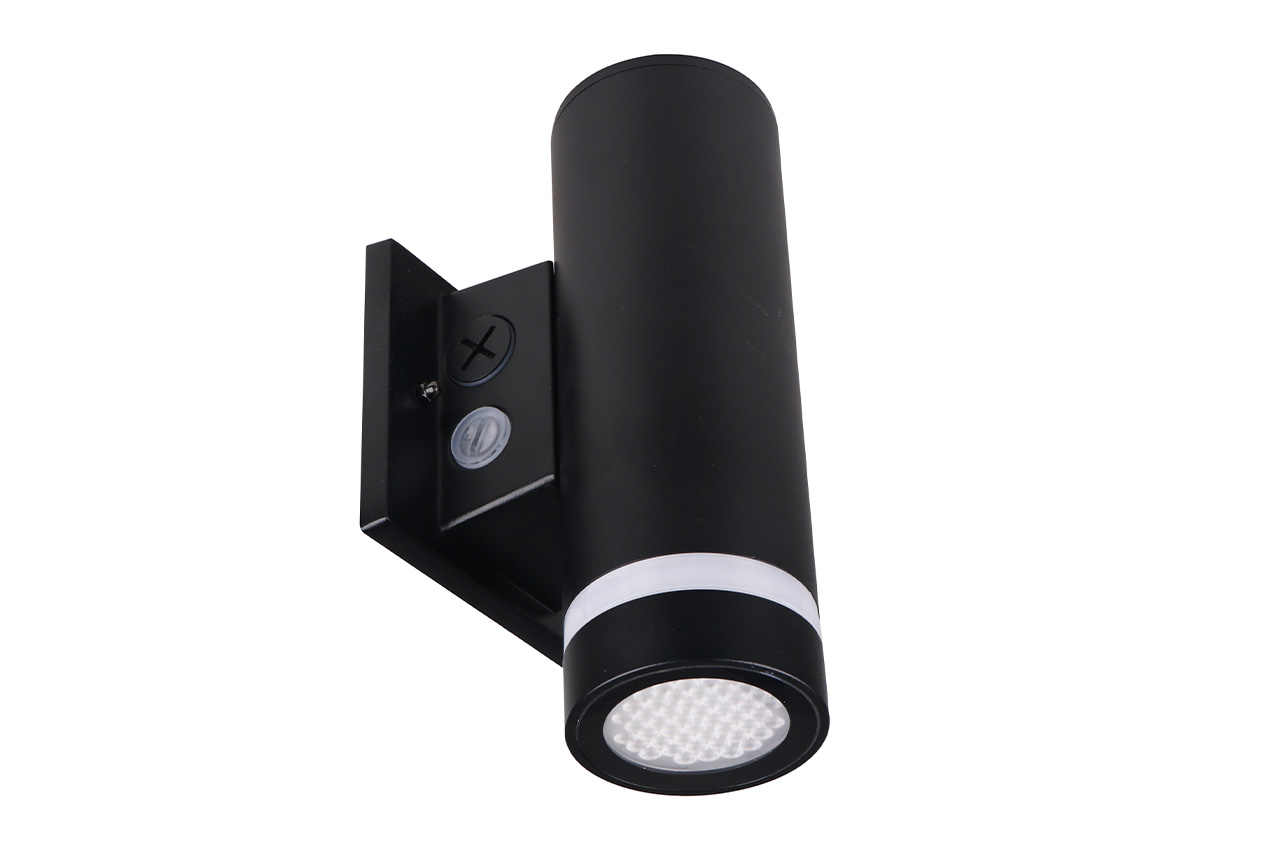

Wall Cylinder
7W/10W/15W | 3CCT | 120-347V | Direct | 739-1497 lm
GTIN / UPC : 10845599031502
Code-barres : 845599031505
3 avis
Power selectable 7W/10W/15W
Colour selectable 3000K/4000K/5000K
Built-in Photocell (unplug to bypass)
120-347V universal driver
Direct (100% downlight)
Powder coat black finish
Cylinder ring illuminates
Packaged in eco-friendly packaging without plastic
Rated IP65
Certifications Listed:
cUL, IK06
CSC LED Warranty:
10 Year Warranty
Product Number:
WCYL-D-15W-3P-3CCT-UD
Light Specifications
Beam Angle:
60°
Colour Temperature:
3000K/4000K/5000K
CRI:
80+
Dimmable:
0-10
Efficacy:
118 LM/W
Initial Lumens:
1770 lm
Life (L70):
>50,000 hrs
Electrical Specifications
Amperage:
0.2 A
IP Rating:
IP65
Operating Temperature:
-40°C to 50°C
Power Factor:
>0.9
THD:
<20%
Voltage:
120-347V
Watts:
7W/10W/15W
Construction Specifications
Finish:
Powder Coat
Finish Colour:
Black
Housing:
Die-Cast Aluminum
Power Cord Length:
7.87''
Logistics
Unit Weight:
2.71 lbs
Unit Length:
4.72 in
Unit Width:
4.76 in
Unit Height:
9.47 in
Qty per Carton:
1
Carton Weight:
3.02 lbs
Carton Length:
9.37 in
Carton Width:
5.24 in
Carton Height:
4.96 in
Qty per Master Carton:
6
Master Carton Weight:
20.3 lbs
Master Carton Length:
15.7 in
Master Carton Width:
9.9 in
Master Carton Height:
11.3 in
Qty per Skid:
432
