Wall Pack Applications Explained: Matching the Fixture to the Environment

Wall Pack Applications Explained: Matching the Fixture to the Environment

Wall packs play a critical role in exterior lighting, providing safety, visibility, and security around buildings. But not all wall packs are created equal. The right fixture depends on where it’s installed, what it’s illuminating, and how much light control is required.

From light-sensitive residential areas to expansive rural properties, this guide breaks down common wall pack applications and explains how to choose the best fixture for each environment—making specification and selection easier for any project.

What to Consider When Choosing a Wall Pack

Before selecting a wall pack, it’s important to evaluate a few key factors:

• Light trespass and glare control: Especially important near residential or sensitive properties

• Aesthetic requirements: Modern, architectural, or traditional appearances

• Mounting location and clearance: Doorways, drive lanes, or large open areas

• Replacement needs: Matching existing fixtures for 1:1 retrofits

• Finish options: Coordinating with building materials and existing lighting

With these considerations in mind, let’s explore which wall pack works best for different environments.

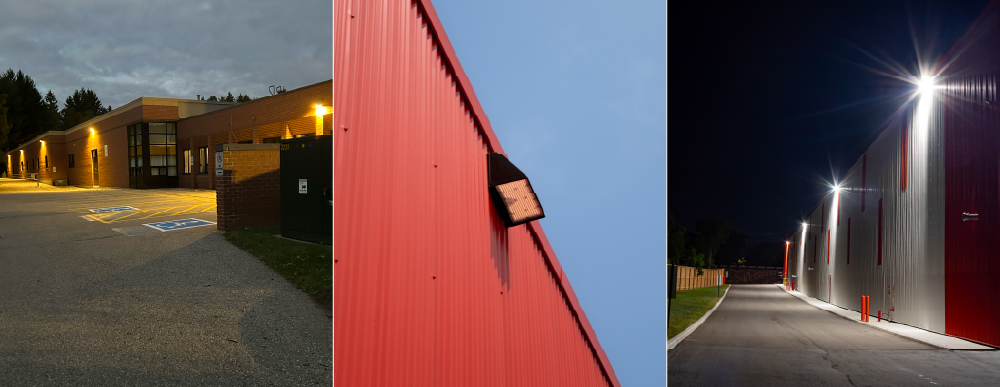

KWP — Architectural & Light-Sensitive Applications

Best suited for:

• Properties bordering light-sensitive areas such as schools or residential neighbourhoods

• Architectural or design-focused buildings

• Projects requiring finish flexibility (white, bronze, or black)

The KWP is ideal when controlling light spill is a priority. Its design supports applications where minimizing glare and light trespass is essential, making it well-suited for urban settings and mixed-use properties. With multiple finish options, it also integrates seamlessly into architecturally driven designs.

Choose KWP when: You need a refined appearance with controlled distribution near sensitive environments.

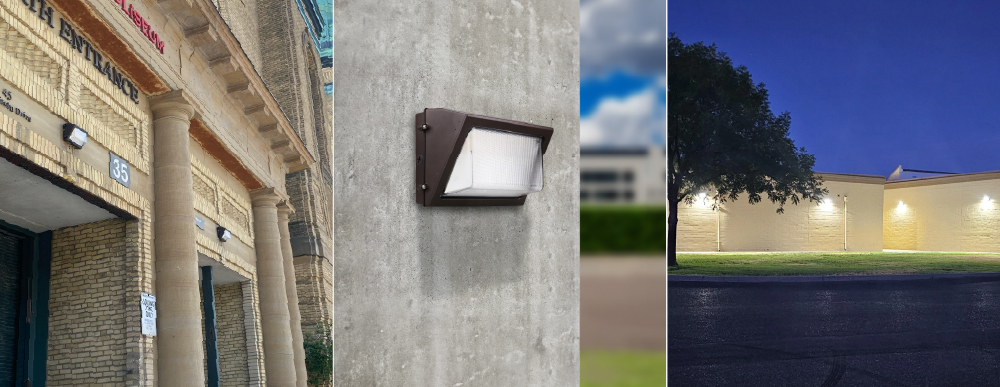

CWP05 — Traditional & Open-Area Installations

Best suited for:

• Farms or large properties with minimal light trespass concerns

• Facilities maintaining a classic wall pack appearance

• One-for-one replacements where fixtures are updated gradually

• A dependable choice for projects exposed to demanding environments

The CWP05 is a practical solution for wide-open spaces and traditional installations. Its familiar design makes it ideal for retrofits where consistency matters, especially when replacing fixtures over time.

Choose CWP05 when: You want a straightforward, highly durable traditional wall pack that closely matches existing installations.

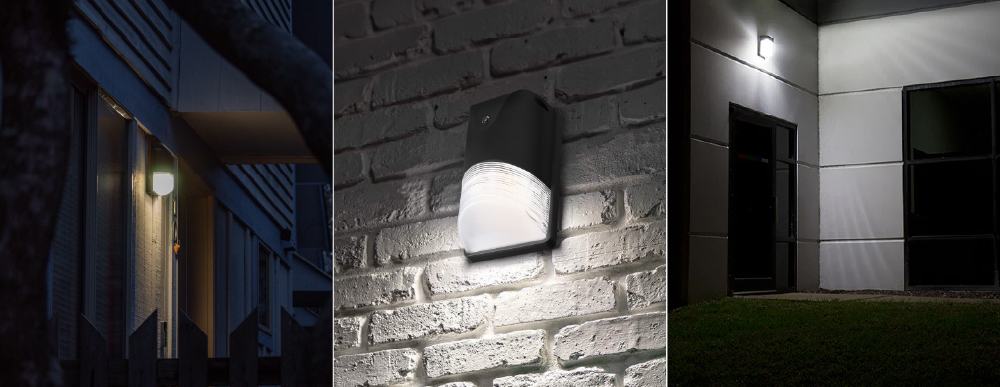

MWP04 — Entrances & HID Replacements

Best suited for:

• Man doors and side entrances

• Facilities upgrading from older HID wall packs

• Applications requiring a compact footprint and compatibility with existing fixtures

Designed to match the footprint of traditional HID wall packs, the MWP04 simplifies retrofit projects. It’s an excellent choice for improving efficiency and light quality without modifying mounting surfaces or layouts.

Choose MWP04 when: You need an easy retrofit for entrances while maintaining mounting compatibility.

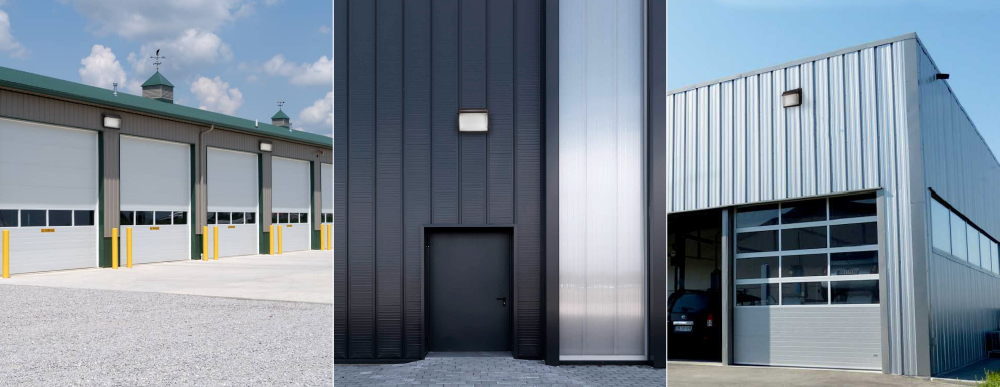

CWPS — Drive Lanes & Clearance-Sensitive Areas

Best suited for:

• Narrow drive lanes or areas requiring additional clearance

• Locations replacing very large wall pack fixtures (up to 14" wide)

• Facilities seeking a classic look with a subtle modern update

The CWPS features a slimmer profile, making it ideal for tight spaces where projection from the wall needs to be minimized. Despite its thinner design, it still covers the footprint of larger fixtures, making it an excellent retrofit option.

Choose CWPS when: Clearance is limited, but coverage and visual continuity are still required.

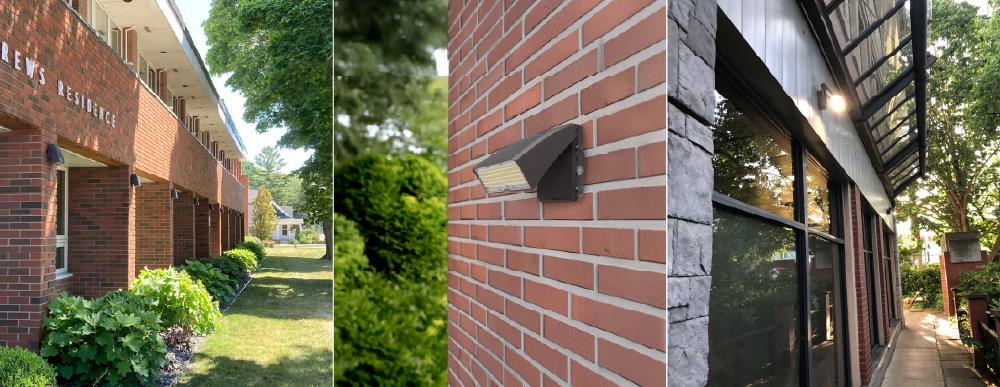

AWP05 — Architectural Walkways & Building Perimeters

Best suited for:

• Architectural and design-forward spaces

• Building walkways requiring light directed along the structure

• Projects replacing existing architectural-style wall packs

Similar in application to the KWP, the AWP05 focuses on delivering light along the building rather than outward, making it ideal for walkways and perimeter paths. Its design supports visual continuity while enhancing pedestrian safety.

Choose AWP05 when: You want architectural lighting that complements the building while guiding foot traffic.

Final Thoughts

Selecting the right wall pack isn’t just about output—it’s about matching the fixture to its environment. Whether you’re managing light trespass, preserving an architectural aesthetic, or upgrading existing fixtures with minimal disruption, understanding application-specific needs makes all the difference.

By choosing the right wall pack for each space, you can improve safety, efficiency, and visual appeal—while ensuring your lighting solution works in harmony with its surroundings.

See our Keystone Wall Packs in action at a recent Spotted on Site installation that supports DarkSky lighting.
