CLEARANCE
VOL14-30W-35K-UD
Volumetric Troffer
1x4 | 30W | 3500K | 120-347V | 3941 lm
GTIN / UPC: 10845599060663
Barcode: 845599060666
CLEARANCE ITEM - While supplies last
Final Sale - 1-Year Manufacturer Warranty

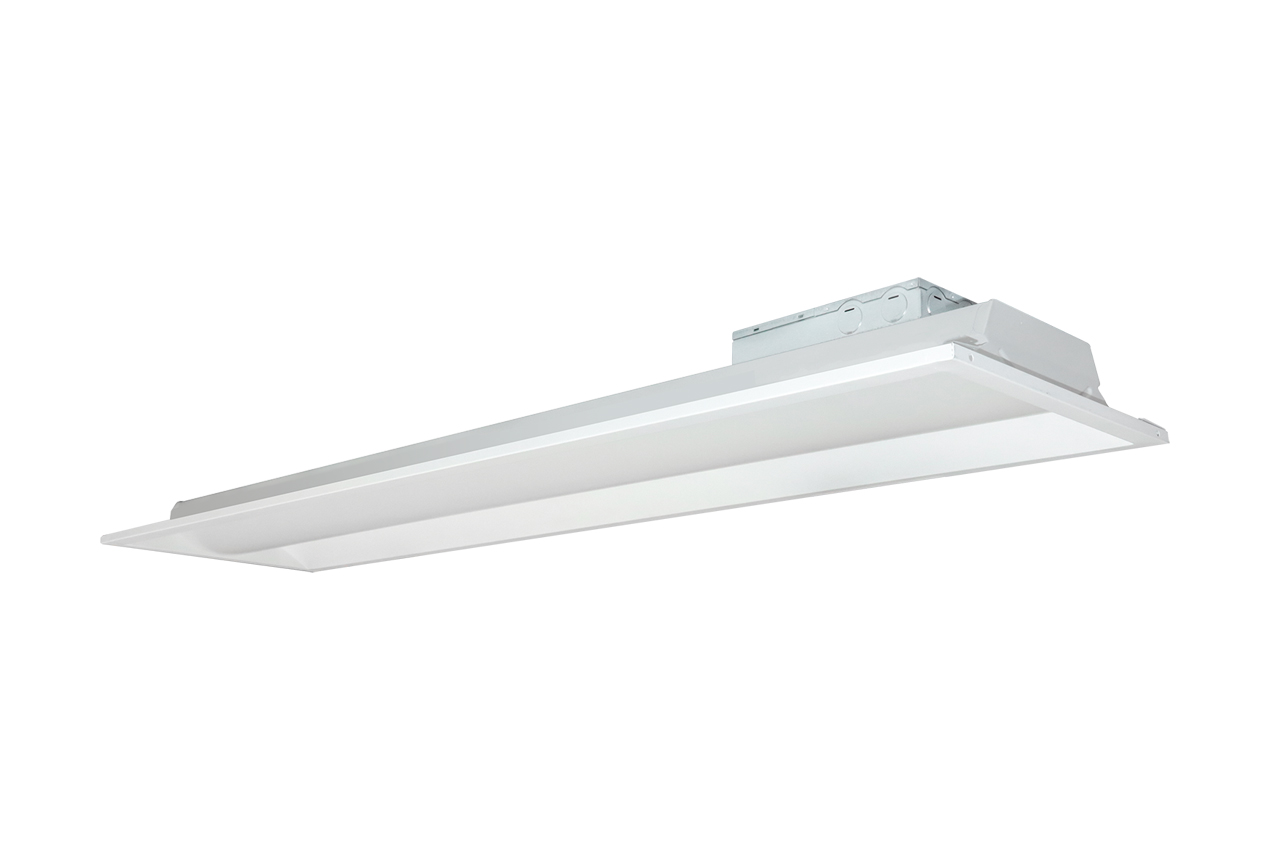

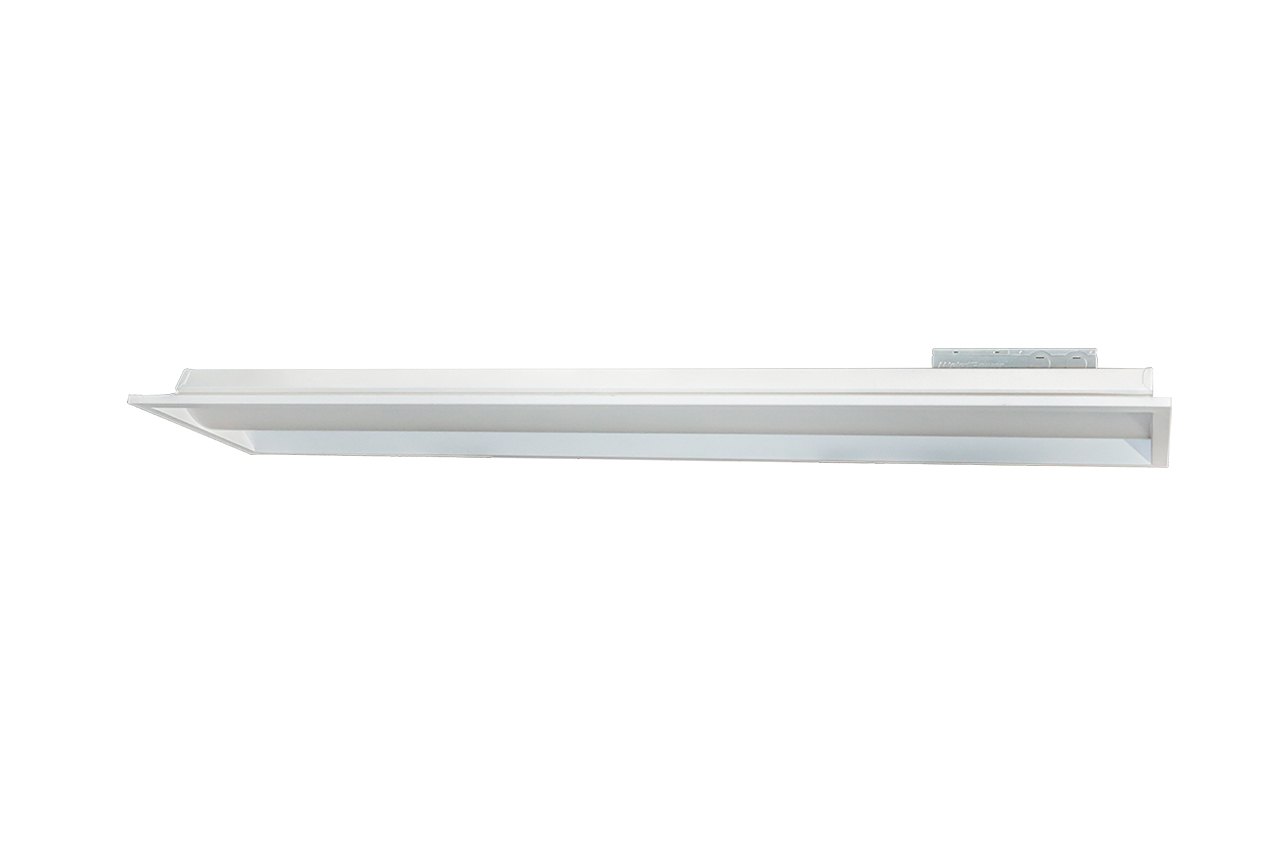

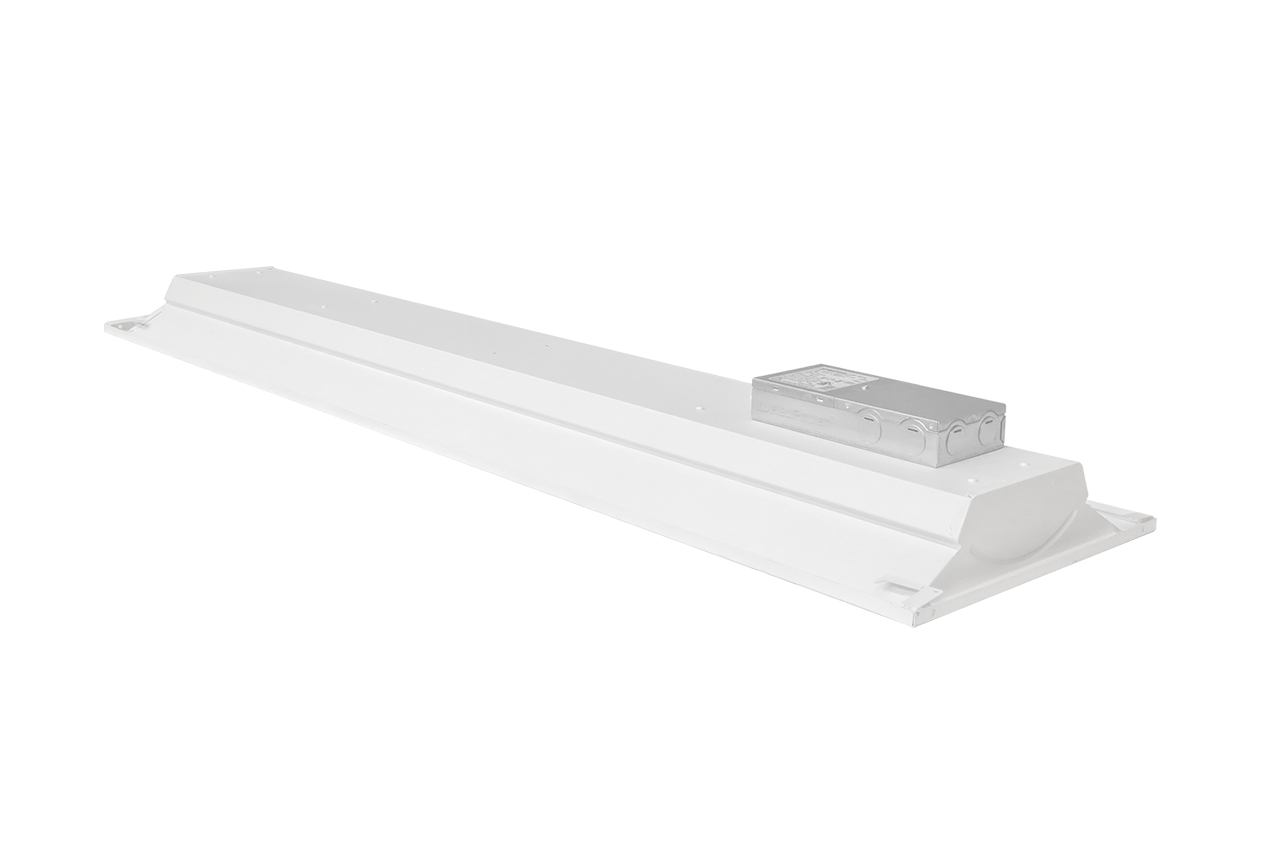

Volumetric Troffer 1x4
120-347V, 0-10V Dimmable
Rigid steel frame mounts to any T-Bar ceiling
Low glare frosted diffuser
Certifications Listed:
cUL
CSC LED Warranty:
1 Year Warranty
Product Number:
VOL14-30W-35K-UD
Light Specifications
Colour Temperature:
3500K
CRI:
82.5
Dimmable:
0-10
Efficacy:
130.67 LM/W
Initial Lumens:
3941 lm
Life (L70):
>50,000 hrs
Electrical Specifications
IP Rating:
IP20
Operating Temperature:
-20°C to 40°C
Power Factor:
0.9
THD:
13.11%
Voltage:
120-347V
Watts:
30W
Construction Specifications
Finish Colour:
White
Housing:
Steel
Logistics
Unit Weight:
8 lbs
Qty per Carton:
1
Qty per Master Carton:
2
Master Carton Weight:
17.0 lbs
Master Carton Length:
50.0 in
Master Carton Width:
9.0 in
Master Carton Height:
14.0 in
Qty per Skid:
60
VOL14-30W-35K-UD
Volumetric Troffer
1x4 | 30W | 3500K | 120-347V | 3941 lm
GTIN / UPC: 10845599060663
Barcode: 845599060666
