CLEARANCE

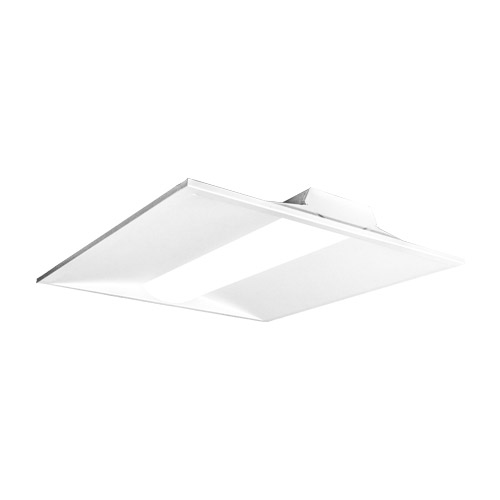

VOL22-30W-35K-UD
Volumetric Troffer
2X2 | 30W | 3500K | 120-347V | 3780 lm
GTIN / UPC: 10845599060540
Barcode: 845599060543
CLEARANCE ITEM - While supplies last
Final Sale - 1-Year Manufacturer Warranty
Volumetric Troffer 2x2
120-347V, 0-10V Dimmable
Rigid steel frame mounts to any T-Bar ceiling
Low glare frosted diffuser
Certifications Listed:
cUL
CSC LED Warranty:
1 Year Warranty
Product Number:
VOL22-30W-35K-UD
Light Specifications
Colour Temperature:
3500K
CRI:
82.8
Dimmable:
0-10
Efficacy:
126.72 LM/W
Initial Lumens:
3765 lm
Electrical Specifications
IP Rating:
IP20
Operating Temperature:
-20°C to 40°C
Power Factor:
0.9
THD:
11.9%
Voltage:
120-347V
Watts:
30W
Construction Specifications
Finish Colour:
White
Housing:
Steel
Logistics
Unit Weight:
7 lbs
Qty per Carton:
1
Qty per Master Carton:
2
Master Carton Weight:
14.0 lbs
Master Carton Length:
26.0 in
Master Carton Width:
7.0 in
Master Carton Height:
26.0 in
Qty per Skid:
192
