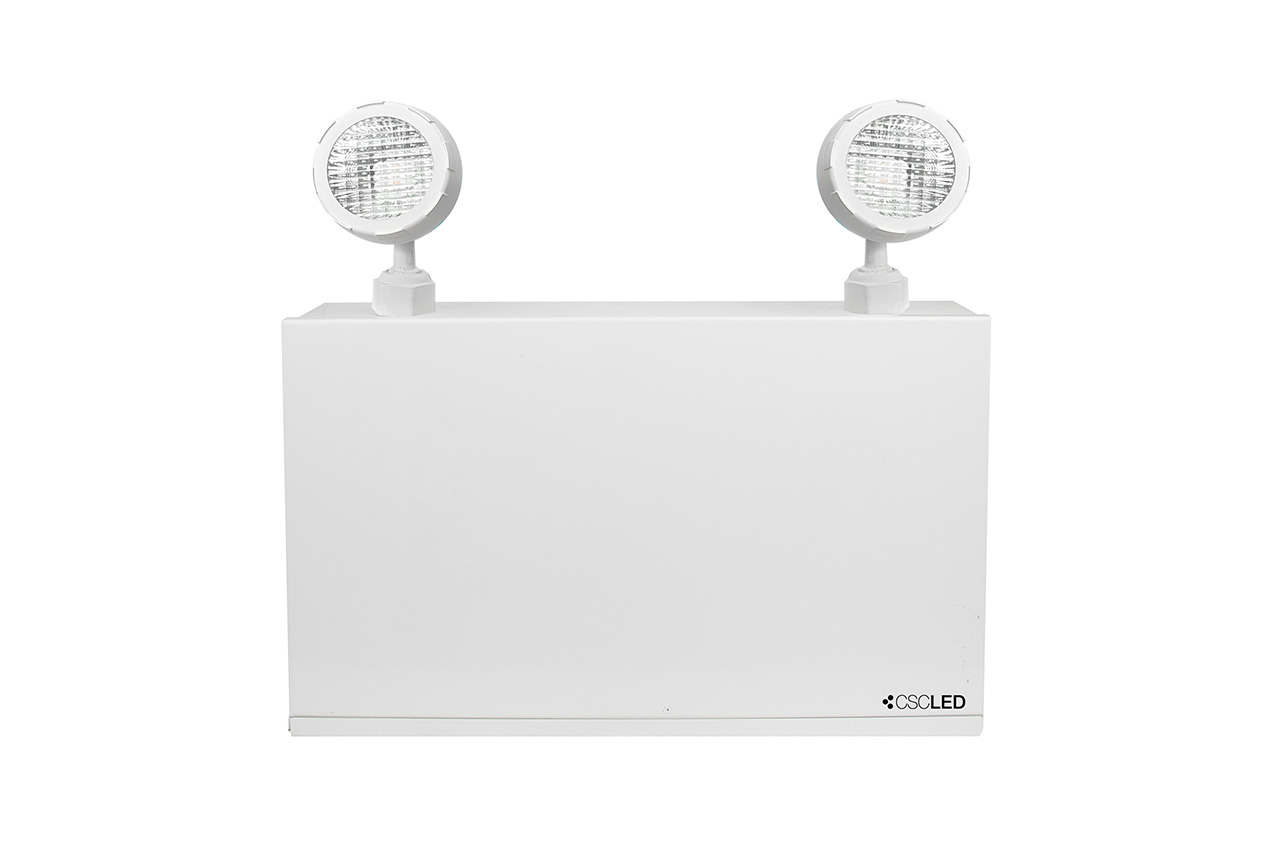

EML-BU-S-UD-140W
Battery Unit
2 x 5W Heads | 120/347V | 140W Battery
GTIN / UPC : 10845599062520
Code-barres : 845599062523
2 x 5W high-output LED lamp heads
Multiple conduit entry knockouts
Universal spider knockout pattern and keyhole slots stamped into the cabinet back for easy installation
Up to 120 min discharge time (see product sheet for complete discharge table)
Wall, Pendant, or Ceiling Mount
Short circuit and brown out protection
Push button test switch
3' 120V power cord with cord end included
3' 120V power cord with cord end included
Certifications Listed:
CSA
CSC LED Warranty:
5 Year Warranty
Product Number:
EML-BU-S-UD-140W
Electrical Specifications
IP Rating:
IP20
Operating Temperature:
5°C to 35°C
Voltage:
120/347V
Construction Specifications
Finish Colour:
White
Housing:
Steel
Mounting Type:
Wall, Pendant/Conduit
Power Cord Length:
36"
Battery Specifications
Battery Type:
Lead Acid
Battery Capacity:
140W
Battery Voltage:
12.00 V
Battery Amp Hours:
12.00 Ah
Battery Recharge Time:
35 Hours
Max Discharge Time:
120 Minutes
Lamp Head Specifications
Number of Lamp Heads:
2
Lamp Head Watts:
5 W
Total Lumens:
755 lm
Lamp Input Voltage:
12 V
Lamp Head Material:
Thermoplastic
Logistics
Unit Weight:
14.8 lbs
Unit Length:
4.2 in
Unit Width:
13.5 in
Unit Height:
12.5 in
Qty per Carton:
1
Carton Weight:
15.4 lbs
Carton Length:
4.7 in
Carton Width:
14.0 in
Carton Height:
13.6 in
Qty per Master Carton:
2
Master Carton Weight:
33.0 lbs
Master Carton Length:
10.2 in
Master Carton Width:
14.8 in
Master Carton Height:
14.4 in
Qty per Skid:
48
EML-BU-S-UD-140W
Battery Unit
2 x 5W Heads | 120/347V | 140W Battery
GTIN / UPC : 10845599062520
Code-barres : 845599062523
