Designed to operate from the power and control circuitry of emergency lighting battery units and DC power back-up systems

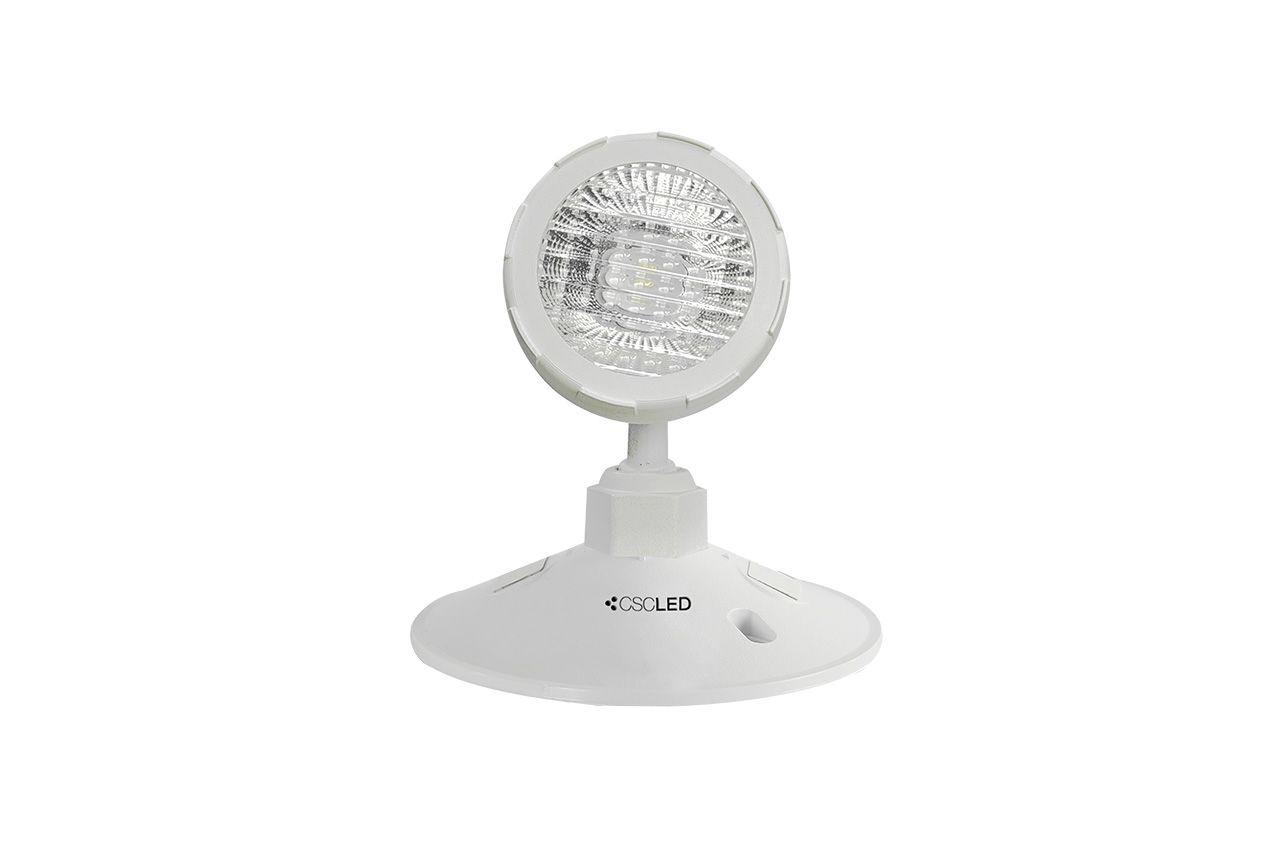

1 x 2W adjustable swivel lamp head
Includes standard canopy allowing for mounting to electrical junction boxes
Robust thermoplastic housing
Certifications:
CSA
Garantie CSC LED:
5 Year Warranty
Numéro de produit:
EML-RH-P-DC-2W-1H
Caractéristiques lumineuses
Lumens initiaux:
125 lm
Caractéristiques électriques
Amperage:
0.4 A
Indice IP:
IP 20
Température de fonctionnement:
5°C to 30°C
Tension:
6-24V
Caractéristiques de construction
Couleur de finition:
White
Boîtier:
Thermoplastic
Type de fixation:
Wall Mount
Caractéristiques des têtes de lampe
Nombre de têtes de lampe:
1
Puissance par tête de lampe:
2 W
Tension d'entrée des têtes de lampe:
6-24 V
Matériau des têtes de lampe:
Thermoplastic
Logistique
Poids unitaire:
0.39 lbs
Unit Length:
5.7 in
Unit Width:
5.0 in
Unit Height:
5.0 in
Qté par carton:
1
Carton Weight:
0.6 lbs
Carton Length:
5.5 in
Carton Width:
5.3 in
Carton Height:
5.5 in
Qté par carton principal:
20
Poids du carton principal:
14.5 lbs
Longueur du carton principal:
28.4 in
Largeur du carton principal:
11.2 in
Hauteur du carton principal:
11.8 in
Qté par palette:
320
CUP:
845599062585
GTIN:
10845599062582
