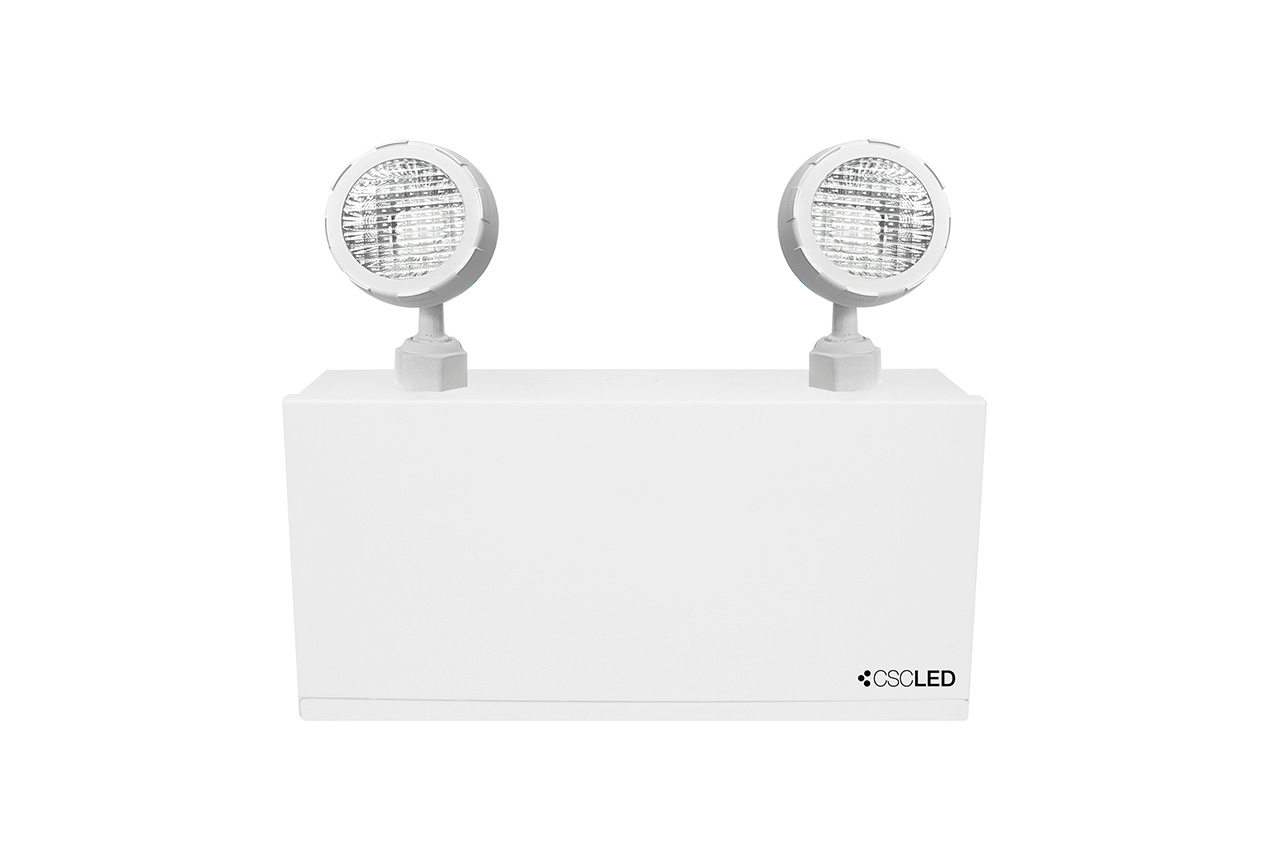

2 x 2W high-output LED lamp heads
Multiple conduit entry knockouts
Universal spider knockout pattern and keyhole slots stamped into the cabinet back for easy installation
Up to 120 min discharge time (see product sheet for complete discharge table)
Wall, Pendant, or Ceiling Mount
Short circuit and brown out protection
Push button test switch
3' 120V power cord with cord end included
Certifications:
CSA
Garantie CSC LED:
5 Year Warranty
Numéro de produit:
EML-BU-S-UD-36W
Caractéristiques électriques
Indice IP:
IP 20
Température de fonctionnement:
5°C to 30°C
Tension:
120-347V
Caractéristiques de construction
Couleur de finition:
White
Boîtier:
Steel
Type de fixation:
Wall, Pendant/Conduit
Power Cord Length:
36 "
Caractéristiques de la batterie
Type de batterie:
Lead Acid
Capacité de la batterie:
36W
Tension de la batterie:
6.00 V
Ampères-heures de la batterie:
6.00 Ah
Temps de recharge de la batterie:
24 Hours
Durée de décharge maximale:
120 Minutes
Caractéristiques des têtes de lampe
Nombre de têtes de lampe:
2
Puissance par tête de lampe:
2 W
Lumens totaux:
212 lm
Tension d'entrée des têtes de lampe:
6 V
Matériau des têtes de lampe:
Thermoplastic
Logistique
Poids unitaire:
5.1 lbs
Unit Length:
3.1 in
Unit Width:
11.3 in
Unit Height:
10.1 in
Qté par carton:
1
Carton Weight:
5.2 lbs
Carton Length:
3.2 in
Carton Width:
12.2 in
Carton Height:
9.8 in
Qté par carton principal:
5
Poids du carton principal:
29.3 lbs
Longueur du carton principal:
16.5 in
Largeur du carton principal:
12.8 in
Hauteur du carton principal:
10.6 in
Qté par palette:
120
CUP:
845599062530
GTIN:
10845599062537
